DMC:V2500-A1-72-42-40-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72424001 | ENGINE-HP COMPRESSOR EXIT STATOR, PRE SBE70-0722 | aa | ||
| SBE0722-01 | ENGINE-HP COMPRESSOR EXIT STATOR | ab | ||
| 200 | 6A3332 | • CASE - STG 12 & OGV | aa-ab | 1 |
| 220 | 6A7390 | • • VANE - OUTLET GUIDE POST SBE70-0722 | ab | 1 |
| 221 | 6A7391 | • • VANE - OUTLET GUIDE POST SBE70-0722 | ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

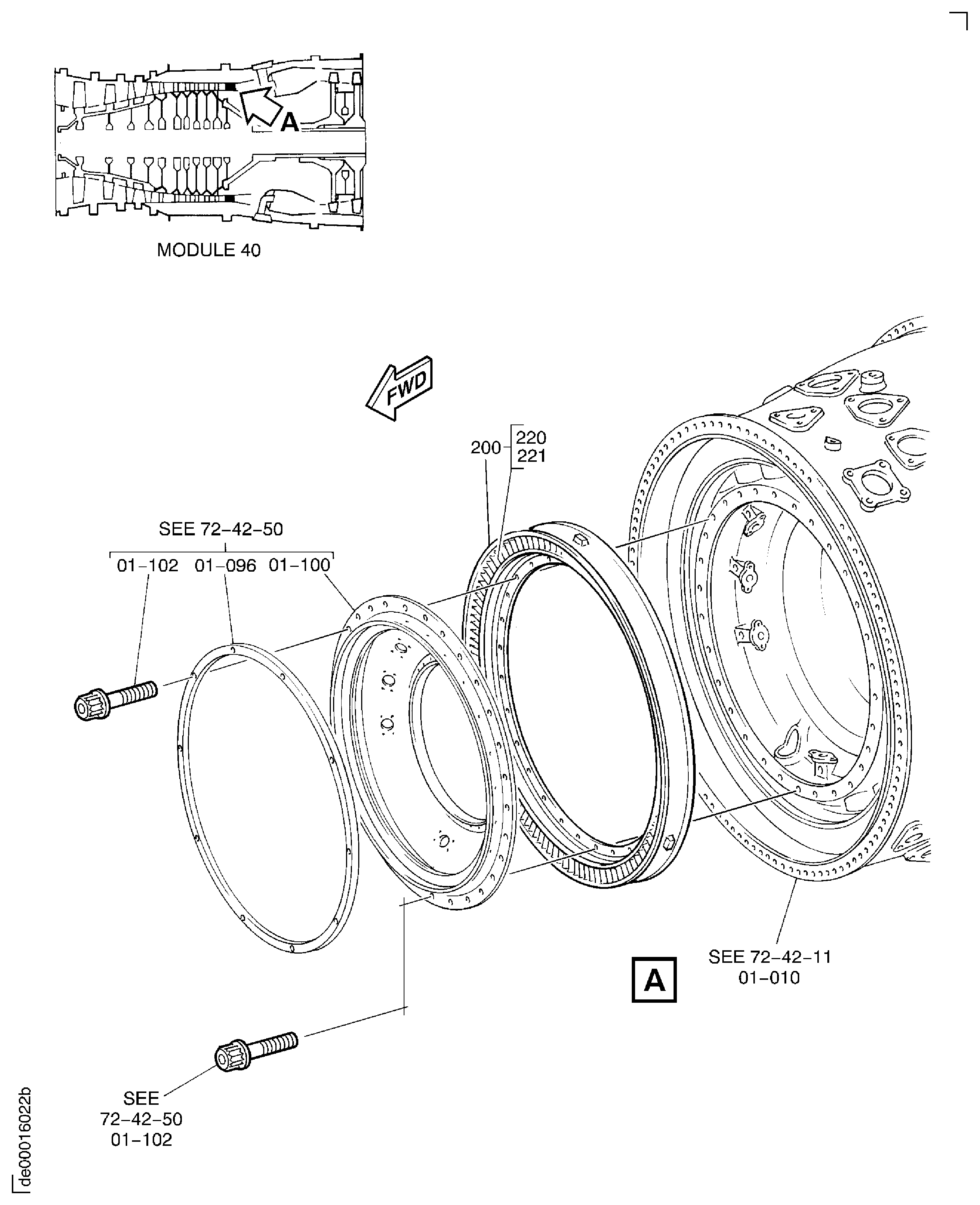

Figure: ENGINE-HP COMPRESSOR EXIT STATOR
HP COMPRESSOR OUTLET GUIDE VANES CASE
