DMC:V2500-A1-72-42-50-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72425001 | ENGINE-STATIC SEAL, PRE SBE72-0041 | aa | ||
| SBE0041-01 | ENGINE-STATIC SEAL, PRE SBE70-0211 | ab | ||
| SBE0211-01 | ENGINE-STATIC SEAL, PRE SBE72-0143 | ac | ||
| SBE0143-01 | ENGINE-STATIC SEAL, PRE SBE70-0798 | ad | ||
| SBE0798-01 | ENGINE-STATIC SEAL | ae | ||
| 096 | 6A2507 | • SHIELD - HEAT PRE SBE72-0143 | aa-ac | 1 |
| 100 | 6A3306 | • SEAL - ASSY OF PRE SBE72-0041 | aa | 1 |
| 100A | 6A3932 | • SEAL - A/O POST SBE72-0041 PRE SBE70-0211 | ab-ae | 1 |
| 100B | 6A4806 | • SEAL - A/O STATIC, AIR COMP POST SBE70-0211 | ab-ae | 1 |
| 102 | 4W0408 | • BOLT - .250 DIA X .875 PRE SBE72-0143 | aa-ac | 30 |
| 102A | 4W1486 | • BOLT - .250 DIA X .750 POST SBE72-0143 | ad-ae | 30 |
| 120 | AS16288 | • • RIVET - SOLID UNIVERSAL HD,(VRS6201) U1653 POST SBE70-0222 | ***** | 1 |
| 121 | AS16329 | • • RIVET - SOLID UNIVERSAL HD,(VRS6201) U1653 POST SBE70-0222 | ***** | 1 |
| 123 | AS16289 | • • RIVET - SOLID UNIVERSAL HD,(VRS6201) U1653 POST SBE70-0222 | ***** | 1 |
| 124 | AS16330 | • • RIVET - SOLID UNIVERSAL HD,(VRS6201) U1653 POST SBE70-0222 | ***** | 1 |
| 126 | AS16689 | • • RIVET - SOLID CSK HEAD U1653 POST SBE70-0798 | ae | 24 |
| 127 | AS16730 | • • RIVET - SOLID CSK HEAD OVERSIZE U1653 POST SBE70-0798 | ae | 24 |
| 128 | 6A4141 | • • PLATE - RETAINING,(VRS6201) POST SBE70-0222 | ***** | 6 |
| 130 | 6A3933 | • • BRUSH - SEAL A/O,(VRS6201) POST SBE70-0222 | ***** | 1 |
| 145 | 6A4144 | • • SEAL - ASSY OF,(VRS6204) POST SBE70-0222 | ***** | 1 |
| 145A | 6A5944 | • • SEAL - ASSY OF, OUTER CARRIER,(VRS6204) POST SBE70-0353 | ***** | 1 |
| 160 | 6A4143 | • • SEAL - ASSY OF, INNER CARRIER,(VRS6203) POST SBE70-0222 | ***** | 1 |
| 180 | 6A1576 | • • CONNECTR - VENT POST SBE70-0798 | ae | 6 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

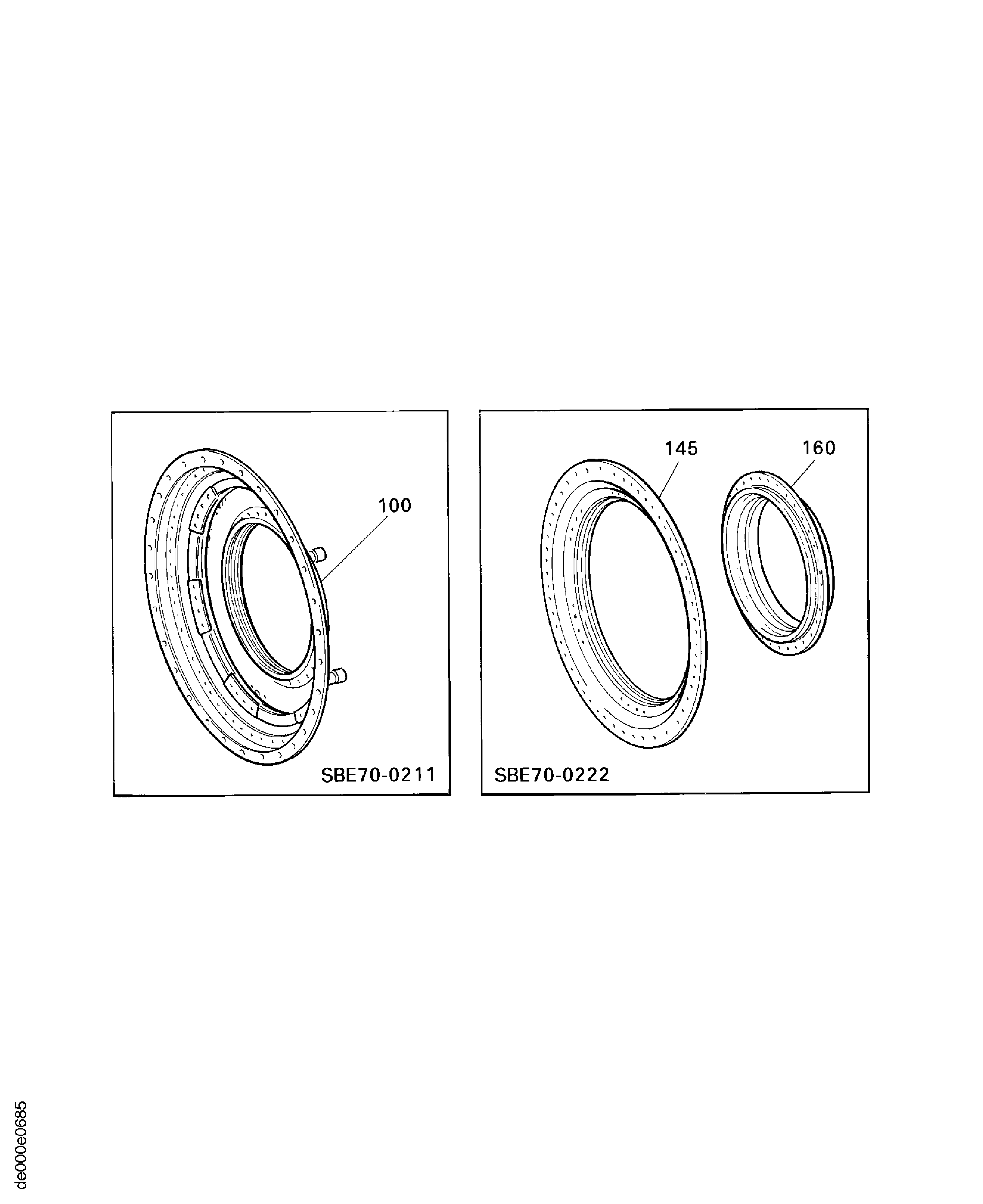

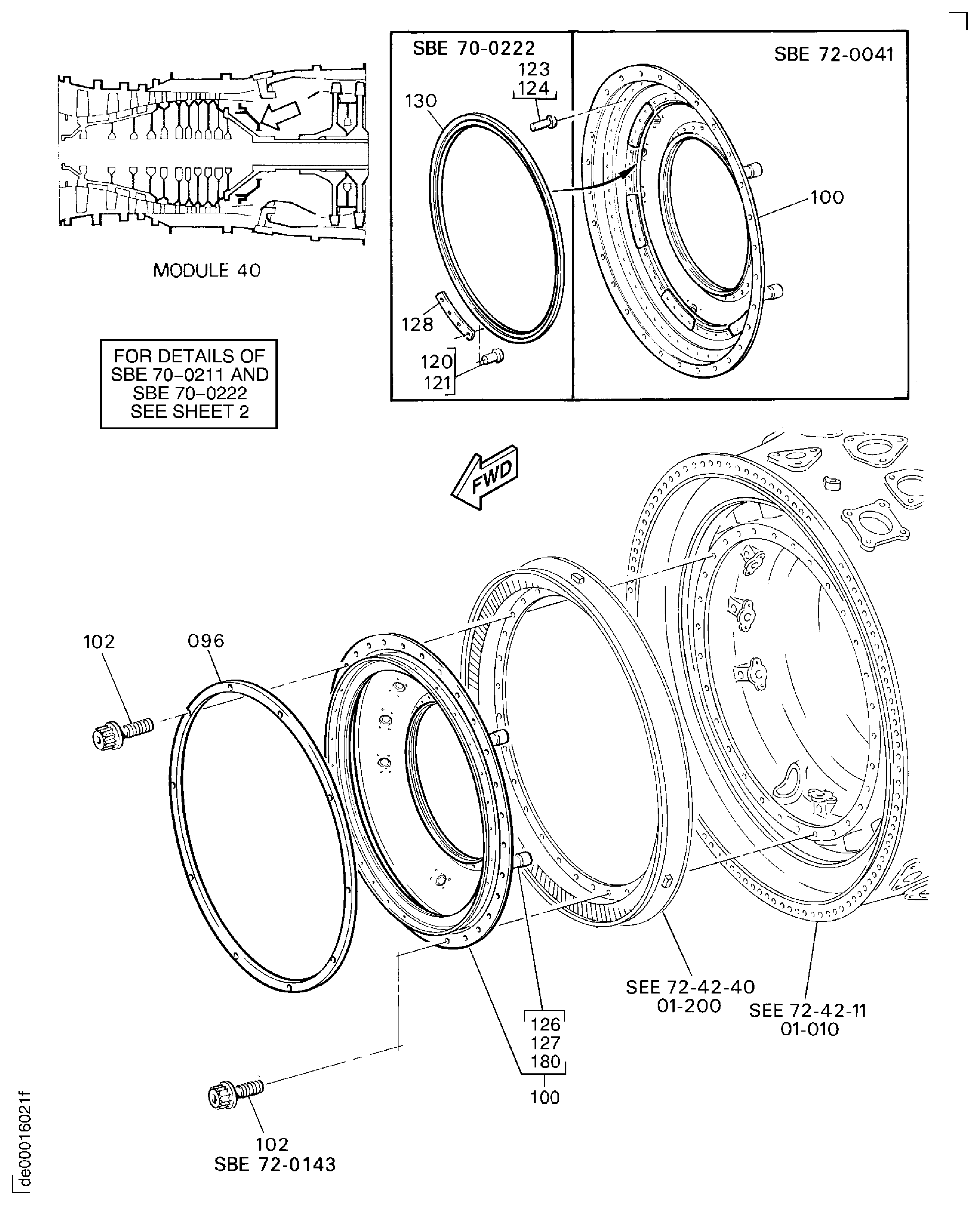

Figure: ENGINE-STATIC SEAL
HP COMPRESSOR STATIC AIR SEAL
HP COMPRESSOR STATIC AIR SEAL
