DMC:V2500-A1-72-42-61-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72426101 | ENGINE-COMBUSTION CHAMBER OUTER LINER, PRE SBE72-0006 | aa | ||
| SBE0006-01 | ENGINE-COMBUSTION CHAMBER OUTER LINER, PRE SBE72-0060 | ab | ||
| SBE0060-01 | ENGINE-COMBUSTION CHAMBER OUTER LINER, PRE SBE72-0116 | ac | ||
| SBE0116-01 | ENGINE-COMBUSTION CHAMBER OUTER LINER, PRE SBE70-0253 | ad | ||
| SBE0253-01 | ENGINE-COMBUSTION CHAMBER OUTER LINER, PRE SBE72-0315 | ae | ||
| SBE0315-01 | ENGINE-COMBUSTION CHAMBER OUTER LINER, PRE SBE72-0330 | af | ||
| SBE0330-01 | ENGINE-COMBUSTION CHAMBER OUTER LINER, PRE SBE72-0331 | ag | ||
| SBE0331-01 | ENGINE-COMBUSTION CHAMBER OUTER LINER, PRE SBE72-0628 | ah | ||
| SBE0628-01 | ENGINE-COMBUSTION CHAMBER OUTER LINER | ai | ||
| -501 | 2A1385 | • CHAMBER - A/O COMB OUTER PRE SBE72-0006 | aa-ab | 1 |
| -501A | 2A1383 | • CHAMBER - A/O COMB OUTER PRE SBE72-0006 | aa | 1 |
| -501B | 2A1383 | • CHAMBER - A/O COMB OUTER PRE SBE72-0006 | aa-ab | 1 |
| -501C | 2A1399 | • CHAMBER - COMBUSTION,OUTER,AO POST SBE72-0006 PRE SBE72-0060 | aa-ac | 1 |
| -501D | 2A2013 | • CHAMBER - A/O COMB OUTER POST SBE72-0006 PRE SBE72-0060 | aa-ac | 1 |
| -501E | 2A1618 | • CHAMBER - COMB,OUTER-A/O POST SBE72-0060 PRE SBE72-0116 | aa-ac | 1 |
| -501F | 2A1666 | • CHAMBER - ASSY POST SBE72-0060 PRE SBE72-0116 | aa-ac | 1 |
| -501G | 2A2032 | • CHAMBER - COMB,OUTER,A/O POST SBE72-0116 PRE SBE70-0253 | ad-ae | 1 |
| -501H | 2A1620 | • CHAMBER - COMB,OUTER,A/O POST SBE72-0116 PRE SBE72-0116 | ***** | 1 |
| -501J | 2A2837-01 | • CHAMBER - COMB,OUTER,ASSY OF POST SBE70-0253 PRE SBE72-0315 | ad-ag | 1 |
| -501K | 2A3347-01 | • CHAMBER - COMB,OUTER,ASSY OF POST SBE72-0315 PRE SBE72-0330 | ad-ag | 1 |
| -501L | 2A3347-001 | • CHAMBER - COMB,OUTER,ASYO 77445 POST SBE72-0315 PRE SBE72-0330 | af | 1 |
| -501M | 2A3347-002 | • CHAMBER - COMB,OUTER,ASYO 77445 POST SBE72-0315 PRE SBE72-0330 | af | 1 |
| -501N | 2A3347-003 | • CHAMBER - ASSY OF 77445 POST SBE72-0315 PRE SBE72-0330 | ad-af | 1 |
| -501P | 2A3347-004 | • CHAMBER - COMB, OUTER 77445 POST SBE72-0315 PRE SBE72-0330 | af | 1 |
| -501Q | 2A3347-005 | • CHAMBER - COMB, OUTER 77445 ALT 2A3347-01 POST SBE72-0315 PRE SBE72-0330 | ad-ag | 1 |
| -501R | 2A3439-01 | • CHAMBER - ASYO,COMB,OUTER POST SBE72-0330 PRE SBE72-0331 | ad-ah | 1 |
| -501S | 2A3439-001 | • CHAMBER - COMB,OUTER,ASYO 77445 POST SBE72-0330 PRE SBE72-0330 | af | 1 |
| -501T | 2A3439-002 | • CHAMBER - COMB,OUTER,ASYO 77445 POST SBE72-0330 PRE SBE72-0330 | af | 1 |
| -501U | 2A3439-003 | • CHAMBER - COMB,OUTER,ASYO 77445 POST SBE72-0330 PRE SBE72-0330 | ad-af | 1 |
| -501V | 2A3439-004 | • CHAMBER - COMB,OUTER,ASYO 77445 POST SBE72-0330 PRE SBE72-0330 | af | 1 |
| -501W | 2A3439-005 | • CHAMBER - COMB,OUTER,ASYO 77445 POST SBE72-0330 PRE SBE72-0331 | ad-ah | 1 |
| -501X | 2A3439-006 | • CHAMBER - COMB,OUTER,ASYO 77445 POST SBE72-0330 PRE SBE72-0331 | ag | 1 |
| -501Y | 2A3439-008 | • CHAMBER - COMB,OUTER,ASYO 77445 POST SBE72-0330 PRE SBE72-0330 | ***** | 1 |
| -501Z | 2A3439-007 | • CHAMBER - COMB,OUTER,ASYO 77445 ALT 2A3439-01 POST SBE72-0330 PRE SBE72-0331 | ad-ah | 1 |
| -501AA | 2A3441-01 | • CHAMBER - ASYO,COMB,OUTER ALT 2A3441-005 POST SBE72-0331 PRE SBE72-0628 | ad-ai | 1 |
| -501AB | 2A3441-005 | • CHAMBER - COMB,OUTER,ASYO 77445 POST SBE72-0331 PRE SBE72-0331 | ad-ah | 1 |
| -501AC | 2A3441-006 | • CHAMBER - COMB,OUTER,ASYO 77445 POST SBE72-0331 PRE SBE72-0331 | ag | 1 |
| -501AD | 2A3441-007 | • CHAMBER - COMB,OUTER,ASYO 77445 ALT 2A3441-01 POST SBE72-0331 PRE SBE72-0331 | ad-ah | 1 |
| 501AE | 2A4309-01 | • CHAMBER - ASYO,COMB,OUTER 77445 POST SBE72-0628 | ad-ai | 1 |
| 520 | 2A1384-01 | • • LINER - A/O CC OUTER PRE SBE70-0253 | aa-ai | 1 |
| 520A | 2A2840-01 | • • LINER - CC,OUTER,ASSY POST SBE70-0253 | aa-ai | 1 |
| 570 | 2A0328 | • • • BUSHING | aa-ai | 5 |
| 580 | 2A0810-04 | • • • RING - SPARK IGNITER | aa-ai | 2 |
| 590 | 2A0329 | • • • SEAL - SPARK IGNITER | aa-ai | 2 |
| 600 | 2A1073 | • • LINER - SEG,CC PRE SBE72-0060 | aa-ab | 10 |
| 600A | 2A1613 | • • LINER - SEGMENT,CC POST SBE72-0060 | ac-ai | 10 |
| 600B | 2A1613 | • • LINER - SEGMENT,CC POST SBE72-0116 PRE SBE72-0315 | ad-ai | 10 |
| 600C | 2A3318 | • • LINER - SEGMENT .CC.5 OD POST SBE72-0315 PRE SBE72-0628 | ad-ai | 10 |
| 600D | 2A4298 | • • LINER - SEGMENT,CC,5 OD 77445 POST SBE72-0628 | ad-ai | 10 |
| 610 | 2A1323 | • • LINER - SEG,CC PRE SBE72-0006 | aa-ac | 10 |
| 610A | 2A1391 | • • LINER - SEG-CC POST SBE72-0006 PRE SBE72-0116 | aa-ac | 10 |
| 610B | 2A2089 | • • LINER - SEG, CC POST SBE72-0116 PRE SBE72-0315 | ad-ai | 10 |
| 610C | 2A3349 | • • LINER - SEGMENT.CC 4 OD POST SBE72-0315 PRE SBE72-0628 | ad-ai | 10 |
| 610D | 2A4297 | • • LINER - SEGMENT 77445 POST SBE72-0628 | ad-ai | 10 |
| 620 | 2A1324 | • • LINER - SEG,CC PRE SBE72-0006 | aa-ac | 10 |
| 620A | 2A1392 | • • LINER - SEG-CC POST SBE72-0006 PRE SBE72-0116 | aa-ac | 10 |
| 620B | 2A2088 | • • LINER - SEG, POST SBE72-0116 PRE SBE72-0315 | ad-ai | 10 |
| 620C | 2A3348 | • • LINER - SEGMENT.CC 3 OD POST SBE72-0315 PRE SBE72-0628 | ad-ai | 10 |
| 620D | 2A4295 | • • LINER - SEGMENT,CC,3 OD 77445 POST SBE72-0628 | ad-ai | 10 |
| 630 | 2A1079 | • • LINER - SEG,CC PRE SBE72-0060 | aa-ab | 9 |
| 630A | 2A1611 | • • LINER - SEGMENT,CC POST SBE72-0060 PRE SBE72-0116 | ac | 9 |
| 630B | 2A2083 | • • LINER - SEG,CC,1OD POST SBE72-0116 PRE SBE72-0315 | ad-ae | 9 |
| 630C | 2A3311 | • • LINER - SEGMENT CC 10D POST SBE72-0315 PRE SBE72-0628 | af-ai | 9 |
| 630D | 2A4289 | • • LINER - SEGMENT,CC,10D 77445 POST SBE72-0628 | af-ai | 9 |
| 631 | 2A2112 | • • LINER - SEGMENT, CC,(VRS3497) | ***** | 1 |
| 640 | 2A1080 | • • LINER - SEG,CC PRE SBE72-0060 | aa-ab | 1 |
| 640A | 2A1612 | • • LINER - SEGMENT,CC POST SBE72-0060 PRE SBE72-0116 | ac | 1 |
| 640B | 2A2084 | • • LINER - SEGMENT CC,10D,IGN POST SBE72-0116 PRE SBE72-0315 | ad-ae | 1 |
| 640C | 2A3312 | • • LINER - SEGMENT CC 10D IGN POST SBE72-0315 PRE SBE72-0628 | af-ai | 1 |
| 640D | 2A4290 | • • LINER - SEGMENT,CC,10D IGN 77445 POST SBE72-0628 | af-ai | 1 |
| 641 | 2A2113 | • • LINER - SEGMENT, CC,(VRS3497) | ***** | 1 |
| 650 | 2A1076 | • • LINER - SEG,CC PRE SBE72-0006 | aa-ac | 8 |
| 650A | 2A1393 | • • LINER - SEG-CC POST SBE72-0006 PRE SBE72-0116 | aa-ac | 8 |
| 650B | 2A2085 | • • LINER - SEG, CC POST SBE72-0116 PRE SBE72-0315 | ad-ae | 8 |
| 650C | 2A3313 | • • LINER - SEGMENT CC 20D POST SBE72-0315 PRE SBE72-0628 | af-ai | 8 |
| 650D | 2A4291 | • • LINER - SEGMENT,CC,20D 77445 POST SBE72-0628 | af-ai | 8 |
| 660 | 2A1077 | • • LINER - SEG,CC PRE SBE72-0006 | aa-ac | 1 |
| 660A | 2A1394 | • • LINER - SEG-CC POST SBE72-0006 PRE SBE72-0116 | aa-ac | 1 |
| 660B | 2A2086 | • • LINER - SEG, CC POST SBE72-0116 PRE SBE72-0315 | ad-ae | 1 |
| 660C | 2A3314 | • • LINER - SEGMENT CC 20D IGN POST SBE72-0315 PRE SBE72-0628 | af-ai | 1 |
| 660D | 2A4292 | • • LINER - SEGMENT,CC,20D IGN 77445 POST SBE72-0628 | af-ai | 1 |
| 670 | 2A1078 | • • LINER - SEG,CC PRE SBE72-0006 | aa-ac | 1 |
| 670A | 2A1395 | • • LINER - SEG-CC POST SBE72-0006 PRE SBE72-0116 | aa-ac | 1 |
| 670B | 2A2087 | • • LINER - SEG, CC POST SBE72-0116 PRE SBE72-0315 | ad-ai | 1 |
| 670C | 2A3315 | • • LINER - SEGMENT CC 20D IGN POST SBE72-0315 PRE SBE72-0628 | ad-ai | 1 |
| 670D | 2A4293 | • • LINER - SEGMENT,CC,20D IGN 77445 POST SBE72-0628 | ad-ai | 1 |
| 680 | 2A0129 | • • LINER - SEGMENT,CC PRE SBE72-0116 | aa-ac | 20 |
| 680A | 2A2096 | • • LINER - SEGMENT CC,BULKHEAD POST SBE72-0116 PRE SBE72-0315 | ad-ai | 20 |
| 680B | 2A3324 | • • LINER - SEGMENT,CC,BULKHEAD POST SBE72-0315 PRE SBE72-0330 | ad-ai | 20 |
| 680C | 2A2452 | • • LINER - SEGMENT,CC,BULKHEAD POST SBE72-0330 PRE SBE72-0628 | ad-ai | 20 |
| 680D | 2A4299 | • • LINER - SEGMENT,CC,BULKHEAD 77445 POST SBE72-0628 | ad-ai | 20 |
| 680E | 2A4299 | • • LINER - SEGMENT,CC,BULKHEAD 77445 POST SBE72-0628 | ai | 20 |
| 690 | 2A0959 | • • GUIDE - FUEL NOZZLE PRE SBE72-0315 | aa-ai | 20 |
| 690A | 2A3350 | • • GUIDE - FUEL NOZZLE POST SBE72-0315 PRE SBE72-0331 | aa-ai | 20 |
| 690B | 2A3340 | • • GUIDE - FUEL POST SBE72-0331 | aa-ai | 20 |
| 700 | 2A0960 | • • RETAINER - FUEL NOZZLE GUIDE | aa-ai | 20 |
| 720 | 2A0966 | • • BUSHING - SLV | aa-ai | 20 |
| 740 | 2A0356 | • • WASHER - FLAT, .380 X .040 | aa-ai | 110 |
| 760 | 2A0327 | • • WASHER - FLAT | aa-ai | 200 |
| 780 | 4W0001 | • • NUT - .190 DIA Optional Part 4W0001 | aa-ai | 330 |
| 800 | 2A0962 | • • COVER - ACCESS | aa-ai | 1 |
| 820 | ST1300-03 | • • RIVET - BLIND UNIVERSAL 77445 | aa-ai | 7 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

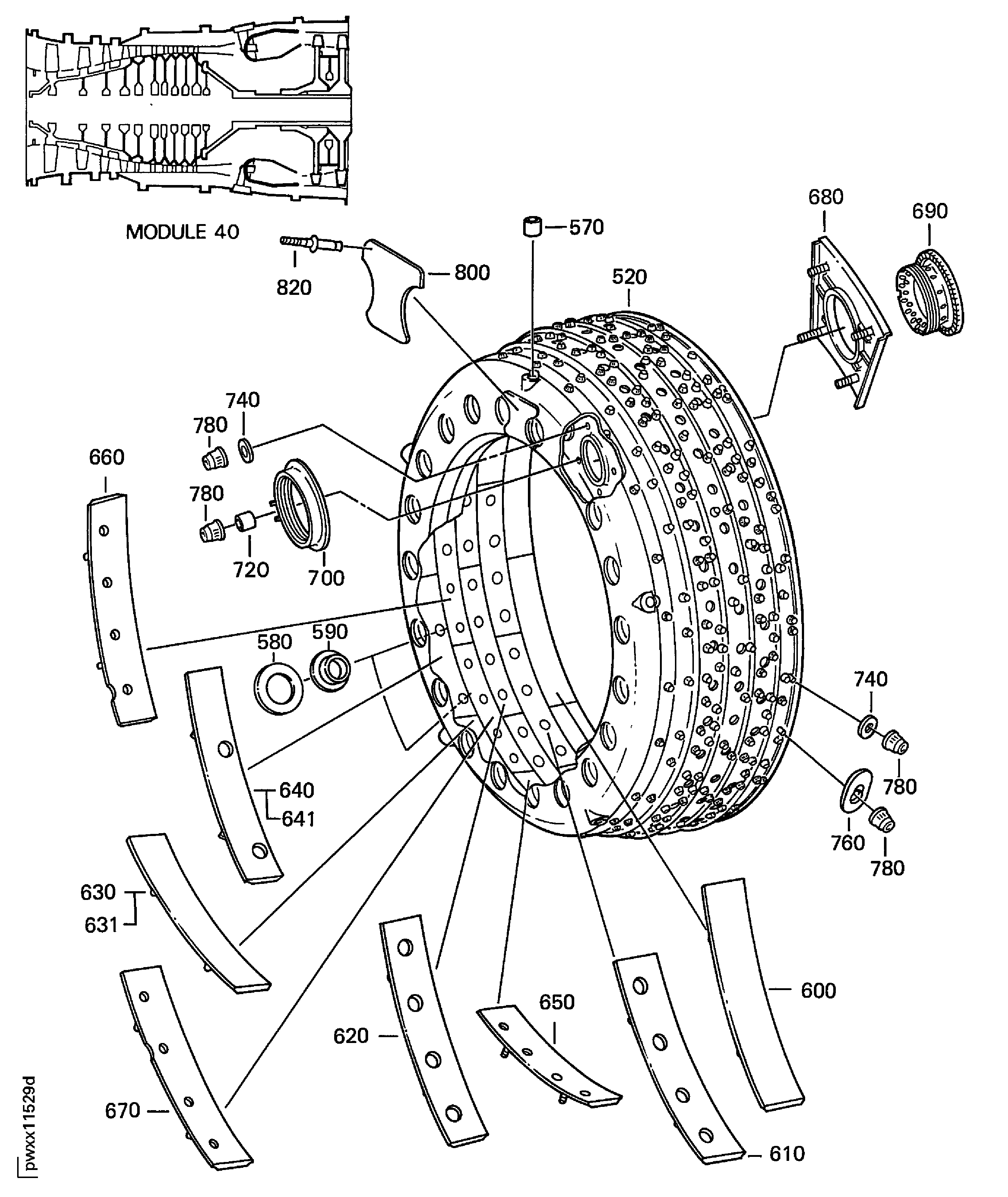

Figure: ENGINE-COMBUSTION CHAMBER OUTER LINER
COMBUSTION CHAMBER OUTER LINER
