DMC:V2500-A1-72-43-13-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72431301 | ENGINE-NO.4 BEARING, PRE SBE72-0126 | aa | ||
| SBE0126-01 | ENGINE-NO.4 BEARING | ab | ||
| 010 | 2A0000 | • BEARING - OPTION ALT 2A0001 PRE SBE72-0126 | aa | 1 |
| -010A | 2A0001 | • BEARING - ROLLER ALT 2A0006 PRE SBE72-0126 | aa | REF |
| -010B | 2A0006 | • BEARING - ROLLER ALT 2A0000 PRE SBE72-0126 | aa | REF |
| 010C | 2A0000 | • BEARING - OPTION ALT 2A0001 POST SBE72-0126 | aa | 1 |
| -010D | 2A0001 | • BEARING - ROLLER #4 ALT 2A0003 POST SBE72-0126 | aa | REF |
| -010E | 2A0003 | • BEARING - ROLLER,#4 ALT 2A0000 POST SBE72-0126 | aa | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

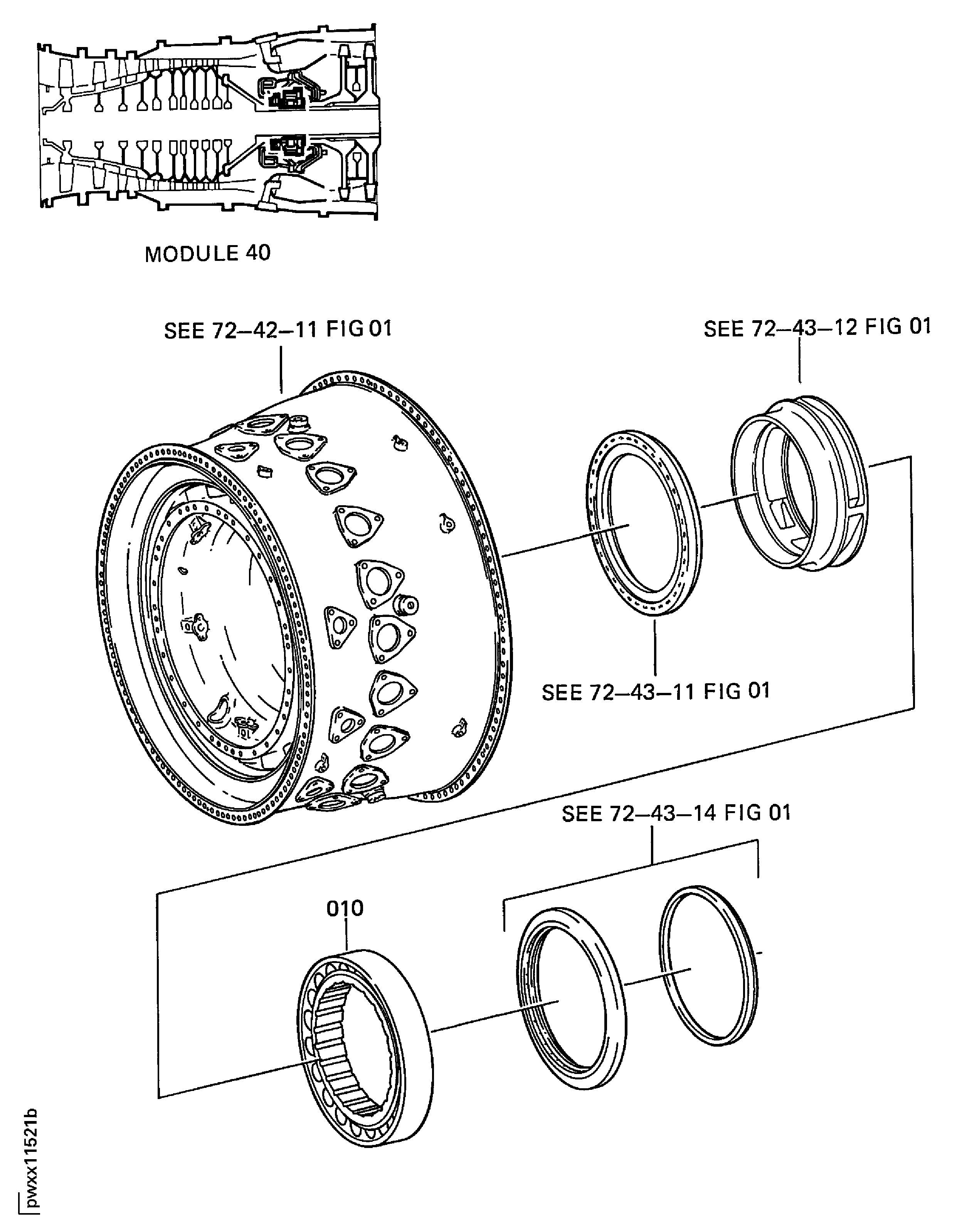

Figure: ENGINE-NO.4 BEARING
NO.4 BEARING
