| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72441001 | ENGINE-STAGE 1 HPT SUPPORT ASSEMBLY, PRE SBE72-0002 | aa | ||
| SBE0002-01 | ENGINE-STAGE 1 HPT SUPPORT ASSEMBLY, PRE SBE72-0341 | ab | ||
| SBE0341-01 | ENGINE-STAGE 1 HPT SUPPORT ASSEMBLY, PRE SBE72-0542 | ac | ||
| SBE0542-01 | ENGINE-STAGE 1 HPT SUPPORT ASSEMBLY | ad | ||
| 010 | 2A1292 | • SUPPORT - HPT,1STG,ASSY OF PRE SBE72-0002 | aa | 1 |
| 010A | 2A1358 | • SUPPORT - HPT,1STG,ASSY OF POST SBE72-0002 PRE SBE72-0341 | ab-ac | 1 |
| 010B | 2A3360 | • SUPPORT - HPT,1STG,ASSY OF POST SBE72-0341 PRE SBE72-0542 | ab-ac | 1 |
| 010C | 2A4027 | • SUPPORT - HPT,1STG,ASSY OF POST SBE72-0542 | ad | 1 |
| 015 | 2A1359-001 | • • SUPPORT - HPT,STG1 77445 POST SBE72-0341 PRE SBE72-0542 | ac | 1 |
| 015A | 2A3327-001 | • • SUPPORT - HPT,STG1 POST SBE72-0542 | ad | 1 |
| 015B | 2A1359-002 | • • SUPPORT - HPT,1STG POST SBE72-0542 | ad | 1 |
| 020 | 743645 | • • NUT - OPTION 77445 | aa-ad | 40 |
| 040 | AN123471 | • • RIVET - SOLID 81352 | aa-ad | 80 |
| 060 | 2A0170 | • • SEAL - HPT,1STG PRE SBE72-0341 | aa-ad | 1 |
| 060A | 2A3328 | • • SEAL - HPT,1STG POST SBE72-0341 | aa-ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

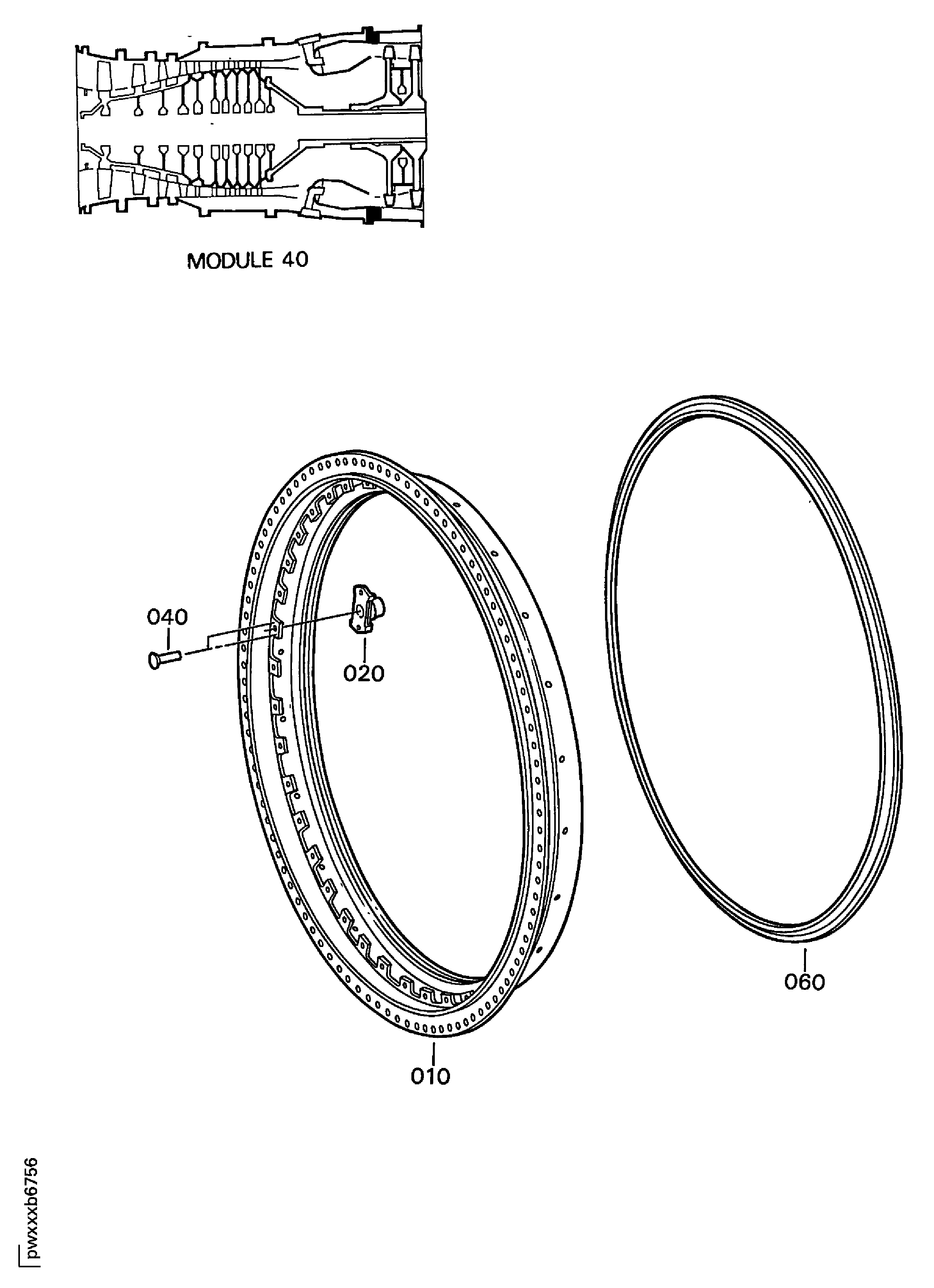

Figure: ENGINE-STAGE 1 HPT SUPPORT ASSEMBLY
STAGE 1 HPT SUPPORT ASSEMBLY
