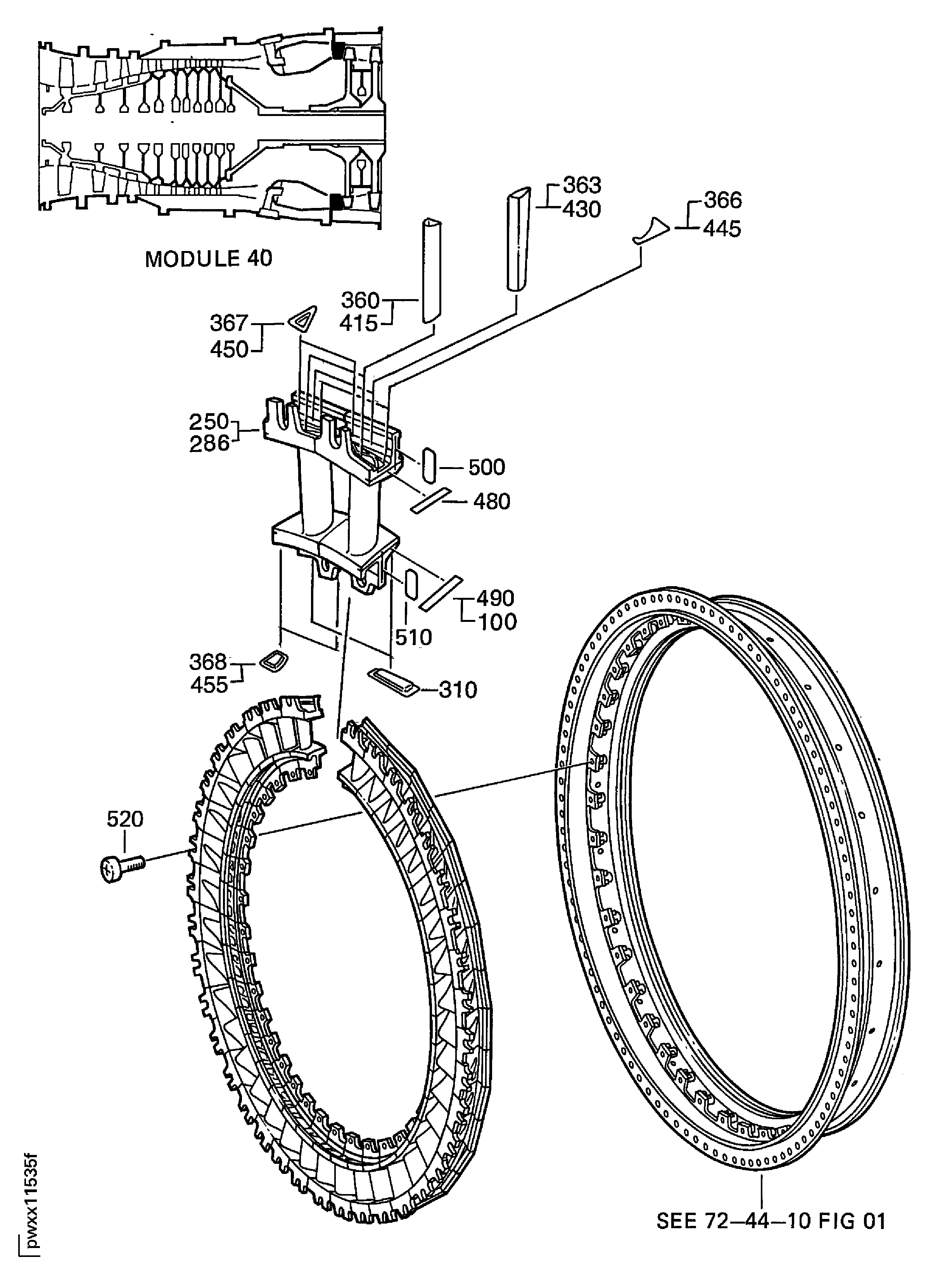

ENGINE-STAGE 1 HPT VANE CLUSTER ASSEMBLY

DMC:V2500-A1-72-44-20-01A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B72442001ENGINE-STAGE 1 HPT VANE CLUSTER ASSEMBLY, PRE SBE70-0038aa
000SBE0038-01ENGINE-STAGE 1 HPT VANE CLUSTER ASSEMBLY, PRE SBE70-0159ab
000SBE0159-01ENGINE-STAGE 1 HPT VANE CLUSTER ASSEMBLY, PRE SBE70-0188ac
000SBE0188-01ENGINE-STAGE 1 HPT VANE CLUSTER ASSEMBLY, PRE SBE72-0151ad
000SBE0151-01ENGINE-STAGE 1 HPT VANE CLUSTER ASSEMBLY, PRE SBE72-0312ae
000SBE0312-01ENGINE-STAGE 1 HPT VANE CLUSTER ASSEMBLY, PRE SBE72-0341af
000SBE0341-01ENGINE-STAGE 1 HPT VANE CLUSTER ASSEMBLY, PRE SBE72-0340ag
000SBE0340-01ENGINE-STAGE 1 HPT VANE CLUSTER ASSEMBLY, PRE SBE72-0598ah
000SBE0598-01ENGINE-STAGE 1 HPT VANE CLUSTER ASSEMBLYai
1001002A0037• SEAL - HPT,1STGaa-ai20
2402402A0091• VANE - CLUSTER,HPT,1STG,ASSY
PRE SBE70-0188		aa-ac20
240240A2A2591• VANE - CLUSTER HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0340		ad-ag20
240240B2A5591• VANE - HPT,1 STG, ASSY OF
POST SBE72-0340		ah-ai40
240240C2A5591• VANE - HPT,1 STG, ASSY OF
POST SBE72-0340		ah-ai40
2502502A0091CL21• VANE - CLUSTER,HPT,1ST ASYO
PRE SBE70-0188		aa-ac20
250250A2A2591CL21• VANE - CLUSTER, HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-af20
250250B2A2591CL21-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312
PRE SBE72-0341		ad-af20
250250C2A2591-002• VANE - CLUSTER, HPT, 1STG
77445
POST SBE72-0341		ag-ai20
250250D2A2591-003• VANE - CLUSTER, HPT, 1ST
77445
POST SBE72-0341		ag-ai20
2512512A0091CL22• VANE - CLUSTER, HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
251251A2A2591CL22• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
251251B2A2591CL22-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
251251C2A2591CL22• VANE - CLUSTER,HPT,1STG,A/O
POST SBE72-0340		ah-ai20
2522522A0091CL23• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
252252A2A2591CL23• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
252252B2A2591CL23-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2532532A0091CL24• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
253253A2A2591CL24• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
253253B2A2591CL24-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2542542A0091CL25• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
254254A2A2591CL25• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
254254B2A2591CL25-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
254254C2A2591CL25• VANE - CLUSTER,HPT,1STG,A/O
POST SBE72-0340		ah-ai20
2552552A0091CL26• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
255255A2A2591CL26• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
255255B2A2591CL26-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2562562A0091CL27• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
256256A2A2591CL27• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
256256B2A2591CL27-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2572572A0091CL28• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
257257A2A2591CL28• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
257257B2A2591CL28-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2582582A0091CL29• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
258258A2A2591CL29• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
258258B2A2591CL29-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2592592A0091CL30• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
259259A2A2591CL30• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
259259B2A2591CL30-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2602602A0091CL31• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
260260A2A2591CL31• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
260260B2A2591CL31-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2612612A0091CL32• VANE - CLUSTER.HPT.1STG ASYO
PRE SBE70-0188		aa-ac20
261261A2A2591CL32• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
261261B2A2591CL32-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2622622A0091CL33• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
262262A2A2591CL33• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
262262B2A2591CL33-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2632632A0091CL34• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
263263A2A2591CL34• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
263263B2A2591CL34-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2642642A0091CL35• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
264264A2A2591CL35• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
264264B2A2591CL35-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2652652A0091CL36• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
265265A2A2591CL36• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
265265B2A2591CL36-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2662662A0091CL37• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
266266A2A2591CL37• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
266266B2A2591CL37-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2672672A0091CL38• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
267267A2A2591CL38• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
267267B2A2591CL38-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2682682A0091CL39• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
268268A2A2591CL39• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
268268B2A2591CL39-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2692692A0091CL40• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
269269A2A2591CL40• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
269269B2A2591CL40-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2702702A0091CL41• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
270270A2A2591CL41• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
270270B2A2591CL41-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2712712A0091CL42• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
271271A2A2591CL42• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
271271B2A2591CL42-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2722722A0091CL43• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
272272A2A2591CL43• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
272272B2A2591CL43-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2732732A0091CL44• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
273273A2A2591CL44• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
273273B2A2591CL44-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2742742A0091CL45• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
274274A2A2591CL45• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
274274B2A2591CL45-001• VANE - CLUSTER,HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2752752A0091CL46• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
275275A2A2591CL46• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
275275B2A2591CL46-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2762762A0091CL47• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
276276A2A2591CL47• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
276276B2A2591CL47-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2772772A0091CL48• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0188		aa-ac20
277277A2A2591CL48• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
277277B2A2591CL48-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2782782A0091CL49• VANE - CLUSTER,HPT,1STG ASYO
PRE SBE70-0159		aa-ab20
278278A2A0091CL48-5• VANE - CLUSTER
77445
POST SBE70-0159
PRE SBE70-0188		ac20
278278B2A2591CL48-5• VANE - CLUSTER,HPT,1STG,A/O
77445
POST SBE70-0188
PRE SBE72-0312		ad-ai20
278278C2A2591C48-5-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2792792A0091CL49• VANE - CLUSTER,HPT,1STG ASYO
POST SBE70-0159
PRE SBE70-0188		ac20
279279A2A2591CL49• VANE - CLUSTER,HPT,1STG,A/O
POST SBE70-0188
PRE SBE72-0312		ad-ai20
279279B2A2591CL49-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2802802A0091CL49-5• VANE - CLUSTER
77445
POST SBE70-0159
PRE SBE70-0188		ac20
280280A2A2591CL49-5• VANE - CLUSTER,HPT,1STG,A/O
77445
POST SBE70-0188
PRE SBE72-0312		ad-ai20
280280B2A2591C49-5-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ad-ai20
2822822A2591CL47-5• VANE - CLUSTER,HPT,1STG,A/O
77445
POST SBE72-0151
PRE SBE72-0312		ae-ai20
282282A2A2591C47-5-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ae-ai20
2842842A2591CL50• VANE - CLUSTER,HPT,1STG,A/O
POST SBE72-0151
PRE SBE72-0312		ae-ai20
284284A2A2591CL50-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ae-ai20
2852852A2591CL50-5• VANE - CLUSTER,HPT,1STG,A/O
77445
POST SBE72-0151
PRE SBE72-0312		ae-ai20
285285A2A2591C50-5-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ae-ai20
2862862A2591CL51• VANE - CLUSTER,HPT,1STG,A/O
POST SBE72-0151
PRE SBE72-0312		ae-ai20
286286A2A2591CL51-001• VANE - CLUSTER, HPT,1 STG
77445
POST SBE72-0312		ae-ai20
3103102A0033• • COVER - HPT VANE,1STG
PRE SBE72-0340		aa-ag2
3603602A0024-01• • • BAFFLE - A/O
PRE SBE72-0340		aa-ag1
3633632A0027-01• • • BAFFLE - A/O
PRE SBE72-0340		aa-ag1
3663662A0030• • • COVER
PRE SBE72-0340		aa-ag1
3673672A0031• • • COVER
PRE SBE72-0340		aa-ag1
3683682A0032• • • COVER
PRE SBE72-0340		aa-ag1
4154152A0024-01• • • BAFFLE - A/O
PRE SBE72-0340		aa-ag1
4304302A0027-01• • • BAFFLE - A/O
PRE SBE72-0340		aa-ag1
4454452A0030• • • COVER
PRE SBE72-0340		aa-ag1
4504502A0031• • • COVER
PRE SBE72-0340		aa-ag1
4554552A0032• • • COVER
PRE SBE72-0340		aa-ag1
455455A2A2765• • • COVER
POST SBE72-0340		ah-ai1
4564562A0534-01• • BAFFLE - A/O,HPT VANE,1STG
POST SBE72-0340		ah-ai1
4804802A0037• SEAL - HPT,1STG
PRE SBE72-0340		aa-ag20
480480A2A2676• SEAL
POST SBE72-0340
PRE SBE72-0598		ah-ai40
480480B2A4351• SEAL - HPT VANE, 1 STAGE
POST SBE72-0598		ah-ai40
4904902A0037• SEAL - HPT,1STGaa-ai20
490490A2A0037• SEAL - HPT,1STG
POST SBE70-0038
PRE SBE72-0340		ab-ai20
490490B2A3359• SEAL - HPT VANE,1 STG
POST SBE72-0340		ab-ai40
5005002A0036• SEAL - HPT,1STG
PRE SBE72-0340		aa-ag20
5105102A0034• SEAL - HPT ,1STG
PRE SBE72-0340		aa-ag20
510510A2A2677• SEAL
POST SBE72-0340
PRE SBE72-0598		ah-ai40
510510B2A4451• SEAL - HPT VANE,1 STAGE
POST SBE72-0598		ah-ai40
5205202A0355• BOLT - MACHaa-ai1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Figure: ENGINE-STAGE 1 HPT VANE CLUSTER ASSEMBLY

STAGE 1 HPT VANE CLUSTER ASSEMBLY

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:77445
Enterprise Name:PRATT AND WHITNEY
BU Name:PRATT & WHITNEY
Street:400 MAIN STREET
City:EAST HARTFORD
Country:USA
Phone Number:8605657700
Part Number:2A0024-01
Part Name:BAFFLE - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0027-01
Part Name:BAFFLE - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0030
Part Name:COVER
Manufacturer Code:0AM53
Part Number:2A0031
Part Name:COVER
Manufacturer Code:0AM53
Part Number:2A0032
Part Name:COVER
Manufacturer Code:0AM53
Part Number:2A0033
Part Name:COVER - HPT 1ST STAGE
Manufacturer Code:0AM53
Part Number:2A0034
Part Name:SEAL - HPT, 1ST STAGE
Manufacturer Code:0AM53
Part Number:2A0036
Part Name:SEAL - HPT, 1ST STAGE
Manufacturer Code:0AM53
Part Number:2A0037
Part Name:SEAL - HPT, 1ST STAGE
Manufacturer Code:0AM53
Part Number:2A0091CL21
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL22
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL23
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL24
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL25
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL26
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL27
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL28
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL29
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL30
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL31
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL32
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL33
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL34
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL35
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL36
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL37
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL38
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL39
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL40
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL41
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL42
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL43
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL44
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL45
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL46
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091CL47
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Link not Found
Part Number:2A0091CL48
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Link not Found
Part Number:2A0091CL49
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0091
Part Name:VANE - HPT 1ST STAGE, CLUSTER
Manufacturer Code:0AM53
Part Number:2A0355
Part Name:BOLT - MACHINE, 0.250 - 28 X 0.555
Manufacturer Code:0AM53
Part Number:2A0534-01
Part Name:BAFFLE - HPT VANE, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Link not Found
Link not Found
Link not Found
Link not Found
Link not Found
Part Number:2A2591CL21-001
Part Name:VANE - CLUSTER, HPT STAGE 1
Manufacturer Code:77445
Part Number:2A2591CL21
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL22
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL23
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL24
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL25
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL26
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL27
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Part Number:2A2591CL28-001
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:77445
Part Number:2A2591CL28
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL29
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL30
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL31
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL32
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL33
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL34
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL35
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL36
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL37
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL38
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL39
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL40
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL41
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL42
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL43
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL44
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL45
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL46
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Link not Found
Part Number:2A2591CL47
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Link not Found
Part Number:2A2591CL48
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Link not Found
Part Number:2A2591CL49
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Link not Found
Part Number:2A2591CL50
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Link not Found
Part Number:2A2591CL51
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Part Number:2A2591
Part Name:VANE - CLUSTER, HPT, 1ST STAGE
Manufacturer Code:0AM53
Part Number:2A2676
Part Name:SEAL
Manufacturer Code:0AM53
Part Number:2A2677
Part Name:SEAL
Manufacturer Code:0AM53
Part Number:2A2765
Part Name:COVER
Manufacturer Code:0AM53
Part Number:2A3359
Part Name:SEAL - VANE HPT, 1ST STAGE
Manufacturer Code:0AM53
Part Number:2A4351
Part Name:SEAL - VANE HPT, 1ST STAGE
Manufacturer Code:0AM53
Part Number:2A4451
Part Name:SEAL - VANE HPT, 1ST STAGE
Manufacturer Code:0AM53
Part Number:2A5591
Part Name:VANE - HPT, 1ST STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
