| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72443001 | ENGINE-COMBUSTION CHAMBER INNER LINER, PRE SBE72-0006 | aa | ||
| SBE0006-01 | ENGINE-COMBUSTION CHAMBER INNER LINER, PRE SBE72-0060 | ab | ||
| SBE0060-01 | ENGINE-COMBUSTION CHAMBER INNER LINER, PRE SBE72-0116 | ac | ||
| SBE0116-01 | ENGINE-COMBUSTION CHAMBER INNER LINER, PRE SBE70-0253 | ad | ||
| SBE0253-01 | ENGINE-COMBUSTION CHAMBER INNER LINER, PRE SBE72-0315 | ae | ||
| SBE0315-01 | ENGINE-COMBUSTION CHAMBER INNER LINER, PRE SBE70-0809 | af | ||
| SBE0809-01 | ENGINE-COMBUSTION CHAMBER INNER LINER, PRE SBE72-0628 | ag | ||
| SBE0628-01 | ENGINE-COMBUSTION CHAMBER INNER LINER | ah | ||
| -401 | 2A1374 | • CHAMBER - COMBUSTION,INNER PRE SBE72-0006 | aa-ac | 1 |
| -401A | 2A1398 | • CHAMBER - COMBUSTION,INNER,AO POST SBE72-0006 PRE SBE72-0060 | aa-ac | 1 |
| -401B | 2A1617 | • CHAMBER - COMBUSTION,INNER-A/O POST SBE72-0060 PRE SBE72-0116 | aa-ac | 1 |
| -401C | 2A2034 | • CHAMBER - COMB,INNER,A/O POST SBE72-0116 PRE SBE70-0253 | ad-ah | 1 |
| -401D | 2A2838-01 | • CHAMBER - COMB,INNER,ASSY OF POST SBE70-0253 PRE SBE72-0315 | ad-ah | 1 |
| -401E | 2A3351-01 | • CHAMBER - ASSY, COMB, INNER ALT 2A2034-001 POST SBE72-0315 PRE SBE72-0628 | ad-ah | 1 |
| -401F | 2A2034-001 | • CHAMBER - ASSY,COMB,INNER 77445 POST SBE72-0315 PRE SBE72-0315 | af-ag | 1 |
| -401G | 2A3351-003 | • CHAMBER - COMB, INNER 77445 ALT 2A3351-004 POST SBE72-0315 PRE SBE72-0315 | af-ag | 1 |
| -401H | 2A3351-004 | • CHAMBER - COMB, INNER 77445 ALT 2A3351-01 POST SBE72-0315 PRE SBE72-0315 | af-ag | 1 |
| 401J | 2A4311-01 | • CHAMBER - COMB,INNER ASSY 77445 POST SBE72-0628 | ad-ah | 1 |
| 401K | 2A3344-003 | • CHAMBER - COMB,INNER ASSY 77445 POST SBE72-0628 | ah | 1 |
| 420 | 2A0811-01 | • • LINER - CC,INNER,ASSY OF PRE SBE70-0253 | aa-ah | 1 |
| 420A | 2A2841-01 | • • LINER - CC,INNER,ASSY OF POST SBE70-0253 | aa-ah | 1 |
| 501 | 2A1009-01 | • • • NUT - S,L,GANG CHANNEL,CC PRE SBE70-0809 | aa-ah | 4 |
| 501A | 2A3516-01 | • • • NUT - S,L,GANG CHANNEL,CC 77445 POST SBE70-0809 | aa-ah | 4 |
| 521 | 782573 | • • • • NUT - OPTION 77445 | aa-ah | 10 |
| 530 | ST1209-03 | • • • RIVET - BLIND 094 COUNTERSUNK 77445 | aa-ah | 8 |
| 540 | 2A1085 | • • LINER - SEG,CC PRE SBE72-0060 | aa-ab | 10 |
| 540A | 2A1614 | • • LINER - SEGMENT,CC POST SBE72-0060 PRE SBE72-0116 | ac | 10 |
| 540B | 2A2091 | • • LINER - SEGMENT CC,1ID POST SBE72-0116 PRE SBE72-0315 | ad-ah | 10 |
| 540C | 2A3319 | • • LINER - SEGMENT,CC,1 ID POST SBE72-0315 PRE SBE72-0628 | ad-ah | 10 |
| 540D | 2A4303 | • • LINER - SEGMEN,CC,1 ID 77445 POST SBE72-0628 | ad-ah | 10 |
| 560 | 2A1081 | • • LINER - SEG,CC PRE SBE72-0060 | aa-ab | 10 |
| 560A | 2A1616 | • • LINER - SEGMENT CC POST SBE72-0060 | ac-ah | 10 |
| 560B | 2A1616 | • • LINER - SEGMENT CC POST SBE72-0116 PRE SBE72-0315 | ad-ag | 10 |
| 560C | 2A3323 | • • LINER - SEGMENT,CC5 ID POST SBE72-0315 PRE SBE72-0628 | ad-ag | 10 |
| 560D | 2A4308 | • • LINER - SEGMENT,CC ID5 77445 POST SBE72-0628 | ah | 10 |
| 580 | 2A1326 | • • LINER - SEG,CC PRE SBE72-0060 | aa-ab | 10 |
| 580A | 2A1615 | • • LINER - SEGMENT,CC POST SBE72-0060 PRE SBE72-0116 | ac | 10 |
| 580B | 2A2094 | • • LINER - SEGMENT, CC POST SBE72-0116 PRE SBE72-0315 | ad-ah | 10 |
| 580C | 2A3322 | • • LINER - SEGMENT,CC4D POST SBE72-0315 PRE SBE72-0628 | ad-ah | 10 |
| 580D | 2A4307 | • • LINER - SEGMENT,CC, 4ID 77445 POST SBE72-0628 | ad-ah | 10 |
| 600 | 2A1325 | • • LINER - SEG,CC PRE SBE72-0006 | aa-ac | 10 |
| 600A | 2A1397 | • • LINER - SEG-CC POST SBE72-0006 PRE SBE72-0116 | aa-ac | 10 |
| 600B | 2A2093 | • • LINER - SEG, CC POST SBE72-0116 PRE SBE72-0315 | ad-ah | 10 |
| 600C | 2A3353 | • • LINER - SEGMENT,CC3ID POST SBE72-0315 PRE SBE72-0628 | ad-ah | 10 |
| 600D | 2A4306 | • • LINER - SEGMENT 77445 POST SBE72-0628 | ad-ah | 10 |
| 620 | 2A1084 | • • LINER - SEG,CC PRE SBE72-0006 | aa-ac | 10 |
| 620A | 2A1396 | • • LINER - SEG-CC POST SBE72-0006 PRE SBE72-0116 | aa-ac | 10 |
| 620B | 2A2092 | • • LINER - SEG, CC POST SBE72-0116 PRE SBE72-0315 | ad-ah | 10 |
| 620C | 2A3320 | • • LINER - SEGMENT,CC2ID POST SBE72-0315 PRE SBE72-0628 | ad-ah | 10 |
| 620D | 2A4304 | • • LINER - SEGMENT,CC,2ID 77445 POST SBE72-0628 | ad-ah | 10 |
| 640 | 2A0356 | • • WASHER - FLAT, .380 X .040 | aa-ah | 50 |
| 660 | 2A0327 | • • WASHER - FLAT | aa-ah | 200 |
| 680 | 4W0001 | • • NUT - .190 DIA Optional Part 4W0001 | aa-ah | 250 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

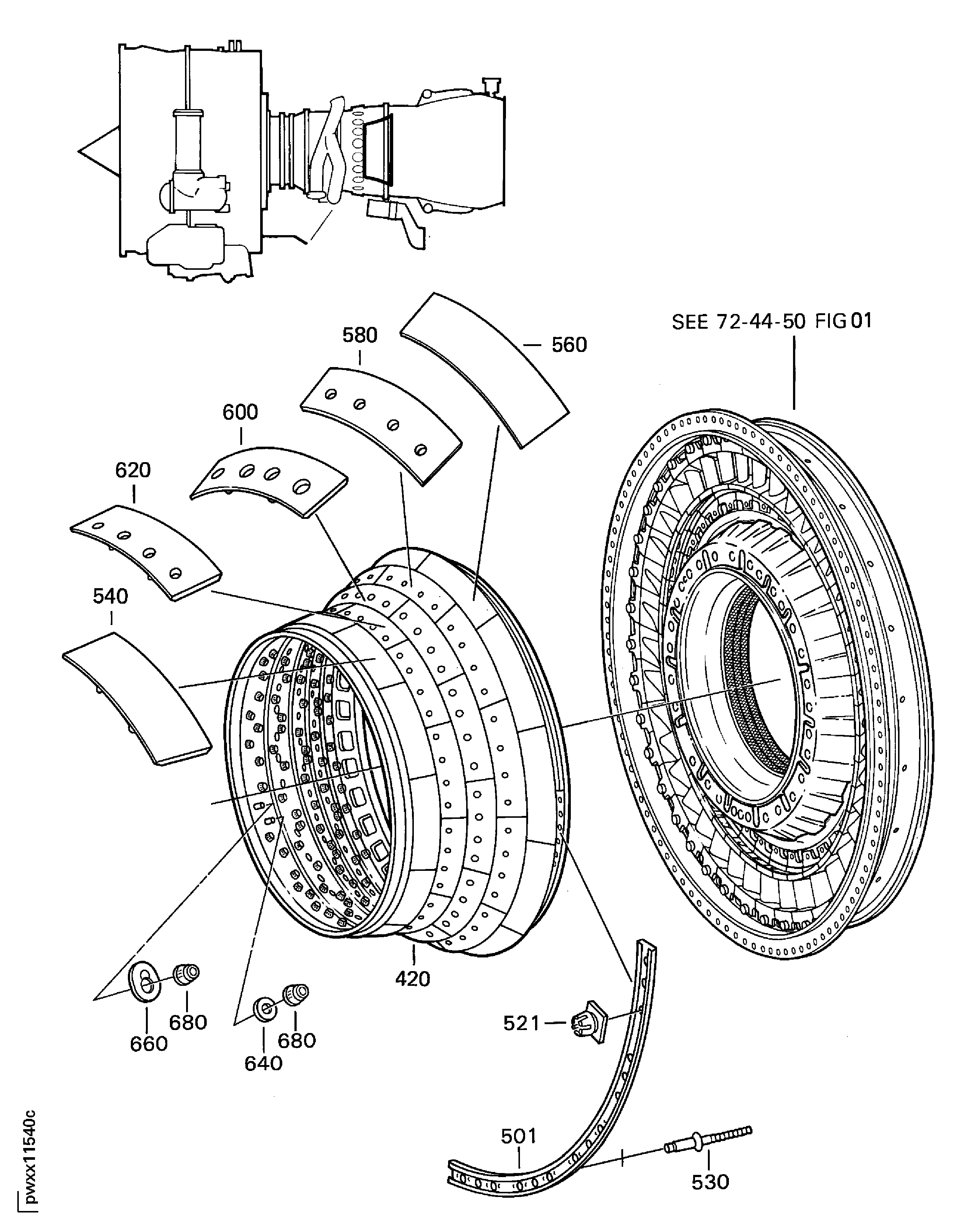

Figure: ENGINE-COMBUSTION CHAMBER INNER LINER
COMBUSTION CHAMBER INNER LINER
