DMC:V2500-A1-72-44-40-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72444001 | ENGINE-STAGE 1 HPT OUTER SEAL ASSEMBLY, PRE SBE72-0029 | aa | ||
| SBE0029-01 | ENGINE-STAGE 1 HPT OUTER SEAL ASSEMBLY | ab | ||
| 010 | 2A0330-01 | • SEAL - HPT,1STG,ASSY OF PRE SBE72-0029 | aa | 1 |
| 010A | 2A1980-01 | • SEAL POST SBE72-0029 | ab | 1 |
| 019 | 2A1695 | • SPACER - HPT,1STG POST SBE72-0029 | ab | 39 |
| 100 | 2A0332 | • WASHER - SPRING TENSION, .250 X .500 | aa-ab | 39 |
| 120 | 2A0331 | • BUSHING - SLV, .250 X .360 X .378 | aa-ab | 39 |
| 140 | 1A4135 | • BOLT - MACH,, .250-28 X .906 | aa-ab | 39 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

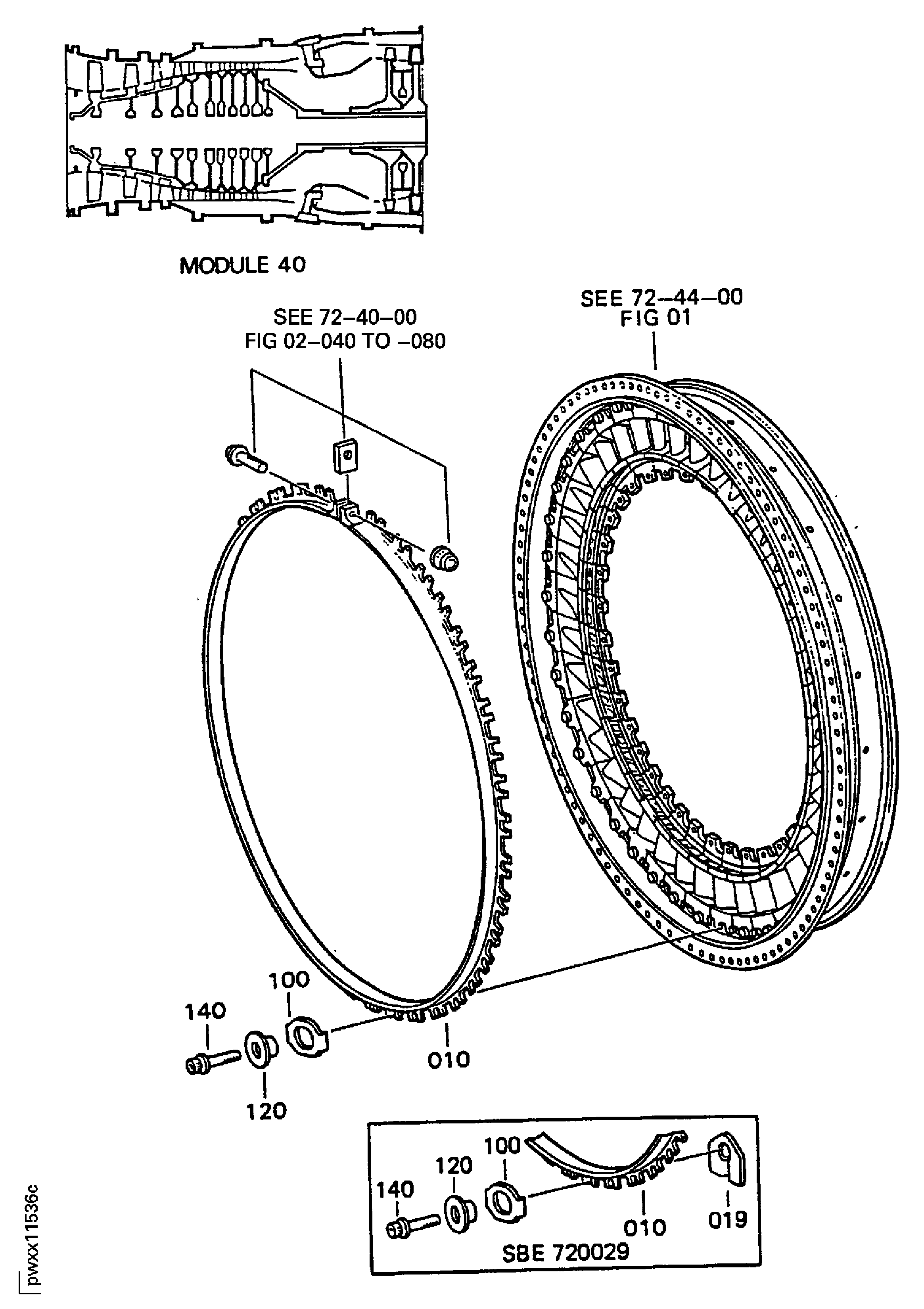

Figure: ENGINE-STAGE 1 HPT OUTER SEAL ASSEMBLY
STAGE 1 HPT OUTER SEAL ASSEMBLY
