DMC:V2500-A1-72-44-50-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72445001 | ENGINE-STAGE 1 HPT COOLING DUCT ASSEMBLY, PRE SBE72-0046 | aa | ||
| SBE0046-01 | ENGINE-STAGE 1 HPT COOLING DUCT ASSEMBLY, PRE SBE72-0340 | ab | ||
| SBE0340-01 | ENGINE-STAGE 1 HPT COOLING DUCT ASSEMBLY, PRE SBE72-0381 | ac | ||
| SBE0381-01 | ENGINE-STAGE 1 HPT COOLING DUCT ASSEMBLY | ad | ||
| 010 | 2A0008-01 | • DUCT - CLG,HPT,1STG,ASSY OF PRE SBE72-0046 | aa | 1 |
| 010A | 2A1997-01 | • DUCT - CLG,HPT,1STG-ASSY OF POST SBE72-0046 PRE SBE72-0340 | ab | 1 |
| 010B | 2A1997-001 | • DUCT - CLG,HPT,1STG,ASSY OF 77445 POST SBE72-0340 PRE SBE72-0381 | ac-ad | 1 |
| 010C | 2A3329-01 | • DUCT - ASSY OF,CLG,HPT,1 STG POST SBE72-0340 PRE SBE72-0381 | ac-ad | 1 |
| 010D | 2A3491-01 | • DUCT - ASSY OF,CLG,HPT,1STAGE POST SBE72-0381 | ac-ad | 1 |
| 010E | 2A1997-002 | • DUCT - CLG,HPT,1STG,ASSY OF 77445 POST SBE72-0381 | ad | 1 |
| 010F | 2A1997-003 | • DUCT - CLG,HPT,1STG,ASSY OF 77445 POST SBE72-0381 | ac-ad | 1 |
| 060 | 2A0869 | • • PIN - SHLDR | aa-ad | 1 |
| 080 | 2A0086 | • DEFLECTR - HPT CLG DUCT | aa-ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

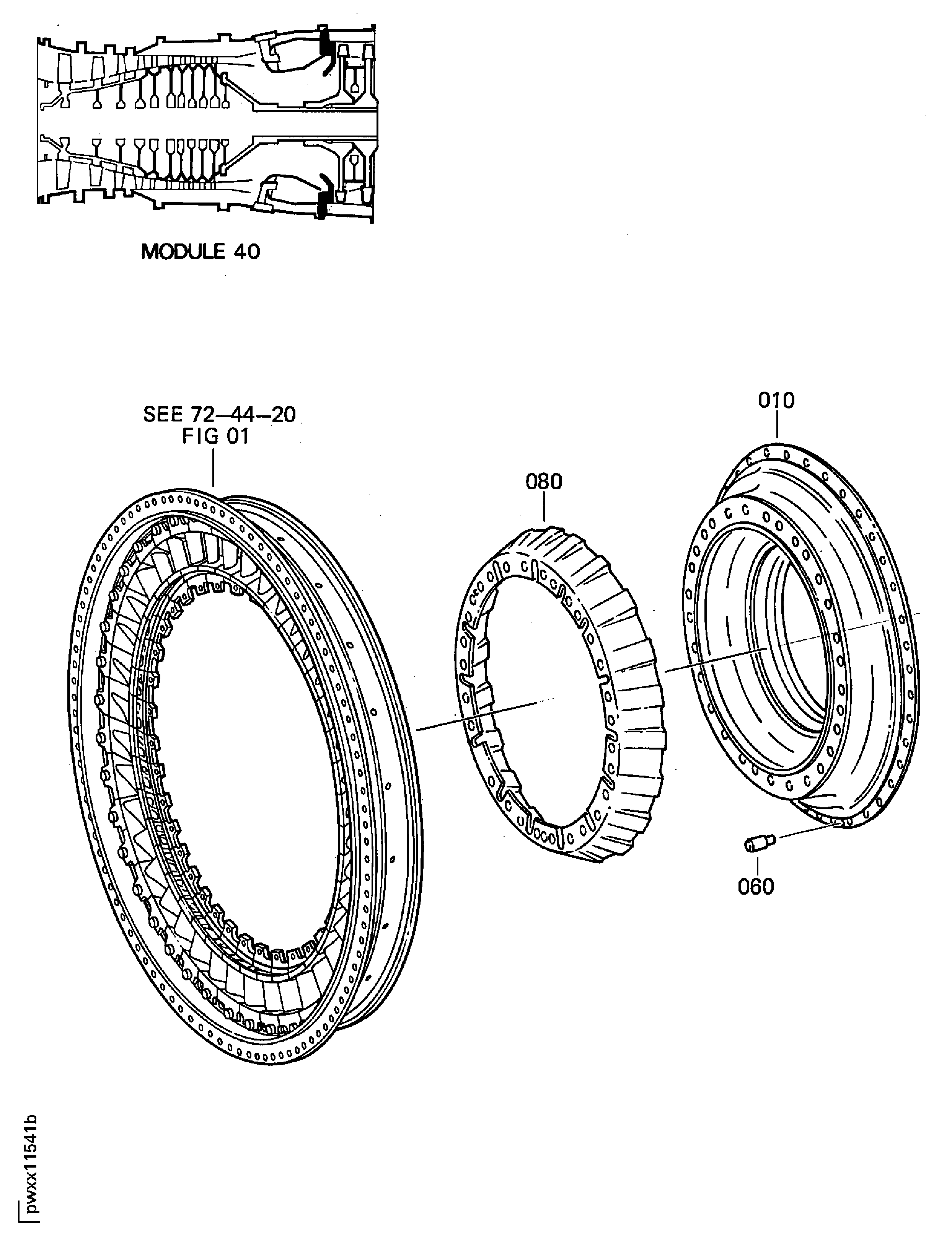

Figure: ENGINE-STAGE 1 HPT COOLING DUCT ASSEMBLY
STAGE 1 HPT COOLING DUCT ASSEMBLY
