| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72451201 | ENGINE-STAGE 1 HPT AIR SEAL (OUTER), PRE SBE70-0014 | aa | ||
| SBE0014-01 | ENGINE-STAGE 1 HPT AIR SEAL (OUTER), PRE SBE72-0013 | ab | ||
| SBE0013-01 | ENGINE-STAGE 1 HPT AIR SEAL (OUTER), PRE SBE72-0131 | ac | ||
| SBE0131-01 | ENGINE-STAGE 1 HPT AIR SEAL (OUTER), PRE SBE72-0363 | ad | ||
| SBE0363-01 | ENGINE-STAGE 1 HPT AIR SEAL (OUTER) | ae | ||
| 010 | 2A0044 | • SEAL - HPT, PRE SBE72-0363 | aa-ae | 1 |
| 010A | 50L294 | • SEAL - HPT, 1 & 2 STAGE 77445 POST SBE72-0363 | aa-ae | 1 |
| 020 | 2A0167 | • DAMPER - HPT, | aa-ae | 1 |
| 040 | 2A0488 | • SEAL - AIR,HPT,1STG PRE SBE70-0014 | aa-ab | 1 |
| 040A | 2A1105 | • SEAL - AIR,HPT,1 STG POST SBE70-0014 PRE SBE72-0013 | aa-ab | 1 |
| 040B | 2A1271 | • SEAL - AIR 1STG HPT POST SBE72-0013 PRE SBE72-0131 | ac-ae | 1 |
| 040C | 2A1350 | • SEAL - AIR POST SBE72-0131 | ac-ae | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

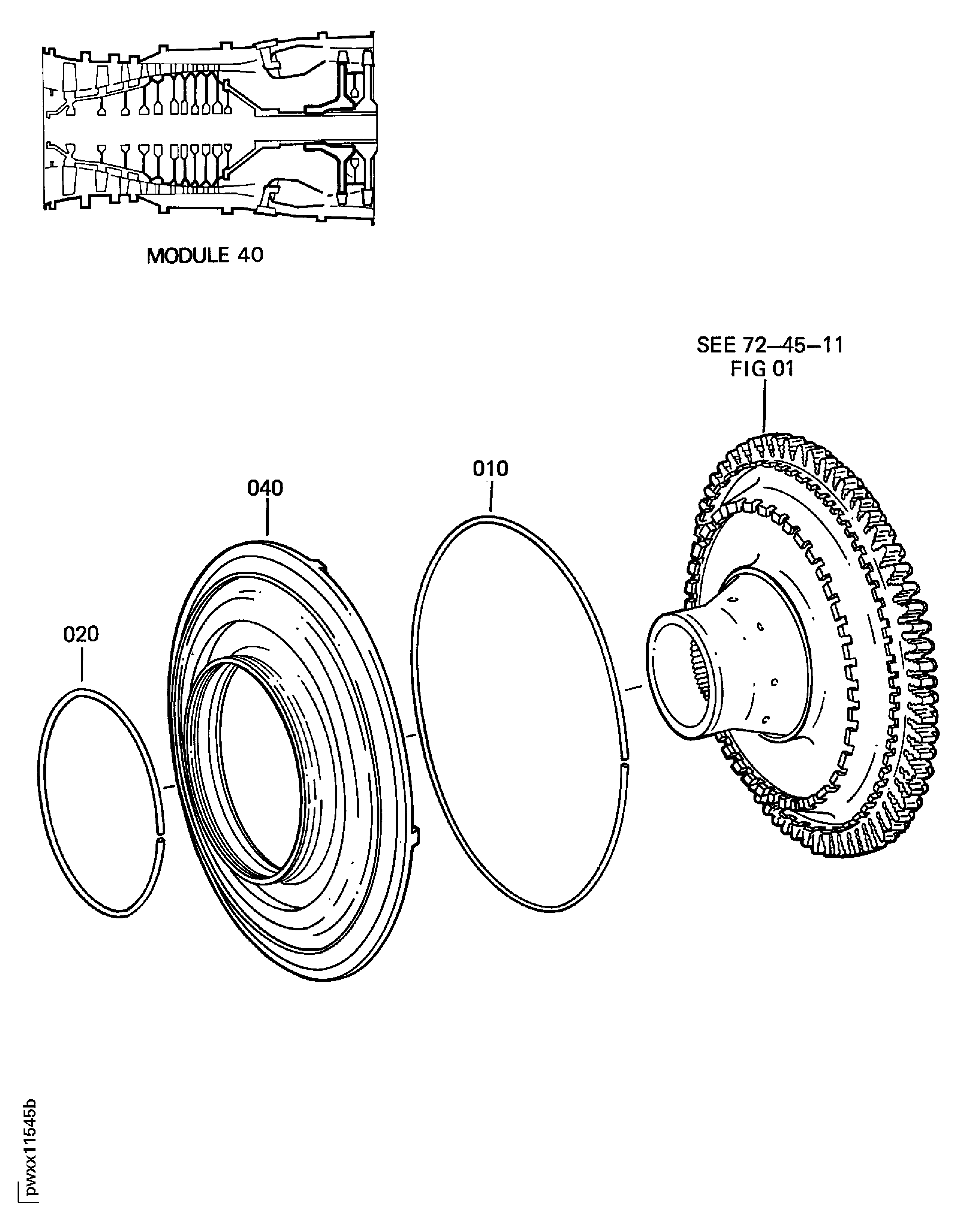

Figure: ENGINE-STAGE 1 HPT AIR SEAL (OUTER)
STAGE 1 HPT AIR SEAL (OUTER)
