DMC:V2500-A1-72-45-21-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72452101 | ENGINE-HP TURBINE CASE ASSEMBLY, PRE SBE72-0002 | aa | ||
| SBE0002-01 | ENGINE-HP TURBINE CASE ASSEMBLY, PRE SBE72-0029 | ab | ||
| SBE0029-01 | ENGINE-HP TURBINE CASE ASSEMBLY, PRE SBE70-0481 | ac | ||
| SBE0481-01 | ENGINE-HP TURBINE CASE ASSEMBLY, PRE SBE70-0987 | ad | ||
| SBE0987-01 | ENGINE-HP TURBINE CASE ASSEMBLY | ae | ||
| 010 | 2A0250 | • CASE - TURB,ASSY OF | aa-ae | 1 |
| 010A | 2A1600 | • CASE - TURB, | aa-ae | 1 |
| 010B | 2A1591 | • CASE - TURB,ASSY OF PRE SBE72-0002 | aa | 1 |
| 010C | 2A1600 | • CASE - TURB, POST SBE72-0002 | ab-ae | 1 |
| 020 | 1A3893 | • • NUT - OPTION 77445 PRE SBE70-0481 | aa-ae | 19 |
| 020A | 1A3893 | • • NUT - OPTION 77445 ALT 774773 POST SBE70-0481 | aa-ae | 19 |
| -020B | 774773 | • • NUT - SELF-LOCKING 77445 ALT 774774 POST SBE70-0481 | ad-ae | REF |
| -020C | 774774 | • • NUT - SELF-LOCKING 77445 ALT 774776 POST SBE70-0481 | ad-ae | REF |
| -020D | 774776 | • • NUT - SELF-LOCKING 77445 ALT 1A3893 POST SBE70-0481 | aa-ac | REF |
| 040 | 2A0256 | • • PIN - SHOULDER PRE SBE72-0002 | aa | 1 |
| 040A | 2A1596 | • • PIN - SHOULDER POST SBE72-0002 | ab-ae | 1 |
| 060 | 2A0286 | • • BRACKET - CASE,TURBINE PRE SBE72-0002 | aa-ae | 1 |
| 060A | 2A1595 | • • BRACKET - CASE TURBINE POST SBE72-0002 PRE SBE72-0029 | aa-ae | 1 |
| 060B | 2A1595 | • • BRACKET - CASE TURBINE POST SBE72-0029 | aa-ae | 1 |
| 080 | MS20427M4-8 | • • RIVET - COUNTERSUNK HEAD 96906 PRE SBE70-0481 | aa-ac | 2 |
| 080A | MS20427M4-8 | • • RIVET - COUNTERSUNK HEAD 96906 POST SBE70-0481 PRE SBE70-0987 | ad-ae | 2 |
| 080B | MS20427M4-7 | • • RIVET 96906 ALT MS20427M4-8 POST SBE70-0987 | ad-ae | 2 |
| -080C | MS20427M4-8 | • • RIVET - COUNTERSUNK HEAD 96906 ALT MS20427M4-7 POST SBE70-0987 | ad-ae | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

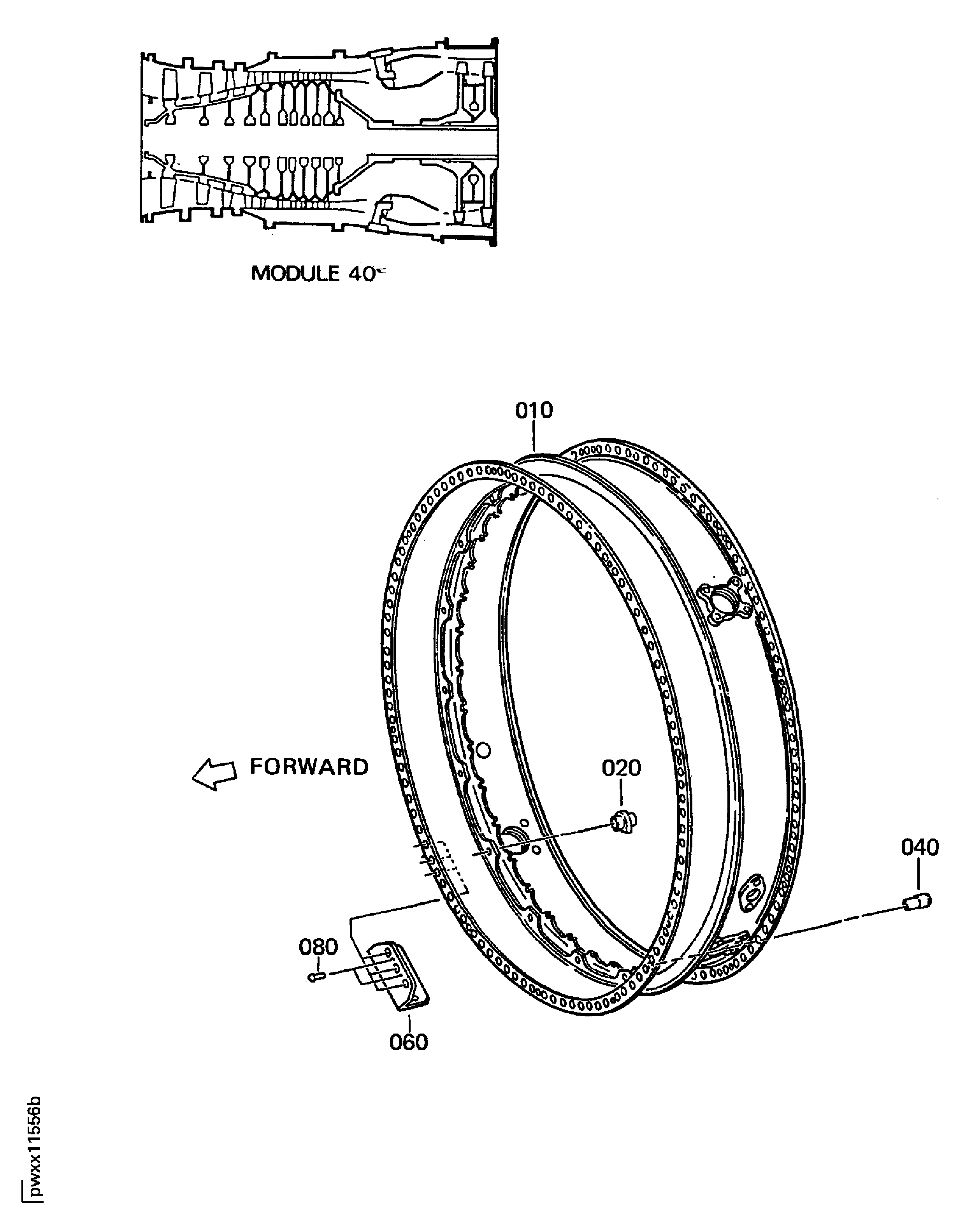

Figure: ENGINE-HP TURBINE CASE ASSEMBLY
HPT CASE ASSEMBLY
