DMC:V2500-A1-72-45-23-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72452301 | ENGINE-STAGE 1 HPT DUCT SEGMENT, PRE SBE70-0015 | aa | ||
| SBE0015-01 | ENGINE-STAGE 1 HPT DUCT SEGMENT, PRE SBE72-0108 | ab | ||
| SBE0108-01 | ENGINE-STAGE 1 HPT DUCT SEGMENT, PRE SBE72-0310 | ac | ||
| SBE0310-01 | ENGINE-STAGE 1 HPT DUCT SEGMENT, PRE SBE72-0339 | ad | ||
| SBE0339-01 | ENGINE-STAGE 1 HPT DUCT SEGMENT, PRE SBE70-0802 | ae | ||
| SBE0802-01 | ENGINE-STAGE 1 HPT DUCT SEGMENT, PRE SBE70-0823 | af | ||
| SBE0823-01 | ENGINE-STAGE 1 HPT DUCT SEGMENT, PRE SBE70-0826 | ag | ||
| SBE0826-01 | ENGINE-STAGE 1 HPT DUCT SEGMENT, PRE SBE72-0542 | ah | ||
| SBE0542-01 | ENGINE-STAGE 1 HPT DUCT SEGMENT | ai | ||
| 010 | 2A0182 | • GASKET PRE SBE70-0015 | aa | 1 |
| 010A | 2A1960 | • GASKET - OPTION ALT 2A0988 POST SBE70-0015 PRE SBE72-0341 | aa | 1 |
| -010B | 2A0988 | • GASKET ALT 2A0182 POST SBE70-0015 | aa | REF |
| -010C | 2A0182 | • GASKET ALT 2A0984 POST SBE70-0015 | aa | REF |
| -010D | 2A0984 | • GASKET ALT 2A1960 POST SBE70-0015 | ***** | REF |
| 020 | 2A0184-01 | • BAND - SEG,HPT,1STG,ASSY OF PRE SBE72-0339 | aa-ad | 2 |
| 020A | 2A3297-01 | • BAND - SEG ASSY, HPT,1 STG POST SBE72-0339 | ae-ai | 3 |
| 040 | 2A0187-01 | • BAND - SEG,HPT,1STG,ASSY OF PRE SBE72-0339 | aa-ad | 1 |
| 060 | 2A1115 | • DUCT - SEGMENT 1STG HPT PRE SBE72-0108 | aa-ab | 19 |
| 060A | 2A1945 | • DUCT - SEG,HPT,1STG POST SBE72-0108 PRE SBE72-0310 | ac | 19 |
| 060B | 2A3361 | • DUCT POST SBE72-0310 PRE SBE72-0339 | ad | 19 |
| 060C | 2A3295-01 | • DUCT - SEG, HPT,1STG POST SBE72-0339 PRE SBE70-0823 | ae-ah | 38 |
| 060D | 2A3515-01 | • SEGMENT - ASSY OF DUCT,HPT,1STG POST SBE70-0823 PRE SBE72-0542 | ae-ah | 38 |
| 060E | 2A3954-01 | • DUCT - SEGMENT,HPT,1STG ASYO POST SBE72-0542 | ai | 38 |
| 060F | 2A3954-01 | • DUCT - SEGMENT,HPT,1STG ASYO POST SBE72-0542 | ai | 38 |
| 062 | 2A3061-02 | • • COVER - HPT DUCT SEG POST SBE70-0802 PRE SBE70-0826 | af-ah | 1 |
| 062A | 2A3561 | • • COVER - HPT DUCT SEG POST SBE70-0826 PRE SBE72-0542 | af-ah | 1 |
| 062B | 2A3955 | • • COVER - HPT DUCT SEG POST SBE72-0542 | af-ai | 1 |
| 066 | 2A3062 | • • PIN - STRAIGHT HEADLESS POST SBE72-0339 PRE SBE70-0823 | ae-af | 1 |
| 080 | 2A0183 | • SEAL - HPT DUCT,1STG PRE SBE72-0339 | aa-ad | 19 |
| 080A | 2A1701 | • SEAL - HPT POST SBE72-0339 | ae-ai | 38 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

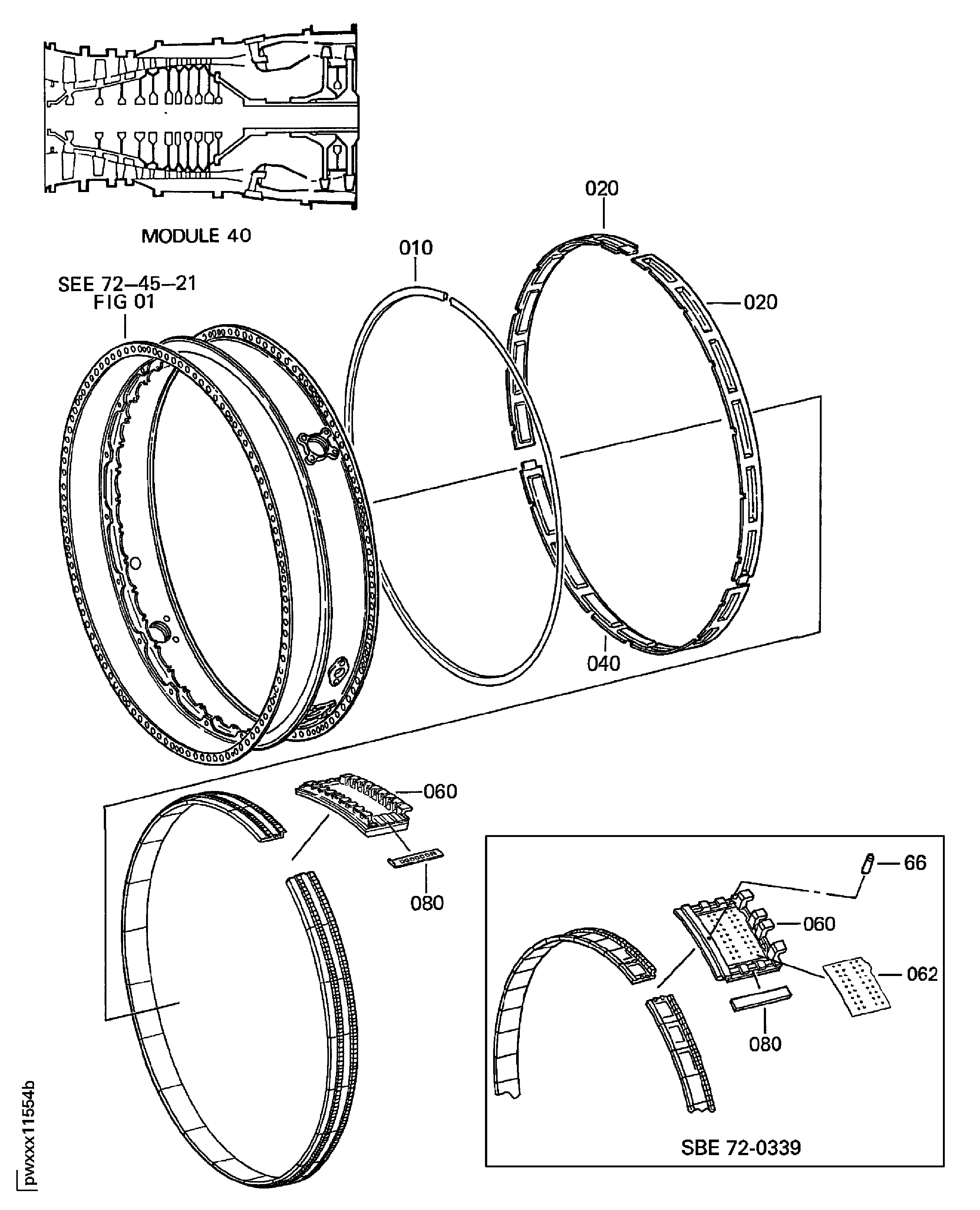

Figure: ENGINE-STAGE 1 HPT DUCT SEGMENT
STAGE 1 HPT DUCT SEGMENT
