| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72452501 | ENGINE-STAGE 2 HPT DUCT SEGMENT, PRE SBE70-0015 | aa | ||
| SBE0015-01 | ENGINE-STAGE 2 HPT DUCT SEGMENT, PRE SBE72-0085 | ab | ||
| SBE0085-01 | ENGINE-STAGE 2 HPT DUCT SEGMENT, PRE SBE72-0124 | ac | ||
| SBE0124-01 | ENGINE-STAGE 2 HPT DUCT SEGMENT, PRE SBE72-0310 | ad | ||
| SBE0310-01 | ENGINE-STAGE 2 HPT DUCT SEGMENT, PRE SBE72-0364 | ae | ||
| SBE0364-01 | ENGINE-STAGE 2 HPT DUCT SEGMENT | af | ||
| 010 | 2A0193 | • GASKET PRE SBE70-0015 | aa-af | 1 |
| 010A | 2A1961 | • GASKET - OPTION ALT 2A0989 POST SBE70-0015 | aa-af | 1 |
| -010B | 2A0989 | • GASKET ALT 2A0193 POST SBE70-0015 | aa-af | REF |
| -010C | 2A0193 | • GASKET ALT 2A0985 POST SBE70-0015 | aa-af | REF |
| -010D | 2A0985 | • GASKET ALT 2A1961 POST SBE70-0015 | aa-af | REF |
| 020 | 2A0195-01 | • BAND - SEG,HPT,2STG,ASSY OF PRE SBE72-0124 | aa-ac | 2 |
| 020A | 2A2271-01 | • BAND - SEG, A/O,2 STG, HPT POST SBE72-0124 PRE SBE72-0364 | ad-ae | 2 |
| 020B | 2A3411-01 | • BAND - SEG,HPT,2 STG,ASYO POST SBE72-0364 | af | 2 |
| 040 | 2A0198-01 | • BAND - SEG,HPT,2STG,ASSY OF PRE SBE72-0124 | aa-ac | 1 |
| 040A | 2A2269-01 | • BAND - SEG, 2 STG,HPT POST SBE72-0124 PRE SBE72-0364 | ad-ae | 1 |
| 040B | 2A3413-01 | • BAND - SEG,HPT,2 STG,ASYO POST SBE72-0364 | af | 1 |
| 060 | 2A0108 | • DUCT - SEG,HPT,2STG, PRE SBE72-0085 | aa-ab | 19 |
| 060A | 2A1944 | • DUCT - SEG-HPT,2 STG POST SBE72-0085 PRE SBE72-0310 | aa-ad | 19 |
| 060B | 2A3362 | • DUCT POST SBE72-0310 PRE SBE72-0364 | ae | 19 |
| 060C | 2A3392 | • DUCT - SEG,HPT 2 STG POST SBE72-0364 | af | 38 |
| 080 | 2A0194 | • SEAL - HPT,2STG, PRE SBE72-0364 | aa-ae | 19 |
| 080A | 2A3447 | • SEAL - 2STG HPT DUCT POST SBE72-0364 | af | 38 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

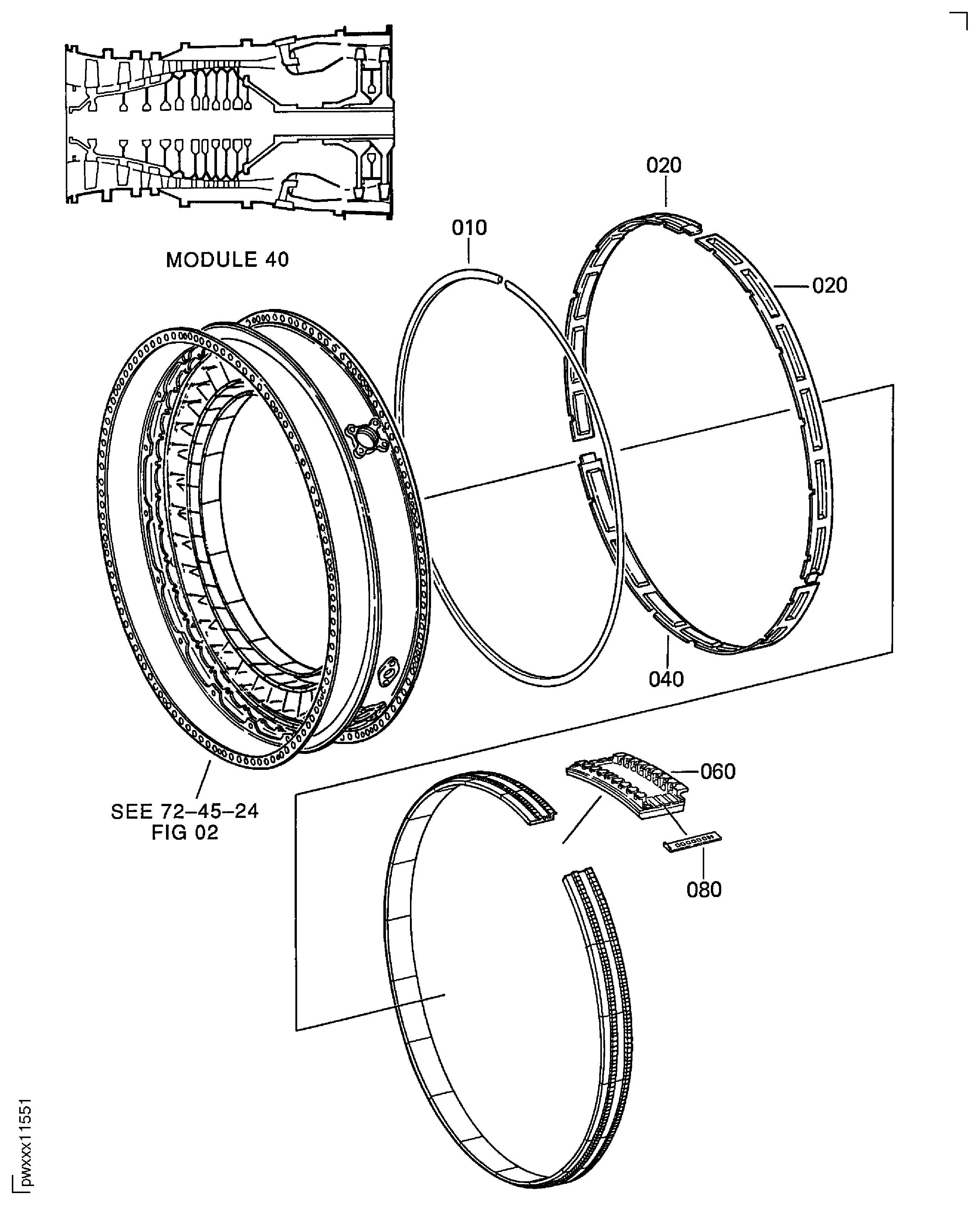

Figure: ENGINE-STAGE 2 HPT DUCT SEGMENT
STAGE 2 HPT DUCT SEGMENT
STAGE 2 HPT DUCT SEGMENT
