DMC:V2500-A1-72-45-26-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72452601 | ENGINE-SECOND STAGE HPT DUCT SUPPORT, PRE SBE70-0015 | aa | ||
| SBE0015-01 | ENGINE-SECOND STAGE HPT DUCT SUPPORT, PRE SBE72-0124 | ab | ||
| SBE0124-01 | ENGINE-SECOND STAGE HPT DUCT SUPPORT, PRE SBE72-0364 | ac | ||
| SBE0364-01 | ENGINE-SECOND STAGE HPT DUCT SUPPORT | ad | ||
| 010 | 2A0193 | • GASKET PRE SBE70-0015 | aa-ad | 1 |
| 010A | 2A1961 | • GASKET - OPTION ALT 2A0989 POST SBE70-0015 | aa-ad | 1 |
| -010B | 2A0989 | • GASKET ALT 2A0193 POST SBE70-0015 | aa-ad | REF |
| -010C | 2A0193 | • GASKET ALT 2A0985 POST SBE70-0015 | aa-ad | REF |
| -010D | 2A0985 | • GASKET ALT 2A1961 POST SBE70-0015 | ab-ad | REF |
| 020 | 2A0189 | • SUPPORT - ASSY,2STG HPT DUCT PRE SBE72-0124 | aa-ab | 19 |
| 020A | 2A2270 | • SUPPORT - ASSY, 2 STG,HPT, DUCT POST SBE72-0124 PRE SBE72-0364 | ac | 19 |
| 020B | 2A3407 | • SUPPORT - HPT DUCT,2STG,ASYO POST SBE72-0364 | ad | 19 |
| 042 | 2A0981CL1 | • • PIN - SHOULDER,HEADLESS, .1088 X.120 SQ X.390 PRE SBE72-0124 | aa-ab | 1 |
| 042A | 2A1268CL1 | • • PIN - SHOULDER,HEADLESS POST SBE72-0124 PRE SBE72-0364 | ac | 1 |
| 042B | 2A1268CL1 | • • PIN POST SBE72-0364 | ad | 2 |
| 044 | 2A0981CL2 | • • PIN - SHOULDER,HEADLESS, .1093 X.120 SQ X.390 PRE SBE72-0124 | aa-ab | 1 |
| 044A | 2A1268CL2 | • • PIN - SHOULDER,HEADLESS POST SBE72-0124 PRE SBE72-0364 | ac | 1 |
| 044B | 2A1268CL2 | • • PIN POST SBE72-0364 | ad | 2 |
| 046 | 2A0981CL3 | • • PIN - SHOULDER,HEADLESS, .10975 X.120 SQ X.39 PRE SBE72-0124 | aa-ab | 1 |
| 046A | 2A1268CL3 | • • PIN - SHOULDER,HEADLESS POST SBE72-0124 PRE SBE72-0364 | ac | 1 |
| 046B | 2A1268CL3 | • • PIN POST SBE72-0364 | ad | 2 |
| 048 | 2A0981CL4 | • • PIN - SHOULDER,HEADLESS, .1103 X.120 SQ X.390 PRE SBE72-0124 | aa-ab | 1 |
| 048A | 2A1268CL4 | • • PIN - SHOULDER,HEADLESS POST SBE72-0124 PRE SBE72-0364 | ac | 1 |
| 048B | 2A1268CL4 | • • PIN POST SBE72-0364 | ad | 2 |
| 050 | 2A0981P3 | • • PIN - SHOULDER,HEADLESS, .11175 X.120 SQ X.39 PRE SBE72-0124 | aa-ab | 1 |
| 050A | 2A1268P3 | • • PIN - SHOULDER,HEADLESS 77445 POST SBE72-0124 PRE SBE72-0364 | ac | 1 |
| 050B | 2A1268P3 | • • PIN 77445 POST SBE72-0364 | ad | 2 |
| 054 | 2A0981P5 | • • PIN - SHOULDER,HEADLESS, .11375 X.120 SQ X.39 PRE SBE72-0124 | aa-ab | 1 |
| 054A | 2A1268P5 | • • PIN - SHOULDER,HEADLESS 77445 POST SBE72-0124 PRE SBE72-0364 | ac | 1 |
| 054B | 2A1268P5 | • • PIN 77445 POST SBE72-0364 | ad | 2 |
| 060 | 2A0191 | • SEAL - HPT DUCT SPRT,2STG | aa-ad | 38 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

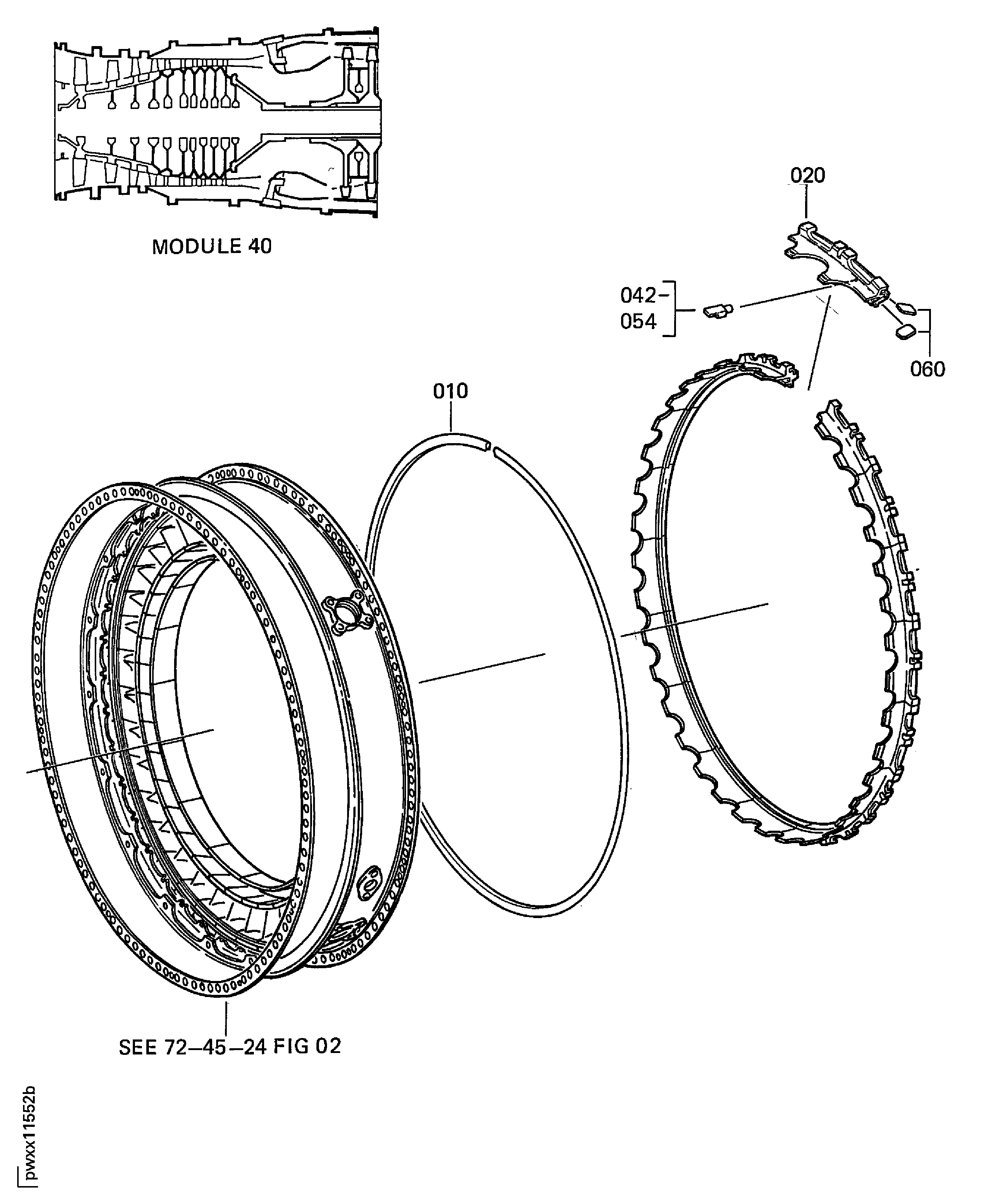

Figure: ENGINE-SECOND STAGE HPT DUCT SUPPORT
STAGE 2 HPT DUCT SUPPORT
