DMC:V2500-A1-72-45-31-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72453101 | ENGINE-STAGE 2 TURBINE HUB, PRE SBE72-0011 | aa | ||
| SBE0011-01 | ENGINE-STAGE 2 TURBINE HUB, PRE SBE72-0075 | ab | ||
| SBE0075-01 | ENGINE-STAGE 2 TURBINE HUB, PRE SBE72-0101 | ac | ||
| SBE0101-01 | ENGINE-STAGE 2 TURBINE HUB | ad | ||
| 010 | 2A0902 | • HUB - TURB,2STG PRE SBE72-0011 | aa | 1 |
| 010A | 2A1702 | • HUB - ASSY,TURBINE,2ND STG POST SBE72-0011 PRE SBE72-0075 | ab | 1 |
| 010B | 2A1802 | • HUB - ASSY TURBINE 2ND STG POST SBE72-0075 PRE SBE72-0101 | ac | 1 |
| 011 | 2A1202 | • HUB - 2STG TURBINE POST SBE72-0101 | ad | 1 |
| 011A | 2A1302 | • HUB - 2STG TURBINE POST SBE72-0101 | ad | 1 |
| 020 | 2A1041 | • • HEATSHLD - HPT,2ND STG POST SBE72-0011 PRE SBE72-0101 | ab-ad | 1 |
| 020A | 2A1041 | • HEATSHLD - HPT,2ND STG POST SBE72-0101 | ab-ad | 1 |
| 030 | 2A1125 | • • METERING - PLUG,HPT DISK,2STG POST SBE72-0011 PRE SBE72-0101 | ab-ad | 4 |
| 030A | 2A2403 | • METERING - PLUG HPT HUB,2STG POST SBE72-0101 | ab-ad | 4 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

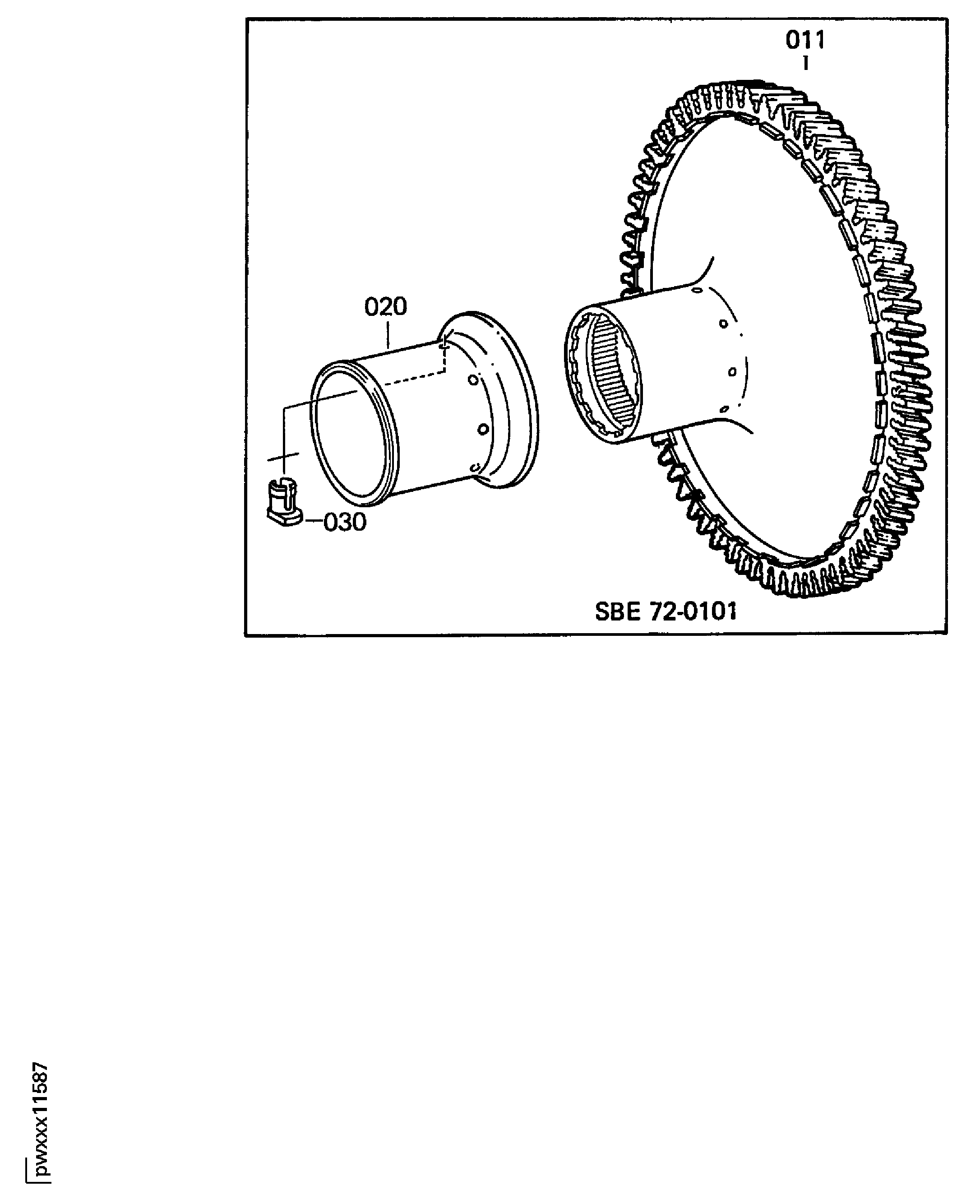

Figure: ENGINE-STAGE 2 TURBINE HUB
STAGE 2 TURBINE HUB
STAGE 2 TURBINE HUB
