DMC:V2500-A1-72-50-32-01A-941A-DIssue No:002.00Issue Date:2015-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72503201 | ENGINE-LP TURBINE BLADES, PRE SBE72-0138 | aa | ||
| SBE0138-01 | ENGINE-LP TURBINE BLADES, PRE SBE72-0134 | ab | ||
| SBE0134-01 | ENGINE-LP TURBINE BLADES, PRE SBE70-0583 | ac | ||
| SBE0583-01 | ENGINE-LP TURBINE BLADES, PRE SBE70-0805 | ad | ||
| SBE0805-01 | ENGINE-LP TURBINE BLADES, PRE SBE70-0890 | ae | ||
| SBE0890-01 | ENGINE-LP TURBINE BLADES, PRE SBE72-0540 | af | ||
| SBE0540-01 | ENGINE-LP TURBINE BLADES, PRE SBE72-0655 | ag | ||
| SBE0655-01 | ENGINE-LP TURBINE BLADES | ah | ||
| 010 | 3A0887 | • BLADE - TURBINE STG7 PRE SBE72-0138 | aa | 89 |
| 010A | 3A1807 | • BLADE - TURBINE STG7 POST SBE72-0138 PRE SBE70-0583 | ab-ag | 89 |
| 010B | 3A2477 | • BLADE - TURBINE STG7 POST SBE70-0583 PRE SBE72-0540 | ab-ag | 89 |
| 010C | 3A2477 | • BLADE - TURBINE STG7 POST SBE72-0540 | ab-ag | 89 |
| 050 | 3A0886 | • BLADE - TURBINE STG6 PRE SBE72-0138 | aa | 85 |
| 050A | 3A1806 | • BLADE - TURBINE STG6 POST SBE72-0138 PRE SBE70-0805 | ab-ag | 85 |
| 050B | 3A2704 | • BLADE - TURBINE STG6 POST SBE70-0805 | ab-ag | 85 |
| 100 | 3A0885 | • BLADE - TURBINE STG5 PRE SBE72-0138 | aa | 87 |
| 100A | 3A1805 | • BLADE - TURBINE STG5 POST SBE72-0138 PRE SBE70-0583 | ab-ag | 87 |
| 100B | 3A2475 | • BLADE - TURBINE STG5 POST SBE70-0583 | ab-ag | 87 |
| 150 | 3A0884 | • BLADE - TURBINE STG4 PRE SBE72-0138 | aa | 99 |
| 150A | 3A1804 | • BLADE - TURBINE STG4 POST SBE72-0138 PRE SBE70-0805 | ab-ag | 99 |
| 150B | 3A2374 | • BLADE - TURBINE STG4 POST SBE70-0805 PRE SBE70-0890 | ab-ag | 99 |
| 150C | 3A2923 | • BLADE - TURBINE,STG4 POST SBE70-0890 | ab-ag | 99 |
| 150D | 3A2374 | • BLADE - TURBINE STG4 POST SBE70-0890 PRE SBE72-0655 | ab-ah | 99 |
| 200 | 3A0883 | • BLADE - TURBINE STG3 PRE SBE72-0138 | aa | 97 |
| 200A | 3A2055 | • BLADE - TURBINE STG3 POST SBE72-0138 PRE SBE70-0805 | ab-ag | 97 |
| 200B | 3A2053 | • BLADE - TURBINE,STG3 POST SBE72-0134 | ac-ag | 97 |
| 200C | 3A2373 | • BLADE - TURBINE,STG3 POST SBE70-0805 | ab-ag | 97 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

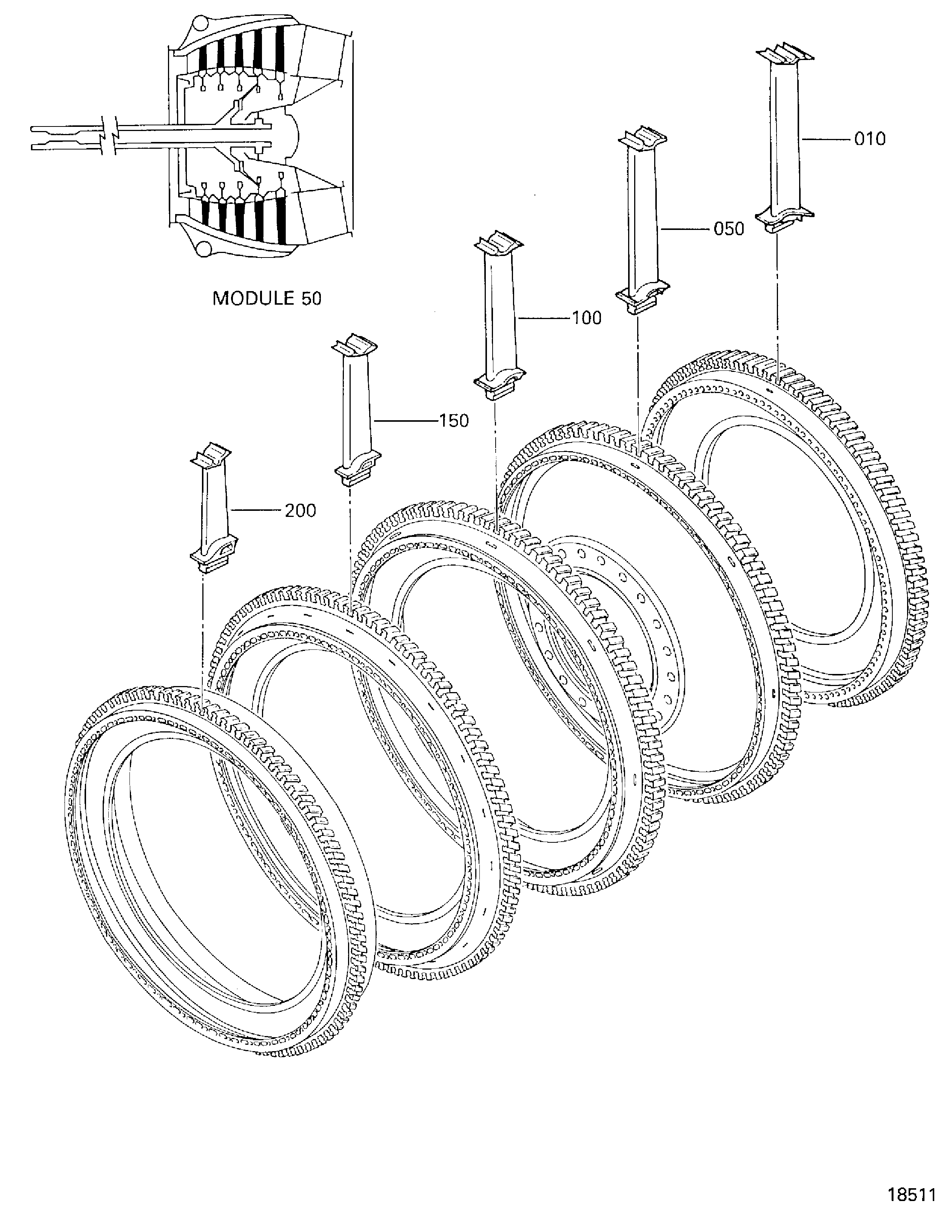

Figure: ENGINE-LP TURBINE BLADES
LPT BLADE
