| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72504101 | ENGINE-LP TURBINE SHAFT, PRE SBE72-0037 | aa | ||
| SBE0037-01 | ENGINE-LP TURBINE SHAFT, PRE SBE70-0062 | ab | ||
| SBE0062-01 | ENGINE-LP TURBINE SHAFT, PRE SBE72-0117 | ac | ||
| SBE0117-01 | ENGINE-LP TURBINE SHAFT, PRE SBE70-0387 | ad | ||
| SBE0387-01 | ENGINE-LP TURBINE SHAFT, PRE SBE72-0227 | ae | ||
| SBE0227-01 | ENGINE-LP TURBINE SHAFT | af | ||
| 050 | RR375 | • RING - RETAINING INT, 3.750 DIA 80756 | aa-af | 1 |
| 055 | 5A0385 | • RING - LOCKING, T2.0 | aa-af | 1 |
| 060 | 5A0381 | • NUT - LOCK REAR | aa-af | 1 |
| 100 | RR295 | • RING - RETAINING INT 80756 PRE SBE72-0227 | aa-ae | 1 |
| 100A | 5A1702 | • RING - RETAINING INT POST SBE72-0227 | af | 1 |
| 150 | 5A0386 | • CAP - BLIND PRE SBE72-0227 | aa-ae | 1 |
| 150A | 5A1703 | • CAP - BLIND POST SBE72-0227 | af | 1 |
| 160 | 5A0387 | • RING - SEALING PRE SBE72-0037 | aa | 1 |
| 160A | 5A1515 | • RING - SEALING POST SBE72-0037 PRE SBE70-0387 | ab-ad | 1 |
| 160B | 5A1697 | • SEAL - ASSY POST SBE70-0387 | ae-af | 1 |
| 200 | 5A6147 | • SHAFT - LP TURBINE PRE SBE70-0062 | aa-af | 1 |
| 200A | 5A0149 | • SHAFT - LP TURBINE POST SBE70-0062 PRE SBE72-0117 | aa-af | 1 |
| 200B | 5A0892 | • SHAFT - LPT POST SBE72-0117 | aa-af | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

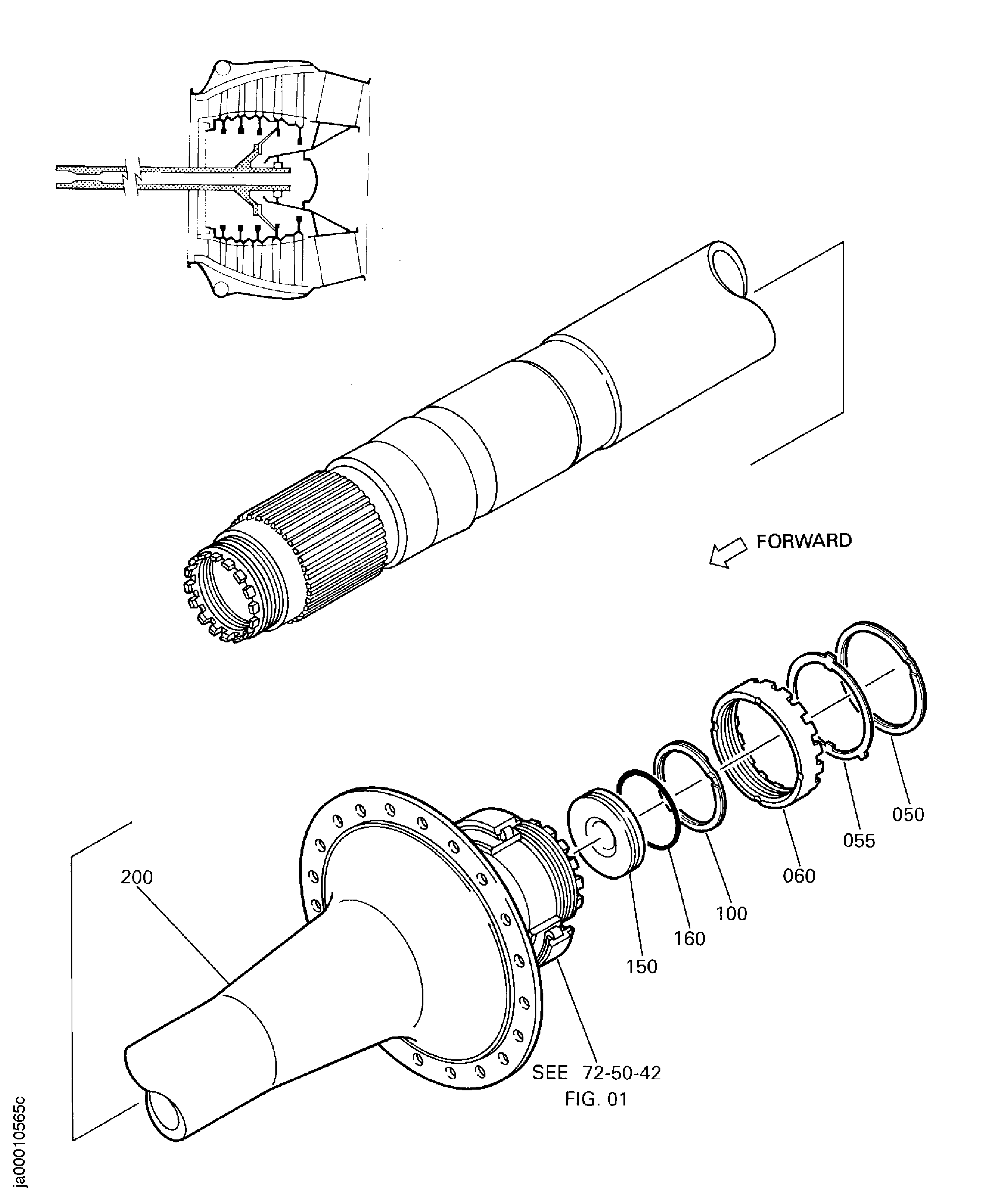

Figure: ENGINE-LP TURBINE SHAFT
LPT SHAFT
