DMC:V2500-A1-72-50-51-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72505101 | ENGINE-NO.5 BEARING OIL JET AND FILTER | aa | ||
| 100 | 4P8034 | • FILTER - OIL PRE SBE72-0063 | ***** | 1 |
| 120 | AS43013-109 | • RING - SEALING TOROIDAL, 7.59MM I/D X 2.62MM U1653 PRE SBE72-0063 | ***** | 2 |
| 140 | 4P8078 | • TUBE - OIL TRANSFER PRE SBE72-0063 | ***** | 1 |
| 160 | 4A8009 | • JET - ASSY,OIL PRE SBE72-0063 | ***** | 1 |
| 170 | AGS3734 | • • INSERT - SCREW THREAD U1653 PRE SBE72-0063 | ***** | 1 |
| 180 | 4B8042 | • • JET - A/O,OIL PRE SBE72-0063 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

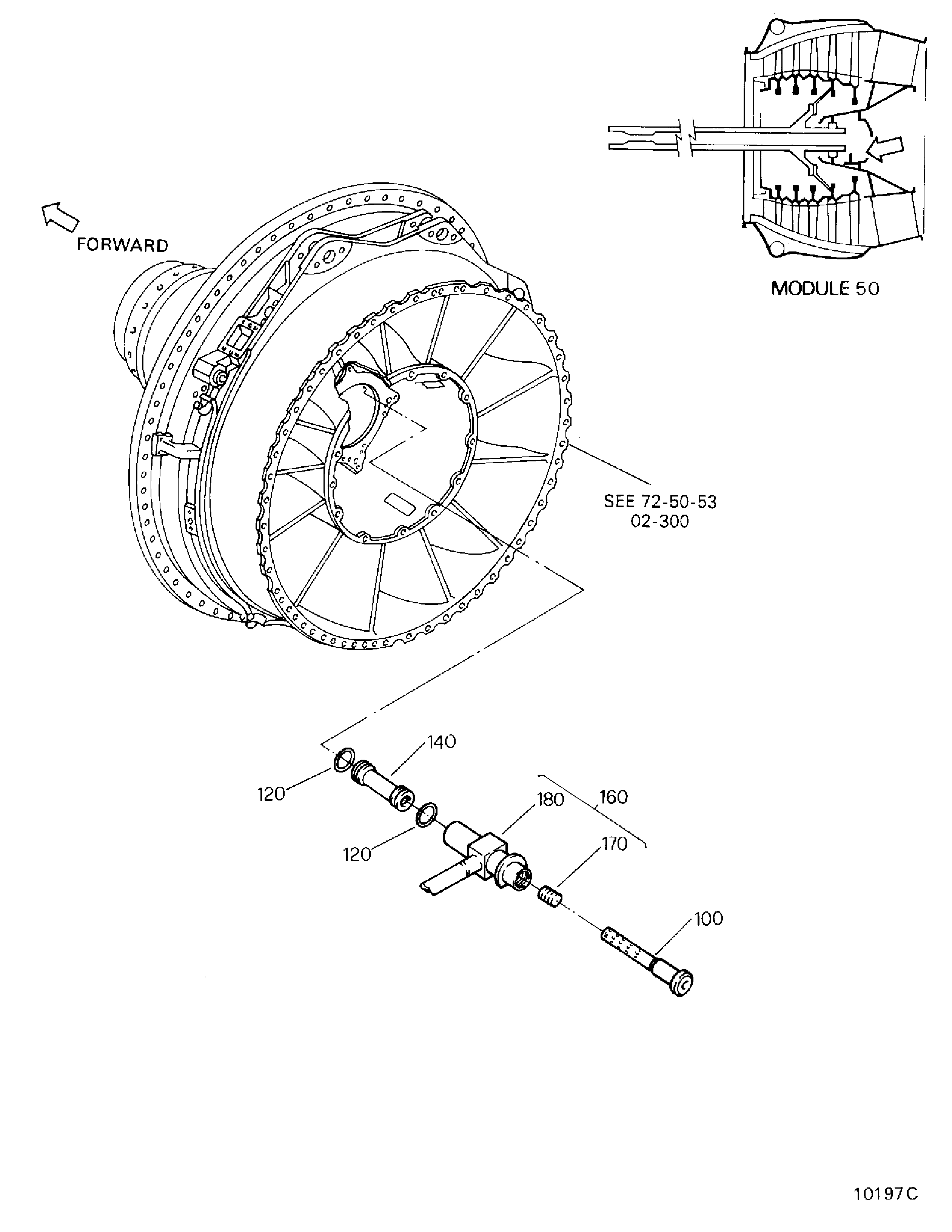

Figure: ENGINE-NO.5 BEARING OIL JET AND FILTER
JET OIL AND FILTER
