DMC:V2500-A1-72-50-51-20A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 20 | ||||
| B72505120 | ENGINE-NO.5 BEARING OIL JET AND FILTER, PRE SBE72-0063 | aa | ||
| SBE0063-01 | ENGINE-NO.5 BEARING OIL JET AND FILTER | ab | ||
| 010 | MS9452-05 | • BOLT - MACH HEX 96906 POST SBE72-0063 PRE SBE70-0886 | ***** | 2 |
| 020 | MS9581-10 | • WASHER - KEY-90 DEGREE 96906 POST SBE72-0063 PRE SBE70-0886 | ***** | 2 |
| 030 | 2A1212 | • TUBE - TRANSFER,PACKING,#5BRG POST SBE72-0063 PRE SBE70-0886 | ***** | 1 |
| 040 | AS3209-107 | • PACKING - PREFORMED U1653 POST SBE72-0063 PRE SBE70-0886 | ***** | 3 |
| 060 | MS9886-07 | • BOLT - MACH DBL HEX EXT 96906 POST SBE72-0063 PRE SBE70-0886 | ***** | 2 |
| 070 | 2A1211 | • NOZZLE - #5BRG POST SBE72-0063 PRE SBE70-0886 | ***** | 1 |
| 080 | AS3209-110 | • PACKING - PREFORMED U1653 POST SBE72-0063 PRE SBE70-0886 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

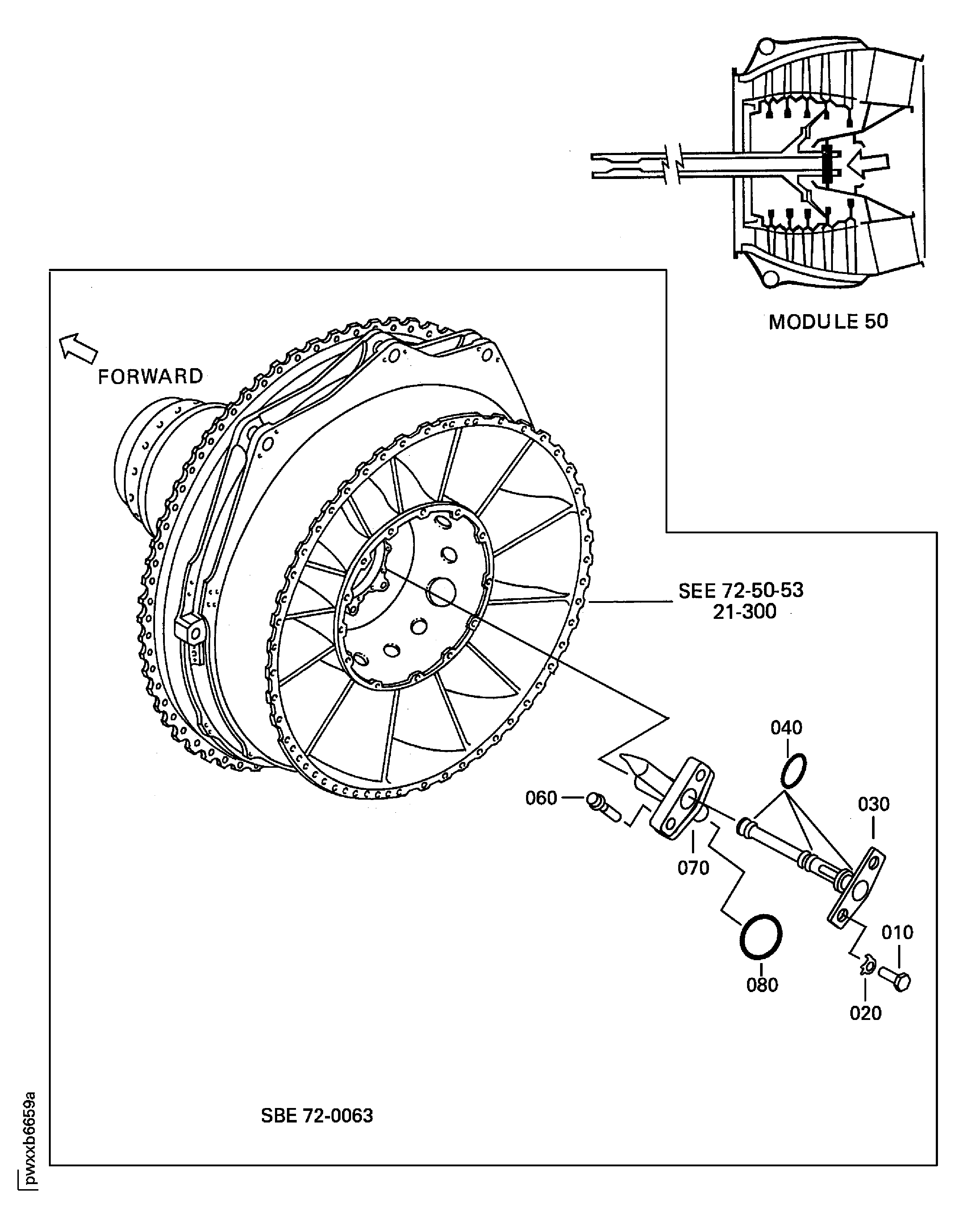

Figure: ENGINE-NO.5 BEARING OIL JET AND FILTER
NO.5 BEARING OIL JET AND FILTER
