DMC:V2500-A1-72-50-52-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72505201 | ENGINE-NO.5 BEARING PLATE AND OIL DEFLECTOR | aa | ||
| 100 | 4P8097 | • DEAERATR - UPPER PRE SBE72-0063 | ***** | 1 |
| 120 | 4P8098 | • DEAERATR - LOWER PRE SBE72-0063 | ***** | 1 |
| 140 | 4P8075 | • RETAINER - NO.5 BRG PRE SBE72-0063 | ***** | 1 |
| 160 | 4W0163 | • BOLT - .250 DIA X .562 PRE SBE72-0063 | ***** | 8 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

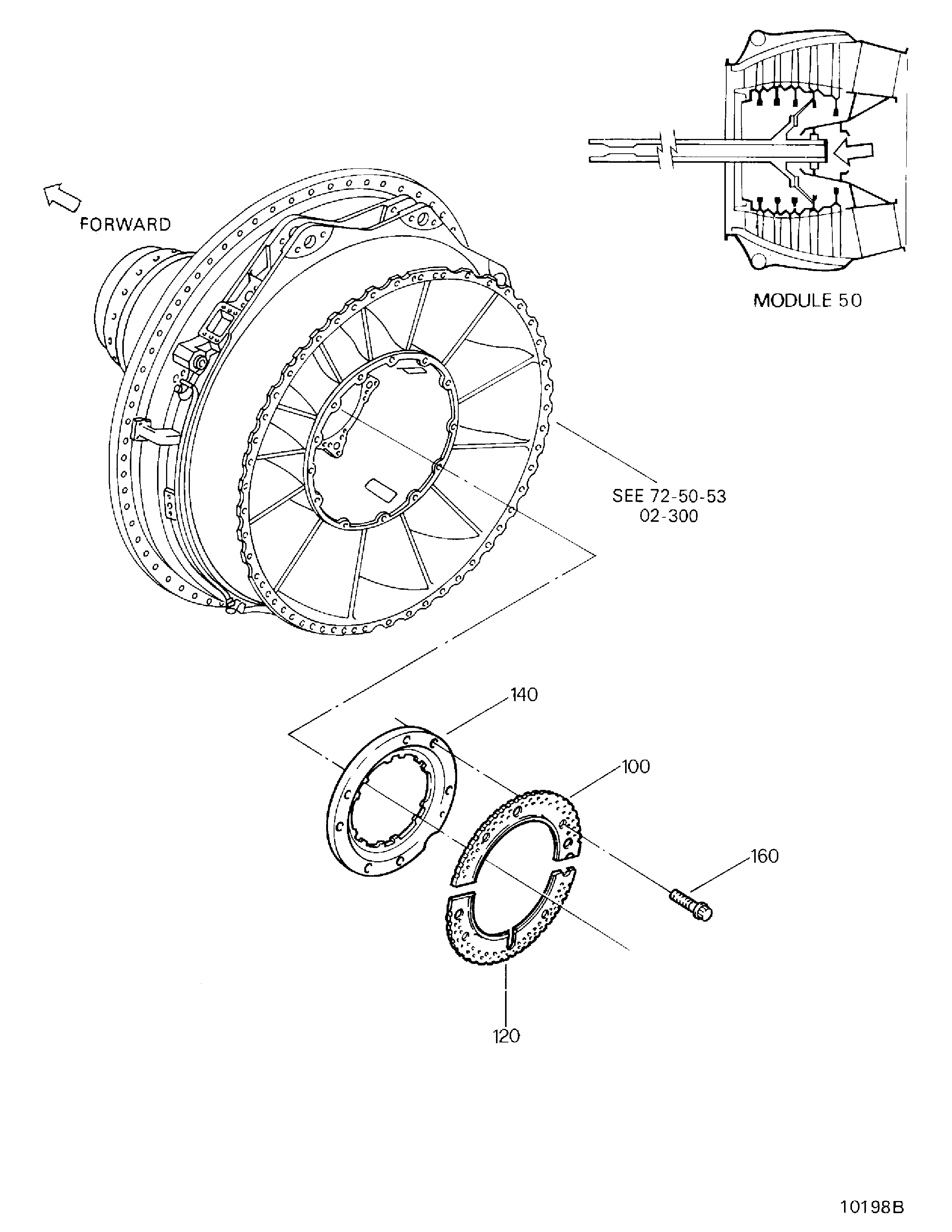

Figure: ENGINE-NO.5 BEARING PLATE AND OIL DEFLECTOR
RETAINER NO.5 BEARING
