DMC:V2500-A1-72-50-53-21A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 21 | ||||
| B72505321 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE72-0063 | aa | ||
| SBE0063-01 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE72-0192 | ab | ||
| SBE0192-01 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE70-0480 | ac | ||
| SBE0480-01 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE70-0501 | ad | ||
| SBE0501-01 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE70-0783 | ae | ||
| SBE0783-01 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE72-0498 | af | ||
| SBE0498-01 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE70-0925 | ag | ||
| SBE0925-01 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE72-0590 | ah | ||
| SBE0590-01 | ENGINE-EXHAUST CASE AND FITTINGS | ai | ||
| 010 | MS9885-06 | • BOLT 96906 POST SBE72-0063 | ab-ai | 3 |
| 020 | 2A1365 | • HOUSING - #5BRG SEAL POST SBE72-0063 | ab-ai | 1 |
| 040 | 2A1354 | • SHEILD - #5BRG POST SBE72-0063 | ab-ai | 1 |
| 060 | 2A2107 | • SHIELD - OPTION POST SBE72-0063 | ab-ai | 2 |
| -062 | 2A1768-01 | • SHIELD - SEG A/O,HEAT,#5B H/S POST SBE72-0063 | ab-ai | REF |
| -072 | 2A1769-01 | • SHIELD - SEG A/O,HEAT,#5BRG POST SBE72-0063 | ab-ai | REF |
| 100 | 2A2103 | • SHIELD - OPTION POST SBE72-0063 | ab-ai | 1 |
| -102 | 2A1766-01 | • SHIELD - A/O,HEAT,#5BRG POST SBE72-0063 | ab-ai | REF |
| -116 | 2A2104-01 | • SHIELD - A/O,HEAT,#5BRG POST SBE72-0063 | ab-ai | REF |
| 200 | 2A2165 | • TUBE - INTERMEDIATE STRUT POST SBE72-0063 | ab-ai | 7 |
| 300 | 2A2620-01 | • CASE - TURB EXHAUST,ASSY OF POST SBE72-0063 PRE SBE72-0192 | ab-ae | 1 |
| 300A | 2A3111-01 | • CASE - ASSY OF, TURB EXHAUST POST SBE72-0192 PRE SBE70-0480 | ab-ae | 1 |
| 300B | 2A1209-101 | • CASE - A&O TURB EXHAUST POST SBE72-0192 PRE SBE72-0192 | ***** | 1 |
| 300C | 2A3183-01 | • CASE - ASSY 77445 POST SBE70-0480 PRE SBE70-0783 | ab-ai | 1 |
| 300D | 2A3455-01 | • CASE - ASSY TURBINE EXHAUST 77445 POST SBE70-0783 PRE SBE72-0590 | ab-ai | 1 |
| 300E | 2A4263-01 | • CASE - ASSY OF, TURB EXHAUST ALT 2A3183-101 POST SBE72-0590 | ai | 1 |
| 300F | 2A3183-101 | • CASE - ASSY OF -TURB EX ALT 2A4263-01 POST SBE72-0590 | ai | 1 |
| 300G | 2A4263-01 | • CASE - ASSY OF, TURB EXHAUST ALT 2A4258-01 POST SBE72-0590 | ai | 1 |
| 300H | 2A4258-01 | • CASE - ASSY OF, TURB EXHAUST 77445 ALT 2A4263-01 POST SBE72-0590 | ai | 1 |
| 300J | 2A4263-01 | • CASE - ASSY OF, TURB EXHAUST ALT 2A4258-01 POST SBE72-0590 | ai | 1 |
| 300K | 2A4258-01 | • CASE - ASSY OF, TURB EXHAUST 77445 POST SBE72-0590 | ai | 1 |
| 300L | 2A4258-01 | • CASE - ASSY OF, TURB EXHAUST 77445 ALT 2A4263-01 POST SBE72-0590 | ab-ai | 1 |
| 380 | 2A4257 | • • TAP - PRESSURE KIEL POST SBE72-0590 | ai | 24 |
| 390 | AN123619 | • • RIVET - C/S,HIGH TEMP 81352 POST SBE72-0063 | ab-ai | 6 |
| 400 | 568035 | • • NUT - OPTION 77445 ALT 566599 POST SBE72-0063 | ab-ai | 3 |
| -400A | 566599 | • • NUT - S/L,PLATE,2LUG,FLTG U1605 ALT 566802 POST SBE72-0063 | ab-ai | REF |
| -400B | 566802 | • • NUT - S/L,PLATE,2LUG,FLTG 77445 ALT 647424 POST SBE72-0063 | ab-ai | REF |
| -400C | 647424 | • • NUT - S/L,PLATE,2LUG,FLTG 77445 ALT 568035 POST SBE72-0063 | ab-ai | REF |
| 410 | 739951 | • • NUT - OPTION 77445 ALT 701887 POST SBE72-0063 | ab-ai | 13 |
| -410A | 701887 | • • NUT - S/L,CLINCH 77445 ALT 739963 POST SBE72-0063 | ab-ai | REF |
| -410B | 739963 | • • NUT - S/L,CLINCH 77445 ALT 739964 POST SBE72-0063 | ab-ai | REF |
| -410C | 739964 | • • NUT - S/L,CLINCH 77445 ALT 789519 POST SBE72-0063 | ab-ai | REF |
| -410D | 789519 | • • NUT - S/L,CLINCH 77445 ALT 739951 POST SBE72-0063 | ab-ai | REF |
| 420 | ST1219-054 | • • RIVET - SOLID 77445 POST SBE72-0063 PRE SBE72-0192 | ab | 32 |
| 430 | 2A1209-14 | • • FAIRING - TURB EXH CASE POST SBE72-0063 PRE SBE72-0192 | ab | 1 |
| 440 | 2A2161 | • • BUSHING - SLEEVE POST SBE72-0063 | ab-ai | 6 |
| 441 | 2A2161P5 | • • BUSHING - SLEEVE 77445 POST SBE70-0501 | ae-ai | 6 |
| 442 | 2A2161P10 | • • BUSHING - SLEEVE 77445 POST SBE70-0501 | ae-ai | 6 |
| 443 | 2A2161P15 | • • BUSHING - SLEEVE 77445 POST SBE70-0501 | ae-ai | 6 |
| 444 | 2A2161P20 | • • BUSHING - SLEEVE 77445 POST SBE70-0501 | ae-ai | 6 |
| 445 | 2A2161P25 | • • BUSHING - SLEEVE 77445 POST SBE70-0501 | ae-ai | 6 |
| 450 | 2A2163 | • • BUSHING - SLEEVE POST SBE72-0063 | ab-ai | 4 |
| 451 | 2A2163P5 | • • BUSHING - SLEEVE 77445 POST SBE70-0501 | ae-ai | 4 |
| 452 | 2A2163P10 | • • BUSHING - SLEEVE 77445 POST SBE70-0501 | ae-ai | 4 |
| 453 | 2A2163P15 | • • BUSHING - SLEEVE 77445 POST SBE70-0501 | ae-ai | 4 |
| 454 | 2A2163P20 | • • BUSHING - SLEEVE 77445 POST SBE70-0501 | ae-ai | 4 |
| 455 | 2A2163P25 | • • BUSHING - SLEEVE 77445 POST SBE70-0501 | ae-ai | 4 |
| 480 | MS21209F4-15 | • • INSERT - SCREW THREAD 96906 POST SBE72-0063 | ab-ai | 19 |
| 490 | MS21209F4-10 | • • INSERT - SCREW THREAD 96906 POST SBE72-0063 | ab-ai | 2 |
| 560 | 2A3834-01 | • STRUT - ASSY OF TURB EXH CASE POST SBE70-0925 | ah-ai | 1 |
| 570 | 2A3835-01 | • STRUT - ASSY OF TURB EXH CASE POST SBE70-0925 | ah-ai | 1 |
| 580 | 2A3836-01 | • STRUT - ASSY OF TURB EXH CASE POST SBE70-0925 | ah-ai | 1 |
| 590 | 2A3508-01 | • STRUT - ASSY OF TURB EXH CASE POST SBE70-0925 | ah-ai | 1 |
| 600 | 2A3509-01 | • STRUT - ASSY OF TURB EXH CASE POST SBE70-0925 | ah-ai | 1 |
| 610 | 2A3510-01 | • STRUT - ASSY OF TURB EXH CASE POST SBE70-0925 | ah-ai | 1 |
| 700 | 768749 | • WASHER - FLAT 77445 POST SBE72-0498 | ag-ai | 4 |
| 710 | 768748 | • PLUG - PLAIN 77445 POST SBE72-0498 | ag-ai | 4 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

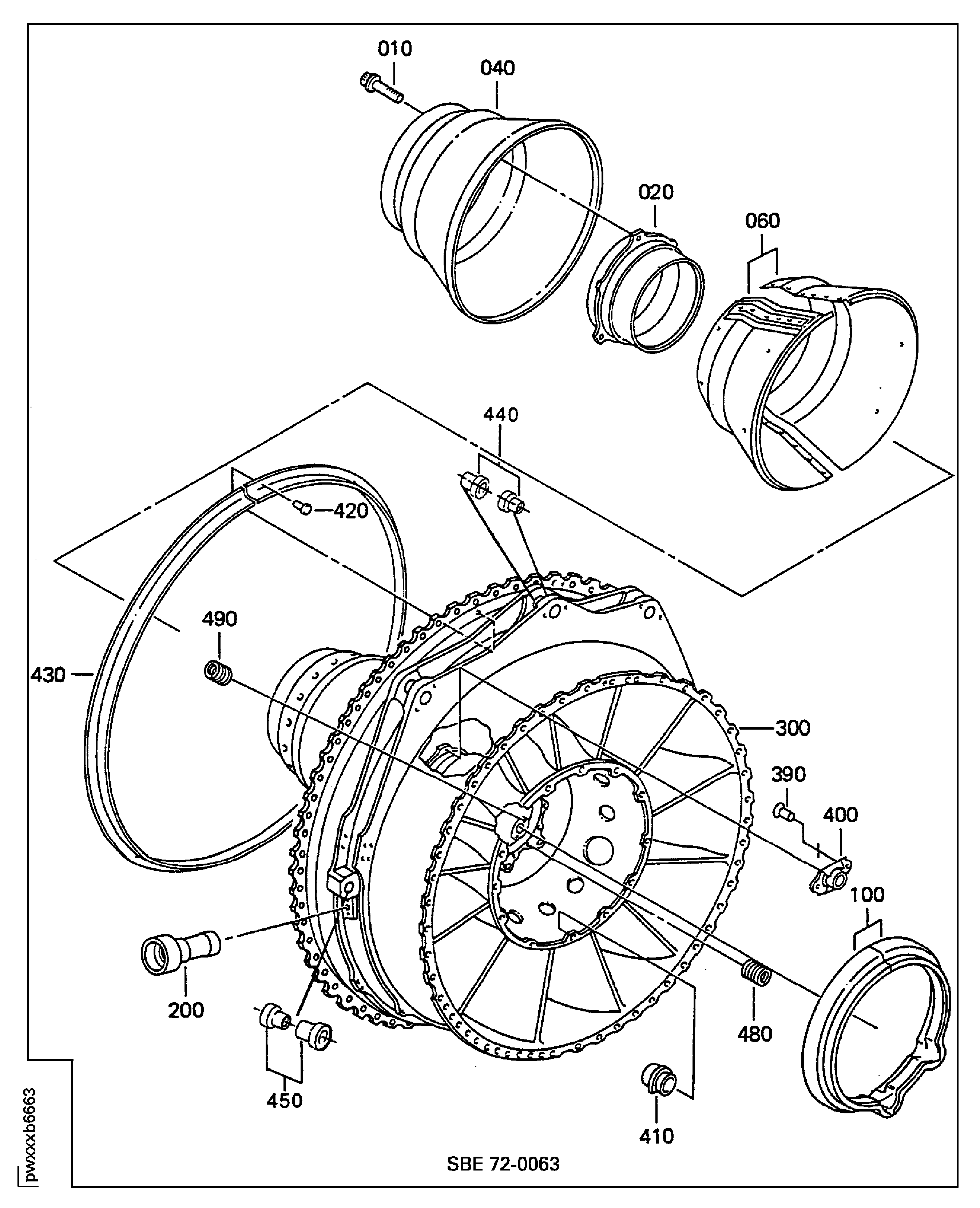

Figure: ENGINE-EXHAUST CASE AND FITTINGS
CASE ASSEMBLY TURBINE EXHAUST
