TASK 72-50-53-300-002 No. 5 Bearing Carbon Seal Housing - Nickel Plate The Outer Diameter, Repair-002 (VRS5329)

DMC:V2500-A1-72-50-5302-00A-647A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-50-53-300-002 No. 5 Bearing Carbon Seal Housing - Nickel Plate The Outer Diameter, Repair-002 (VRS5329)

Effectivity

FIG/ITEM

PART NO.

02-180

4P8036

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Carbon seal housing

Corrosion and heat resistant

iron base alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.
Consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
BasketLOCALBasket
Process Plating TanksLOCALProcess plating tanks
OvenLOCALOven
Magnifying glass, 4XLOCALMagnifying glass, 4X
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-53-320-053 Machine the Outer Diameter of the Carbon Seal Housing

    1. Refer to: Figure

      2. Machine the outer diameter.

      1. The outer diameter must be between 5.7895 to 5.7781in. (147.053 to 146.765 mm) after the removal of the damage.

        Remove all damage and wear. Keep the removal of material to the minimum necessary to remove the damage.

    2. SUBTASK 72-50-53-230-055 Examine the Carbon Seal Housing

      1. Do a fluorescent penetrant inspection for cracks.

      1. Refer to the SPM TASK 70-23-01-230-501.

        No cracks are permitted.

    3. SUBTASK 72-50-53-330-052 Nickel Plate the Outer Diameter of the Carbon Seal Housing

    1. Refer to: Figure

      2. Mask the areas of the housing not to be plated.

      3. Do the nickel plating.

      1. Refer to the SPM TASK 70-33-10-200-502.

        Plate to a sufficient thickness to permit the machining to the last dimensions.

        The plating out of the outer diameter is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the housing.

      1. Flush with cold water.

        Flush with hot water.

        Dry with air blast.

    4. SUBTASK 72-50-53-370-052 De-embrittle the Carbon Seal Housing

      1. Put the housing into an oven at 266 to 302 deg F (130 to 150 deg C) for 12 hours.

      1. Do this process as soon as possible in less than 4 hours after the plating.

    5. SUBTASK 72-50-53-220-083 Examine the Carbon Seal Housing

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

        No circumferential cracks are permitted.

        No roughness and blistering are permitted.

    6. SUBTASK 72-50-53-320-054 Machine the Outer Diameter of the Carbon Seal Housing

    1. Refer to: Figure

      2. Machine the outer diameter.

      1. The outer diameter must be between 5.7907 to 5.7900in. (147.083 to 147.065 mm).

        Chamfer where necessary.

    7. SUBTASK 72-50-53-220-084 Examine the Nickel Plated Area

    1. Refer to: Figure

      2. Do the visual inspection of the plated area for cracks and adhesion.

      1. Use a 4x magnifying glass.

        The natural network crack, emphasized by grinding, is permitted.

      3. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.0006in. (0.015 mm) after the last machining.

    8. SUBTASK 72-50-53-350-055 Record the Repair

      1. Vibro engrave VRS5329 adjacent to the part number.

      1. Remove the metal lifted by marking the number.

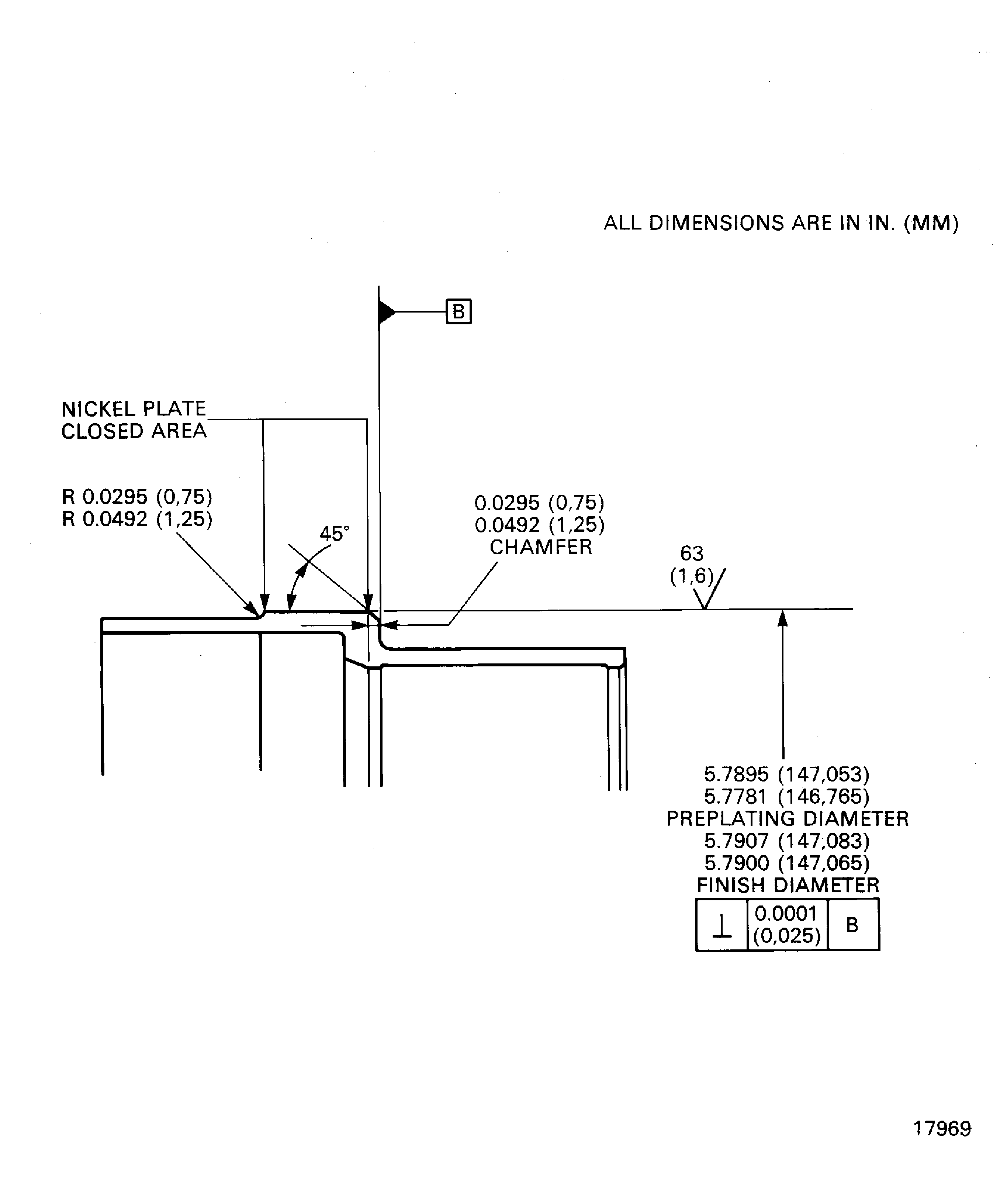

    9. Figure: Nickel plate the outer diameter of the carbon seal housing

    Nickel plate the outer diameter of the carbon seal housing

Requirements After Job Completion

Follow-On Conditions

NONE
