DMC:V2500-A1-72-60-03-01A-941A-AIssue No:003.00Issue Date:2018-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72600301 | ENGINE - TRANSPORTATION FITTINGS, PRE SBE70-0225 | aa | ||
| SBE0225-01 | ENGINE - TRANSPORTATION FITTINGS, PRE SBE70-0718 | ab | ||
| SBE0718-01 | ENGINE - TRANSPORTATION FITTINGS, PRE SBE72-0458 | ac | ||
| SBE0458-01 | ENGINE - TRANSPORTATION FITTINGS, PRE SBE70-0992 | ad | ||
| SBE0992-01 | ENGINE - TRANSPORTATION FITTINGS, PRE SBE79-0101 | ae | ||
| SBE0101-01 | ENGINE - TRANSPORTATION FITTINGS | af | ||
| 060 | 4P0140 | • COVER - PLAIN IDGS DRIVE PRE SBE70-0718 | aa-af | 1 |
| 060A | 4G0086 | • COVER - PLAIN IDGS DRIVE A3460 POST SBE70-0718 PRE SBE72-0458 | aa-af | 1 |
| 060B | 4G0089 | • COVER - PLAIN IDGS DRIVE A3460 POST SBE72-0458 PRE SBE70-0718 | aa-af | 1 |
| 065 | 4G0087 | • SPACER A3460 POST SBE70-0718 PRE SBE72-0458 | ac | 8 |
| 070 | 4W1374 | • BOLT - 0.375 DIA X 10.375 PRE SBE72-0458 | aa-af | 8 |
| 070A | 4G0061-17 | • BOLT A3460 POST SBE72-0458 | aa-af | 8 |
| 080 | MS9321-12 | • WASHER - FLAT, 0.375 X 0.750 X 0.078 96906 PRE SBE72-0458 | aa-ac | 8 |
| 090 | 4P0139 | • COVER - PLAIN HYDRAULIC PUMP PRE SBE70-0718 | aa-af | 1 |
| 090A | 4G0085 | • COVER - PLAIN HYD PUMP A3460 POST SBE70-0718 PRE SBE72-0458 | aa-af | 1 |
| 090B | 4G0088 | • COVER - PLAIN HYDRAULIC PUMP A3460 POST SBE72-0458 | aa-af | 1 |
| 095 | 4G0087 | • SPACER A3460 POST SBE70-0718 PRE SBE72-0458 | ac | 4 |
| 100 | 4W0004 | • NUT - 0.375 DIA | aa-af | 4 |
| 110 | MS9321-12 | • WASHER - FLAT, 0.375 X 0.750 X 0.078 96906 | aa-af | 4 |
| 130 | 4G0061-01 | • COVER - PAD PMA | aa-af | 1 |
| 140 | 4G0061-02 | • COVER - PAD OIL PUMP SCAVENGE | aa-ac | 1 |
| 150 | 4G0061-03 | • COVER - PAD FUEL PUMP | aa-af | 1 |
| 160 | 4G0061-04 | • COVER - PAD OIL PUMP PRESS | aa-ac | 1 |
| 170 | 7G0046-03 | • COVER - STARTER PAD A3460 | aa-af | 1 |
| 180 | 4G0061-05 | • PLUG - DEAERATOR | aa-ac | 1 |
| 190 | 7G0046-05 | • PLUG - DEAERATOR A3460 PRE SBE72-0458 | aa-ac | 1 |
| 190A | 4G0090 | • PLUG - DEAERATOR A3460 POST SBE72-0458 | ad-af | 1 |
| 200 | 4G0061-06 | • PLUG - AIR BREATHER | aa-af | 1 |
| 200A | 4G0144 | • COVER - PAD A3460 | aa-af | 1 |
| 202 | 4G0147 | • COVER - PAD A3460 | aa-af | 1 |
| 206 | 4G0061-14 | • NUT | aa-af | 3 |
| 208 | 4G0146 | • PLUG A3460 | aa-af | 1 |
| 210 | 4G0061-07 | • PLUG - ANGLE GEARBOX, T-SHAFT | aa-af | 1 |
| 212 | 4G0148 | • BOLT A3460 | aa-af | 3 |
| 214 | 4G0148 | • BOLT A3460 | aa-af | 3 |
| 216 | 4G0148 | • BOLT A3460 | aa-af | 3 |
| 218 | 4G0148 | • BOLT A3460 | aa-af | 3 |
| 220 | 4G0061-08 | • PLUG - ANGLE GEARBOX, T-SHAFT | aa-ac | 1 |
| 222 | 4G0148 | • BOLT A3460 | aa-af | 3 |
| 224 | 4G0145 | • PLUG A3460 | aa-af | 1 |
| 226 | 4G0143 | • COVER - PAD A3460 | aa-af | 1 |
| 228 | 4G0142 | • COVER - PAD A3460 | aa-af | 1 |
| 230 | 4G0061-09 | • PLUG - DEAERATOR | aa-af | 2 |
| 230A | 4G0142 | • COVER - PAD A3460 | aa-af | 1 |
| 240 | 4G0061-10 | • PLUG | aa-ac | 1 |
| 250 | 4G0061-11 | • COVER - PAD OIL TANK | aa-ac | 1 |
| 260 | 4G0061-12 | • PLUG | aa-ac | 1 |
| 262 | 4G0061-13 | • NUT | aa-ac | 10 |
| 262A | 4G0149 | • NUT A3460 | aa-af | 6 |
| 264 | 4G0061-14 | • NUT | aa-ac | 6 |
| 266 | 4G0061-15 | • NUT | aa-ac | 6 |
| 268 | 4G0061-16 | • NUT | aa-af | 6 |
| 268A | 4G0061-18 | • NUT A3460 | aa-af | 6 |
| 270 | AS3208-06 | • PACKING - PREFORMED U1653 POST SBE70-0225 PRE SBE70-0992 | ab-ad | 1 |
| 272 | MS9954-06 | • PLUG - OIL, DRAIN 96906 POST SBE70-0225 PRE SBE70-0992 | ab-af | 1 |
| 272A | 4G0152 | • PLUG - 0.5625-18 UNJ THREAD A3460 POST SBE70-0992 | ab-af | 1 |
| 274 | AS3208-06 | • PACKING - PREFORMED U1653 POST SBE70-0225 PRE SBE70-0992 | ab-ad | 1 |
| 276 | MS9954-06 | • PLUG - OIL, DRAIN 96906 POST SBE70-0225 PRE SBE70-0992 | ab-af | 1 |
| 276A | 4G0152 | • PLUG - 0.5625-18 UNJ THREAD A3460 POST SBE70-0992 | ab-af | 1 |
| 278 | AS3208-06 | • PACKING - PREFORMED U1653 POST SBE70-0225 PRE SBE70-0992 | ab-ad | 1 |
| 280 | MS9954-06 | • PLUG - OIL, DRAIN 96906 POST SBE70-0225 PRE SBE70-0992 | ab-af | 1 |
| 280A | 4G0152 | • PLUG - 0.5625-18 UNJ THREAD A3460 POST SBE70-0992 | ab-af | 1 |
| 282 | AS3208-06 | • PACKING - PREFORMED U1653 POST SBE70-0225 PRE SBE70-0992 | ab-ad | 1 |
| 284 | MS9954-06 | • PLUG - OIL, DRAIN 96906 POST SBE70-0225 PRE SBE70-0992 | ab-af | 1 |
| 284A | 4G0152 | • PLUG - 0.5625-18 UNJ THREAD A3460 POST SBE70-0992 | ab-af | 1 |
| 290 | 4A0138 | • PLUG - HYDRAULIC, SHAFT, PUMP, ASSEMBLY OF POST SBE70-0225 PRE SBE72-0458 | ab-ac | 1 |
| 295 | AS3209-123 | • • PACKING - PREFORMED U1653 POST SBE70-0225 PRE SBE72-0458 | ab-ac | 1 |
| 300 | 4W0004 | • • NUT - 0.375 DIA Optional Part 4W0004 POST SBE70-0225 PRE SBE72-0458 | ab-ac | 1 |
| 310 | 4P0135 | • • PLUG - SHAFT POST SBE70-0225 PRE SBE72-0458 | ab-ac | 1 |
| 320 | 4P0137 | • • PACKING - PREFORMED POST SBE70-0225 PRE SBE72-0458 | ab-ac | 1 |
| 330 | 4P0136 | • • RING - RETAINING POST SBE70-0225 PRE SBE72-0458 | ab-ac | 1 |
| 340 | 4P0134 | • • HOUSING - RETAINING RING POST SBE70-0225 PRE SBE72-0458 | ab-ac | 1 |
| 400 | 4A0163 | • PLUG - SHAFT IDGS DRIVE, ASSEMBLY OF POST SBE70-0225 PRE SBE72-0458 | ab-ac | 1 |
| 410 | AS3209-129 | • • PACKING - PREFORMED U1653 POST SBE70-0225 PRE SBE72-0458 | ab-ac | 1 |
| 420 | 4W0004 | • • NUT - 0.375 DIA Optional Part 4W0004 POST SBE70-0225 PRE SBE72-0458 | ab-ac | 1 |
| 430 | 4P0167 | • • PLUG - SHAFT POST SBE70-0225 PRE SBE72-0458 | ab-ac | 1 |
| 440 | 4P0137 | • • PACKING - PREFORMED POST SBE70-0225 PRE SBE72-0458 | ab-ac | 1 |
| 450 | 4P0166 | • • RING - RETAINING POST SBE70-0225 PRE SBE72-0458 | ab-ac | 1 |
| 460 | 4P0164 | • • RETAINER - PLUG SHAFT POST SBE70-0225 PRE SBE72-0458 | ab-ac | 1 |
| 500 | AS3208-09 | • PACKING - PREFORMED U1653 POST SBE70-0225 PRE SBE70-0992 | ab-ad | 1 |
| 510 | MS9954-09 | • PLUG 96906 POST SBE70-0225 PRE SBE70-0992 | ab-ad | 1 |
| 510A | 4G0150 | • PLUG - 0.8125-16 UNJ THREAD A3460 POST SBE70-0992 | ae-af | 1 |
| 650 | 4P7196 | • COVER POST SBE70-0225 PRE SBE79-0101 | ab-af | 1 |
| 650A | 4G0151 | • COVER A3460 POST SBE79-0101 | ab-af | 1 |
| 660 | 4W0165 | • BOLT - 0.250 DIA X 0.688 POST SBE70-0225 PRE SBE79-0101 | ab-ae | 4 |
| 670 | AS3209-234 | • PACKING - PREFORMED U1653 POST SBE70-0225 PRE SBE79-0101 | ab-ae | 1 |
| 700 | AS3208-06 | • PACKING - PREFORMED U1653 POST SBE70-0225 PRE SBE79-0090 | ***** | 1 |
| 710 | MS9902-06 | • PLUG 96906 POST SBE70-0225 PRE SBE79-0090 | ***** | 1 |
| 720 | AS3208-08 | • PACKING - PREFORMED U1653 POST SBE70-0225 PRE SBE79-0090 | ***** | 1 |
| 730 | MS9902-08 | • PLUG - MACHINE THREAD 96906 POST SBE70-0225 PRE SBE79-0090 | ***** | 1 |
| 800 | AS15825 | • NUT - TUBE CLOSURE - ASSEMBLY OF U1653 POST SBE70-0225 PRE SBE79-0101 | ab-ae | 2 |
| 850 | AS15825 | • NUT - TUBE CLOSURE - ASSEMBLY OF U1653 POST SBE70-0225 PRE SBE79-0101 | ab-af | 2 |
| 850A | 4G0145 | • PLUG A3460 POST SBE79-0101 | ab-af | 2 |
| 858 | AS3208-09 | • PACKING - PREFORMED U1653 POST SBE70-0225 PRE SBE70-0992 | ab-ad | 1 |
| 860 | MS9954-09 | • PLUG 96906 POST SBE70-0225 PRE SBE70-0992 | ab-ad | 1 |
| 860A | 4G0150 | • PLUG - 0.8125-16 UNJ THREAD A3460 POST SBE70-0992 | ae-af | 1 |
| 900 | AS3208-09 | • PACKING - PREFORMED U1653 POST SBE70-0225 PRE SBE70-0992 | ab-ad | 1 |
| 910 | MS9954-09 | • PLUG 96906 POST SBE70-0225 PRE SBE70-0992 | ab-ad | 1 |
| 910A | 4G0150 | • PLUG - 0.8125-16 UNJ THREAD A3460 POST SBE70-0992 | ae-af | 1 |
| 920 | AS3208-07 | • PACKING - PREFORMED U1653 POST SBE70-0225 | ab-af | 1 |
| 930 | MS9954-07 | • PLUG - BLANKING 96906 POST SBE70-0225 | ab-af | 1 |
| 940 | AS3208-09 | • PACKING - PREFORMED U1653 POST SBE70-0225 PRE SBE79-0101 | ab-ae | 1 |
| 950 | MS9954-09 | • PLUG 96906 POST SBE70-0225 PRE SBE79-0101 | ab-af | 1 |
| 950A | 4G0150 | • PLUG - 0.8125-16 UNJ THREAD A3460 POST SBE79-0101 | ab-af | 1 |
| 960 | AS3208-09 | • PACKING - PREFORMED U1653 PRE SBE70-0992 | ab-ad | 1 |
| 970 | MS9954-09 | • PLUG 96906 POST SBE70-0225 PRE SBE70-0992 | ab-ad | 1 |
| 970A | 4G0150 | • PLUG - 0.8125-16 UNJ THREAD A3460 POST SBE70-0992 | ae-af | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

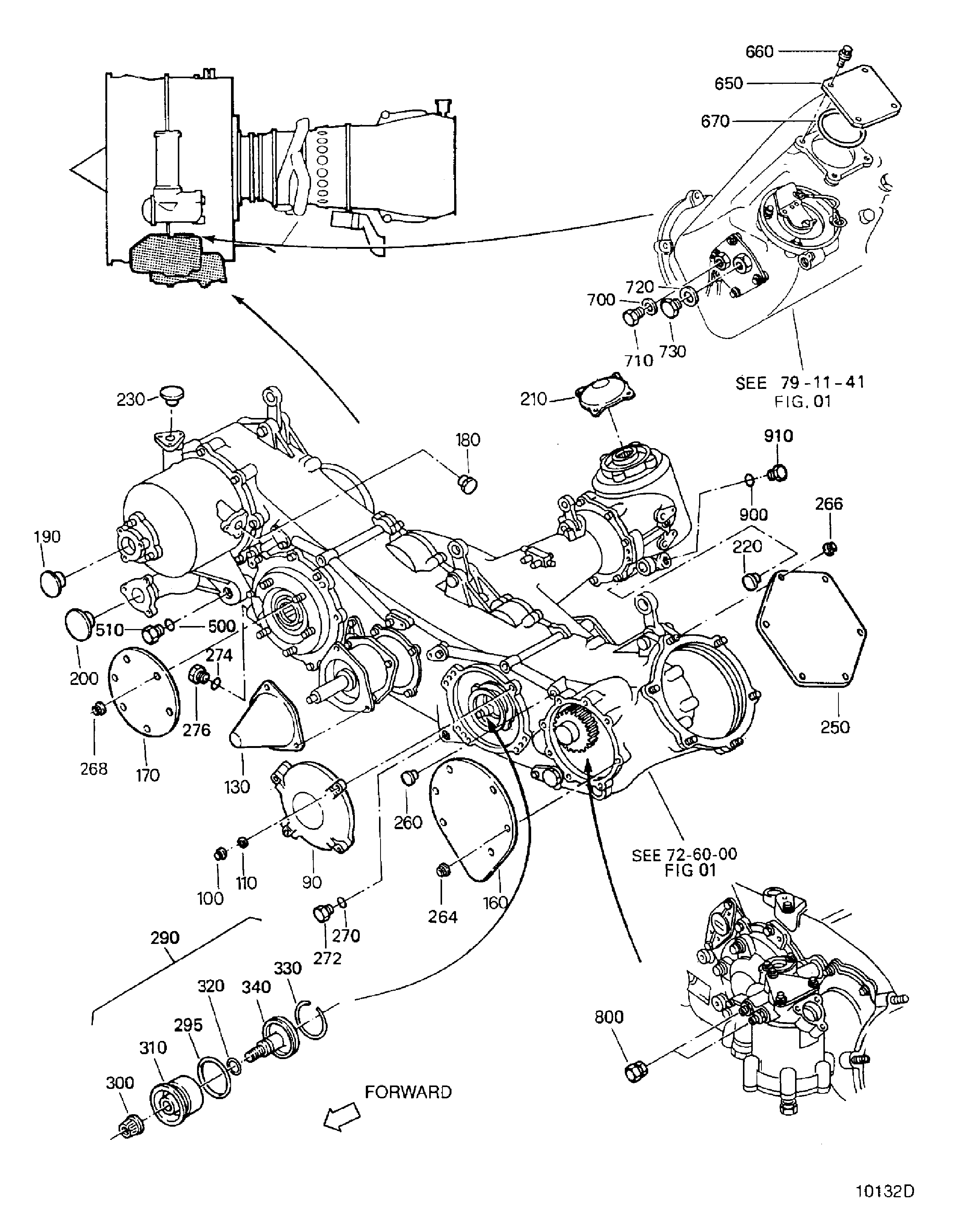

Figure: ENGINE-TRANSPORTATION FITTINGS
Transportation Fittings

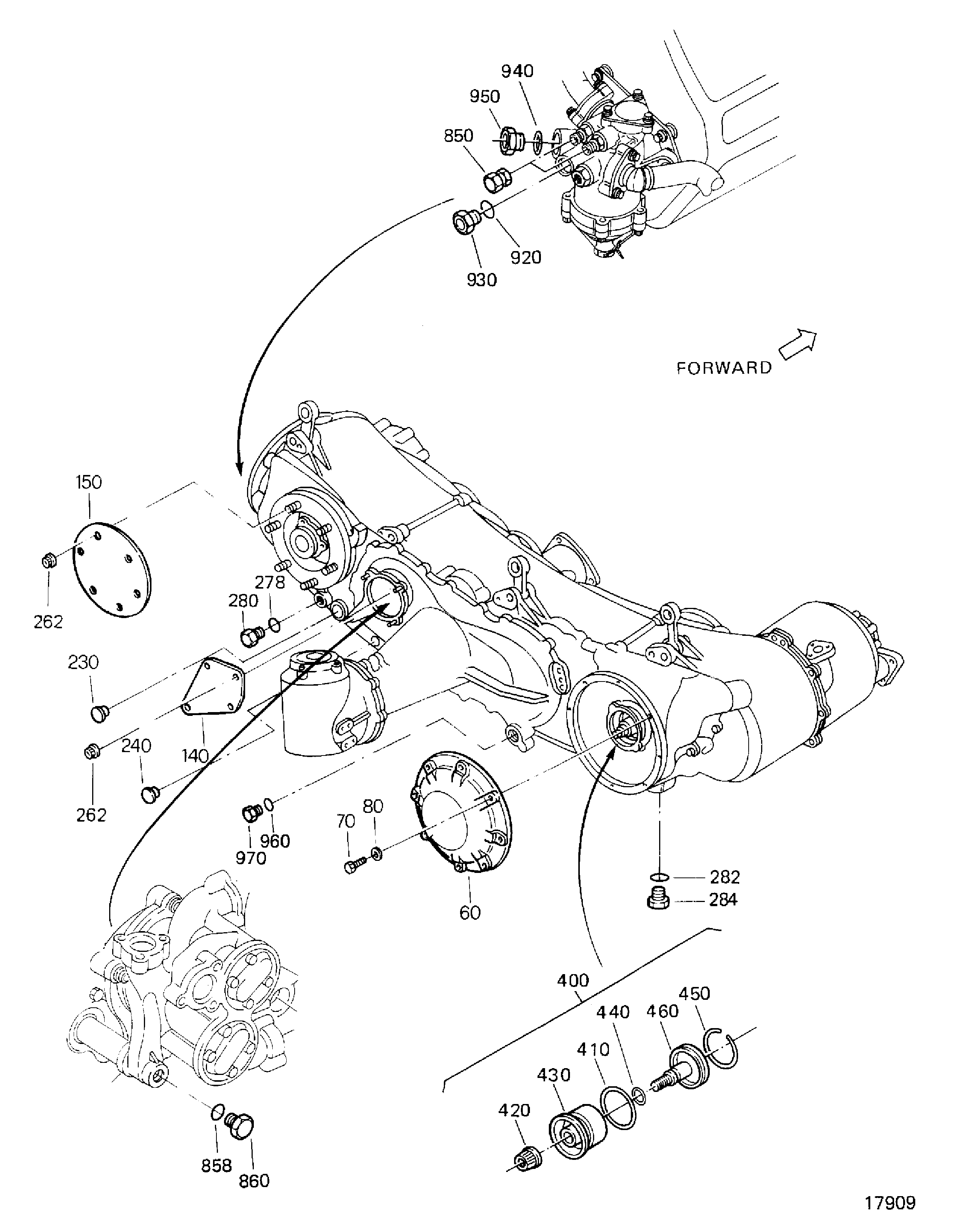

Figure: ENGINE-TRANSPORTATION FITTINGS
Transportation Fittings
