ENGINE-MAIN GEARBOX ASSEMBLY

DMC:V2500-A1-72-60-10-01A-941A-D|Issue No:003|Issue Date:2018-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B72601001	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE72-0055	aa
000	SBE0055-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE72-0086	ab
000	SBE0086-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE72-0048	ac
000	SBE0048-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE72-0070	ad
000	SBE0070-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE71-0110	ae
000	SBE0110-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE70-0189	af
000	SBE0189-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE72-0244	ag
000	SBE0244-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE72-0264	ah
000	SBE0264-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE79-0069	ai
000	SBE0069-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE72-0288	aj
000	SBE0288-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE79-0087	ak
000	SBE0087-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE72-0299	al
000	SBE0299-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE70-0718	am
000	SBE0718-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE72-0414	an
000	SBE0414-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE72-0458	ao
000	SBE0458-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE72-0480	ap
000	SBE0480-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE72-0492	aq
000	SBE0492-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE72-0504	ar
000	SBE0504-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE70-0986	as
000	SBE0986-01	ENGINE-MAIN GEARBOX ASSEMBLY, PRE SBE72-0644	at
000	SBE0644-01	ENGINE-MAIN GEARBOX ASSEMBLY	au
001001	4A0053	GEARBOX - ASSY,MAIN PRE SBE72-0086	aa-at	1
001001A	4A1100	GEARBOX - ASSY MAIN POST SBE72-0086 PRE SBE72-0048	aa-at	1
001001B	4A0800	GEARBOX - ASSY MAIN POST SBE72-0048	ad-at	1
001001C	4A1101	GEARBOX POST SBE72-0048	aa-at	1
001001D	4A0801	GEARBOX - ASSY MAIN POST SBE72-0070	ae-at	1
001001E	4A1102	GEARBOX - ASSY MAIN POST SBE70-0189	ag-at	1
001001F	4A1102	GEARBOX - ASSY POST SBE72-0244 PRE SBE72-0264	ah-am	1
001001G	4A1102	GEARBOX - ASSY POST SBE72-0264 PRE SBE72-0288	ah-am	1
001001H	4A1102	GEARBOX - ASSY POST SBE72-0288 PRE SBE72-0299	ah-am	1
001001J	4A1103	GEARBOX - ASSY MAIN A3460 POST SBE79-0087 PRE SBE72-0458	al-ap	1
001001K	4A1102	GEARBOX - ASSY POST SBE72-0299 PRE SBE70-0718	ah-at	1
001001L	4A1102	GEARBOX - ASSY POST SBE70-0718 PRE SBE72-0414	ah-at	1
001001M	4A1102	GEARBOX - ASSY POST SBE72-0414	ah-at	1
001001N	4A1103	GEARBOX - ASSY MAIN A3460 POST SBE72-0458 PRE SBE72-0480	al-aq	1
001001P	4A1104	GEARBOX - - ASSY - MAIN POST SBE72-0458 PRE SBE72-0458	*****	1
001001Q	4A1103	GEARBOX - ASSY MAIN A3460 POST SBE72-0480 PRE SBE72-0492	al-aq	1
001001R	4A1104	GEARBOX - - ASSY - MAIN POST SBE72-0492	ar-at	1
001001S	4A1103	GEARBOX - ASSY MAIN A3460 POST SBE72-0504	as-at	1
110110	4B0236	• NOZZLE - A/O,OIL PRE SBE70-0986	aa-as	1
110110A	4B0236	• NOZZLE - A/O,OIL POST SBE70-0986	at	1

115115	4W0002	• NUT - .250 DIA	aa-at	1
118118	MS9321-10	• WASHER 96906	aa-at	1
121121	AS3209-113	• PACKING U1653	aa-at	1
124124	AS3209-110	• PACKING U1653	aa-at	1

160160	4B0238	• NOZZLE - A/O,OIL	aa-at	1

165165	4W0002	• NUT - .250 DIA	aa-at	1
168168	MS9321-10	• WASHER 96906	aa-at	1
171171	AS3209-113	• PACKING U1653	aa-at	1
174174	AS3209-110	• PACKING U1653	aa-at	1
200200	4B0221	• NOZZLE	aa-at	1
205205	4W0002	• NUT - .250 DIA	aa-at	1
208208	MS9321-10	• WASHER 96906	aa-at	1
211211	AS3209-113	• PACKING U1653	aa-at	1
214214	AS3209-110	• PACKING U1653	aa-at	1
240240	4B0237	• NOZZLE	aa-at	1
245245	4W0002	• NUT - .250 DIA	aa-at	1
248248	MS9321-10	• WASHER 96906	aa-at	1
251251	AS3209-113	• PACKING U1653	aa-at	1
254254	AS3209-110	• PACKING U1653	aa-at	1

280280	4P0240	• NOZZLE - A/O,OIL PRE SBE72-0048	aa-at	1
280280A	4P0291	• NOZZLE POST SBE72-0048	aa-at	1

285285	4W0002	• NUT - .250 DIA	aa-at	1
291291	CU37148	• WASHER	aa-at	1
295295	AS3209-113	• PACKING U1653	aa-at	1

300300	AS3209-110	• PACKING - PREFORMED U1653	aa-at	1
310310	4B0234	• NOZZLE - A/O,OIL	aa-at	1

315315	4W0002	• NUT - .250 DIA	aa-at	1
318318	MS9321-10	• WASHER 96906	aa-at	1
321321	AS3209-113	• PACKING U1653	aa-at	1
324324	AS3209-110	• PACKING U1653	aa-at	1

350350	4B0235	• NOZZLE - A/O,OIL	aa-at	1

355355	4W0002	• NUT - .250 DIA	aa-at	1
358358	MS9321-10	• WASHER 96906	aa-at	1
361361	AS3209-113	• PACKING U1653	aa-at	1
364364	AS3209-110	• PACKING U1653	aa-at	1

390390	4B0239	• NOZZLE - A/O,OIL	aa-at	1

395395	4W0002	• NUT - .250 DIA	aa-at	1
398398	MS9321-10	• WASHER 96906	aa-at	1
401401	AS3209-113	• PACKING U1653	aa-at	1
404404	AS3209-110	• PACKING U1653	aa-at	1

-450450	CASE	• CASE - COMPRESSOR	aa-at	REF

455455	4W0002	• NUT - .250 DIA	aa-at	7

-456456	740-5714-507	• BRACKET 51563 (SEE 71-73-48-02-900 ) (SEE 72-00-5010-01-456)	aa-at	1
456456A	740-5714-507	• BRACKET 51563 PRE SBE79-0087	aa-ak	1
457457	6A8166	• BRACKET - CLIPPING POST SBE79-0087	al-at	1

460460	MS9321-10	• WASHER 96906 PRE SBE79-0087	aa-ak	5
460460A	MS9321-10	• WASHER 96906 POST SBE79-0087 PRE SBE70-0986	al-as	4
460460B	MS9321-10	• WASHER 96906 POST SBE70-0986	at	4
470470	AS3209-165	• PACKING U1653 PRE SBE70-0986	aa-as	1
470470A	AS3209-165	• PACKING U1653 POST SBE70-0986	at	1

473473	AS3209-135	• PACKING - PREFORMED U1653 PRE SBE70-0986	aa-at	1
473473A	AS3209-135	• PACKING - PREFORMED U1653 POST SBE70-0986	aa-at	1
-490490	GEAR	• GEAR - ASSY KF030	aa-at	REF

495495	T0RX5704-12	• SCREW 93907 PRE SBE72-0644	aa-at	2
495495A	4T0534	• SCREW POST SBE72-0644	au	2
495495B	4T0534	• SCREW POST SBE70-0986 POST SBE72-0644	at-au	2

500500	AS3209-165	• PACKING - PREFORMED U1653 PRE SBE70-0986	aa-as	1
500500A	AS3209-165	• PACKING - PREFORMED U1653 POST SBE70-0986	at	1
-530530	GEAR	• GEAR - ASSY KF030	aa-at	REF

535535	T0RX5704-12	• SCREW 93907 PRE SBE72-0644	aa-at	2
535535A	4T0534	• SCREW POST SBE72-0644	au	2
540540	AS3209-165	• PACKING U1653	aa-at	2

-570570	GEAR	• GEAR - ASSY KF030	aa-at	REF

575575	4W0002	• NUT - .250 DIA	aa-at	8
580580	MS9321-10	• WASHER 96906	aa-at	8
585585	AS3209-165	• PACKING U1653	aa-at	1

-619619	GEAR	• GEAR - ASSY KF030	aa-at	REF
630630	4P7230	• BRACKET PRE SBE72-0055	aa	1
630630A	4P7171	• BRACKET POST SBE72-0055 PRE SBE71-0110	ab-ae	1
630630B	4P7266	• BRACKET POST SBE71-0110 PRE SBE79-0069	af-ai	1
630630C	4P7355	• BRACKET POST SBE79-0069	aj-at	1
632632	4B7172	• BRACKET POST SBE72-0055 PRE SBE71-0110	ab-ae	1
632632A	4B7265	• BRACKET - ASSY POST SBE71-0110 PRE SBE79-0069	af-ai	1
632632B	4B7354	• BRACKET - ASSY POST SBE79-0069	aj-at	1

637637	4W0002	• NUT - .250 DIA POST SBE72-0055	ab-at	2
640640	4W0002	• NUT - .250 DIA	aa-at	3
645645	AS3209-151	• PACKING U1653	aa-at	1
650650	AS3209-114	• PACKING U1653	aa-at	1

-670670	GEAR	• GEAR - ASSY KF030	aa-at	REF

675675	4W0002	• NUT - .250 DIA	aa-at	2
680680	MS9321-10	• WASHER 96906	aa-at	2
685685	AS3209-154	• PACKING U1653	aa-at	1

-730730	GEAR	• GEAR - ASSY KF030	aa-at	REF

735735	T0RX5704-22	• SCREW 93907 PRE SBE72-0644	aa-at	2
735735A	4T0541	• SCREW POST SBE72-0644	au	2
740740	AS3209-165	• PACKING U1653	aa-at	1
745745	AS3209-109	• PACKING U1653	aa-at	1

-780780	GEAR	• GEAR - ASSY KF030	aa-at	REF

785785	T0RX5704-12	• SCREW 93907 PRE SBE72-0644	aa-at	2
785785A	4T0534	• SCREW POST SBE72-0644	au	2
790790	AS3209-157	• PACKING U1653	aa-at	2

-820820	SUPP0RT	• SUPPORT	aa-at	REF

825825	4W0002	• NUT - .250 DIA	aa-at	16

826826	740-5640-503	• BRACKET 51563	aa-at	1
827827	740-5043-503	• BRACKET 51563	aa-at	1

830830	MS9321-10	• WASHER 96906	aa-at	10

831831	740-5713-503	• BRACKET 51563	aa-at	1

835835	4W1249	• BOLT - .250 DIA X .938	aa-at	1
840840	MS9321-10	• WASHER 96906	aa-at	1
845845	AS3209-165	• PACKING U1653	aa-at	2
850850	AS3209-151	• PACKING U1653	aa-at	1

- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	93907
Enterprise Name:	CAMCAR SCREW AND MANUFACTURING CO
BU Name:	CAMCAR SCREW AND MANUFACTURING CO
Street:	600 18TH AVENUE
City:	ROCKFORD
State:	ILLINOIS
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	A3460
Enterprise Name:	DELETED, SEE CAGE CODE U0406

ENGINE-MAIN GEARBOX ASSEMBLY

Export Control

Copyright

Applicability

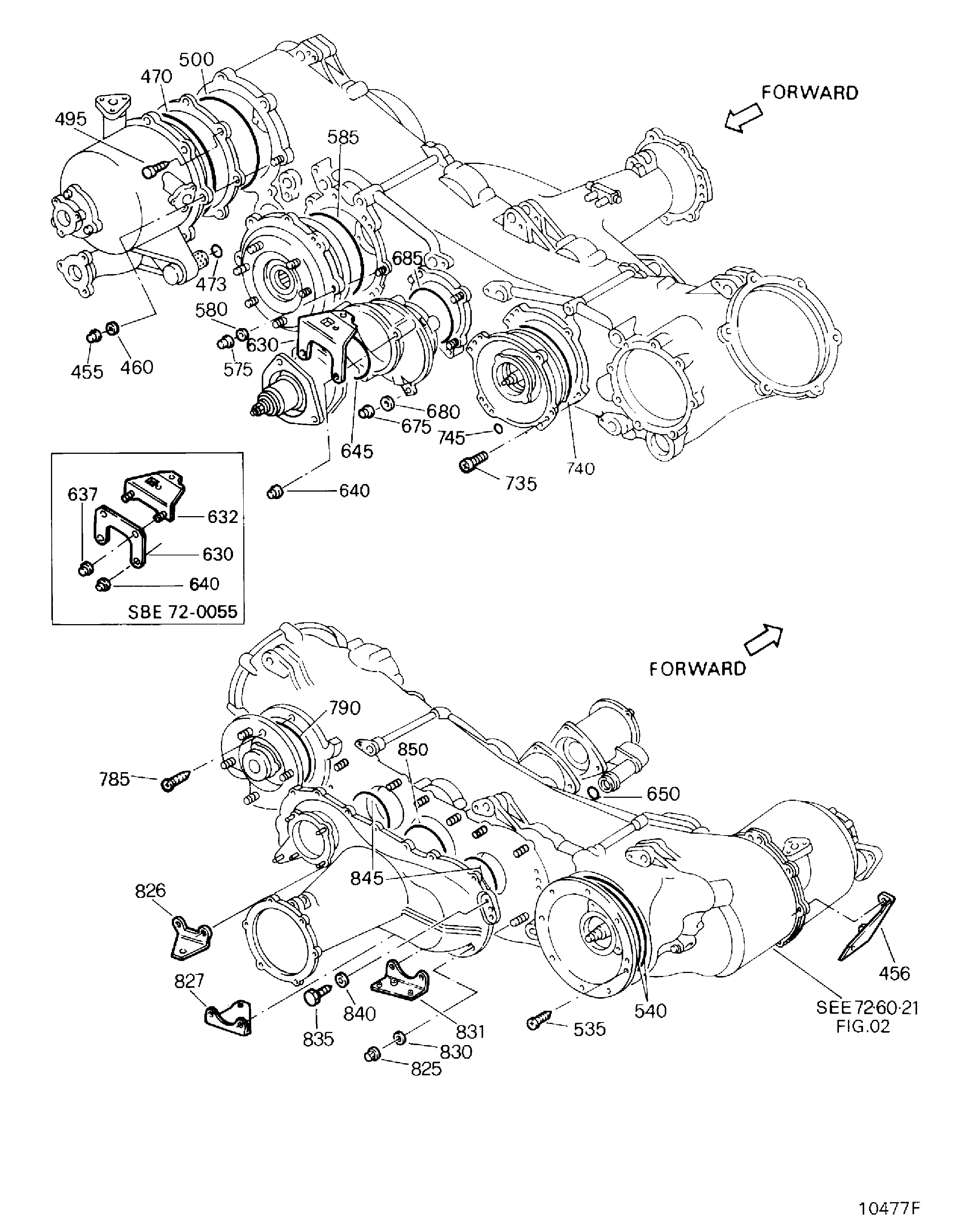

Figure: ENGINE-MAIN GEARBOX ASSEMBLY

Main Gearbox Assembly

Main Gearbox Assembly

Manufacturer Code:	KF030
Enterprise Name:	VICKERS ARMSTRONG ENG LTD
BU Name:	VICKERS ARMSTRONG ENG LTD
Department:	WEYMOUTH WORKS
City:	Dorset
State:	WEYMOUTH
Country:	ENGLAND

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	4A0053
Part Name:	GEARBOX - MAIN, ASSEMBLY OF
Manufacturer Code:	0AM53

Part Number:	AS20625
Part Name:	NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:	AS49915
Part Name:	BOLT - 0.250 DIA X 0.938
Manufacturer Code:	U1653
