DMC:V2500-A1-72-60-26-01A-941A-DIssue No:002.00Issue Date:2018-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72602601 | ENGINE - SCAVENGE OIL PUMP DRIVE GEAR, ASSEMBLY, PRE SBE70-0095 | aa | ||
| SBE0095-01 | ENGINE - SCAVENGE OIL PUMP DRIVE GEAR, ASSEMBLY, PRE SBE72-0414 | ab | ||
| SBE0414-01 | ENGINE - SCAVENGE OIL PUMP DRIVE GEAR, ASSEMBLY, PRE SBE72-0492 | ac | ||
| SBE0492-01 | ENGINE - SCAVENGE OIL PUMP DRIVE GEAR, ASSEMBLY, PRE SBE70-0948 | ad | ||
| SBE0948-01 | ENGINE - SCAVENGE OIL PUMP DRIVE GEAR, ASSEMBLY | ae | ||
| SBE0645-01 | ENGINE - SCAVENGE OIL PUMP DRIVE GEAR, ASSEMBLY | af | ||
| 100 | 4T0071 | • BEARING - ROLLER PRE SBE70-0095 PRE SBE72-0645 | aa | 1 |
| 100A | 4T0070 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ab | 1 |
| -100B | 4T0071 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ab | REF |
| -100C | 4T0073 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ab | REF |
| 100D | 4T0070 | • BEARING - ROLLER POST SBE72-0414 PRE SBE70-0948 PRE SBE72-0645 | ac-ad | 1 |
| 100E | 4T0071 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ac-ae | 1 |
| 100F | 4T0073 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ac-ae | 1 |
| 100G | 4T0074 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ac-ae | 1 |
| 100H | 4T0070 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | ae | 1 |
| -100J | 4T0071 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | ae | REF |
| -100K | 4T0073 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | ae | REF |
| -100L | 4T0074 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | ae | REF |
| -100M | 4T0075 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | ae | REF |
| -100N | 4T0076 | • BEARING, ROLLER POST SBE72-0645 | ai | REF |
| 120 | 4W0002 | • NUT - 0.250 DIA PRE SBE72-0492 | aa-ac | 3 |
| 120A | 4W0165 | • BOLT - 0.250 DIA X 0.688 POST SBE72-0492 | ad-ae | 3 |
| 140 | 4P0010 | • GEAR - DRIVE, OIL SCAVENGER PUMP | aa-ae | 1 |
| 160 | 4P0189 | • SHROUD | aa-ae | 1 |
| 180 | 4T0121 | • BEARING - ROLLER A3460 PRE SBE70-0095 PRE SBE72-0645 | aa | 1 |
| 180A | 4T0120 | • BEARING - ROLLER A3460 POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ab | 1 |
| -180B | 4T0121 | • BEARING - ROLLER A3460 POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ab | REF |
| -180C | 4T0123 | • BEARING - ROLLER A3460 POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ab | REF |
| 180D | 4T0120 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE70-0948 PRE SBE72-0645 | ac-ad | 1 |
| 180E | 4T0121 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ac-ae | 1 |
| 180F | 4T0123 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ac-ae | 1 |
| 180G | 4T0124 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ac-ae | 1 |
| 180H | 4T0120 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | ae | 1 |
| -180J | 4T0121 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | ae | REF |
| -180K | 4T0123 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | ae | REF |
| -180L | 4T0124 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | ae | REF |
| -180M | 4T0122 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | ae | REF |
| -180N | 4T0119 | • BEARING - ROLLER POST SBE72-0645 | af | REF |
| 200 | 4W0002 | • NUT - 0.250 DIA | aa-ae | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

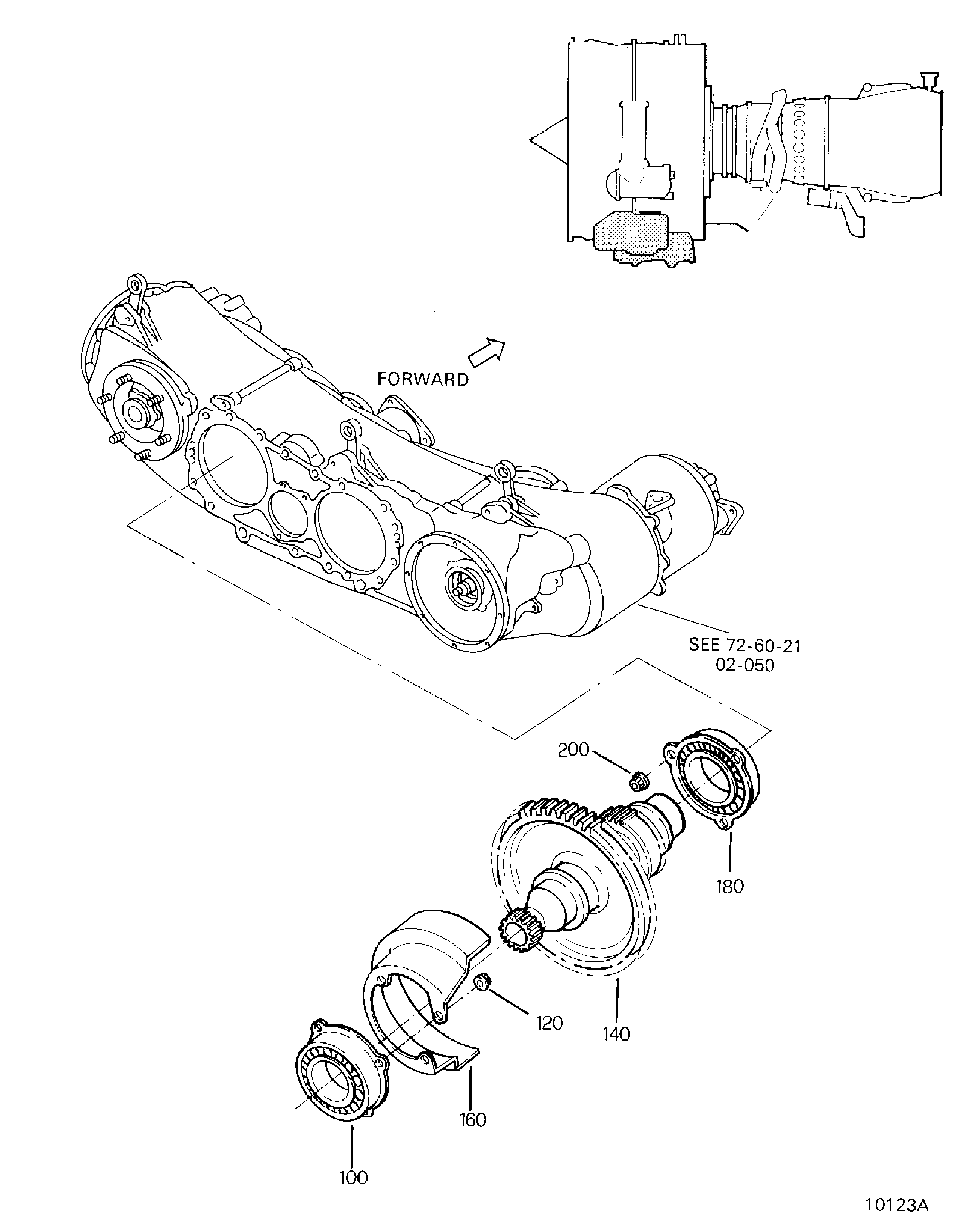

Figure: ENGINE-SCAVENGE OIL PUMP DRIVE GEAR ASSEMBLY
Gear Oil Drive Scavenge Pump
