TASK 72-60-28-300-016 Generator Drive Gear Housing - Nickel Plate The Small Piloting Diameter, Repair-016 (VRS5069)

DMC:V2500-A1-72-60-2804-03A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-60-28-300-016 Generator Drive Gear Housing - Nickel Plate The Small Piloting Diameter, Repair-016 (VRS5069)

Effectivity

FIG/ITEM PART NO.

01-450

4B0161

01-450

4B0271

01-450

4B0281

01-450

4B0312

01-450

4B0348

01-450

4B0370

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Housing

-

A357 T613 (AMS 4219)

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

  1. To identify the consumable materials refer to PCI.

  2. Consumable materials are given in SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
FPI inspection stationLOCALFPI inspection station
BasketLOCALBasket
Vapor degreaserLOCALVapor degreaser
Process Plating TanksLOCALProcess plating tanks
OvenLOCALOven
Magnifying glass, 4xLOCALMagnifying glass, 4x
Vibroengraving equipmentLOCALVibroengraving equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-027 HYDROFLUORIC ACIDLOCALCoMat 01-027
CoMat 01-058 NITRIC ACID HNO3LOCALCoMat 01-058
CoMat 01-112 ALKALINE SILICATE DEGREASER23373CoMat 01-112
CoMat 01-343 DELETED0AM53CoMat 01-343
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-28-320-073 Machine the Small Piloting Diameter of the Housing

    1. Refer to Figure.

      2. Machine the small piloting diameter.

      1. The diameter must be between 7.0047 to 6.9996 in. (177.920 to 177.790 mm).

        Remove all damage and wear.

        Keep the removal of material to the minimum necessary to remove the damage.

    2. SUBTASK 72-60-28-230-058 Examine the Housing

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to the SPM TASK 70-23-01-230-501.

        No cracks are permitted.

    3. SUBTASK 72-60-28-330-065 Nickel Plate the Small Piloting Diameter of the Housing

    1. Refer to Figure.

      2. Mask the areas of the housing not to be plated.

      3. Do the nickel plating.

      1. Refer to the SPM TASK 70-33-08-300-503.

        Plate to a sufficient thickness to permit the machining to the last dimensions.

        The plating out of the small piloting diameter is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the housing.

      1. Flush with cold water.

        Flush with hot water.

        Dry with air blast.

    4. SUBTASK 72-60-28-370-066 De-embrittle the Housing

      1. Put the housing into an oven at 241 to 260 deg F (116 to 127 deg C) for 60 to 90 minutes.

      1. Do this process as soon as possible in less than 4 hours after the plating.

    5. SUBTASK 72-60-28-220-102 Examine the Housing

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

        No circumferential cracks are permitted.

        No rough and blistering are permitted.

    6. SUBTASK 72-60-28-320-074 Machine the Small Piloting Diameter of the Housing

    1. Refer to Figure.

      2. Machine the small piloting diameter.

      1. The diameter must be between 7.0075 to 7.0059 in. (177.990 to 177.950 mm).

        Clean up the edges of groove and chamfer where necessary.

    7. SUBTASK 72-60-28-220-103 Examine the Nickel Plated Area, Fig

    1. Refer to Figure.

      2. Do the visual inspection of the plated area for cracks and adhesion.

      1. Use a 4x magnifying glass.

        The natural network crack, emphasized by grinding, is permitted.

      3. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.0006 in. (0.015 mm) after the last machining.

    8. SUBTASK 72-60-28-350-071 Record the Repair

      1. Vibro engrave VRS5069 adjacent to the part number.

      1. Remove the metal lifted by marking the number.

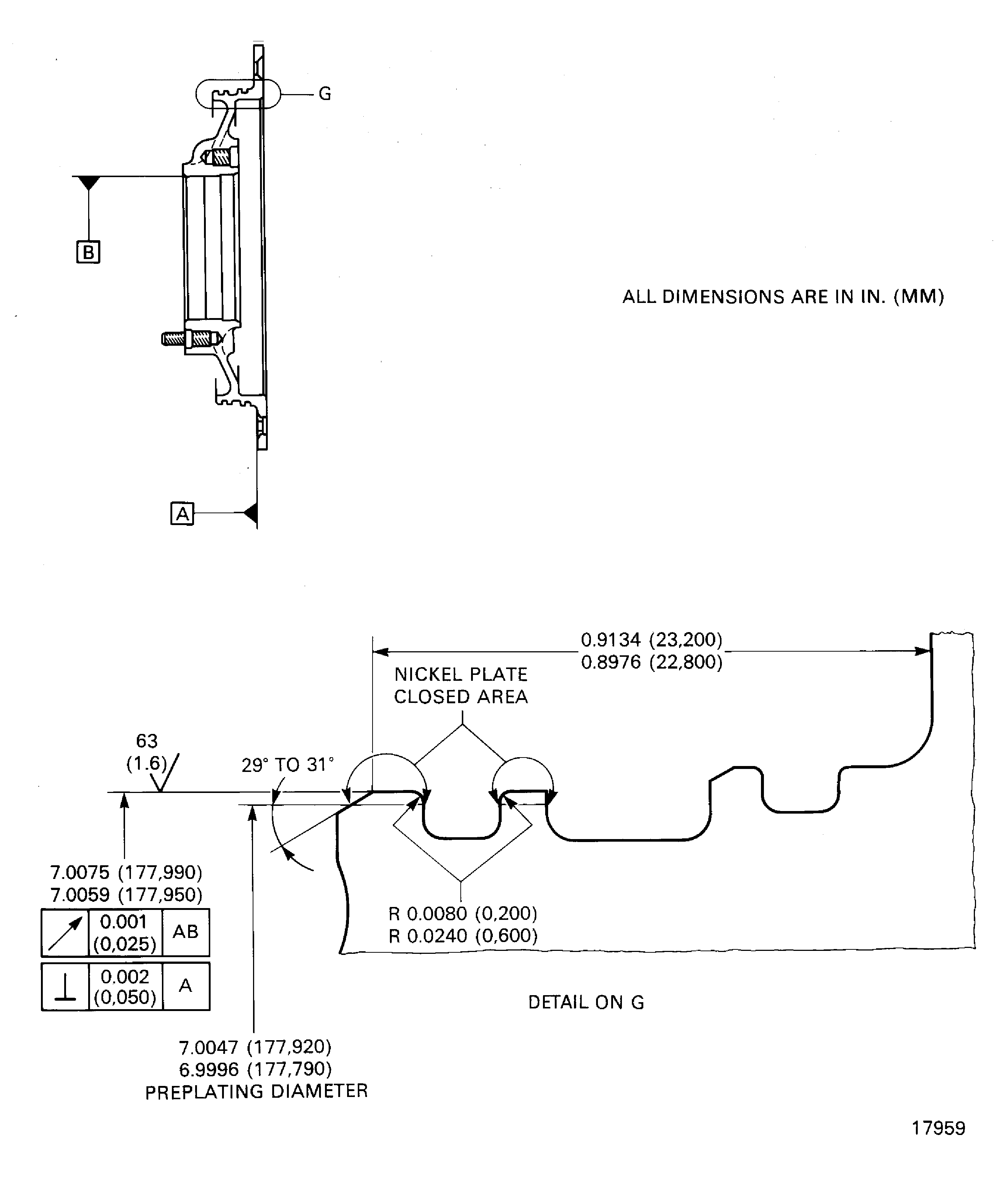

    9. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
