TASK 72-60-29-300-009 Deoiler Housing Assembly - Nickel Plate The Deoiler Casing Mating Diameter, Repair-009 (VRS5084)

DMC:V2500-A1-72-60-2904-03A-647A-C|Issue No:002.00|Issue Date:2016-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-60-29-300-009 Deoiler Housing Assembly - Nickel Plate The Deoiler Casing Mating Diameter, Repair-009 (VRS5084)

Effectivity

FIG/ITEM

PART NO.

01-390

4B0088

01-390

4B0315

01-390

4B0347

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Support

-

A357 T613 (AMS 4219)

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to PCI.
Consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
FPI inspection stationLOCALFPI inspection station
BasketLOCALBasket
Process Plating TanksLOCALProcess plating tanks
OvenLOCALOven
Magnifying glass, 4XLOCALMagnifying glass, 4X
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-027 HYDROFLUORIC ACIDLOCALCoMat 01-027
CoMat 01-058 NITRIC ACID HNO3LOCALCoMat 01-058
CoMat 01-112 ALKALINE SILICATE DEGREASER23373CoMat 01-112
CoMat 01-343 DELETEDLOCALCoMat 01-343
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-29-320-074 Machine the Deoiler Casing Mating Diameter of the Housing

    1. Refer to Figure.

      2. Machine the deoiler casing mating diameter.

        1. The diameter must be between 7.2805 in. to 7.2756 in. (184.924 mm to 184.800 mm).

        1. Remove all damage and wear.

        2. Keep the removal of material to the minimum necessary to remove the damage.

    2. SUBTASK 72-60-29-230-056 Examine the Housing

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to SPM TASK 70-23-01-230-501.

      2. No cracks are permitted.

    3. SUBTASK 72-60-29-330-063 Nickel Plate the Deoiler Casing Mating Diameter of the Housing

    1. Refer to Figure.

      2. Mask the areas of the housing not to be plated.

      3. Do the nickel plating.

      1. Refer to SPM TASK 70-33-08-300-503.

      2. Plate to a sufficient thickness to permit the machining to the last dimensions.

      3. The plating out of the deoiler casing mating diameter is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the housing.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    4. SUBTASK 72-60-29-370-068 De-embrittle the Housing

      1. Put the housing into an oven at 241 deg F to 260 deg F (116 deg C to 127 deg C) for 60 to 90 minutes.

      1. Do this procedure as soon as possible in less than 4 hours after the plating.

    5. SUBTASK 72-60-29-220-097 Examine the Housing

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

      2. No circumferential cracks are permitted.

      3. No rough and blistering are permitted.

    6. SUBTASK 72-60-29-320-075 Machine the Deoiler Casing Mating Diameter of the Housing

    1. Refer to Figure.

      2. Machine the casing mating diameter.

      1. The diameter must be 7.2835 in. to 7.2817 in. (185.000 mm to 184.955 mm).

      2. Clean-up the edges of groove and chamfer, where necessary.

    7. SUBTASK 72-60-29-220-098 Examine the Nickel Plated Area

    1. Refer to Figure.

      2. Do the visual inspection of the plated area for cracks and adhesion.

      2. The natural network crack, emphasized by grinding, is permitted.

      3. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.0006 in. (0.015 mm) after the last machining.

    8. SUBTASK 72-60-29-350-076 Record the Repair

      1. Vibro engrave VRS5084 adjacent to the part number.

      1. Remove the metal lifted by marking.

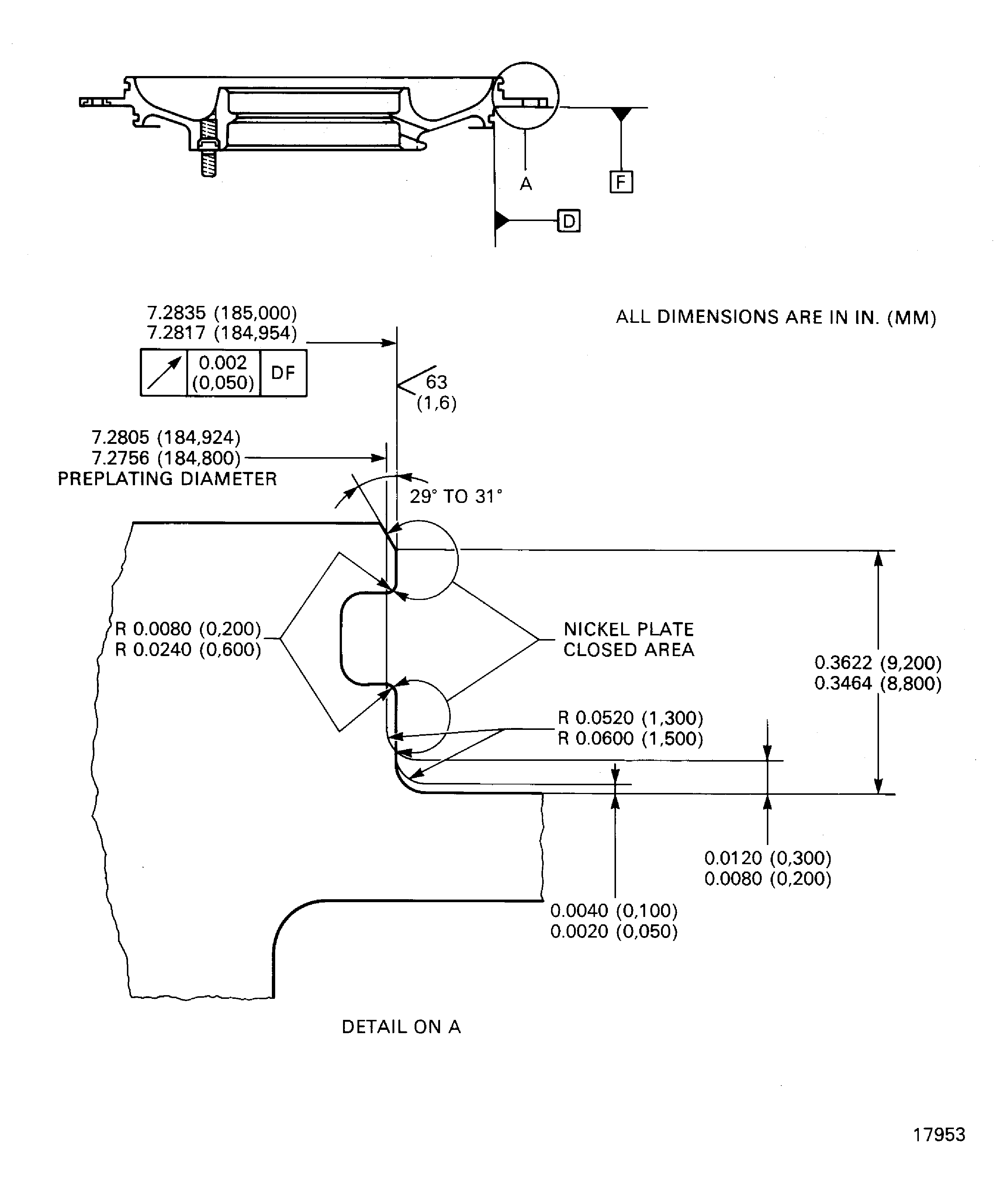

    9. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the effectivity table to add part number 4B0347. (11VF849A)
