TASK 72-60-32-300-008 Angle Gearbox Support - Nickel Plate The Rear Snap Diameter, Repair-008 (VRS5117)

DMC:V2500-A1-72-60-3201-01A-647A-C|Issue No:002.00|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-60-32-300-008 Angle Gearbox Support - Nickel Plate The Rear Snap Diameter, Repair-008 (VRS5117)

Effectivity

FIG/ITEM

PART NO.

01-300

4B0062

01-300

4B0353

01-300

4B0374

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Support

Aluminum alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

  1. To identify the consumable materials refer to PCI.

  2. Other consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCAL
Grinding MachineLOCAL
FPI Inspection stationLOCAL
BasketLOCAL
Vapor DegreaserLOCAL
Process Plating TanksLOCAL
OvenLOCAL
Magnifying Glass, 4xLOCAL
Vibrating Marking PencilLOCAL

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-32-320-057 Machine the Rear Snap Diameter of the Support

    1. Refer to Figure.

      2. Machine the rear snap diameter.

      1. The snap diameter must be between 6.3358 and 6.3307 in. (160.930 and 160.800 mm) after the removal of the damage. Remove all damage and wear. Keep the removal of material to the minimum necessary to remove the damage.

    2. SUBTASK 72-60-32-230-056 Examine the Support

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to the SPM TASK 70-23-01-230-501.

      2. No cracks are permitted.

    3. SUBTASK 72-60-32-330-057 Nickel Plate the Rear Snap Diameter of the Support

    1. Refer to Figure.

      2. Mask the areas of the support not to be plated.

      3. Do the nickel plating.

      1. Refer to the SPM TASK 70-33-08-300-503.

      2. Plate to a thickness to permit machining to the last dimensions.

      3. The plating out of the snap diameter is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the support.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    4. SUBTASK 72-60-32-370-053 De-embrittle the Support

      1. Put the support into the oven at 241 to 260 deg F (116 to 127 deg C) for 60 to 90 minutes.

      1. Do this procedure in less than 4 hours after the plating.

    5. SUBTASK 72-60-32-220-075 Examine the Support

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

      2. No circumferential cracks are permitted.

      3. No roughness and blisters are permitted.

    6. SUBTASK 72-60-32-320-058 Machine the Rear Snap Diameter of the Support

    1. Refer to Figure.

      2. Machine the snap diameter.

      1. The last dimension of the snap diameter must be between 6.3386 and 6.3370in. (161.000 and 160.960 mm).

      2. Clean the edges of the groove and chamfer where necessary.

    7. SUBTASK 72-60-32-220-076 Examine the Nickel Plated Area

    1. Refer to Figure.

      2. Do the visual inspection of the plated area for cracks and adhesion.

      2. The natural network of crack, made more apparent by grinding, is permitted.

      3. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.0006 in. (0.015 mm) after the last machining.

    8. SUBTASK 72-60-32-350-063 Record the Repair

      1. Vibro engrave VRS5117 adjacent to the part number.

      1. Remove the metal lifted by marking.

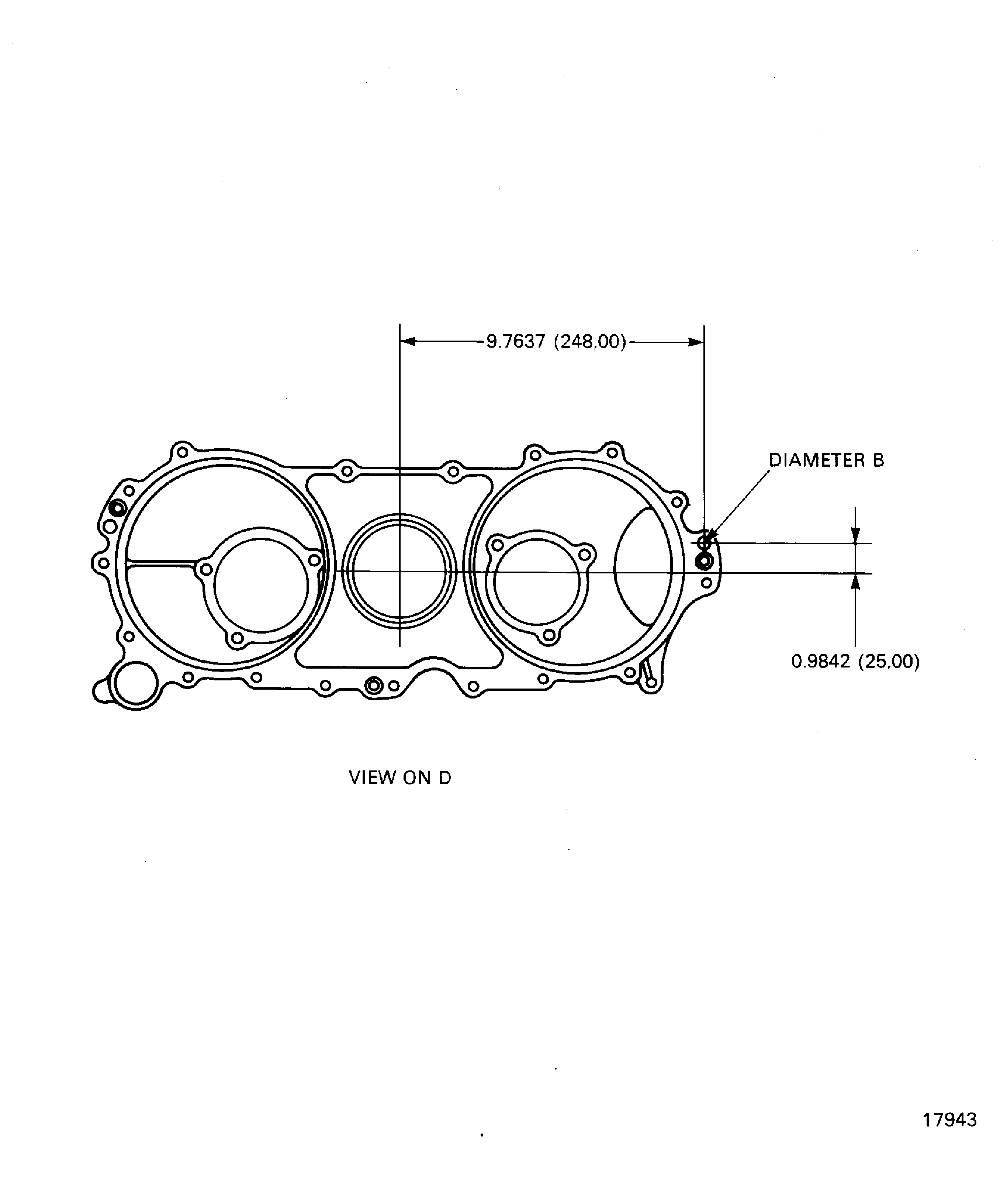

    9. Figure: Nickel plate the rear snap diameter of the angle gearbox support

    Nickel plate the rear snap diameter of the angle gearbox support

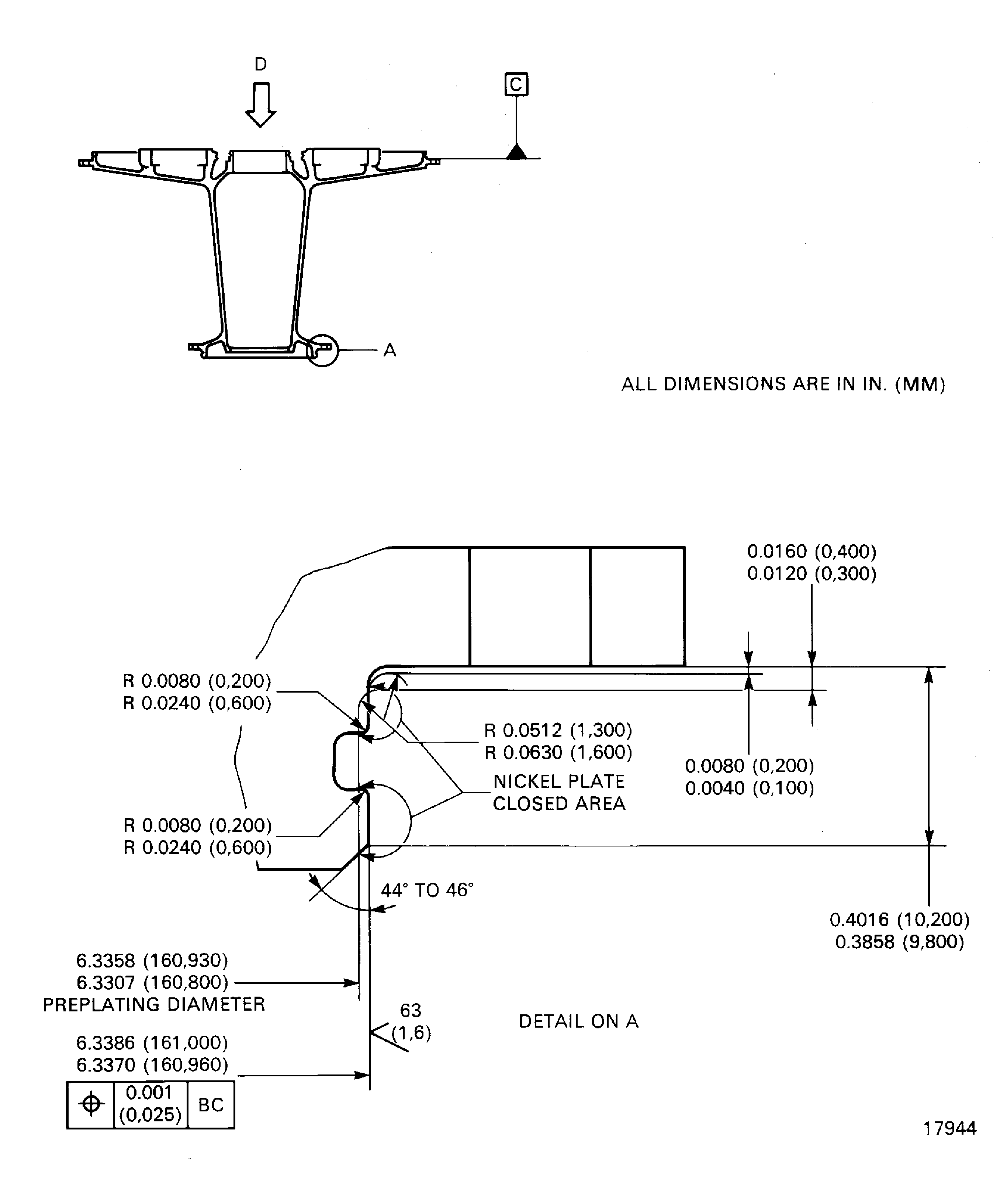

    Figure: Nickel plate the rear snap diameter of the angle gearbox support

    Nickel plate the rear snap diameter of the angle gearbox support

Requirements After Job Completion

Follow-On Conditions

NONE
