TASK 72-60-42-300-006 Angle Gearbox Radial Gearshaft Support - Replace The Damaged Inserts, Repair-006 (VRS5090)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Workshop inspection equipment | LOCAL | Workshop inspection equipment | ||
| Hot air gun | LOCAL | Hot air gun |
Consumables, Materials and Expendables
NONESpares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Insert | 4P0040 | 3 |
Safety Requirements
NONEProcedure
Refer to Figure.
Use the Hot air gun.
Heat the housing adjacent to the insert.
SUBTASK 72-60-42-350-076 Remove the Inserts
Refer to Figure.
Use the Hot air gun.
Heat the support adjacent to the hole.
SUBTASK 72-60-42-350-077 Install the New Inserts

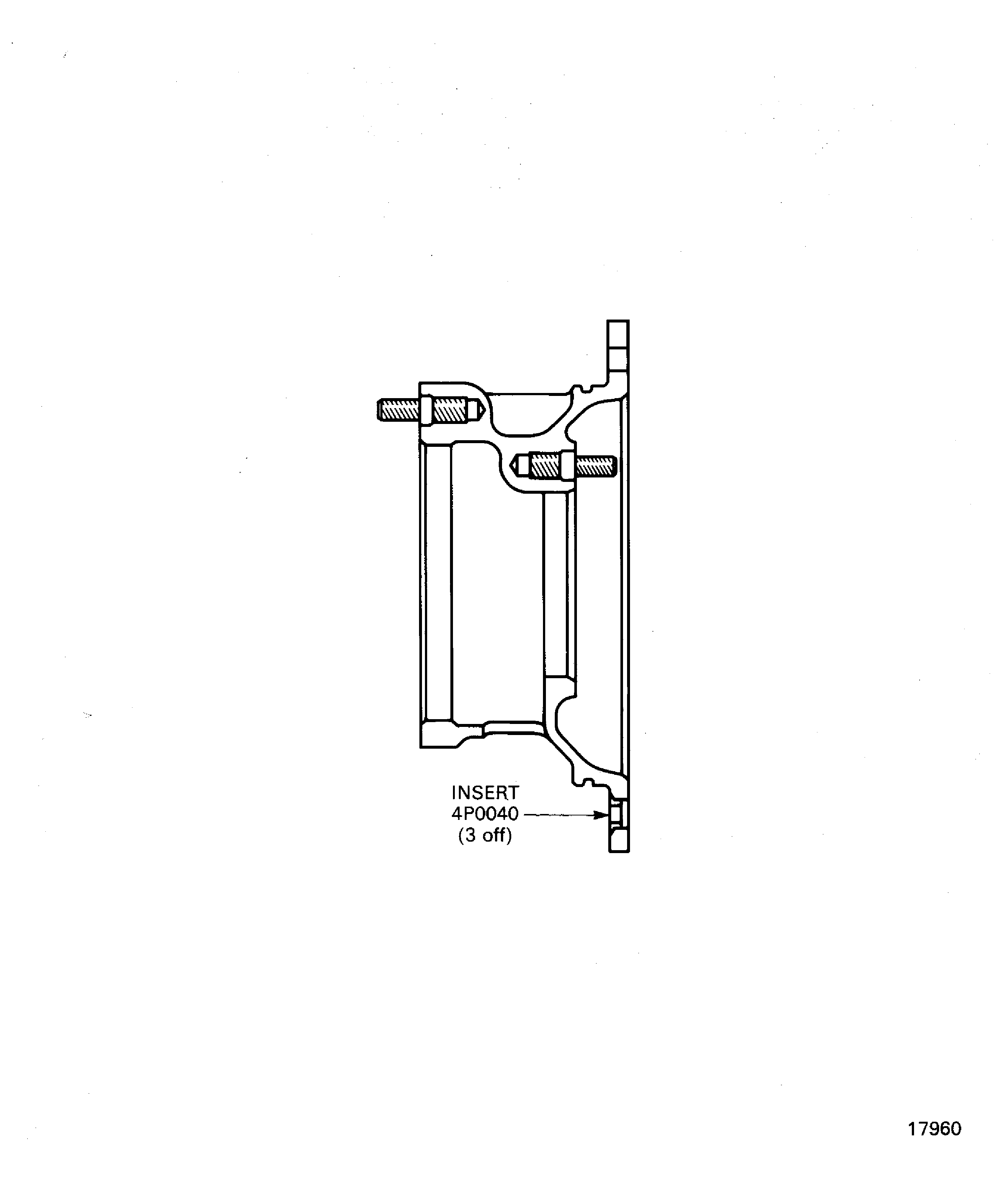

Figure: Replace the inserts in the radial gearshaft support
Replace the inserts in the radial gearshaft support
