| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72614901 | ENGINE - GEARBOX BREATHER OUTLET DUCT, PRE SBN71-0075 | aa | ||
| SBN0075-01 | ENGINE - GEARBOX BREATHER OUTLET DUCT | ab | ||
| 010 | 740-5720-505 | • DUCT - ASSEMBLY OF 51563 | aa-ab | 1 |
| 020 | AS21009 | • BOLT - 0.25 DIA X 0.562 U1653 | aa-ab | 3 |
| 020A | AS21009 | • BOLT - 0.25 DIA X 0.562 U1653 ALT MS9557-07 | aa-ab | 3 |
| -020B | MS9557-07 | • BOLT - MACHINE, DOUBLE HEX 96906 ALT AS21009 | ab | REF |
| 030 | AS3209-226 | • PACKING - PREFORMED U1653 | aa-ab | 1 |
| 030A | AS3209-226 | • PACKING - PREFORMED U1653 | aa-ab | 1 |
| 030B | AS43013-226 | • RING U1653 ALT AS3209-226 | aa-ab | 1 |
| 040 | 740-4073-503 | • SEAL 51563 POST SBN71-0075 | ab-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

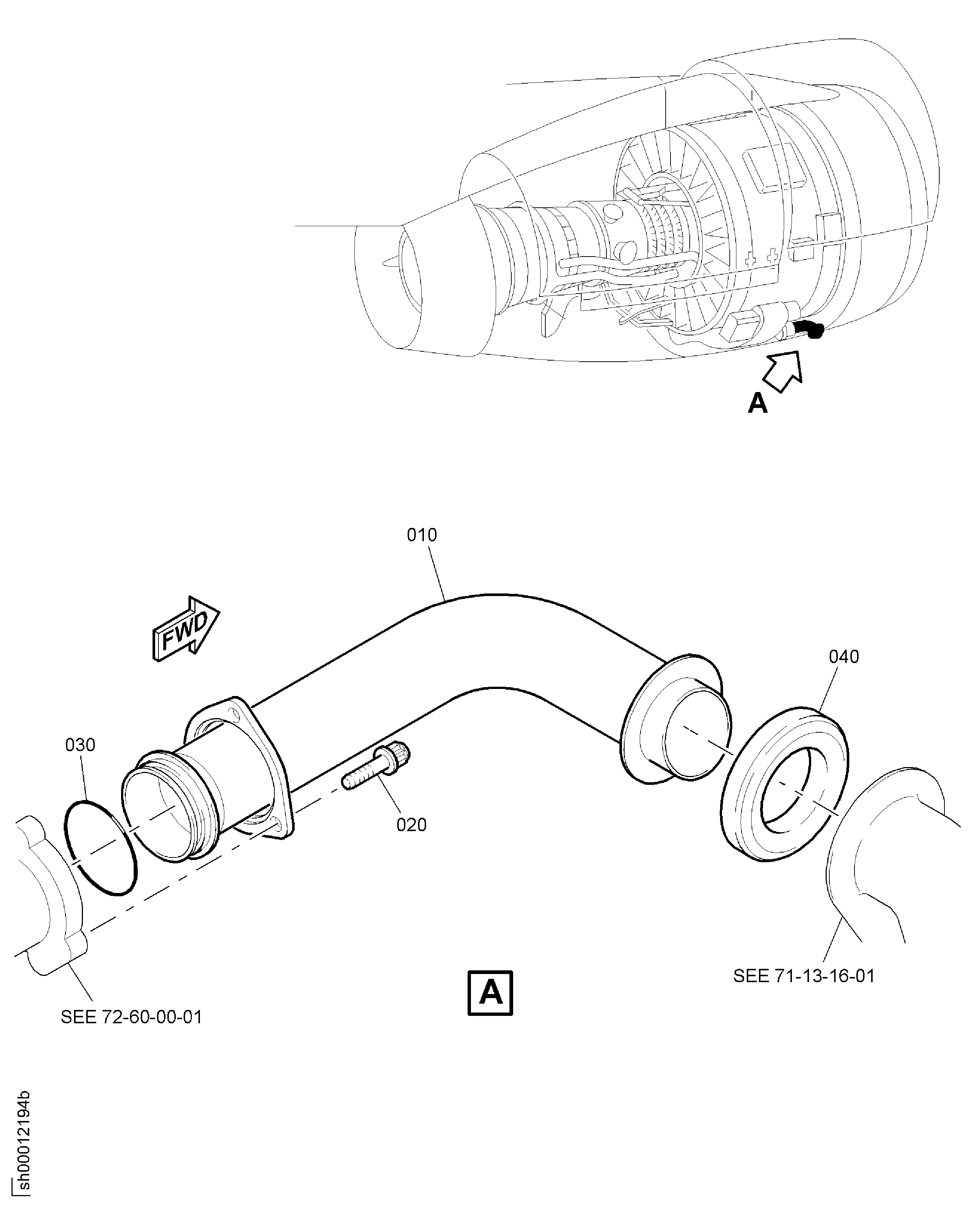

Figure: ENGINE-GEARBOX BREATHER OUTLET DUCT
Duct Gearbox Breather
