DMC:V2500-A1-73-11-47-02A-941A-DIssue No:002.00Issue Date:2017-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B73114702 | FUEL SYSTEM TUBES (RIGID)-POWER PLANT, PRE SBE70-0146 | aa | ||
| SBE0146-01 | FUEL SYSTEM TUBES (RIGID)-POWER PLANT, PRE SBE70-0902 | ab | ||
| SBE0902-01 | FUEL SYSTEM TUBES (RIGID)-POWER PLANT, PRE SBE70-0727 | ac | ||
| SBE0727-01 | FUEL SYSTEM TUBES (RIGID)-POWER PLANT | ad | ||
| -005 | 740-5004-509 | • ARRGT - FUEL SYSTEM 51563 | aa-ac | REF |
| -005A | 740-5004-531 | • ARRGT - FUEL SYSTEM 51563 | aa-ac | REF |
| -005B | 740-5004-533 | • ARRGT - FUEL SYSTEM 51563 | aa-ac | REF |
| -005C | 740-5004-535 | • ARRGT - FUEL SYSTEM 51563 PRE SBE70-0146 | aa-ac | REF |
| -005D | 740-5004-537 | • ARRGT - FUEL SYSTEM 51563 POST SBE70-0146 | aa-ac | REF |
| 100 | 740-5654-501 | • TUBE - ASSY 51563 | aa-ac | 1 |
| 101 | 4W0169 | • BOLT - .250 DIA X .938 | aa-ac | 3 |
| 108 | AS43013-112 | • RING - 12.37 MM I/D X 2.62 MM U1653 | aa-ac | 1 |
| 110 | AN924-8S | • NUT 81352 | aa-ac | 1 |
| 112 | AN960C1216 | • WASHER 81352 | aa-ac | 1 |
| 112A | AN960C1216L | • WASHER 81352 ALT AN960C1216L PRE SBE70-0902 | aa-ac | 1 |
| 112B | AN960C1216 | • WASHER 81352 POST SBE70-0902 | aa-ac | 1 |
| 113 | AN960C1216L | • WASHER 81352 POST SBE70-0902 | ac | 1 |
| 114 | MS21924-8S | • UNION 96906 PRE SBE70-0727 | aa-ac | 1 |
| 114A | MS21924-8R | • UNION 96906 POST SBE70-0727 | ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

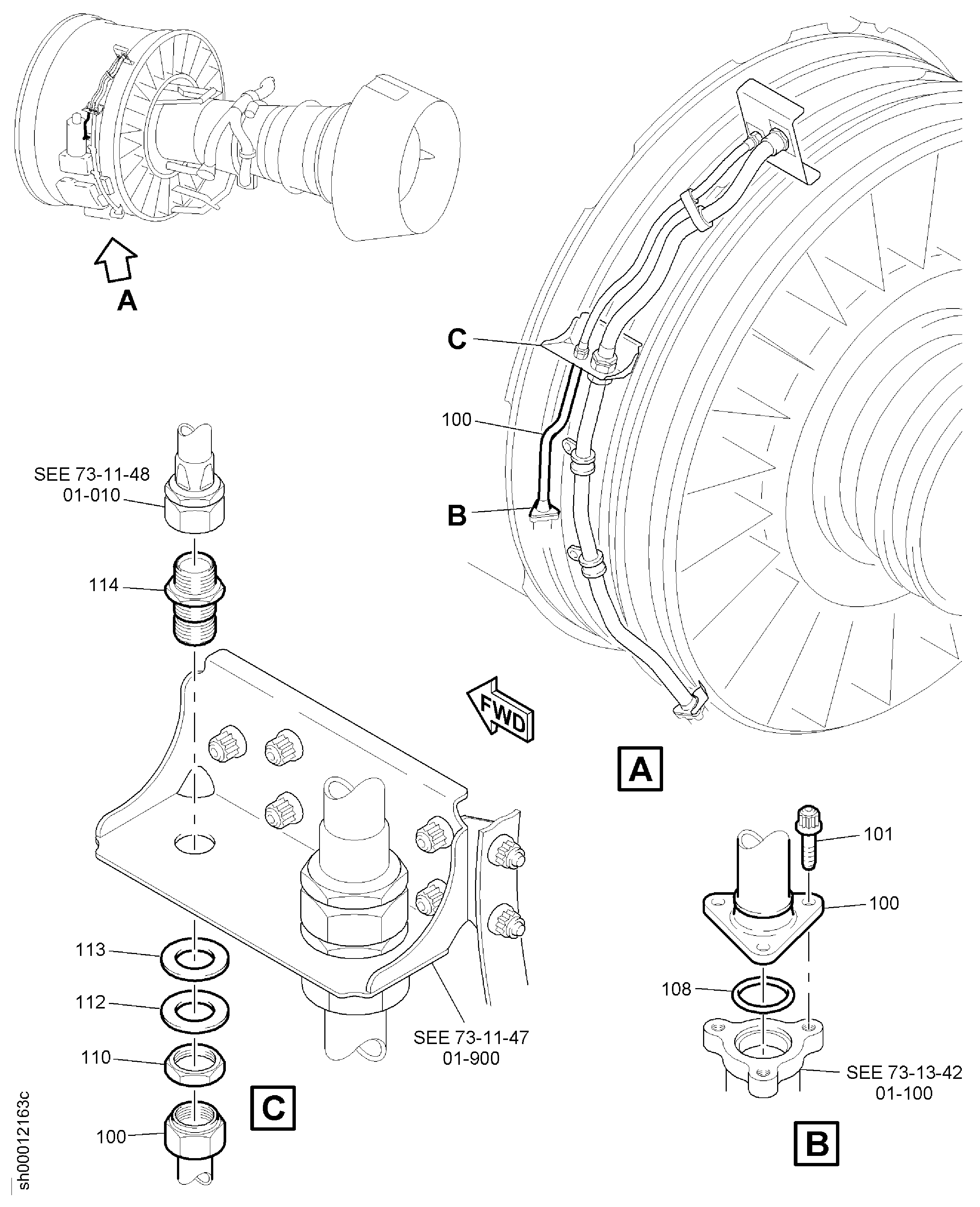

Figure: FUEL SYSTEM TUBES (RIGID)-POWER PLANT
TUBES FUEL RIGID
