| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B73114801 | POWER PLANT - FUEL SYSTEM TUBES (FLEXIBLE) | aa | ||
| -002 | 740-5004-509 | ARRANGEMENT - FUEL SYSTEM 51563 | aa | REF |
| 010 | AE707631-1 | • HOSE - FLEXIBLE, ASSEMBLY OF 00624 | aa | 1 |
| 020 | AS22409 | • BOLT U1653 | aa | 4 |
| 020A | NAS6303U9H | • BOLT 80205 | aa | 4 |
| 021 | SP148D | • WASHER K7766 | aa | 4 |
| 030 | 718115-08 | • GASKET 02697 | aa | 1 |
| 040 | AE707632-1 | • HOSE - FLEXIBLE, ASSEMBLY OF 00624 | aa | 1 |
| 045 | TA30700009-01 | • CLAMP - ASSEMBLY OF 84971 | aa | 1 |
| 050 | AS22511 | • BOLT - 0.250 DIA X 0.688 U1653 | aa | 4 |
| 050A | NAS6304U11H | • BOLT 80205 | aa | 4 |
| 051 | SP148E | • WASHER K7766 | aa | 4 |
| 060 | 718115-24 | • GASKET 02697 | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

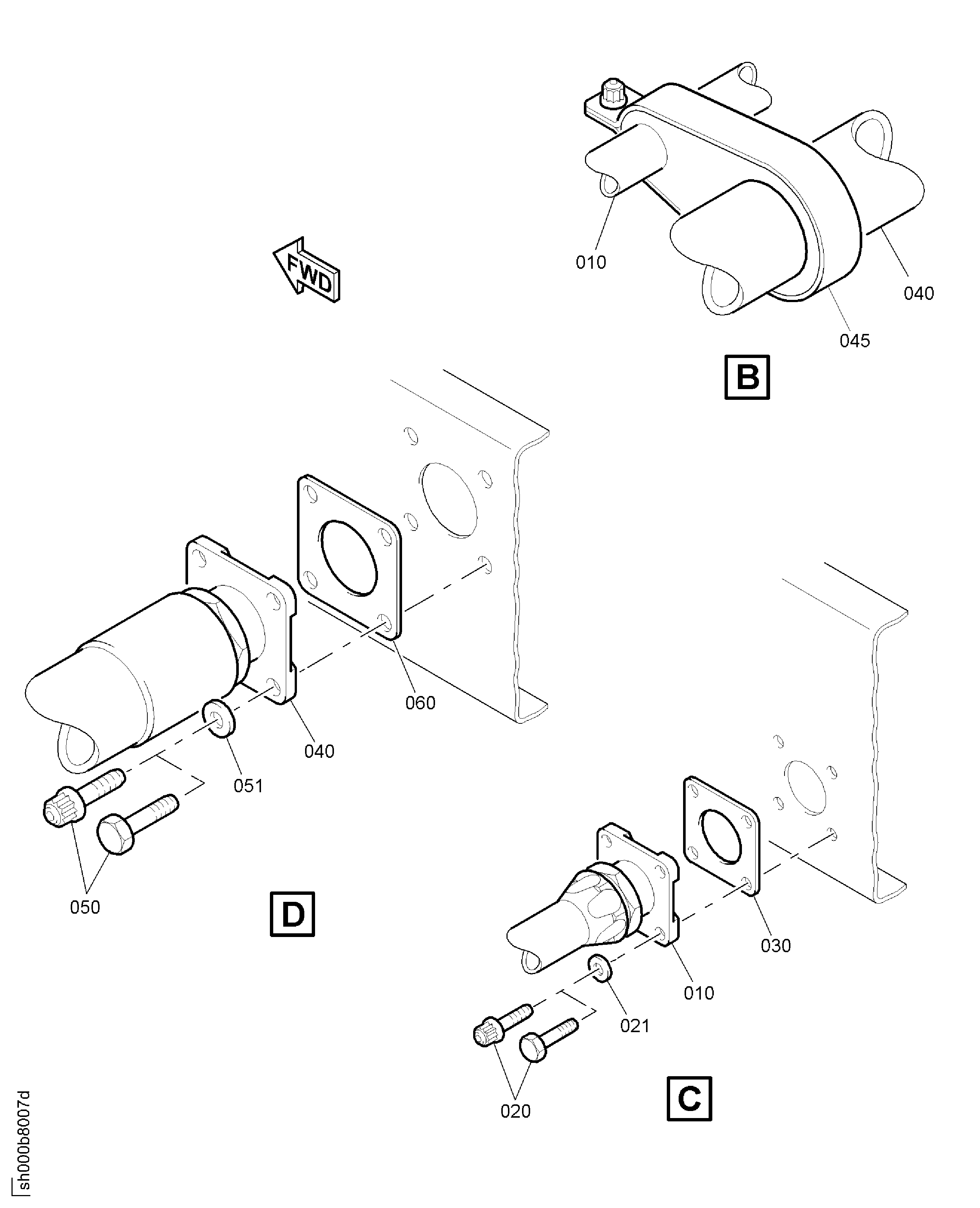

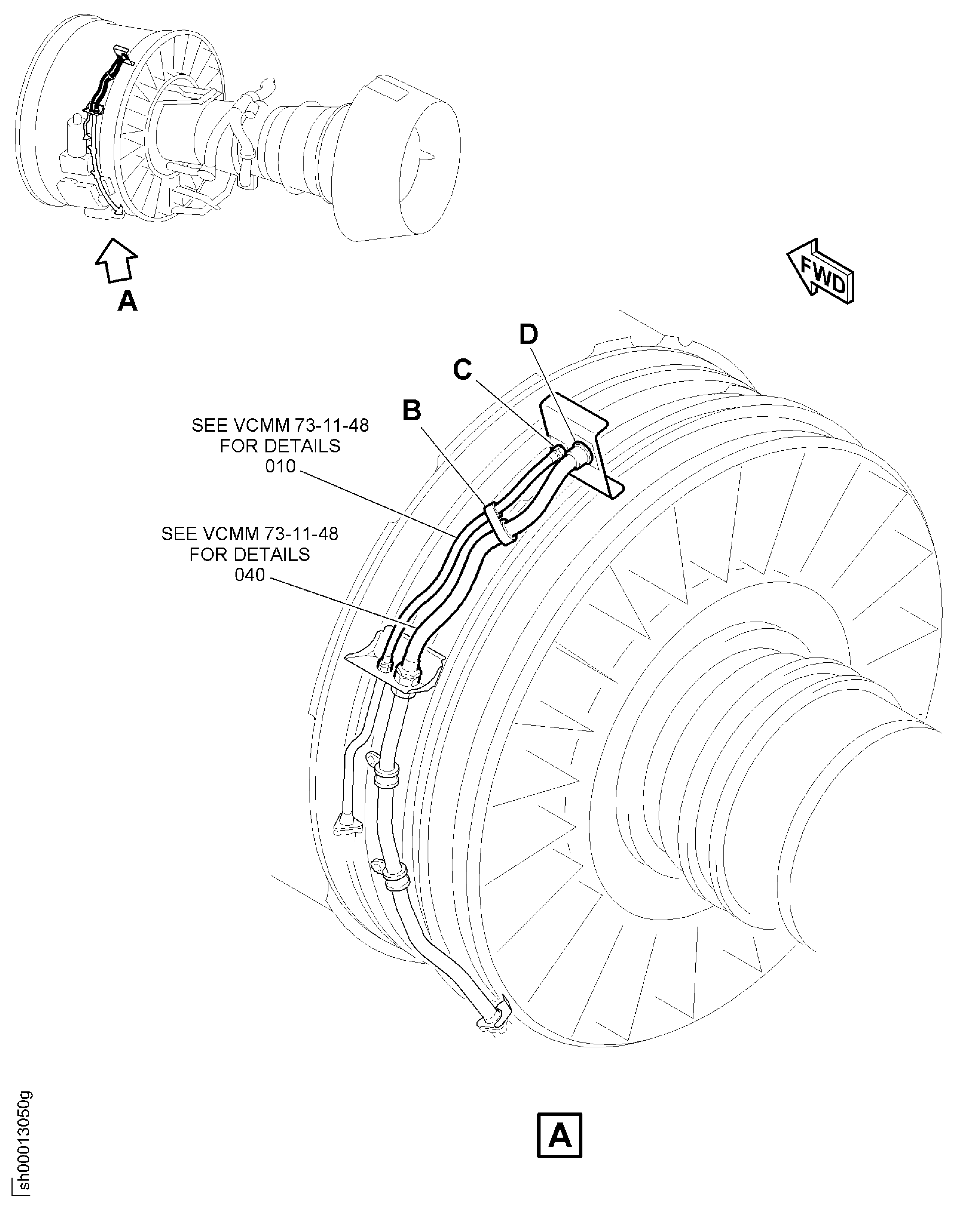

Figure: FUEL SYSTEM TUBES (FLEXIBLE)-POWER PLANT
POWERPLANT FUEL TUBES
POWERPLANT FUEL TUBES
