DMC:V2500-A1-73-11-49-03A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B73114903 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE70-0055 | aa | ||
| SBE0055-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0045 | ab | ||
| SBE0045-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0061 | ac | ||
| SBE0061-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0084 | ad | ||
| SBE0084-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ae | ||
| 085 | 5W8204 | • HOUSING - SEAL | aa-ae | 1 |
| 098 | AS43013-214 | • RING - SEALING TOROIDAL, 24.99 MM I/D X 3.53 MM U1653 | aa-ae | 2 |
| 100 | 2A0649 | • TUBE - ASSY,FUEL PRE SBE73-0045 | aa-ab | 1 |
| 100A | 6A5342 | • TUBE - A/O FUEL DISCON TO IDG POST SBE73-0045 | ac-ae | 1 |
| 114 | AS21038 | • BOLT - .250 DIA X 2.375 U1653 | aa-ae | 3 |
| 116 | AS43013-120 | • RING U1653 | aa-ae | 1 |
| 125 | AS21411 | • BOLT - .190 DIA X .688 U1653 | aa-ae | 1 |
| 126 | SP154D | • WASHER - .190 DIA K7766 | aa-ae | 1 |
| 128 | 400WSS16 | • CLIP 83930 | aa-ae | 1 |
| 130 | ST1698D47 | • SPACER K4585 | aa-ae | 1 |
| 132 | AS20624 | • NUT - .190 DIA U1653 | aa-ae | 1 |
| 200 | AS15785 | • • WIRE - THRUST U1653 | aa-ae | 1 |
| 200A | AS15785 | • • WIRE - THRUST U1653 POST SBE73-0045 | ac-ae | 1 |
| 201 | AS15709 | • • NUT - TUBE COUPLING U1653 | aa-ae | 1 |
| 201A | AS15709 | • • NUT - TUBE COUPLING U1653 POST SBE73-0045 | ac-ae | 1 |
| 202 | 5W8173 | • • FERRULE - ELBOW | aa-ae | 1 |
| 202A | K17440 | • • ADAPTOR - ELBOW POST SBE73-0045 | ac-ae | 1 |
| 238 | 5W8203 | • • RETAINER - FERRULE | aa-ae | 1 |
| 238A | 5W8203 | • • RETAINER - FERRULE POST SBE73-0045 | ac-ae | 1 |
| 242 | 5W1579 | • • FERRULE | aa-ae | 1 |
| 242A | 5W8455 | • • FERRULE POST SBE73-0045 | ac-ae | 1 |
| 470 | 5W0041 | • BRACKET | aa-ae | 1 |
| 485 | 5W8201 | • HOUSING - SEAL | aa-ae | 1 |
| 498 | AS43013-214 | • RING - SEALING TOROIDAL, 24.99 MM I/D X 3.53 MM U1653 | aa-ae | 2 |
| 500 | 2A0650 | • TUBE - ASSY,FUEL PRE SBE73-0061 | aa-ac | 1 |
| 500A | 6A5343 | • TUBE - A/O LP FUEL-FCOC TO IDG COOLER POST SBE73-0061 PRE SBE73-0084 | aa-ad | 1 |
| 500B | 6A6484 | • TUBE - A/O POST SBE73-0084 | aa-ae | 1 |
| 506 | 4W0166 | • BOLT - .250 DIA X .750 PRE SBE70-0055 | aa-ae | 3 |
| 506A | 4W0170 | • BOLT - .250 DIA X 1.000 POST SBE70-0055 | aa-ae | 3 |
| 508 | AS43013-120 | • RING U1653 | aa-ae | 2 |
| 514 | AS21040 | • BOLT - .250 DIA X 2.500 U1653 | aa-ae | 2 |
| 602 | 5W8073 | • • ADAPTOR - STRAIGHT FLANGED PRE SBE73-0084 | aa-ad | 1 |
| 602A | AS27437 | • • ADAPTOR - STRAIGHT TUBE U1653 POST SBE73-0084 | ae | 1 |
| 638 | 5W8200 | • • RETAINER - FERRULE | aa-ae | 1 |
| 642 | 5W1579 | • • FERRULE PRE SBE73-0084 | aa-ad | 1 |
| 642A | 5W8455 | • • FERRULE POST SBE73-0084 | ae | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

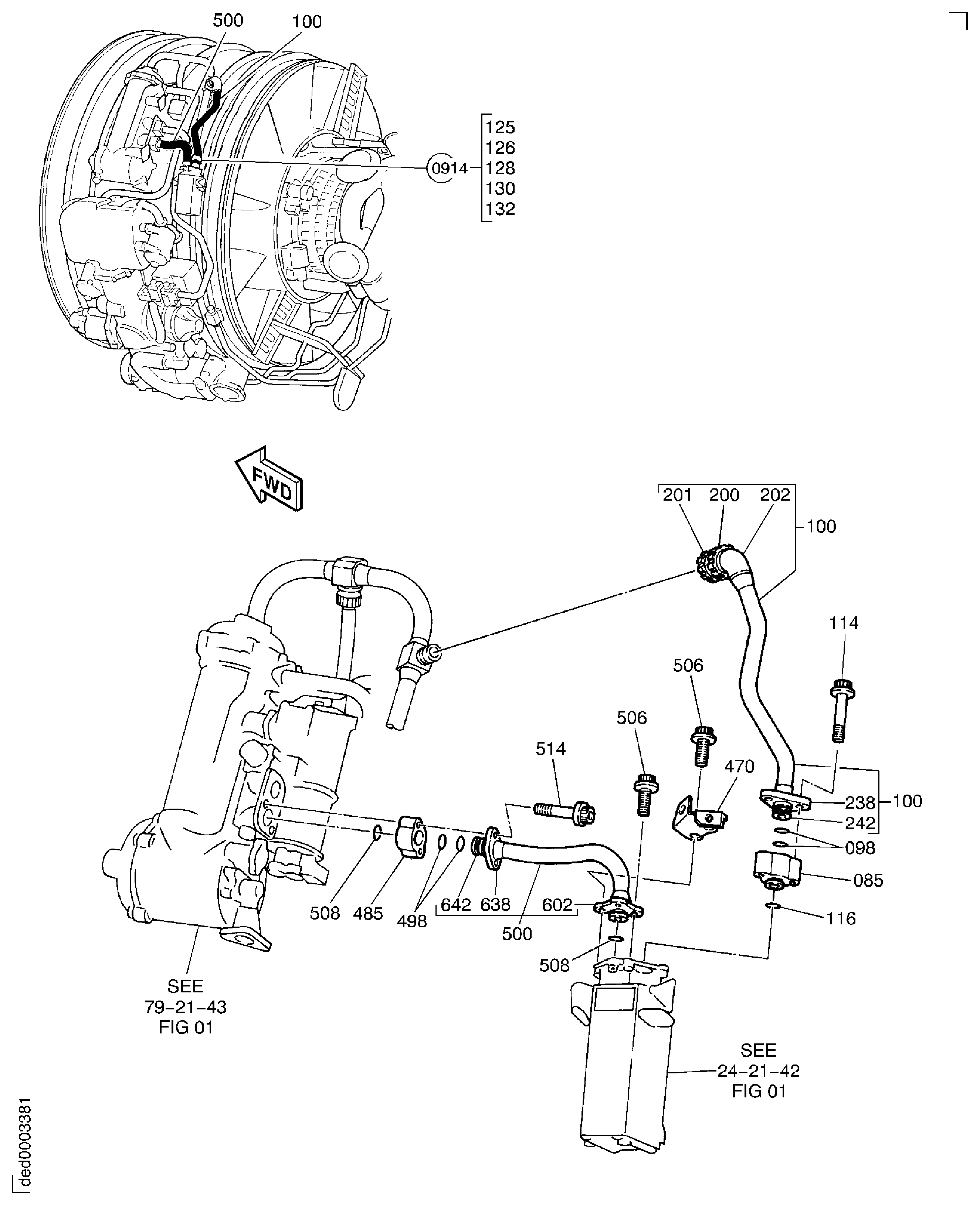

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE
FUEL TUBES ENGINE
