| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| B73114905 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE70-0022 | aa | ||
| SBE0022-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0021 | ab | ||
| SBE0021-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0040 | ac | ||
| SBE0040-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0045 | ad | ||
| SBE0045-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ae | ||
| 070 | 5W8331 | • BRACKET | aa-ae | 1 |
| 071 | 4W0002 | • NUT - .250 DIA | aa-ae | 2 |
| 074 | 4W0164 | • BOLT - .250 DIA X .625 | aa-ae | 2 |
| 092 | 6A4584 | • BRACKET POST SBE73-0040 | ad-ae | 1 |
| 100 | 2A0615 | • TUBE - A/O FUEL-TO HP PUMP, 1.250O/D X .028T PRE SBE73-0045 | aa-ad | 1 |
| 100A | 6A5339 | • TUBE - A/O FUEL - FILTER TO H POST SBE73-0045 | ae | 1 |
| 105 | AS21021 | • BOLT - .250 DIA X 1.312 U1653 POST SBE73-0040 | ad-ae | 2 |
| 106 | 4W0168 | • BOLT - .250 DIA X .875 PRE SBE73-0040 | aa-ac | 3 |
| 106A | 4W0168 | • BOLT - .250 DIA X .875 POST SBE73-0040 | ad-ae | 1 |
| 107 | LK74669 | • WASHER POST SBE73-0040 | ad-ae | 2 |
| 108 | AS43013-128 | • RING U1653 | aa-ae | 1 |
| 114 | 4W0166 | • BOLT - .250 DIA X .750 | aa-ae | 4 |
| 116 | AS43013-124 | • RING U1653 | aa-ae | 1 |
| 133 | 4W0131 | • BOLT - .190 DIA X 2.500 PRE SBE73-0021 | aa-ab | 1 |
| 133A | AS20942 | • BOLT U1653 POST SBE73-0021 PRE SBE73-0040 | ac | 1 |
| 133B | AS20921 | • BOLT - .190 DIA X 1.312 U1653 POST SBE73-0040 PRE SBE73-0045 | ad | 1 |
| 133C | 4W0116 | • BOLT - .190 DIA X 1.312 POST SBE73-0045 | ae | 1 |
| 134 | AN960XC10L | • WASHER 81352 PRE SBE70-0022 | aa-ae | 1 |
| 134A | 5W1086 | • WASHER POST SBE70-0022 | aa-ae | 1 |
| 136 | 400WSS20 | • CLIP 83930 PRE SBE73-0021 | aa-ab | 1 |
| 136A | TA025074-16 | • CLAMP - 1.000 DIA 84971 POST SBE73-0021 PRE SBE73-0040 | ac | 1 |
| 136B | AS62516 | • CLAMP - 25.40 MM (1.000) U1653 POST SBE73-0040 PRE SBE73-0045 | ad | 1 |
| 136C | AS62420 | • CLIP - 31.75 MM (1.250) U1653 POST SBE73-0045 | ae | 1 |
| 138 | 5W1033 | • SPACER - (25MM) PRE SBE73-0021 | aa-ab | 1 |
| 138A | UP60481 | • SPACER POST SBE73-0021 PRE SBE73-0040 | ac | 1 |
| 139 | 5W1032 | • SPACER - (20MM) | aa-ae | 1 |
| 140 | 4W0043 | • NUT - .190 DIA | aa-ae | 1 |
| 202 | 5W8214 | • • ADAPTOR - ELBOW | aa-ae | 1 |
| 202A | UP60493 | • • ADAPTOR POST SBE73-0045 | ae | 1 |
| 242 | 5W1525 | • • ADAPTOR - STRAIGHT FLANGED | aa-ae | 1 |
| 242A | UP60492 | • • ADAPTOR POST SBE73-0045 | ae | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

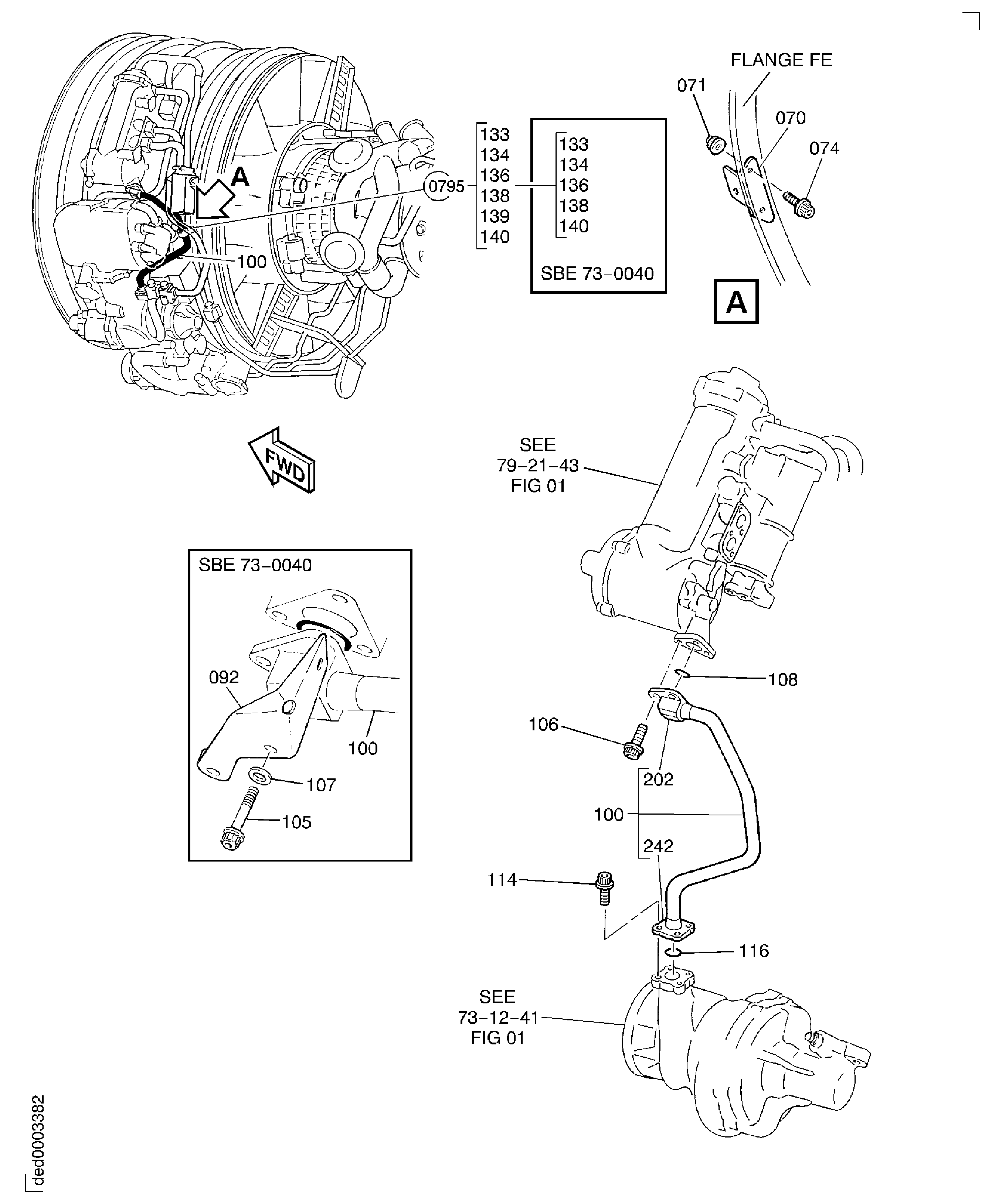

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE
FUEL TUBES ENGINE
