DMC:V2500-A1-73-11-49-07A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 07 | ||||
| B73114907 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE70-0022 | aa | ||
| SBE0022-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0045 | ab | ||
| SBE0045-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0061 | ac | ||
| SBE0061-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0102 | ad | ||
| SBE0102-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ae | ||
| 070 | 5W8319 | • BRACKET | aa-ae | 1 |
| 100 | 2A1417 | • TUBE - A/O FUEL TO FLOW METER, .750O/D X .036T PRE SBE73-0045 | aa-ab | 1 |
| 100A | 6A5344 | • TUBE - A/O FUEL - FMU TO FLOW POST SBE73-0045 | ac-ae | 1 |
| 106 | 4W0166 | • BOLT - .250 DIA X .750 | aa-ae | 6 |
| 108 | AS43013-116 | • RING - 18.72 MM I/DIA X 2,62 U1653 | aa-ae | 2 |
| 125 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ae | 1 |
| 126 | AN960XC10L | • WASHER 81352 PRE SBE70-0022 | aa-ae | 1 |
| 126A | 5W1086 | • WASHER POST SBE70-0022 | aa-ae | 1 |
| 128 | 400WSS12 | • CLIP 83930 PRE SBE73-0045 | aa-ab | 1 |
| 128A | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE73-0045 | ac-ae | 1 |
| 132 | 4W0043 | • NUT - .190 DIA | aa-ae | 1 |
| 202 | 5W8071 | • • ADAPTOR - STRAIGHT FLANGED | aa-ae | 2 |
| 202A | AS27429 | • • ADAPTOR - STRAIGHT TUBE U1653 POST SBE73-0045 | ac-ae | 1 |
| 470 | 5W8324 | • BRACKET | aa-ae | 1 |
| 500 | 2A0618 | • TUBE - A/O FUEL-TO DISTRIB/V, .750O/D X .036T PRE SBE73-0061 | aa-ac | 1 |
| 500A | 6A5341 | • TUBE - A/O -FUEL FLOWMETER TO POST SBE73-0061 | ad-ae | 1 |
| 506 | 4W0166 | • BOLT - .250 DIA X .750 | aa-ae | 3 |
| 508 | AS43013-116 | • RING - 18.72 MM I/DIA X 2,62 U1653 | aa-ae | 1 |
| 525 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE73-0102 | aa-ad | 1 |
| 525A | 4W0116 | • BOLT - .190 DIA X 1.312 POST SBE73-0102 | ae | 1 |
| 526 | AN960XC10L | • WASHER 81352 PRE SBE70-0022 | aa-ad | 2 |
| 526A | 5W1086 | • WASHER POST SBE70-0022 PRE SBE73-0102 | aa-ad | 2 |
| 526B | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE73-0102 | ae | 1 |
| 528 | 400WSS12 | • CLIP 83930 PRE SBE73-0061 | aa-ac | 1 |
| 528A | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE73-0061 | aa-ae | 1 |
| 530 | 5W1032 | • SPACER - SLEEVE, (20MM) POST SBE73-0102 | ae | 1 |
| 532 | 4W0001 | • NUT - .190 DIA | aa-ae | 1 |
| 602 | 5W1536 | • • ADAPTOR - STRAIGHT FLANGED | aa-ae | 1 |
| 602A | UP60515 | • • ADAPTOR POST SBE73-0061 | ad-ae | 1 |
| 642 | 5W1277 | • • ADAPTOR - UNION | aa-ae | 1 |
| 642A | AS15815 | • • ADAPTOR - STRAIGHT TUBE U1653 POST SBE73-0061 | ad-ae | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

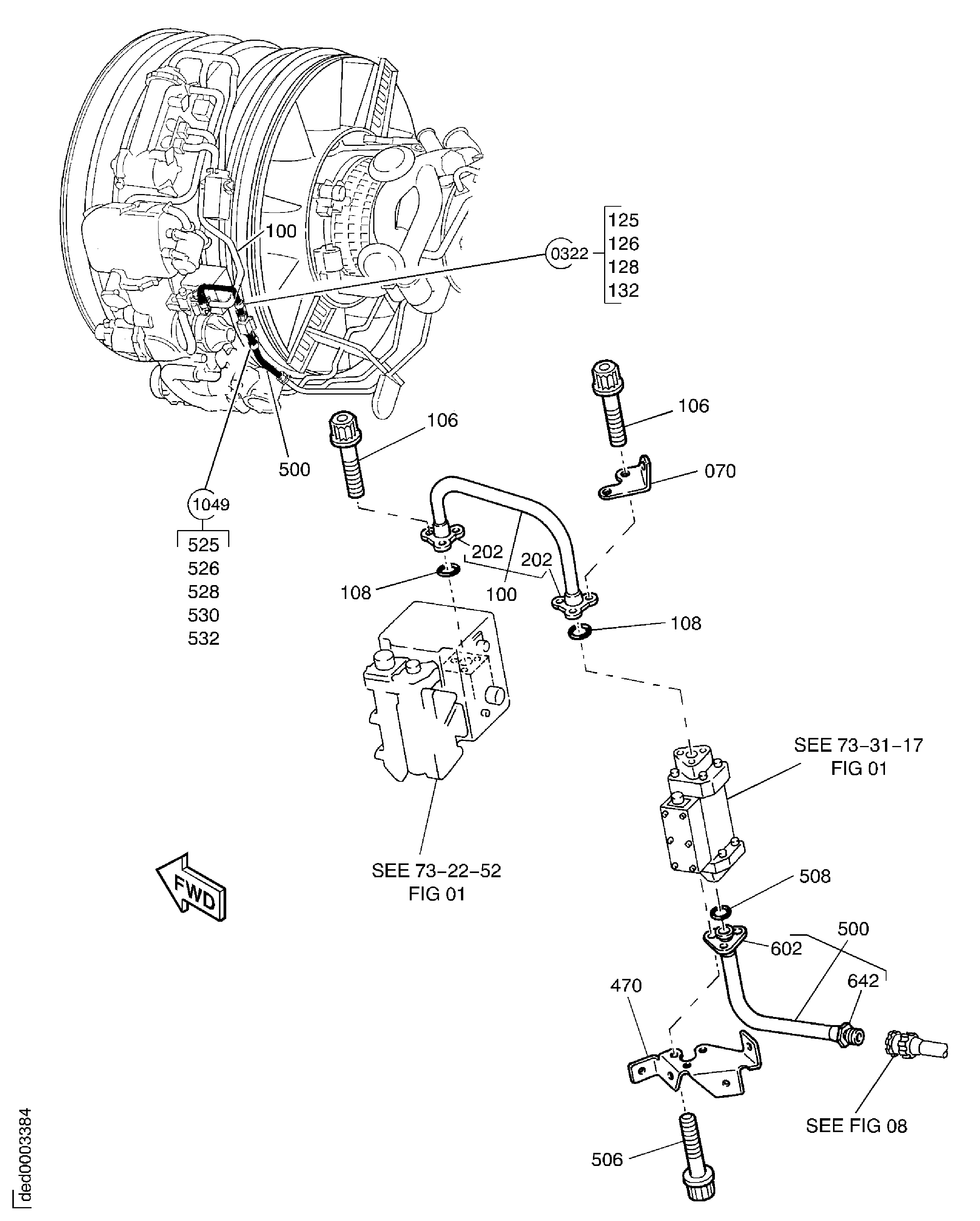

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE
FUEL TUBES ENGINE
