DMC:V2500-A1-73-11-49-09A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 09 | ||||
| B73114909 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE70-0023 | aa | ||
| SBE0023-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE70-0022 | ab | ||
| SBE0022-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0018 | ac | ||
| SBE0018-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE79-0087 | ad | ||
| SBE0087-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ae | ||
| 100 | 2A0641 | • TUBE - A/O FUEL TO DISTRBT/V PRE SBE70-0023 | aa-ad | 1 |
| 100A | 2A0655 | • TUBE - FUEL ASSY OF POST SBE70-0023 PRE SBE73-0018 | aa-ad | 1 |
| 100B | 2A0656 | • TUBE - FUEL A/O POST SBE73-0018 PRE SBE79-0087 | aa-ad | 1 |
| 100C | 6A5390 | • TUBE - A/O-FUEL FMU TO DIST VALVE-BIF PANEL TO DIST POST SBE79-0087 | ae | 1 |
| 114 | 4W0166 | • BOLT - .250 DIA X .750 | aa-ae | 3 |
| 116 | AS43013-116 | • RING - 18.72 MM I/DIA X 2,62 U1653 | aa-ae | 1 |
| 128 | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE79-0087 | ae | 1 |
| 149 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE79-0087 | aa-ad | 1 |
| 150 | AN960XC10L | • WASHER 81352 PRE SBE70-0022 | aa-ad | 1 |
| 150A | 5W1086 | • WASHER POST SBE70-0022 PRE SBE79-0087 | aa-ad | 1 |
| 152 | 400WSS12 | • CLIP 83930 PRE SBE79-0087 | aa-ad | 1 |
| 156 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ad | 1 |
| 165 | 4W0102 | • BOLT - .190 DIA X .438 Optional Part 4W0102 POST SBE79-0087 | ae | 1 |
| 166 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae | 1 |
| 168 | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE79-0087 | ae | 1 |
| 172 | 4W0043 | • NUT - .190 DIA Optional Part 4W0043 POST SBE79-0087 | ae | 1 |
| 173 | 4W0121 | • BOLT - .190 DIA X 1.625 Optional Part 4W0121 POST SBE79-0087 | ae | 1 |
| 174 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae | 1 |
| 176 | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE79-0087 | ae | 1 |
| 177 | UP10479 | • SPACER - 10MM POST SBE79-0087 | ae | 1 |
| 178 | UP10479 | • SPACER - 10MM POST SBE79-0087 | ae | 1 |
| 179 | UP10478 | • SPACER - 5MM POST SBE79-0087 | ae | 1 |
| 180 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ae | 1 |
| 181 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE79-0087 | ae | 1 |
| 182 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae | 1 |
| 184 | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE79-0087 | ae | 1 |
| 188 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ae | 1 |
| 189 | 4W0109 | • BOLT - .190 DIA X .875 Optional Part 4W0109 POST SBE79-0087 | ae | 1 |
| 190 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae | 1 |
| 192 | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE79-0087 | ae | 1 |
| 194 | UP10479 | • SPACER - 10MM POST SBE79-0087 | ae | 1 |
| 196 | 4W0043 | • NUT - .190 DIA Optional Part 4W0043 POST SBE79-0087 | ae | 1 |
| 201 | MS9198-16 | • • NUT - TUBE-COUPLING 96906 PRE SBE70-0023 | aa-ae | 1 |
| 201A | MS9197-16 | • • NUT - TUBE COUPLING 96906 POST SBE70-0023 | aa-ae | 1 |
| 202 | 2A0778 | • • FERRULE | aa-ae | 1 |
| 242 | AS27679 | • • ADAPTOR - ELBOW TUBE U1653 PRE SBE79-0087 | aa-ad | 1 |
| 242A | AS63029 | • • ADAPTOR - ELBOW,PIPE U1653 POST SBE79-0087 | ae | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

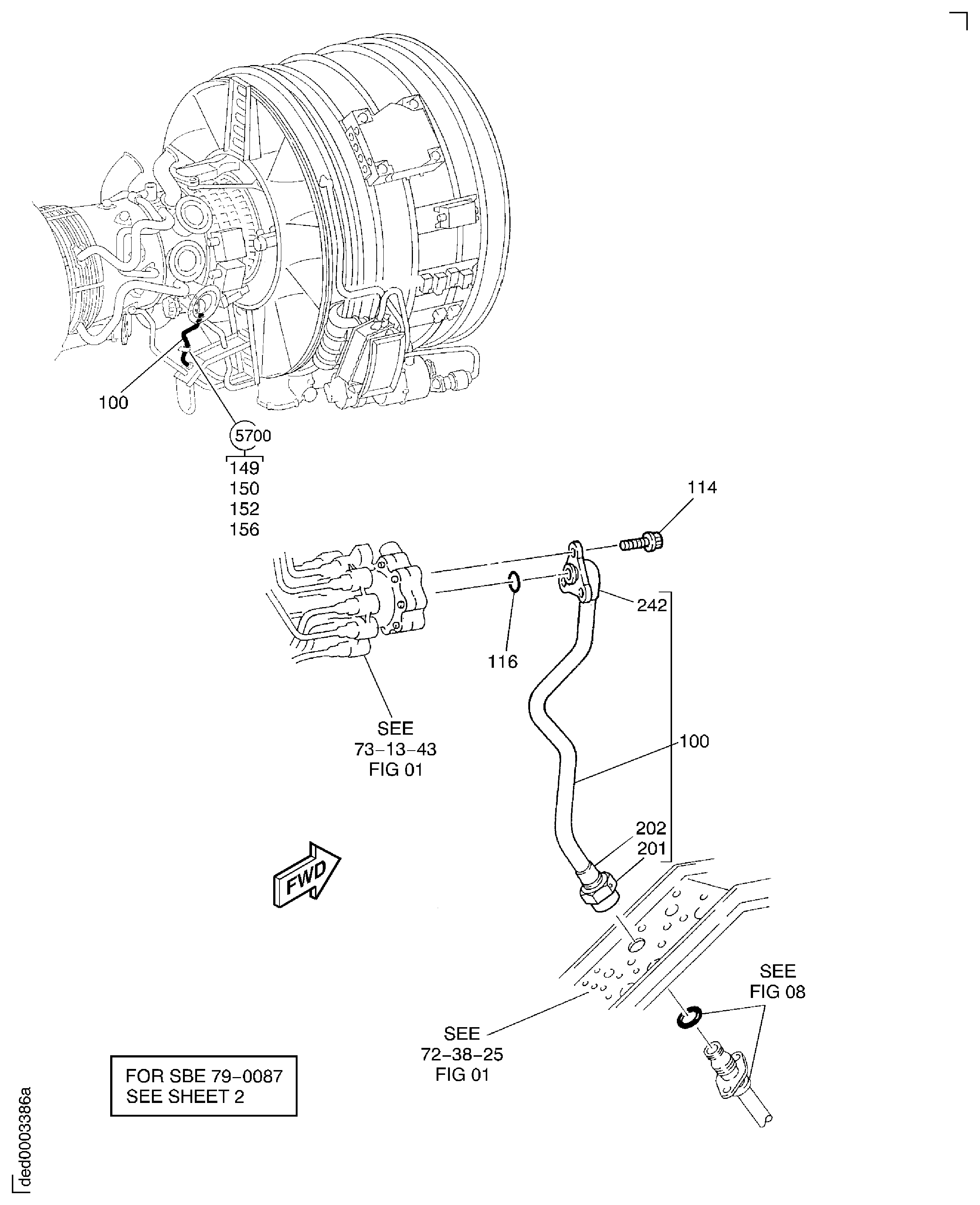

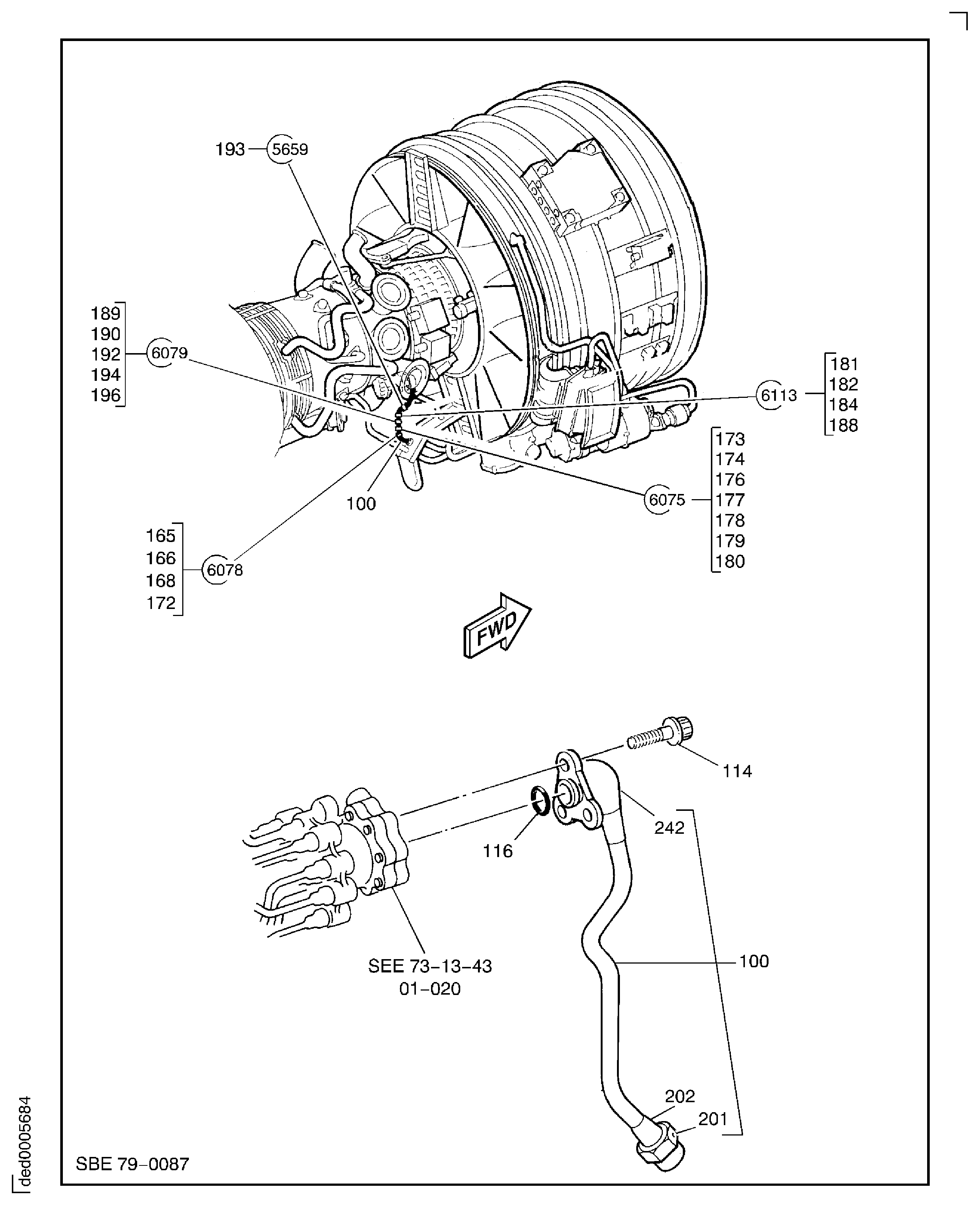

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE
FUEL TUBES ENGINE
FUEL TUBES ENGINE
