DMC:V2500-A1-73-11-49-10A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 10 | ||||
| B73114910 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0045 | aa | ||
| SBE0045-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0061 | ab | ||
| SBE0061-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE71-0109 | ac | ||
| SBE0109-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE79-0087 | ad | ||
| SBE0087-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ae | ||
| 100 | 5R8136 | • TUBE - A/O FUEL SERVO PRE SBE73-0045 | aa | 1 |
| 100A | 6A5364 | • TUBE - A/O FUEL - FMU TO DISC POST SBE73-0045 | ab-ae | 1 |
| 106 | 4W0169 | • BOLT - .250 DIA X .938 | aa-ae | 3 |
| 108 | AS43013-112 | • RING - 12.37 MM I/D X 2.62 MM U1653 | aa-ae | 1 |
| 125 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ae | 1 |
| 126 | 5W1086 | • WASHER | aa-ae | 1 |
| 128 | 400WSS8 | • CLIP 83930 PRE SBE73-0045 | aa | 1 |
| 128A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE73-0045 | ab-ae | 1 |
| 132 | 4W0043 | • NUT - .190 DIA | aa-ae | 1 |
| 133 | 4W0104 | • BOLT - .190 DIA X .562 | aa-ae | 1 |
| 134 | 5W1086 | • WASHER | aa-ae | 2 |
| 136 | 400WSS8 | • CLIP 83930 PRE SBE73-0045 | aa | 1 |
| 136A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE73-0045 | ab-ae | 1 |
| 140 | 4W0001 | • NUT - .190 DIA | aa-ae | 1 |
| 141 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE71-0109 | aa-ac | 1 |
| 141A | 4W0128 | • BOLT - .190 DIA X 2.125 POST SBE71-0109 PRE SBE79-0087 | ad | 1 |
| 142 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ad | 2 |
| 144 | 400WSS8 | • CLIP 83930 PRE SBE73-0045 | aa | 1 |
| 144A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE73-0045 PRE SBE79-0087 | ab-ad | 1 |
| 146 | 6A4826 | • SPACER - 40MM LONG POST SBE71-0109 PRE SBE79-0087 | ad | 1 |
| 148 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ad | 1 |
| 149 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE79-0087 | aa-ad | 1 |
| 150 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ad | 2 |
| 152 | 400WSS8 | • CLIP 83930 PRE SBE73-0045 | aa | 1 |
| 152A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE73-0045 PRE SBE79-0087 | ab-ad | 1 |
| 156 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ad | 1 |
| 165 | 4W0102 | • BOLT - .190 DIA X .438 POST SBE79-0087 | ae | 1 |
| 166 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae | 1 |
| 168 | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE79-0087 | ae | 1 |
| 172 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ae | 1 |
| 202 | AS27666 | • • ADAPTOR - ELBOW TUBE U1653 POST SBE73-0045 | ab-ae | 1 |
| 218 | 5W8123 | • • CONNECTR - TEE POST SBE73-0045 | ab-ae | 1 |
| 242 | AS15810 | • • ADAPTOR - STRAIGHT TUBE U1653 POST SBE73-0045 | ab-ae | 1 |
| 500 | 5R8123 | • TUBE - A/O FUEL FMU TO PANEL | aa-ae | 1 |
| 510 | 4W0002 | • NUT - .250 DIA Optional Part 4W0002 | aa-ae | 2 |
| 514 | 4W0163 | • BOLT - .250 DIA X .562 Optional Part 4W0163 | aa-ae | 2 |
| 528 | 400WSS8 | • CLIP 83930 PRE SBE73-0061 | aa-ab | 1 |
| 528A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE73-0061 | aa-ae | 1 |
| 549 | 4W0113 | • BOLT - .190 DIA X 1.125 | aa-ae | 1 |
| 550 | 5W1086 | • WASHER | aa-ae | 2 |
| 552 | 400WSS8 | • CLIP 83930 | aa-ae | 1 |
| 554 | 5W1031 | • SPACER - (15MM) | aa-ae | 1 |
| 556 | 4W0001 | • NUT - .190 DIA | aa-ae | 1 |
| 581 | 4W0103 | • BOLT - .190 DIA X .500 POST SBE79-0087 | ae | 1 |
| 582 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae | 1 |
| 584 | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE79-0087 | ae | 1 |
| 588 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ae | 1 |
| 600 | AS15761 | • • BUSHING - SLEEVE U1653 | aa-ae | 1 |
| 601 | AS15705 | • • NUT - TUBE COUPLING U1653 | aa-ae | 1 |
| 602 | AS15730 | • • FERRULE - WELDING TUBE U1653 | aa-ae | 1 |
| 642 | 5W8230 | • • ADAPTOR - UNION FLANGED | aa-ae | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

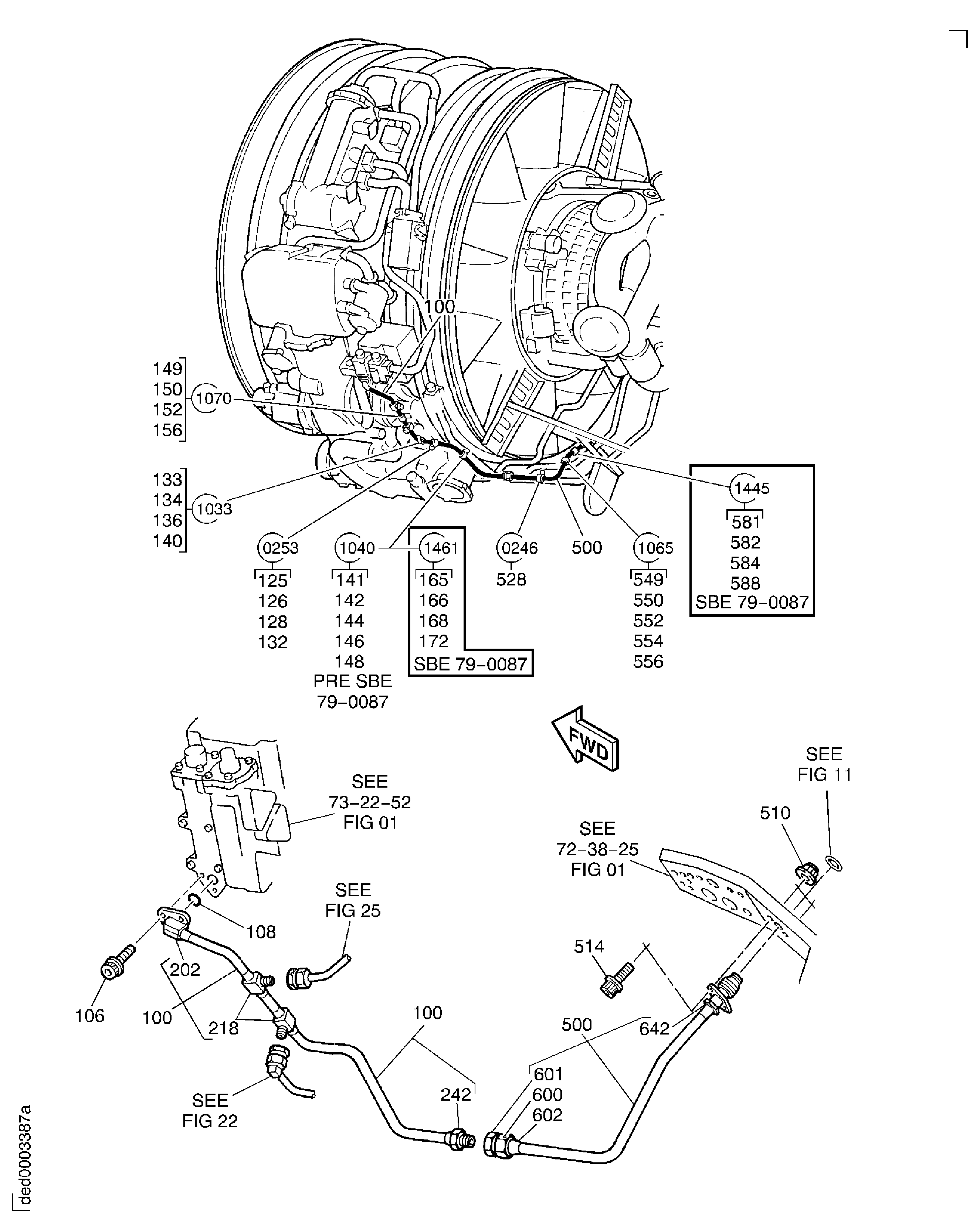

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE
FUEL TUBES ENGINE
