| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 11 | ||||
| B73114911 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE70-0023 | aa | ||
| SBE0023-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE79-0087 | ab | ||
| SBE0087-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ac | ||
| 096 | MS9966-06 | • PACKING - PREFORMED 96906 | aa-ac | 1 |
| 100 | 6A2110 | • TUBE - A/O-FUEL,HP SERVO EXT. PRE SBE70-0023 | aa-ab | 1 |
| 100A | 6A2143 | • TUBE - A/O-FUEL,HP SERVO EXT. POST SBE70-0023 PRE SBE79-0087 | aa-ab | 1 |
| 100B | 6A5392 | • TUBE - A/O-FUEL BIF PANEL TO DISCON 4WAY ADAPTOR POST SBE79-0087 | ac | 1 |
| 133 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE79-0087 | aa-ab | 1 |
| 134 | K8831 | • WASHER - .190 DIA X 0,51 THK PRE SBE79-0087 | aa-ab | 1 |
| 136 | 400WSS8 | • CLIP 83930 PRE SBE79-0087 | aa-ab | 1 |
| 140 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ab | 1 |
| 141 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ac | 1 |
| 142 | K8831 | • WASHER - .190 DIA X 0,51 THK | aa-ac | 1 |
| 144 | 400WSS8 | • CLIP 83930 | aa-ac | 1 |
| 148 | 4W0043 | • NUT - .190 DIA | aa-ac | 1 |
| 149 | 4W0123 | • BOLT - .190 DIA X 1.750 PRE SBE79-0087 | aa-ab | 1 |
| 149A | 4W0130 | • BOLT - .190 DIA X 2.375 POST SBE79-0087 | ac | 1 |
| 150 | K8831 | • WASHER - .190 DIA X 0,51 THK PRE SBE79-0087 | aa-ab | 1 |
| 152 | 400WSS8 | • CLIP 83930 PRE SBE79-0087 | aa-ab | 1 |
| 152A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE79-0087 | ac | 1 |
| 154 | UP10480 | • SPACER - 15MM PRE SBE79-0087 | aa-ab | 2 |
| 154A | LK42781 | • SPACER POST SBE79-0087 | ac | 1 |
| 155 | LK65478 | • SPACER POST SBE79-0087 | ac | 1 |
| 156 | 4W0043 | • NUT - .190 DIA | aa-ac | 1 |
| 157 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ac | 1 |
| 158 | K8831 | • WASHER - .190 DIA X 0,51 THK | aa-ac | 2 |
| 160 | 400WSS8 | • CLIP 83930 | aa-ac | 1 |
| 164 | 4W0001 | • NUT - .190 DIA | aa-ac | 1 |
| 165 | 4W0102 | • BOLT - .190 DIA X .438 Optional Part 4W0102 POST SBE79-0087 | ac | 1 |
| 168 | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE79-0087 | ac | 1 |
| 172 | 4W0043 | • NUT - .190 DIA Optional Part 4W0043 POST SBE79-0087 | ac | 1 |
| 181 | 4W0106 | • BOLT - .190 DIA X .688 POST SBE79-0087 | ac | 1 |
| 182 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ac | 1 |
| 184 | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE79-0087 | ac | 1 |
| 186 | UP10478 | • SPACER - 5MM POST SBE79-0087 | ac | 1 |
| 188 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ac | 1 |
| 201 | MS9198-11 | • • NUT - TUBE-COUPLING 96906 PRE SBE70-0023 | aa-ac | 1 |
| 201A | MS9197-11 | • • NUT - TUBE COUPLING 96906 POST SBE70-0023 | aa-ac | 1 |
| 201B | MS9198-11 | • • NUT - TUBE-COUPLING,(VRS6222) 96906 POST SBE70-0269 | ***** | 1 |
| 202 | UP11088 | • • CONNECTR - TUBE, (.500 DIA TUBE) | aa-ac | 1 |
| 202A | UP11088 | • • CONNECTR - TUBE,(VRS6222), (.500 DIA TUBE) POST SBE70-0269 | ***** | 1 |
| 218 | UP11084 | • • CONNECTR - FOUR WAY PRE SBE79-0087 | aa-ab | 1 |
| 218A | UP11084 | • • CONNECTR - FOUR WAY,(VRS6222) POST SBE70-0269 | ***** | 1 |
| 218B | 6A4650 | • • ADAPTOR - LUG POST SBE79-0087 | ac | 1 |
| 242 | UP11084 | • CONNECTR - FOUR WAY POST SBE79-0087 | ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

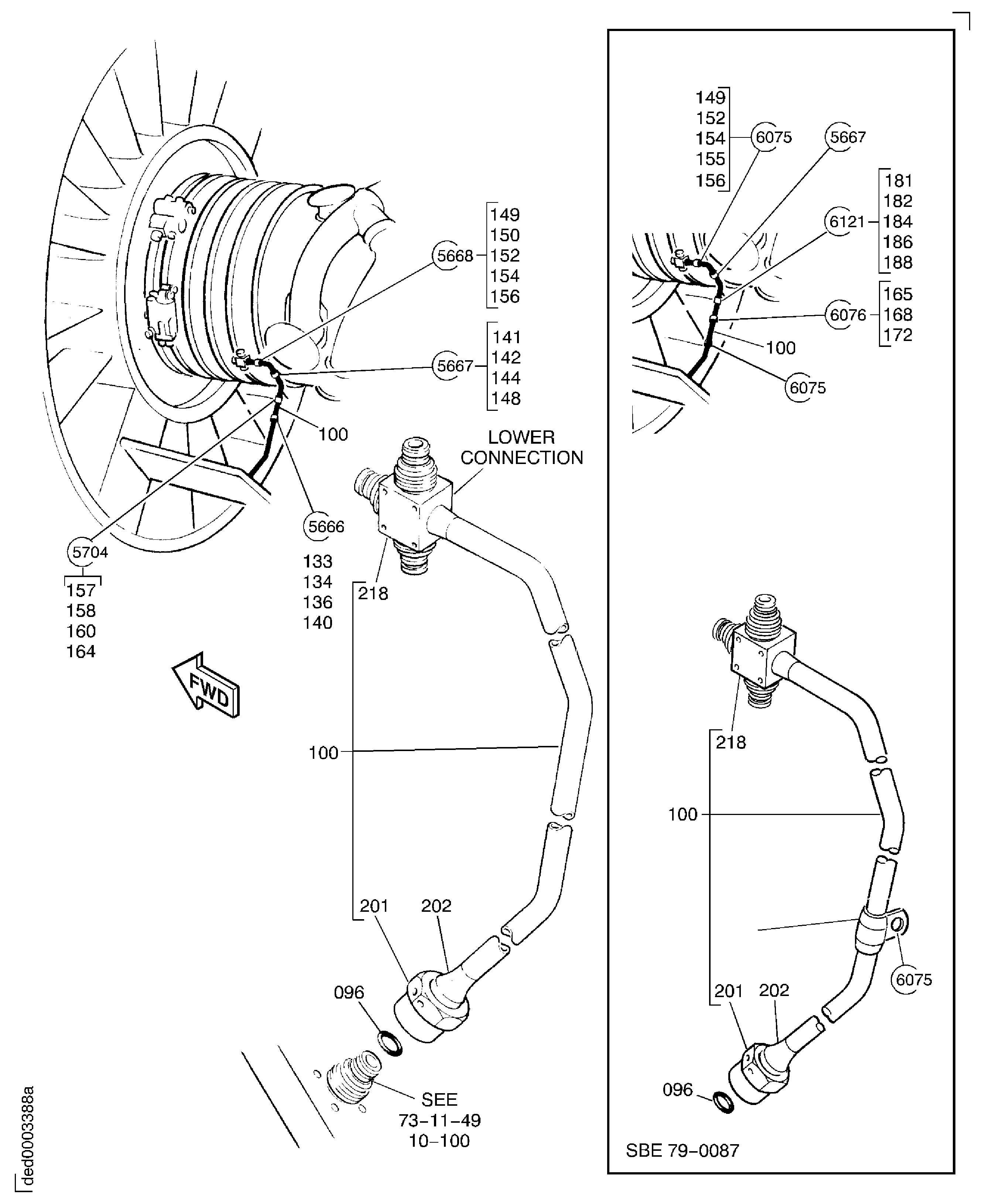

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE
FUEL TUBES ENGINE
