DMC:V2500-A1-73-11-49-12A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 12 | ||||
| B73114912 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE70-0023 | aa | ||
| SBE0023-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE72-0132 | ab | ||
| SBE0132-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE72-0027 | ac | ||
| SBE0027-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0103 | ad | ||
| SBE0103-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0115 | ae | ||
| SBE0115-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE72-0591 | af | ||
| SBE0591-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ag | ||
| 096 | MS9967-012 | • PACKING 96906 | aa-ag | 2 |
| 100 | 6A2113 | • TUBE - A/O-FUEL,HP SERVO EXT. PRE SBE70-0023 | aa-ac | 1 |
| 100A | 6A2146 | • TUBE - A/O-FUEL,HP SERVO EXT. POST SBE70-0023 PRE SBE72-0027 | aa-ac | 1 |
| 100B | 6A5305 | • TUBE - A/O-FUEL,HP SERVO EXT. POST SBE72-0027 PRE SBE73-0115 | ad-ae | 1 |
| 100C | 6A6179 | • TUBE - ASSY POST SBE73-0115 | af-ag | 1 |
| 100D | 6A6179 | • TUBE - ASSY POST SBE72-0591 | ag | 1 |
| 149 | 4W0107 | • BOLT - .190 DIA X .750 PRE SBE73-0103 | aa-ad | 1 |
| 149A | 4W0105 | • BOLT - .190 DIA X .625 POST SBE73-0103 | ae-ag | 1 |
| 150 | K8831 | • WASHER - .190 DIA X 0,51 THK | aa-ag | 1 |
| 152 | 400WSS6 | • CLIP 83930 PRE SBE73-0103 | aa-ad | 1 |
| 152A | AS62406 | • CLIP - 9.52 MM (0.375) U1653 POST SBE73-0103 | ae-ag | 1 |
| 154 | UP10478 | • SPACER - 5MM | aa-ag | 1 |
| 156 | 4W0043 | • NUT - .190 DIA | aa-ag | 1 |
| 165 | 4W0104 | • BOLT - .190 DIA X .562 PRE SBE72-0132 | aa-ab | 1 |
| 165A | 4W0102 | • BOLT - .190 DIA X .438 POST SBE72-0132 PRE SBE72-0027 | aa-ac | 1 |
| 165B | 4W0109 | • BOLT - .190 DIA X .875 POST SBE72-0027 | ad-ag | 1 |
| 166 | 5W1086 | • WASHER PRE SBE72-0132 | aa-ae | 1 |
| 166A | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE72-0132 PRE SBE73-0115 | aa-ae | 2 |
| 166B | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE73-0115 | af-ag | 1 |
| 168 | 400WSS6 | • CLIP 83930 PRE SBE73-0103 | aa-ag | 1 |
| 168A | AS62406 | • CLIP - 9.52 MM (0.375) U1653 POST SBE73-0103 | aa-ag | 1 |
| 168B | AS62406 | • CLIP - 9.52 MM (0.375) U1653 POST SBE73-0115 | af-ag | 1 |
| 170 | UP10479 | • SPACER - 10MM POST SBE72-0027 PRE SBE72-0591 | ad-af | 1 |
| 172 | 4W0001 | • NUT - .190 DIA PRE SBE72-0591 | aa-af | 1 |
| 173 | 4W0105 | • BOLT - .190 DIA X .625 POST SBE72-0132 PRE SBE72-0027 | ac | 1 |
| 173A | 4W0118 | • BOLT - .190 DIA X 1.438 POST SBE72-0027 PRE SBE73-0115 | ad-ae | 1 |
| 173B | 4W0115 | • BOLT - .190 DIA X 1.250 POST SBE73-0115 | af-ag | 1 |
| 174 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE72-0132 PRE SBE73-0103 | ac-ad | 2 |
| 174A | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE73-0103 | ae-ag | 1 |
| 176 | 400WSS6 | • CLIP - LOOP TYPE 83930 POST SBE72-0132 PRE SBE73-0103 | ac-ag | 1 |
| 176A | AS62406 | • CLIP - 9.52 MM (0.375) U1653 POST SBE73-0103 | ac-ag | 1 |
| 178 | UP10478 | • SPACER - 5MM POST SBE72-0132 PRE SBE72-0027 | ac | 1 |
| 178A | UP10482 | • SPACER - 25MM POST SBE72-0027 PRE SBE73-0115 | ad-ae | 1 |
| 178B | UP10481 | • SPACER - 20MM POST SBE73-0115 | af-ag | 1 |
| 180 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE72-0132 | ac-ag | 1 |
| 181 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE72-0591 | ag | 1 |
| 182 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE72-0591 | ag | 1 |
| 184 | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE72-0591 | ag | 1 |
| 188 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE72-0591 | ag | 1 |
| 201 | MS9198-09 | • • NUT - TUBE-COUPLING 96906 PRE SBE70-0023 | aa-ae | 2 |
| 201A | MS9197-09 | • • NUT - TUBE COUPLING 96906 POST SBE70-0023 PRE SBE73-0115 | aa-ae | 2 |
| 201B | MS9197-09 | • • NUT - TUBE COUPLING,(VRS6222) 96906 POST SBE70-0269 | ***** | 1 |
| 201C | MS9197-09 | • • NUT - TUBE COUPLING 96906 POST SBE73-0115 | af-ag | 1 |
| 201D | MS9197-09 | • • NUT - TUBE COUPLING 96906 POST SBE72-0591 | ag | 1 |
| 202 | UP11087 | • • CONNECTR - TUBE, (.375 DIA TUBE) PRE SBE73-0115 | aa-ae | 2 |
| 202A | UP11087 | • • CONNECTR - TUBE,(VRS6222), (.375 DIA TUBE) POST SBE70-0269 | ***** | 1 |
| 202B | UP11087 | • • CONNECTR - TUBE, (.375 DIA TUBE) POST SBE73-0115 | af-ag | 1 |
| 202C | UP11087 | • • CONNECTR - TUBE, (.375 DIA TUBE) POST SBE72-0591 | ag | 1 |
| 218 | UP11121 | • • ADAPTER - TUBE-CLIPPING, .375 DIA TUBE POST SBE72-0591 | ag | 1 |
| 241 | MS9197-09 | • • NUT - TUBE COUPLING 96906 POST SBE73-0115 PRE SBE72-0591 | af | 1 |
| 241A | MS9197-09 | • • NUT - TUBE COUPLING 96906 POST SBE72-0591 | ag | 1 |
| 242 | UP11087 | • • CONNECTR - TUBE, (.375 DIA TUBE) POST SBE73-0115 | af-ag | 1 |
| 496 | MS9967-012 | • PACKING 96906 | aa-ag | 2 |
| 500 | 6A2128 | • TUBE - A/O,FUEL-HP SERVO EXT. PRE SBE70-0023 | aa-ag | 1 |
| 500A | 6A2145 | • TUBE - A/O-FUEL,HP SERVO EXT. POST SBE70-0023 | aa-ag | 1 |
| 528 | 400WSS6 | • CLIP 83930 | aa-ag | 1 |
| 601 | MS9198-09 | • • NUT - TUBE-COUPLING 96906 PRE SBE70-0023 | aa-ag | 2 |
| 601A | MS9197-09 | • • NUT - TUBE COUPLING 96906 POST SBE70-0023 | aa-ag | 2 |
| 601B | MS9197-09 | • • NUT - TUBE COUPLING,(VRS6222) 96906 POST SBE70-0269 | ***** | 1 |
| 602 | UP11087 | • • CONNECTR - TUBE, (.375 DIA TUBE) | aa-ag | 2 |
| 602A | UP11087 | • • CONNECTR - TUBE,(VRS6222), (.375 DIA TUBE) POST SBE70-0269 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

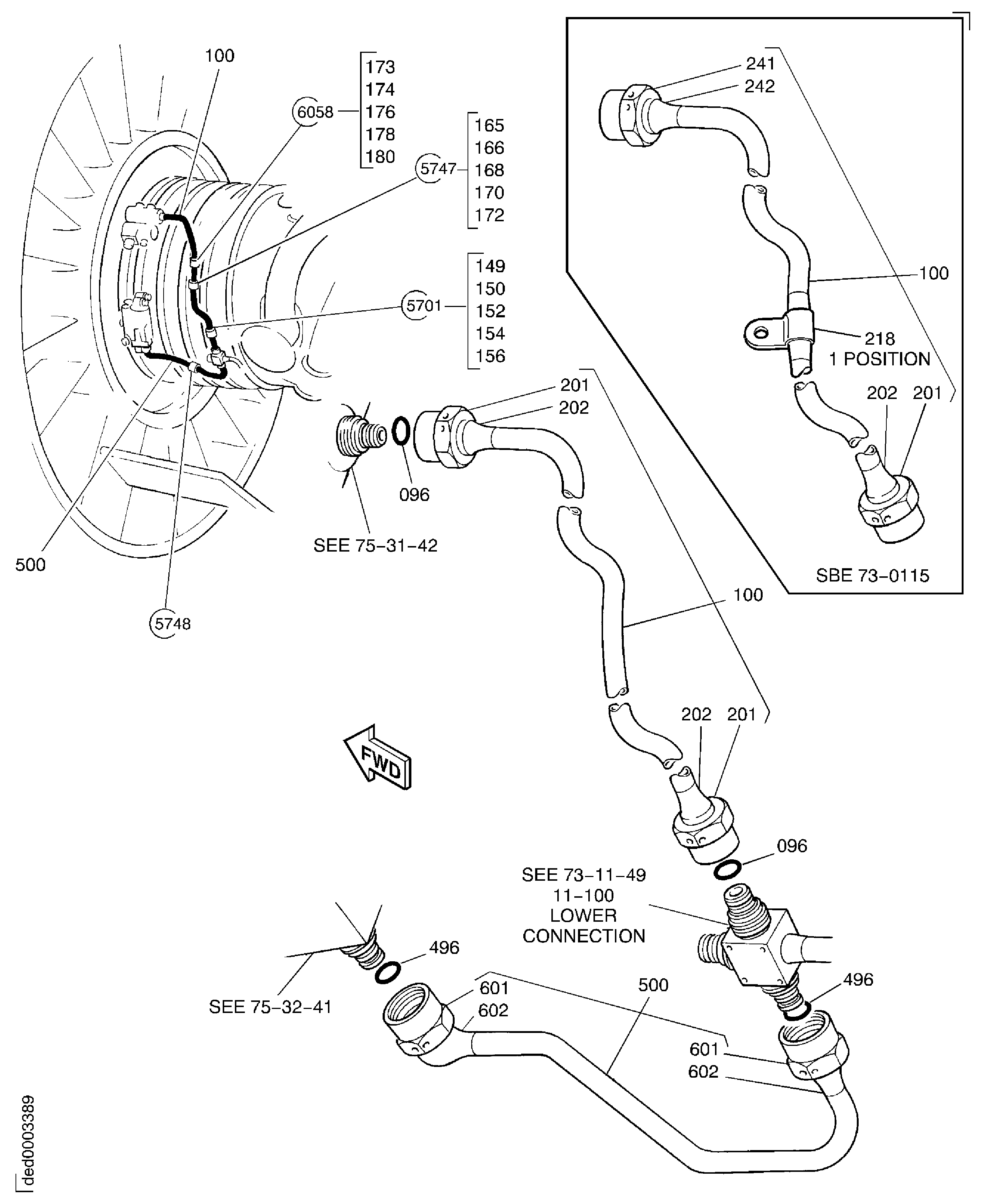

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE
FUEL TUBES ENGINE
