DMC:V2500-A1-73-11-49-14A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 14 | ||||
| B73114914 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE70-0023 | aa | ||
| SBE0023-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ab | ||
| 096 | MS9967-011 | • PACKING 96906 | aa-ab | 2 |
| 100 | 6A2131 | • TUBE - A/O-FUEL,SERVO EXTEND PRE SBE70-0023 | aa-ab | 1 |
| 100A | 6A2147 | • TUBE - A/O-FUEL,HP SERVO EXT. POST SBE70-0023 | aa-ab | 1 |
| 133 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ab | 1 |
| 134 | K8831 | • WASHER - .190 DIA X 0,51 THK | aa-ab | 2 |
| 136 | 400WSS5 | • CLIP 83930 | aa-ab | 1 |
| 140 | 4W0001 | • NUT - .190 DIA | aa-ab | 1 |
| 141 | 4W0104 | • BOLT - .190 DIA X .562 | aa-ab | 1 |
| 142 | K8831 | • WASHER - .190 DIA X 0,51 THK | aa-ab | 1 |
| 144 | 400WSS5 | • CLIP 83930 | aa-ab | 1 |
| 148 | 4W0043 | • NUT - .190 DIA | aa-ab | 1 |
| 149 | 4W0114 | • BOLT - .190 DIA X 1.188 | aa-ab | 1 |
| 150 | K8831 | • WASHER - .190 DIA X 0,51 THK | aa-ab | 1 |
| 152 | 400WSS5 | • CLIP 83930 | aa-ab | 1 |
| 154 | UP10480 | • SPACER - 15MM | aa-ab | 1 |
| 156 | 4W0043 | • NUT - .190 DIA | aa-ab | 1 |
| 201 | MS9198-08 | • • NUT - TUBE-COUPLING 96906 PRE SBE70-0023 | aa-ab | 2 |
| 201A | MS9197-08 | • • NUT - TUBE COUPLING 96906 POST SBE70-0023 | aa-ab | 2 |
| 201B | MS9197-08 | • • NUT - TUBE COUPLING,(VRS6222) 96906 POST SBE70-0269 | ***** | 1 |
| 202 | UP11086 | • • CONNECTR - TUBE, (.312 DIA TUBE) | aa-ab | 2 |
| 202A | UP11086 | • • CONNECTR - TUBE,(VRS6222), (.312 DIA TUBE) POST SBE70-0269 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

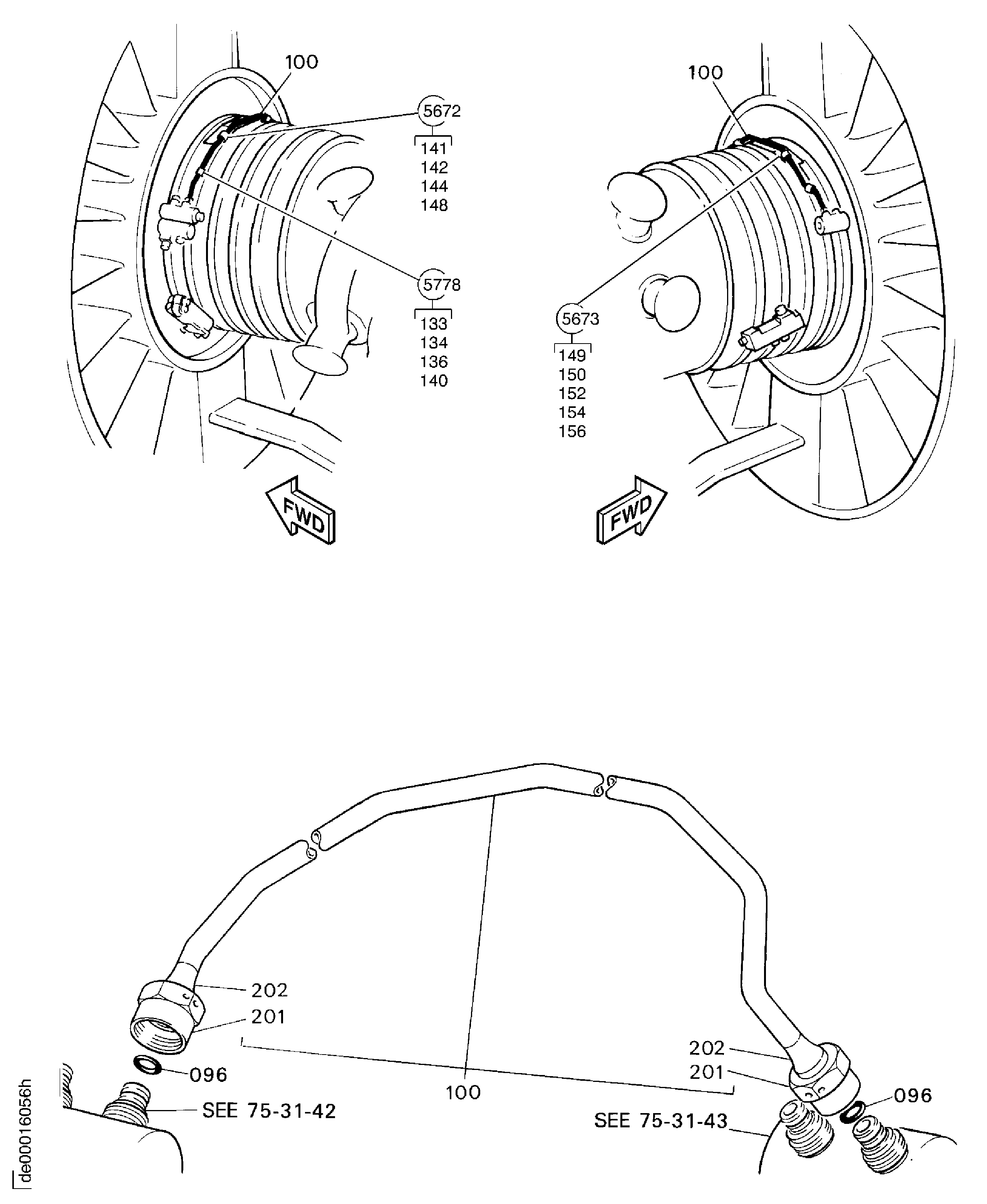

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE
FUEL TUBES ENGINE
