DMC:V2500-A1-73-11-49-16A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 16 | ||||
| B73114916 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE70-0023 | aa | ||
| SBE0023-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0103 | ab | ||
| SBE0103-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE79-0087 | ac | ||
| SBE0087-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE72-0591 | ad | ||
| SBE0591-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ae | ||
| 096 | MS9967-011 | • PACKING 96906 | aa-ae | 2 |
| 100 | 6A2124 | • TUBE - A/O-FUEL,SERVO RETRACT PRE SBE70-0023 | aa-ae | 1 |
| 100A | 6A2149 | • TUBE - A/O-FUEL,SERVO RETRACT POST SBE70-0023 | aa-ae | 1 |
| 152 | 400WSS5 | • CLIP 83930 | aa-ae | 1 |
| 157 | 4W0117 | • BOLT - .190 DIA X 1.375 PRE SBE79-0087 | aa-ac | 1 |
| 157A | 4W0128 | • BOLT - .190 DIA X 2.125 POST SBE79-0087 | ad-ae | 1 |
| 158 | K8831 | • WASHER - .190 DIA X 0,51 THK PRE SBE79-0087 | aa-ac | 2 |
| 160 | 400WSS5 | • CLIP 83930 PRE SBE79-0087 | aa-ac | 1 |
| 160A | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE79-0087 | ad-ae | 1 |
| 161 | LK42781 | • SPACER POST SBE79-0087 | ad-ae | 1 |
| 162 | UP10480 | • SPACER - 15MM PRE SBE79-0087 | aa-ac | 1 |
| 162A | LK64582 | • SPACER POST SBE79-0087 | ad-ae | 1 |
| 163 | LK42781 | • SPACER POST SBE79-0087 | ad-ae | 1 |
| 164 | 4W0001 | • NUT - .190 DIA | aa-ae | 1 |
| 165 | 4W0109 | • BOLT - .190 DIA X .875 POST SBE72-0591 | ae | 1 |
| 166 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE72-0591 | ae | 1 |
| 168 | 400WSS5 | • CLIP 83930 PRE SBE73-0103 | aa-ae | 1 |
| 168A | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE73-0103 | aa-ae | 1 |
| 168B | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE72-0591 | ae | 1 |
| 170 | UP10479 | • SPACER - 10MM POST SBE72-0591 | ae | 1 |
| 172 | 4W0001 | • NUT - .190 DIA POST SBE72-0591 | ae | 1 |
| 173 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE79-0087 | aa-ac | 1 |
| 174 | K8831 | • WASHER - .190 DIA X 0,51 THK PRE SBE79-0087 | aa-ac | 2 |
| 176 | 400WSS5 | • CLIP 83930 PRE SBE79-0087 | aa-ac | 1 |
| 180 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ac | 1 |
| 201 | MS9197-08 | • • NUT - TUBE COUPLING 96906 | aa-ae | 2 |
| 201A | MS9197-08 | • • NUT - TUBE COUPLING 96906 POST SBE70-0023 | ab-ae | 2 |
| 201B | MS9197-08 | • • NUT - TUBE COUPLING,(VRS6222) 96906 POST SBE70-0269 | ***** | 1 |
| 202 | UP11086 | • • CONNECTR - TUBE,(VRS6222), (.312 DIA TUBE) POST SBE70-0269 | ***** | 1 |
| 218 | UP11120 | • • ADAPTOR - TUBE-CLIPPING, .312 DIA TUBE | aa-ae | 1 |
| 218A | UP11120 | • • ADAPTOR - TUBE-CLIPPING,(VRS6222), .312 DIA TUBE POST SBE70-0269 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

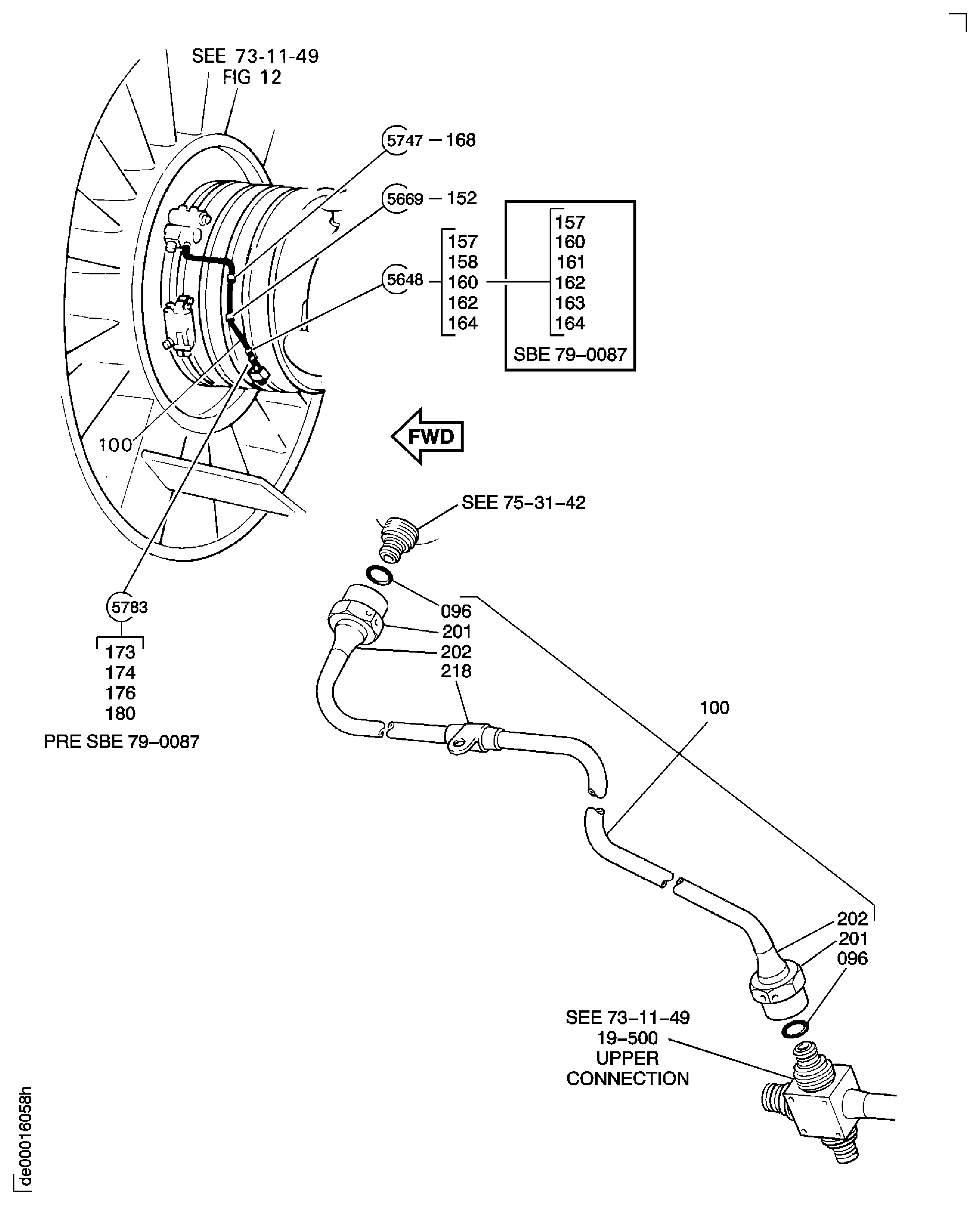

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE
FUEL TUBES ENGINE
