DMC:V2500-A1-73-11-49-19A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 19 | ||||
| B73114919 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE70-0023 | aa | ||
| SBE0023-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0006 | ab | ||
| SBE0006-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE79-0087 | ac | ||
| SBE0087-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ad | ||
| 096 | MS9967-012 | • PACKING 96906 | aa-ad | 2 |
| 100 | 6A2117 | • TUBE - A/O-FUEL,SERVO RETRACT PRE SBE70-0023 | aa-ad | 1 |
| 100A | 6A2150 | • TUBE - A/O-FUEL,SERVO RETRACT POST SBE70-0023 | aa-ad | 1 |
| 173 | 4W0108 | • BOLT - .190 DIA X .812 PRE SBE79-0087 | aa-ac | 1 |
| 173A | 4W0103 | • BOLT - .190 DIA X .500 POST SBE79-0087 | ad | 1 |
| 174 | K8831 | • WASHER - .190 DIA X 0,51 THK PRE SBE79-0087 | aa-ac | 2 |
| 176 | 400WSS6 | • CLIP 83930 PRE SBE79-0087 | aa-ac | 1 |
| 176A | AS62406 | • CLIP - 9.52 MM (0.375) U1653 POST SBE79-0087 | ad | 1 |
| 178 | UP10478 | • SPACER - 5MM PRE SBE79-0087 | aa-ac | 1 |
| 180 | 4W0001 | • NUT - .190 DIA | aa-ad | 1 |
| 181 | 4W0106 | • BOLT - .190 DIA X .688 | aa-ad | 1 |
| 183 | UP10478 | • SPACER - 5MM | aa-ad | 1 |
| 184 | 400WSS6 | • CLIP 83930 | aa-ad | 1 |
| 187 | K8831 | • WASHER - .190 DIA X 0,51 THK | aa-ad | 1 |
| 188 | 4W0001 | • NUT - .190 DIA | aa-ad | 1 |
| 201 | MS9197-09 | • • NUT - TUBE COUPLING 96906 | aa-ad | 2 |
| 201A | MS9197-09 | • • NUT - TUBE COUPLING 96906 POST SBE70-0023 | ab-ad | 2 |
| 201B | MS9197-09 | • • NUT - TUBE COUPLING,(VRS6222) 96906 POST SBE70-0269 | ***** | 1 |
| 202 | UP11087 | • • CONNECTR - TUBE, (.375 DIA TUBE) | aa-ad | 2 |
| 202A | UP11087 | • • CONNECTR - TUBE,(VRS6222), (.375 DIA TUBE) POST SBE70-0269 | ***** | 1 |
| 498 | MS9966-06 | • PACKING - PREFORMED 96906 | aa-ad | 1 |
| 500 | 6A2119 | • TUBE - A/O-FUEL,SERVO RETRACT PRE SBE70-0023 | aa-ad | 1 |
| 500A | 6A2152 | • TUBE - A/O-FUEL,SERVO RETRACT POST SBE70-0023 | aa-ad | 1 |
| 525 | 4W0102 | • BOLT - .190 DIA X .438 POST SBE79-0087 | ad | 1 |
| 526 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad | 1 |
| 528 | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE79-0087 | ad | 1 |
| 532 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ad | 1 |
| 536 | 400WSS8 | • CLIP 83930 PRE SBE79-0087 | aa-ac | 1 |
| 536A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE79-0087 | ad | 1 |
| 541 | 4W0115 | • BOLT - .190 DIA X 1.250 PRE SBE79-0087 | aa-ac | 1 |
| 542 | K8831 | • WASHER - .190 DIA X 0,51 THK PRE SBE79-0087 | aa-ac | 2 |
| 544 | 400WSS8 | • CLIP 83930 PRE SBE79-0087 | aa-ac | 1 |
| 546 | UP10480 | • SPACER - 15MM PRE SBE79-0087 | aa-ac | 1 |
| 548 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ac | 1 |
| 549 | 4W0104 | • BOLT - .190 DIA X .562 PRE SBE73-0006 | aa-ab | 1 |
| 549A | 4W0111 | • BOLT - .190 DIA X 1.000 POST SBE73-0006 PRE SBE79-0087 | ac | 1 |
| 550 | K8831 | • WASHER - .190 DIA X 0,51 THK PRE SBE79-0087 | aa-ac | 2 |
| 552 | 400WSS8 | • CLIP 83930 PRE SBE79-0087 | aa-ac | 1 |
| 554 | UP10479 | • SPACER - 10MM POST SBE73-0006 PRE SBE79-0087 | ac | 1 |
| 556 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ac | 1 |
| 565 | 4W0119 | • BOLT - .190 DIA X 1.500 Optional Part 4W0119 POST SBE79-0087 | ad | 1 |
| 568 | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE79-0087 | ad | 1 |
| 570 | LK42781 | • SPACER POST SBE79-0087 | ad | 1 |
| 571 | LK69353 | • SPACER POST SBE79-0087 | ad | 1 |
| 572 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ad | 1 |
| 573 | 4W0113 | • BOLT - .190 DIA X 1.125 Optional Part 4W0113 POST SBE79-0087 | ad | 1 |
| 576 | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE79-0087 | ad | 1 |
| 578 | LK42781 | • SPACER POST SBE79-0087 | ad | 1 |
| 580 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ad | 1 |
| 589 | 4W0104 | • BOLT - .190 DIA X .562 POST SBE79-0087 | ad | 1 |
| 590 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad | 2 |
| 592 | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE79-0087 | ad | 1 |
| 596 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ad | 1 |
| 602 | UP11085 | • • CONNECTR - FOUR WAY | aa-ad | 1 |
| 602A | UP11085 | • • CONNECTR - FOUR WAY,(VRS6222) POST SBE70-0269 | ***** | 1 |
| 641 | MS9197-11 | • • NUT - TUBE COUPLING 96906 | aa-ad | 1 |
| 641A | MS9197-11 | • • NUT - TUBE COUPLING 96906 POST SBE70-0023 | ab-ad | 1 |
| 641B | MS9197-11 | • • NUT - TUBE COUPLING,(VRS6222) 96906 POST SBE70-0269 | ***** | 1 |
| 642 | UP11088 | • • CONNECTR - TUBE, (.500 DIA TUBE) | aa-ad | 1 |
| 642A | UP11088 | • • CONNECTR - TUBE,(VRS6222), (.500 DIA TUBE) POST SBE70-0269 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

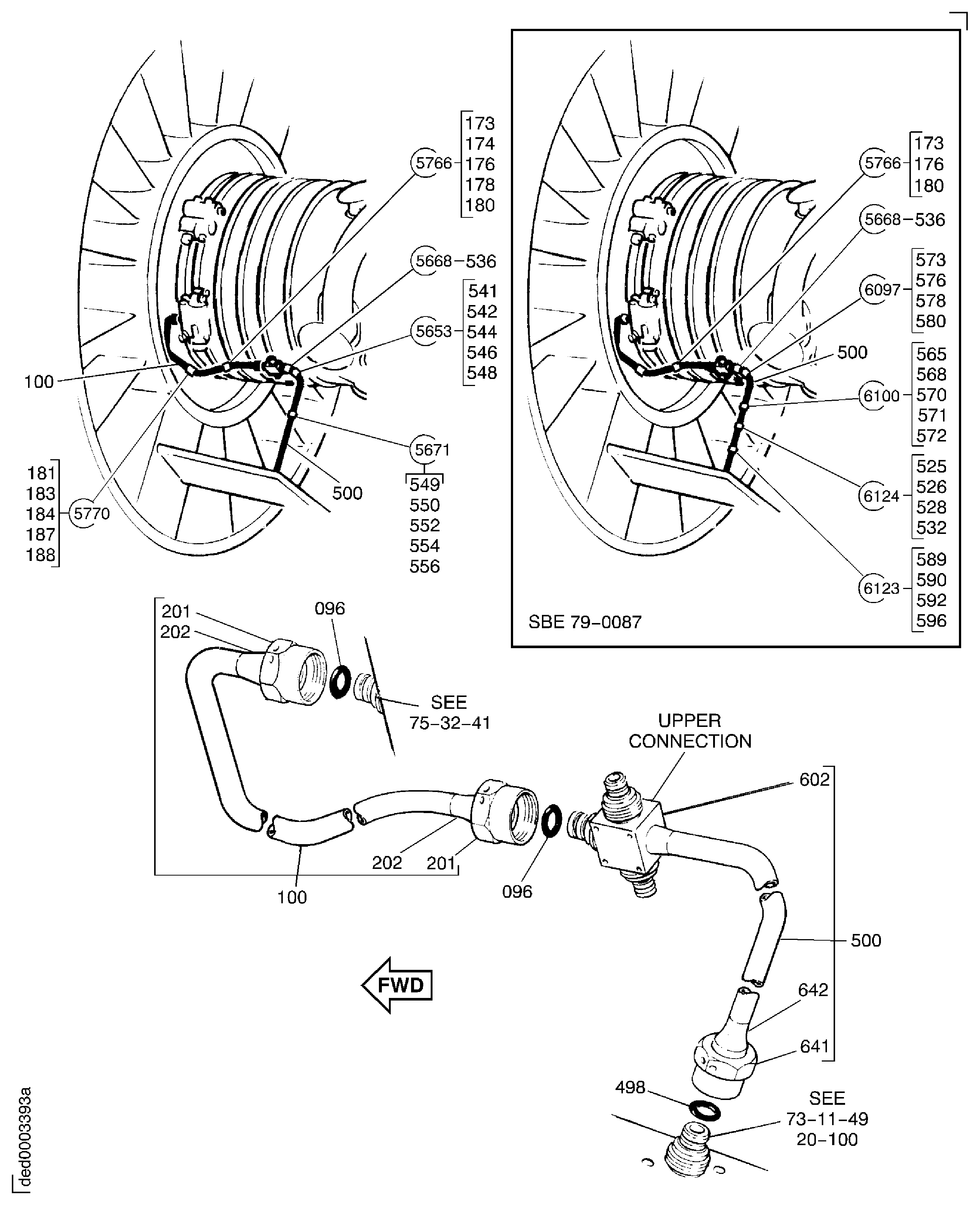

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE
FUEL TUBES ENGINE
