DMC:V2500-A1-73-11-49-21A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 21 | ||||
| B73114921 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0040 | aa | ||
| SBE0040-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ab | ||
| 100 | 5R8127 | • TUBE - A/O FUEL FMU TO DV PRE SBE73-0040 | aa | 1 |
| 100A | 6A5306 | • TUBE - A/O FUEL RETURN VSVA POST SBE73-0040 | ab | 1 |
| 125 | AS20908 | • BOLT - .190 DIA X .500 U1653 POST SBE73-0040 | ab | 1 |
| 126 | 5W1086 | • WASHER POST SBE73-0040 | ab | 1 |
| 128 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0040 | ab | 1 |
| 132 | 4W0001 | • NUT - .190 DIA POST SBE73-0040 | ab | 1 |
| 133 | AS20908 | • BOLT - BIHEX HD, .190 DIA X .500 U1653 POST SBE73-0040 | ab | 1 |
| 134 | 5W1086 | • WASHER POST SBE73-0040 | ab | 1 |
| 136 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0040 | ab | 1 |
| 140 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0040 | ab | 1 |
| 144 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0040 | ab | 1 |
| 160 | 400WSS4 | • CLIP 83930 PRE SBE73-0040 | aa | 1 |
| 165 | 4W0104 | • BOLT - .190 DIA X .562 PRE SBE73-0040 | aa | 1 |
| 165A | AS20908 | • BOLT - .190 DIA X .500 U1653 POST SBE73-0040 | ab | 1 |
| 166 | 5W1086 | • WASHER | aa-ab | 1 |
| 168 | 400WSS4 | • CLIP 83930 PRE SBE73-0040 | aa | 1 |
| 168A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0040 | ab | 1 |
| 172 | 4W0001 | • NUT - .190 DIA | aa-ab | 1 |
| 173 | 4W0109 | • BOLT - .190 DIA X .875 PRE SBE73-0040 | aa | 1 |
| 174 | 5W1086 | • WASHER PRE SBE73-0040 | aa | 2 |
| 176 | 400WSS4 | • CLIP 83930 PRE SBE73-0040 | aa | 1 |
| 178 | 5W1030 | • SPACER - (10MM) PRE SBE73-0040 | aa | 1 |
| 180 | 4W0001 | • NUT - .190 DIA PRE SBE73-0040 | aa | 1 |
| 181 | 4W0107 | • BOLT - .190 DIA X .750 PRE SBE73-0040 | aa | 1 |
| 182 | 5W1086 | • WASHER PRE SBE73-0040 | aa | 2 |
| 184 | 400WSS4 | • CLIP 83930 PRE SBE73-0040 | aa | 1 |
| 186 | 5W1029 | • SPACER - (5MM) PRE SBE73-0040 | aa | 1 |
| 188 | 4W0001 | • NUT - .190 DIA PRE SBE73-0040 | aa | 1 |
| 200 | AS15777 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 201 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 202 | 5W8152 | • • FERRULE - ELBOW PRE SBE73-0040 | aa | 1 |
| 202A | K17404 | • • FERRULE POST SBE73-0040 | ab | 1 |
| 203 | K12664 | • • BUSHING | aa-ab | 1 |
| 240 | AS15778 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 241 | AS15702 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 242 | 5T8159 | • • FERRULE PRE SBE73-0040 | aa | 1 |
| 242A | 6A4866 | • • FERRULE - REDUCER, .3125" TO .250"DIA POST SBE73-0040 | ab | 1 |
| 264 | 6A3125 | • BRACKET POST SBE73-0040 | ab | 2 |
| 266 | AS21011 | • BOLT - BIHEX HD, .250 DIA X .6875 U1653 POST SBE73-0040 | ab | 2 |
| 267 | AS21013 | • BOLT - BIHEX HD, .250 DIA X .812 U1653 POST SBE73-0040 | ab | 2 |
| 268 | LK74669 | • WASHER POST SBE73-0040 | ab | 2 |
| 269 | LK74669 | • WASHER POST SBE73-0040 | ab | 4 |
| 270 | 4W0002 | • NUT - .250 DIA Optional Part 4W0002 POST SBE73-0040 | ab | 4 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

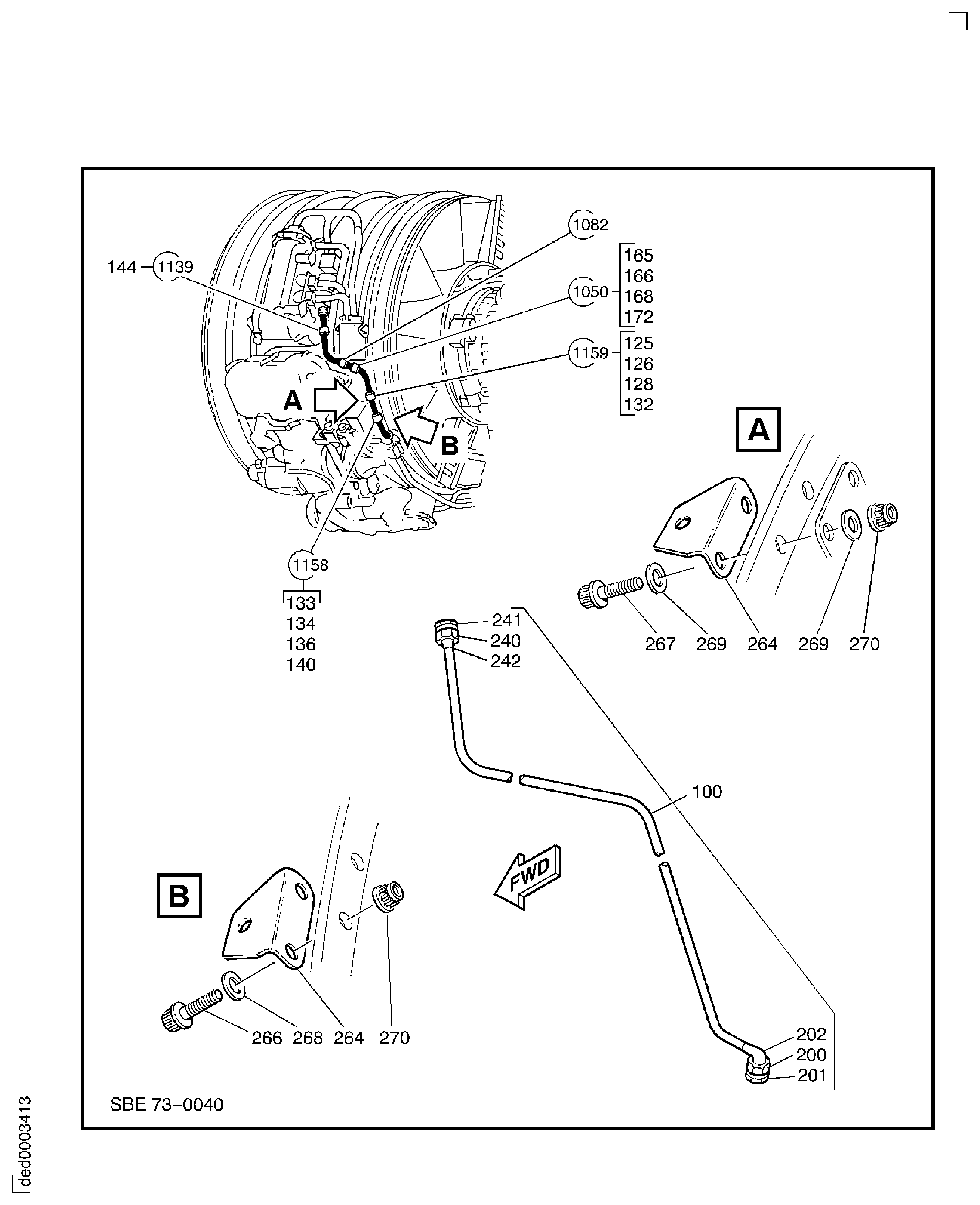

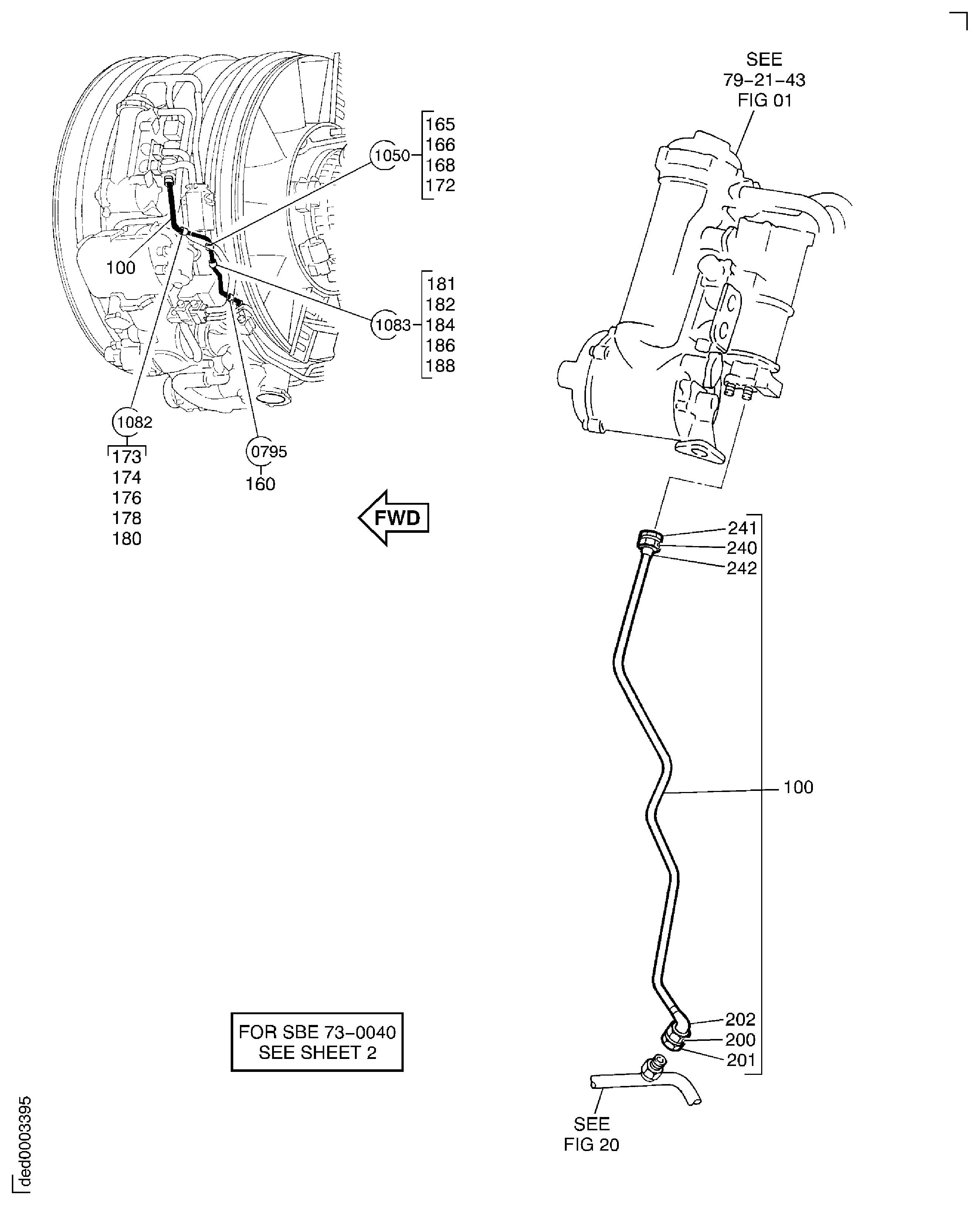

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE
FUEL TUBES ENGINE
FUEL TUBES ENGINE
