| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 22 | ||||
| B73114922 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE71-0107 | aa | ||
| SBE0107-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0061 | ab | ||
| SBE0061-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0102 | ac | ||
| SBE0102-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE79-0087 | ad | ||
| SBE0087-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ae | ||
| 100 | 5R8126 | • TUBE - A/O FUEL FMU TOAIR MOD PRE SBE73-0102 | aa-ac | 1 |
| 100A | 6A6131 | • TUBE - A/O POST SBE73-0102 | ad-ae | 1 |
| 136 | 400WSS4 | • CLIP 83930 PRE SBE73-0102 | aa-ac | 1 |
| 141 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ae | 1 |
| 142 | 5W1086 | • WASHER | aa-ae | 1 |
| 144 | 400WSS4 | • CLIP 83930 PRE SBE73-0102 | aa-ae | 1 |
| 144A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0102 | aa-ae | 1 |
| 148 | 4W0043 | • NUT - .190 DIA | aa-ae | 1 |
| 149 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ae | 1 |
| 150 | 5W1086 | • WASHER | aa-ae | 1 |
| 152 | 400WSS4 | • CLIP 83930 PRE SBE73-0102 | aa-ae | 1 |
| 152A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0102 | aa-ae | 1 |
| 156 | 4W0043 | • NUT - .190 DIA | aa-ae | 1 |
| 200 | AS15777 | • • WIRE - THRUST U1653 PRE SBE73-0102 | aa-ac | 2 |
| 200A | AS15777 | • • WIRE - THRUST U1653 POST SBE73-0102 | ad-ae | 1 |
| 201 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ae | 1 |
| 202 | 5W8152 | • • FERRULE - ELBOW PRE SBE73-0102 | aa-ac | 1 |
| 202A | K17404 | • • FERRULE POST SBE73-0102 | ad-ae | 1 |
| 204 | K12664 | • • BUSHING | aa-ae | 1 |
| 214 | 6A5531 | • • ADAPTOR - LUG | aa-ae | 1 |
| 240 | AS15777 | • • WIRE - THRUST U1653 | aa-ae | 1 |
| 241 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ae | 1 |
| 242 | 5T8268 | • • FERRULE PRE SBE73-0102 | aa-ac | 1 |
| 242A | AS15768 | • • FERRULE - ASSY U1653 POST SBE73-0102 | ad-ae | 1 |
| 470 | 5W0043 | • BRACKET - ASSY PRE SBE79-0087 | aa-ad | 1 |
| 470A | 6A8234 | • BRACKET - ASSY. POST SBE79-0087 | ae | 1 |
| 471 | 4W0002 | • NUT - .250 DIA | aa-ae | 2 |
| 474 | 4W0164 | • BOLT - .250 DIA X .625 PRE SBE79-0087 | aa-ad | 2 |
| 474A | 4W0165 | • BOLT - .250 DIA X .688 POST SBE79-0087 | ae | 2 |
| 500 | 5R8102 | • TUBE - A/O FUEL FMU TO A/VALV, .250O/D X .028T PRE SBE73-0061 | aa-ab | 1 |
| 500A | 6A5351 | • TUBE - A/O -FUEL-AIR MOD TO A POST SBE73-0061 PRE SBE79-0087 | ac-ad | 1 |
| 500B | 6A6204 | • TUBE - A/O FUEL-ACOC AMV DISCON TO DISCON POST SBE79-0087 | ae | 1 |
| 541 | 4W0108 | • BOLT - .190 DIA X .812 PRE SBE79-0087 | aa-ad | 1 |
| 542 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ad | 2 |
| 544 | 400WSS4 | • CLIP 83930 PRE SBE73-0061 | aa-ab | 1 |
| 544A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0061 PRE SBE79-0087 | aa-ad | 1 |
| 548 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ad | 1 |
| 549 | 4W0105 | • BOLT - .190 DIA X .625 PRE SBE71-0107 | aa | 1 |
| 549A | 4W0104 | • BOLT - .190 DIA X .562 POST SBE71-0107 PRE SBE73-0061 | ab | 1 |
| 549B | 4W0103 | • BOLT - .190 DIA X .500 POST SBE73-0061 PRE SBE79-0087 | ab-ad | 1 |
| 550 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ad | 2 |
| 552 | 400WSS4 | • CLIP 83930 PRE SBE73-0061 | aa-ab | 1 |
| 552A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0061 PRE SBE79-0087 | aa-ad | 1 |
| 556 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ad | 1 |
| 557 | 4W0128 | • BOLT - .190 DIA X 2.125 POST SBE79-0087 | ae | 1 |
| 558 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae | 2 |
| 560 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ae | 1 |
| 562 | UP10480 | • SPACER - 15MM POST SBE79-0087 | ae | 1 |
| 563 | UP10481 | • SPACER - 20MM POST SBE79-0087 | ae | 1 |
| 564 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ae | 1 |
| 568 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ae | 1 |
| 573 | 4W0114 | • BOLT - .190 DIA X 1.188 POST SBE79-0087 | ae | 1 |
| 574 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae | 1 |
| 576 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ae | 1 |
| 578 | UP10480 | • SPACER - 15MM POST SBE79-0087 | ae | 1 |
| 580 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ae | 1 |
| 581 | 4W0102 | • BOLT - .190 DIA X .438 POST SBE79-0087 | ae | 1 |
| 582 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae | 1 |
| 584 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ae | 1 |
| 588 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ae | 1 |
| 589 | 4W0114 | • BOLT - .190 DIA X 1.188 POST SBE79-0087 | ae | 1 |
| 590 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae | 2 |
| 592 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ae | 1 |
| 594 | UP10480 | • SPACER - 15MM POST SBE79-0087 | ae | 1 |
| 596 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ae | 1 |
| 602 | 5W1264 | • • ADAPTOR - UNION | aa-ae | 2 |
| 602A | AS15802 | • • ADAPTOR U1653 POST SBE73-0061 | ac-ae | 1 |
| 620 | 5W1587 | • • ADAPTOR - LUG | aa-ae | 1 |
| 620A | 6A5531 | • • ADAPTOR - LUG POST SBE73-0061 PRE SBE79-0087 | ac-ad | 1 |
| 642 | AS15802 | • • ADAPTOR U1653 | aa-ae | 1 |
| 642A | AS15802 | • • ADAPTOR U1653 POST SBE73-0061 | ac-ae | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

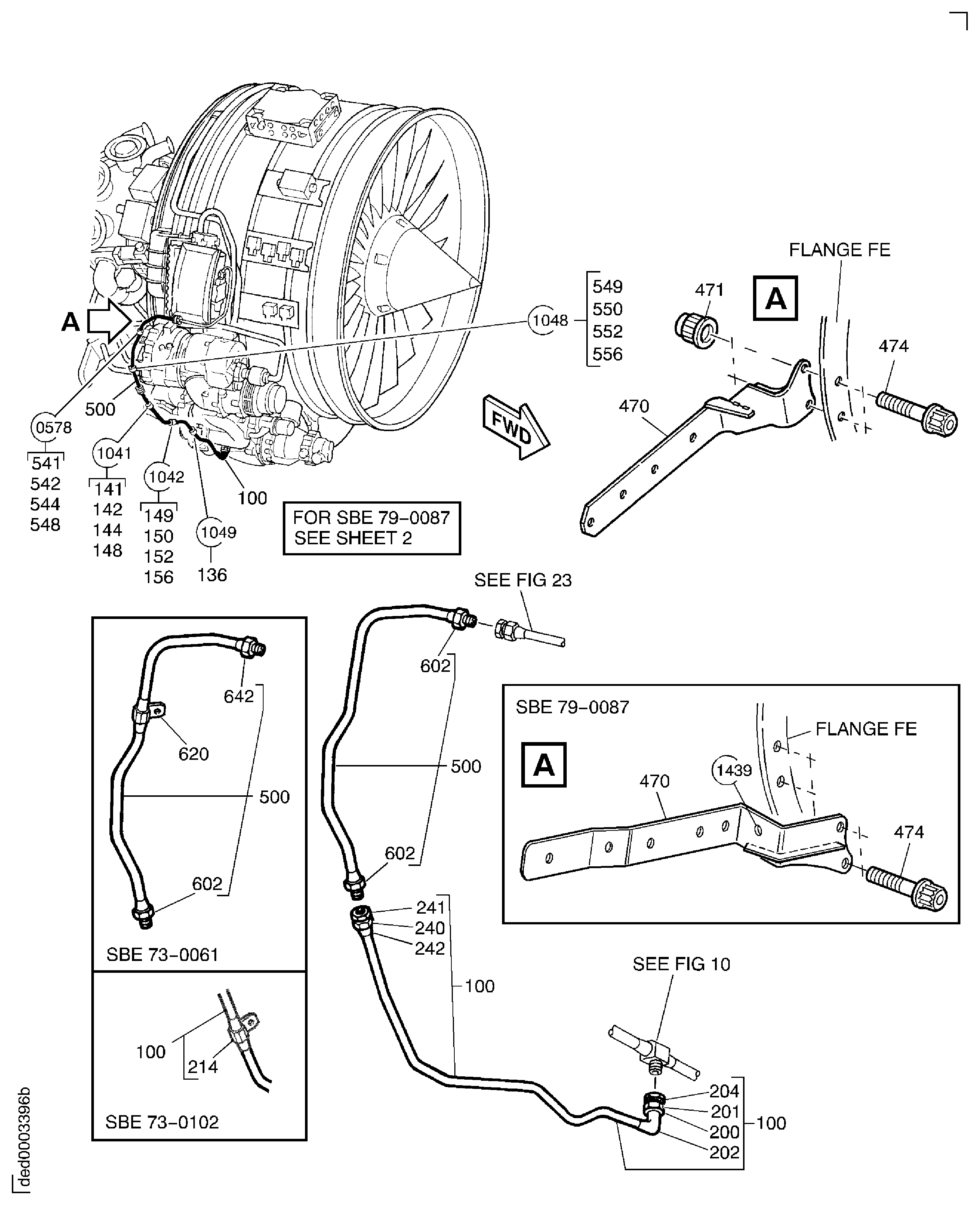

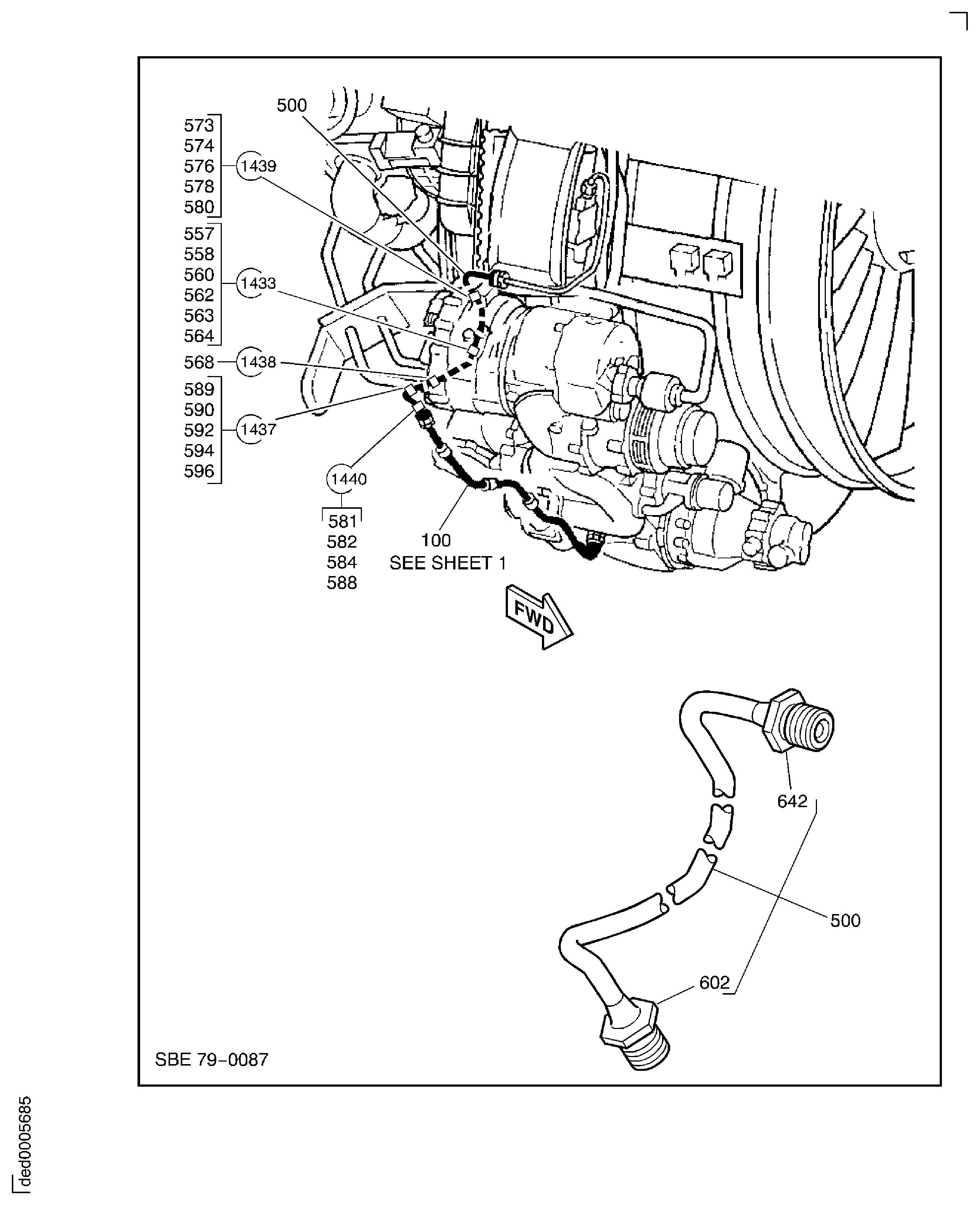

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE
FUEL TUBES ENGINE
FUEL TUBES ENGINE
