DMC:V2500-A1-73-12-42-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B73124201 | ENGINE FUEL AND CONTROL-FUEL FILTER ELEMENT, PRE SBE73-0039 | aa | ||
| SBE0039-01 | ENGINE FUEL AND CONTROL-FUEL FILTER ELEMENT, PRE SBE70-0436 | ab | ||
| SBE0436-01 | ENGINE FUEL AND CONTROL-FUEL FILTER ELEMENT | ac | ||
| 100 | QA06370 | • ELEMENT - FUEL FILTER K6539 REF No. 5L0013 PRE SBE73-0039 | aa-ac | 1 |
| 100A | QA07301 | • ELEMENT - FUEL FILTER K6539 REF No. 5L0048 POST SBE73-0039 PRE SBE70-0436 | aa-ac | 1 |
| 100B | QA07301 | • ELEMENT - FUEL FILTER K6539 ALT 7592541-101 REF No. 5L0048 POST SBE70-0436 | aa-ac | 1 |
| -100C | 7592541-101 | • ELEMENT - FUEL FILTER 05228 ALT QA07301 REF No. 5L0066 POST SBE70-0436 | ac | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

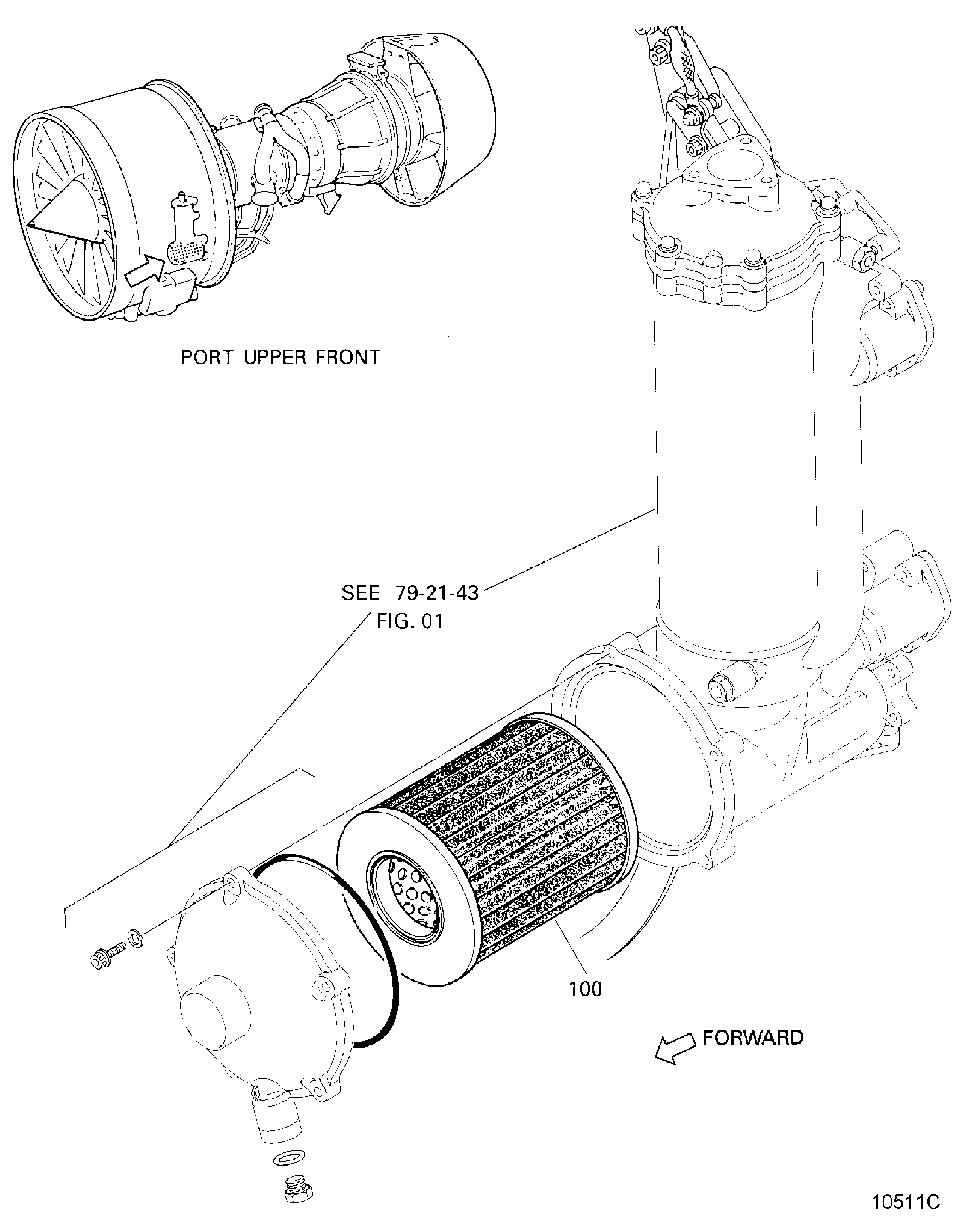

Figure: ENGINE FUEL AND CONTROL-FUEL FILTER ELEMENT
FUEL FILTER ELEMENT
