DMC:V2500-A1-73-22-48-01A-941A-DIssue No:002.00Issue Date:2017-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B73224801 | ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY, PRE SBN71-0126 | aa | ||
| SBN0126-01 | ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY, PRE SBN71-0015 | ab | ||
| SBN0015-01 | ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY, PRE SBN70-0098 | ac | ||
| SBN0098-01 | ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY, PRE SBN71-0102 | ad | ||
| SBN0102-01 | ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY, PRE SBN70-0036 | ae | ||
| SBN0036-01 | ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY, PRE SBN70-0073 | af | ||
| SBN0073-01 | ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY, PRE SBN70-0328 | ag | ||
| SBN0328-01 | ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY, PRE SBN70-0626 | ah | ||
| SBN0626-01 | ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY, PRE SBE70-0727 | ai | ||
| SBE0727-01 | ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY | aj | ||
| -002 | 740-3000-509 | COWL - AIR INTAKE 51563 | aa-ai | REF |
| -002A | 740-3000-511 | COWL - AIR INTAKE 51563 | aa-ai | REF |
| -002B | 740-3000-527 | COWL - AIR INTAKE 51563 | aa-ai | REF |
| -002C | 740-3000-539 | COWL - AIR INTAKE 51563 | aa-ai | REF |
| -002D | 740-3000-559 | COWL - AIR INTAKE 51563 | aa-ai | REF |
| -002E | 740-3000-565 | COWL - AIR INTAKE 51563 PRE SBN71-0126 | aa-ab | REF |
| -002F | 740-3000-573 | COWL - AIR INTAKE 51563 POST SBN71-0126 PRE SBN71-0015 | aa-ac | REF |
| -002G | 740-3000-585 | COWL - AIR INTAKE 51563 POST SBN71-0015 PRE SBN70-0098 | aa-ad | REF |
| -002H | 740-3000-589 | COWL - AIR INTAKE 51563 POST SBN70-0098 PRE SBN71-0102 | aa-ad | REF |
| -002J | 740-3000-593 | COWL - AIR INTAKE 51563 POST SBN71-0102 PRE SBN70-0036 | aa-ae | REF |
| -002K | 740-3000-597 | COWL - AIR INTAKE 51563 POST SBN70-0036 PRE SBN70-0073 | af | REF |
| -002L | 740-3000-601 | COWL - AIR INTAKE 51563 POST SBN70-0073 PRE SBN70-0626 | ag-ah | REF |
| -002M | 740-3000-605 | COWL - AIR INLET 51563 POST SBN70-0626 | ai | REF |
| 020 | 740-3124-501 | • TUBE - ASSY P2T2 PROBE 51563 PRE SBN70-0328 | aa-ag | 1 |
| 020A | AE709568-1 | • HOSE - ASSY, P2T2 K7766 POST SBN70-0328 | ah-ai | 1 |
| 030 | AN924-4S | • NUT - FLARED 81352 | aa-ai | 1 |
| 040 | MS21924-4S | • UNION 96906 | aa-ai | 1 |
| 050 | MS21902-4S | • UNION - FLARELESS TUBE 96906 PRE SBE70-0727 | aa-ai | 1 |
| 050A | MS21902-4R | • UNION - FLARELESS TUBE 96906 POST SBE70-0727 | aj | 1 |
| 055 | AS43003-904 | • RING - 8.92 MM X 1.83 MM U1653 | aa-ai | 1 |
| 055A | AS43003-904 | • RING - 8.92 MM X 1.83 MM U1653 | aa-ai | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

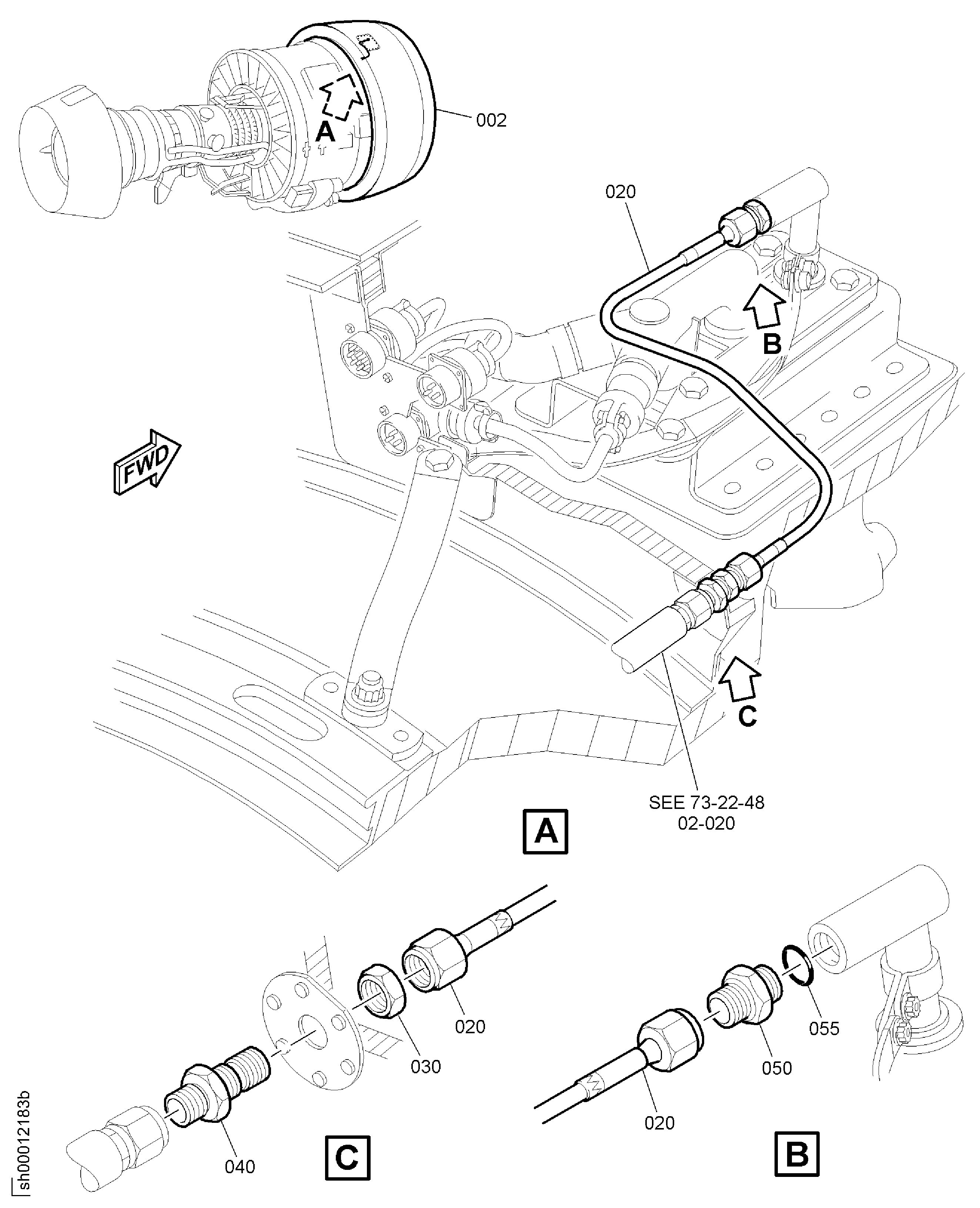

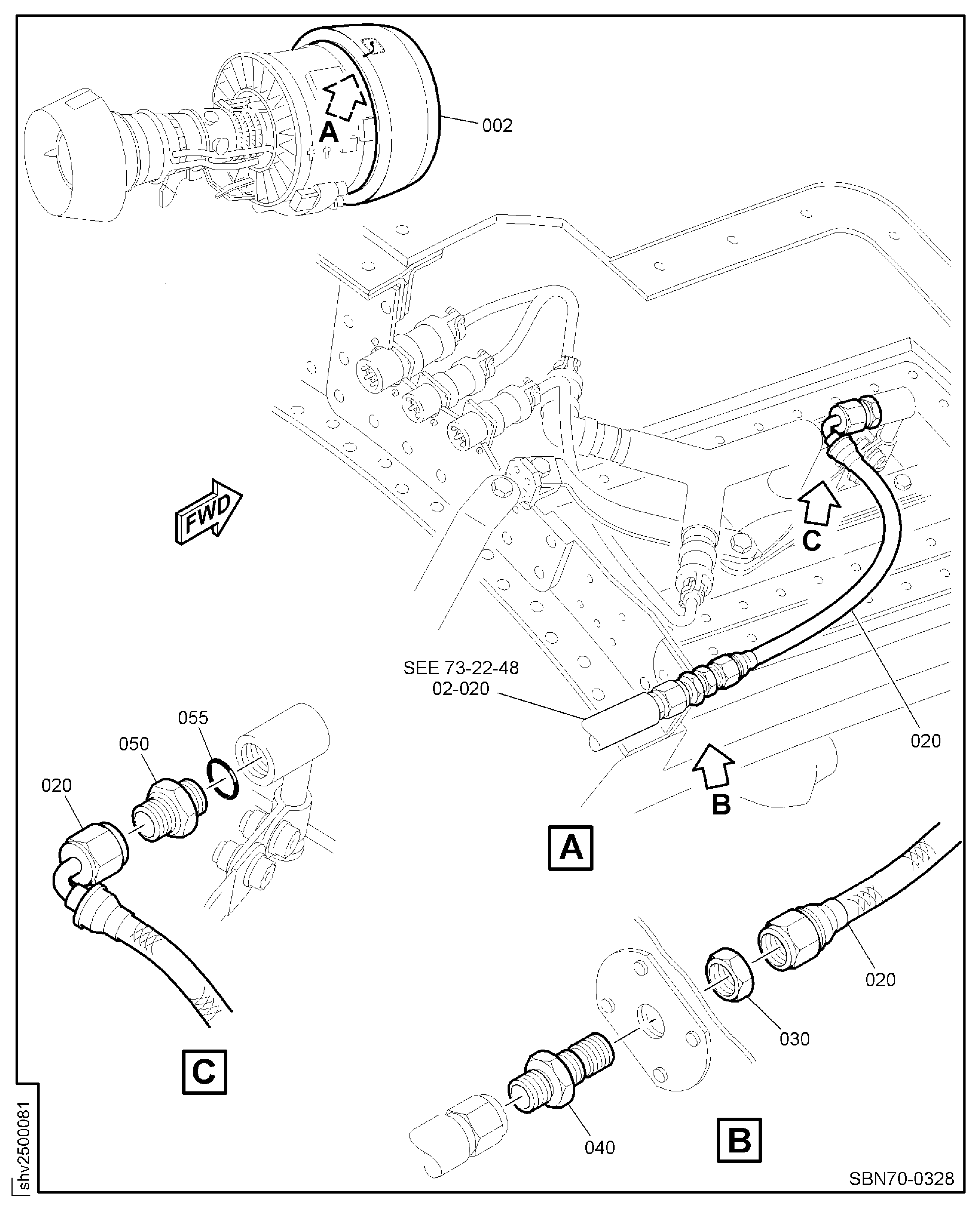

Figure: ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY
TUBES ASSY P2T2 PROBE
TUBES ASSY P2T2 PROBE
