| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B73224902 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE79-0035 | aa | ||
| SBE0035-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE70-0571 | ab | ||
| SBE0571-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE79-0087 | ac | ||
| SBE0087-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE73-0198 | ad | ||
| SBE0198-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES | ae | ||
| 100 | 5A9059 | • TUBE - A/O AIR TO P4.9 EEC PRE SBE79-0087 | aa-ac | 1 |
| 100A | 6A6201 | • TUBE - A/O AIR-P4.9DISCONNECT TO BIF PANEL POST SBE79-0087 | ad-ae | 1 |
| 128 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ac | 1 |
| 136 | 400WSS4 | • CLIP 83930 PRE SBE79-0035 | aa | 1 |
| 136A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0035 PRE SBE79-0087 | aa-ac | 1 |
| 147 | 4W0110 | • BOLT - .190 DIA X .938 POST SBE79-0087 | ad-ae | 1 |
| 148 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad-ae | 1 |
| 150 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ad-ae | 1 |
| 152 | UP10479 | • SPACER - 10MM POST SBE79-0087 | ad-ae | 1 |
| 154 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ad-ae | 1 |
| 155 | 4W0110 | • BOLT - .190 DIA X .938 POST SBE79-0087 | ad-ae | 1 |
| 156 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad-ae | 1 |
| 158 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ad-ae | 1 |
| 160 | UP10479 | • SPACER - 10MM POST SBE79-0087 | ad-ae | 1 |
| 162 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ad-ae | 1 |
| 202 | AS15802 | • • ADAPTOR U1653 | aa-ae | 1 |
| 240 | AS15777 | • • WIRE - THRUST U1653 | aa-ae | 1 |
| 241 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ae | 1 |
| 242 | AS15768 | • • FERRULE - ASSY U1653 | aa-ae | 1 |
| 500 | 5A8737 | • TUBE - ASSY PRE SBE79-0087 | aa-ac | 1 |
| 500A | 6A6209 | • TUBE - A/O AIR-P4.9TO EEC BIF PANEL TO DISCON POST SBE79-0087 | ad-ae | 1 |
| 502 | 4W0002 | • NUT - .250 DIA | aa-ae | 2 |
| 506 | 4W0163 | • BOLT - .250 DIA X .562 | aa-ae | 2 |
| 525 | 4W0107 | • BOLT - .190 DIA X .750 PRE SBE79-0087 | aa-ac | 1 |
| 525A | 4W0102 | • BOLT - .190 DIA X .438 POST SBE79-0087 | ad-ae | 1 |
| 526 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ac | 1 |
| 526A | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad-ae | 1 |
| 528 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ac | 1 |
| 528A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ad-ae | 1 |
| 530 | 5W1029 | • SPACER - (5MM) | aa-ae | 1 |
| 532 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ac | 1 |
| 532A | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ad-ae | 1 |
| 533 | 4W0126 | • BOLT - .190 DIA X 1.938 PRE SBE79-0087 | aa-ac | 1 |
| 534 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ac | 1 |
| 536 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ac | 1 |
| 538 | 5W1031 | • SPACER - (15MM) PRE SBE79-0087 | aa-ac | 1 |
| 539 | 5W1032 | • SPACER - (20MM) PRE SBE79-0087 | aa-ac | 1 |
| 540 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ac | 1 |
| 541 | 4W0109 | • BOLT - .190 DIA X .875 PRE SBE79-0087 | aa-ac | 1 |
| 542 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ac | 2 |
| 544 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ac | 1 |
| 546 | 5W1029 | • SPACER - (5MM) | aa-ae | 1 |
| 548 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ac | 1 |
| 549 | 4W0104 | • BOLT - .190 DIA X .562 PRE SBE73-0064 | ***** | 1 |
| 550 | 5W1086 | • WASHER PRE SBE73-0064 | ***** | 2 |
| 552 | 400WSS4 | • CLIP 83930 PRE SBE73-0064 | ***** | 1 |
| 556 | 4W0001 | • NUT - .190 DIA PRE SBE73-0064 | ***** | 1 |
| 557 | 4W0108 | • BOLT - .190 DIA X .812 Optional Part 4W0108 POST SBE79-0087 | ad-ae | 1 |
| 558 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad-ae | 2 |
| 560 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ad-ae | 1 |
| 562 | UP10478 | • SPACER - 5MM POST SBE79-0087 | ad-ae | 1 |
| 564 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ad-ae | 1 |
| 568 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ad-ae | 1 |
| 574 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ad-ae | 1 |
| 578 | 4W0111 | • BOLT - .190 DIA X 1.000 Optional Part 4W0111 POST SBE79-0087 PRE SBE73-0198 | ad-ae | 1 |
| 578A | 4W0104 | • BOLT - .190 DIA X .562 ALT 4W0104 POST SBE73-0198 | ad-ae | 1 |
| 578B | 4W0344 | • BOLT - .190 DIA X .562 ALT 4W0344 POST SBE73-0198 | ae | 1 |
| 579 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad-ae | 2 |
| 579A | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE73-0198 | ae | 1 |
| 581 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ad-ae | 1 |
| 583 | UP10479 | • SPACER - 10MM POST SBE79-0087 PRE SBE73-0198 | ad | 1 |
| 585 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ad-ae | 1 |
| 586 | 4W0102 | • BOLT - .190 DIA X .438 POST SBE79-0087 | ad-ae | 1 |
| 587 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad-ae | 1 |
| 589 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ad-ae | 1 |
| 593 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ad-ae | 1 |
| 602 | 5W8019 | • • ADAPTOR - UNION FLANGED | aa-ae | 1 |
| 618 | 5A9373 | • • TRAP PRE SBE70-0571 | aa-ae | 1 |
| 618A | UP11197 | • • TRAP - ASSY,MOISTURE ALT 5A9373 POST SBE70-0571 | aa-ae | 1 |
| 618B | 5A9373 | • • TRAP ALT UP11197 POST SBE70-0571 | aa-ae | 1 |
| 640 | AS15777 | • • WIRE - THRUST U1653 | aa-ae | 1 |
| 641 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ae | 1 |
| 642 | AS15768 | • • FERRULE - ASSY U1653 | aa-ae | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

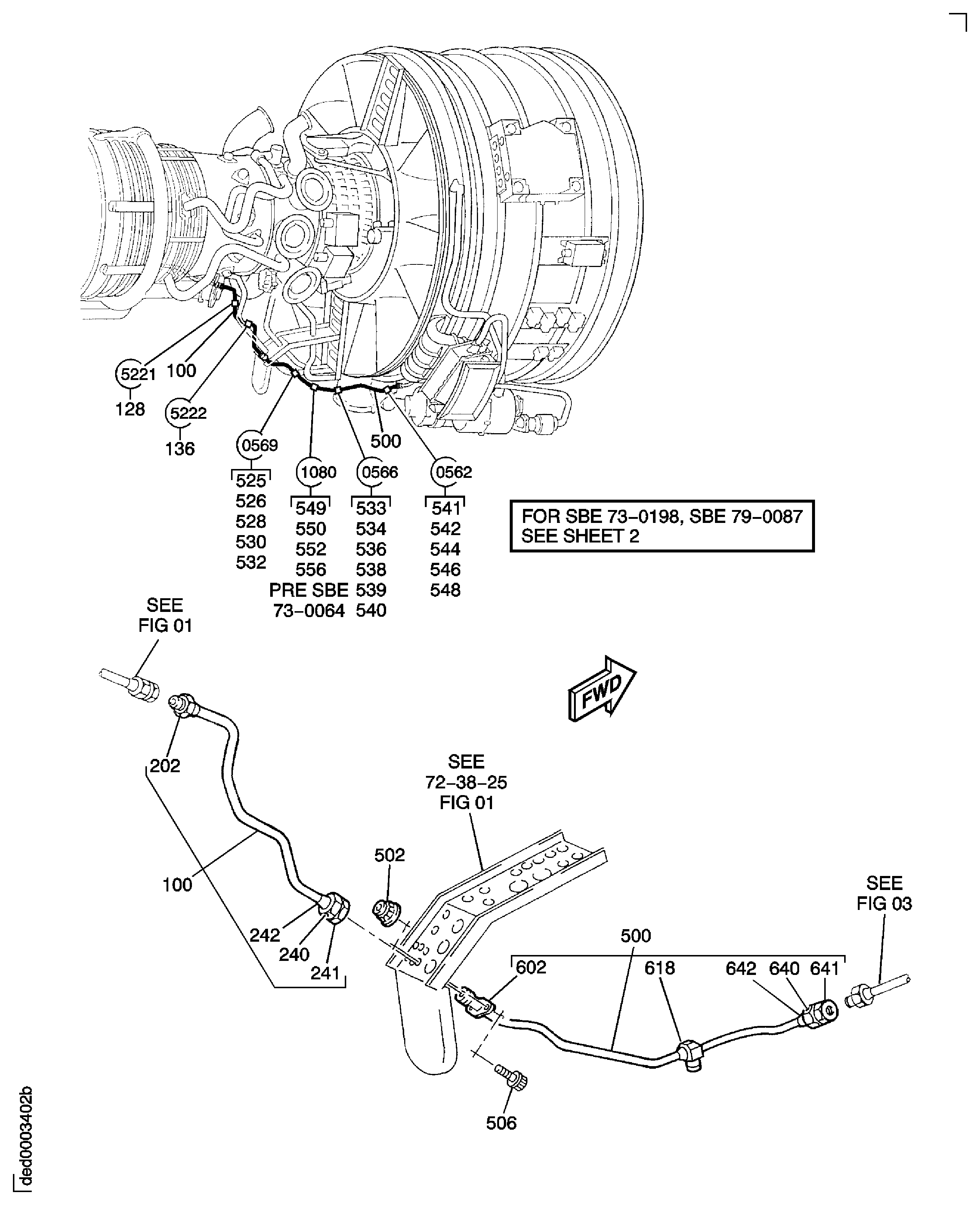

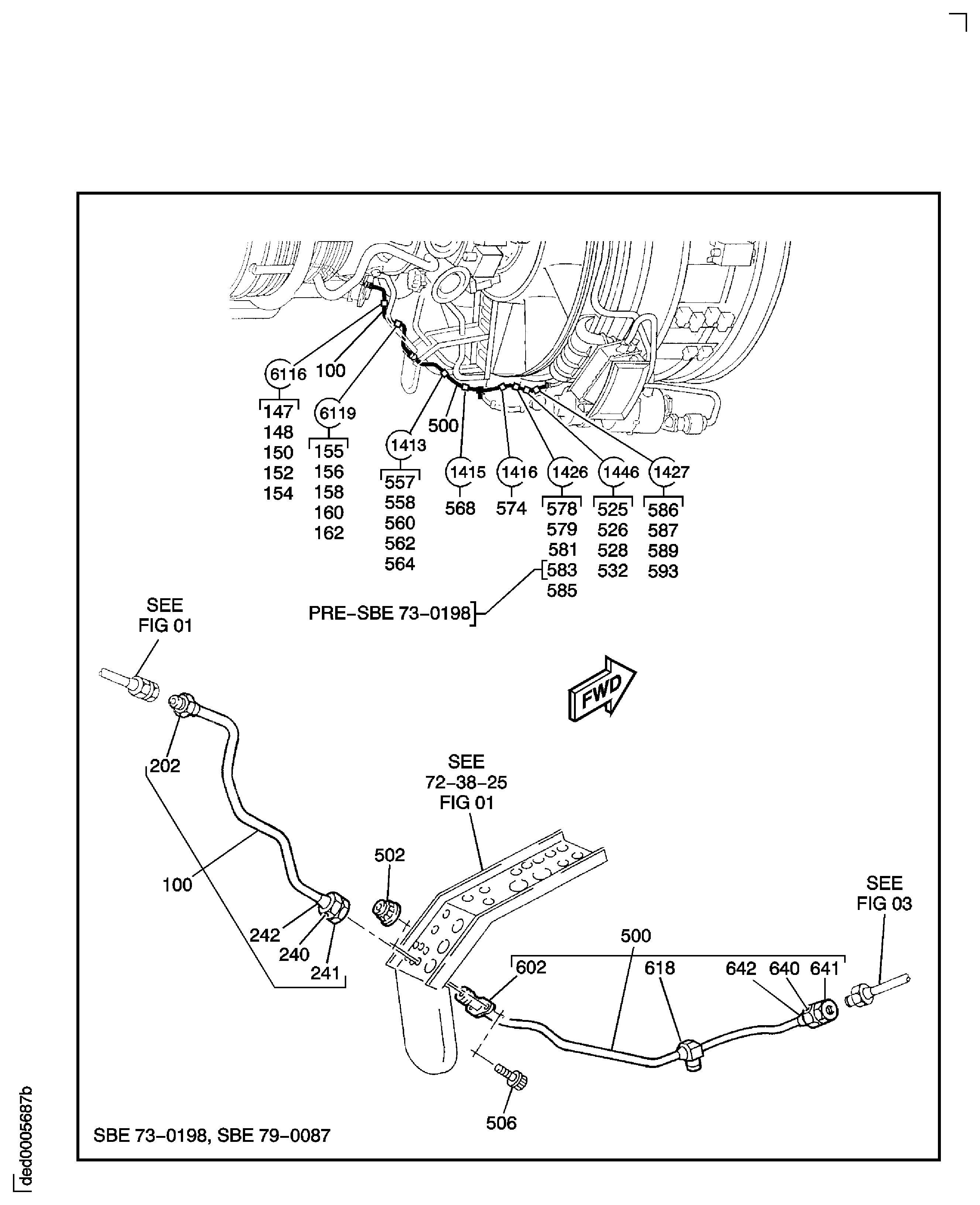

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES
FUEL SYSTEM AIR TUBES
FUEL SYSTEM AIR TUBES
