DMC:V2500-A1-73-22-49-05A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| B73224905 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE79-0087 | aa | ||
| SBE0087-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE73-0198 | ab | ||
| SBE0198-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES | ac | ||
| 100 | 5A8785 | • TUBE - ASSY OF A/O | aa-ac | 1 |
| 125 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ac | 1 |
| 126 | 5W1086 | • WASHER | aa-ac | 1 |
| 128 | 5W1109 | • CLIP | aa-ac | 1 |
| 132 | 4W0043 | • NUT - .190 DIA | aa-ac | 1 |
| 133 | 4W0113 | • BOLT - .190 DIA X 1.125 | aa-ac | 1 |
| 134 | 5W1086 | • WASHER | aa-ac | 1 |
| 136 | 5W1109 | • CLIP | aa-ac | 1 |
| 138 | 5W1031 | • SPACER - (15MM) | aa-ac | 1 |
| 140 | 4W0043 | • NUT - .190 DIA | aa-ac | 1 |
| 141 | 4W0106 | • BOLT - .190 DIA X .688 | aa-ac | 1 |
| 142 | 5W1086 | • WASHER | aa-ac | 2 |
| 144 | 5W1109 | • CLIP | aa-ac | 1 |
| 148 | 4W0001 | • NUT - .190 DIA | aa-ac | 1 |
| 149 | 4W0106 | • BOLT - .190 DIA X .688 | aa-ac | 1 |
| 150 | 5W1086 | • WASHER | aa-ac | 2 |
| 152 | 5W1109 | • CLIP | aa-ac | 1 |
| 156 | 4W0001 | • NUT - .190 DIA | aa-ac | 1 |
| 189 | 4W0104 | • BOLT - .190 DIA X .562 | aa-ac | 1 |
| 190 | 5W1086 | • WASHER | aa-ac | 1 |
| 192 | 5W1109 | • CLIP | aa-ac | 1 |
| 196 | 4W0001 | • NUT - .190 DIA | aa-ac | 1 |
| 200 | AS15777 | • • WIRE - THRUST U1653 | aa-ac | 1 |
| 201 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ac | 1 |
| 202 | AS15768 | • • FERRULE - ASSY U1653 | aa-ac | 1 |
| 203 | AS15722 | • • FERRULE U1653 | aa-ac | 1 |
| 212 | 5W1097 | • • SLEEVE - HALF | aa-ac | 10 |
| 214 | 5W1059 | • • LUG - BRAZED | aa-ac | 6 |
| 242 | AS15802 | • • ADAPTOR U1653 | aa-ac | 1 |
| 500 | 5A8762 | • TUBE - A/O AIR PS3 SENSR LINE PRE SBE79-0087 | aa | 1 |
| 500A | 6A6203 | • TUBE - A/O AIR-PB DISCON TO BIF PANEL POST SBE79-0087 PRE SBE73-0198 | ab | 1 |
| 500B | 6A9123 | • TUBE - ASSY POST SBE73-0198 | ac | 1 |
| 525 | 4W0111 | • BOLT - .190 DIA X 1.000 POST SBE79-0087 | ab-ac | 1 |
| 526 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ab-ac | 1 |
| 528 | TA025022-04 | • CLAMP - 6.35 MM (0.250) 84971 POST SBE79-0087 | ab-ac | 1 |
| 530 | UP10479 | • SPACER - 10MM POST SBE79-0087 | ab-ac | 1 |
| 532 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ab-ac | 1 |
| 536 | TA025022-04 | • CLAMP - 6.35 MM (0.250) 84971 POST SBE73-0198 | ac | 1 |
| 557 | 4W0112 | • BOLT - .190 DIA X 1.062 PRE SBE79-0087 | aa | 1 |
| 557A | 4W0117 | • BOLT - .190 DIA X 1.375 POST SBE79-0087 | ab-ac | 1 |
| 558 | 5W1086 | • WASHER PRE SBE79-0087 | aa | 1 |
| 560 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 560A | TA025022-04 | • CLAMP - 6.35 MM (0.250) 84971 POST SBE79-0087 | ab-ac | 1 |
| 562 | 5W1030 | • SPACER - (10MM) PRE SBE79-0087 | aa | 1 |
| 562A | LK51288 | • SPACER POST SBE79-0087 | ab-ac | 1 |
| 564 | 4W0043 | • NUT - .190 DIA | aa-ac | 1 |
| 568 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 568A | TA025022-04 | • CLAMP - 6.35 MM (0.250) 84971 POST SBE79-0087 | ab-ac | 1 |
| 576 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 584 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 589 | 4W0104 | • BOLT - .190 DIA X .562 PRE SBE79-0087 | aa | 1 |
| 590 | 5W1086 | • WASHER PRE SBE79-0087 | aa | 2 |
| 592 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 596 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa | 1 |
| 600 | AS15777 | • • WIRE - THRUST U1653 | aa-ac | 1 |
| 601 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ac | 1 |
| 602 | AS15768 | • • FERRULE - ASSY U1653 | aa-ac | 1 |
| 614 | 5W1059 | • • LUG - BRAZED PRE SBE79-0087 | aa | 1 |
| 614A | UP11152 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ab-ac | 3 |
| 640 | AS15777 | • • WIRE - THRUST U1653 | aa-ac | 1 |
| 641 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ac | 1 |
| 642 | AS15768 | • • FERRULE - ASSY U1653 | aa-ac | 1 |
| 900 | 5A8758 | • RACEWAY | aa-ac | 1 |
| 901 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ac | 1 |
| 902 | 5W1086 | • WASHER | aa-ac | 1 |
| 908 | 4W0043 | • NUT - .190 DIA | aa-ac | 1 |
| 941 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ac | 1 |
| 942 | 5W1086 | • WASHER | aa-ac | 1 |
| 944 | 400WSS8 | • CLIP 83930 | aa-ac | 1 |
| 948 | 4W0043 | • NUT - .190 DIA | aa-ac | 1 |
| 974 | 5W1063 | • • LUG - BRAZED | aa-ac | 4 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

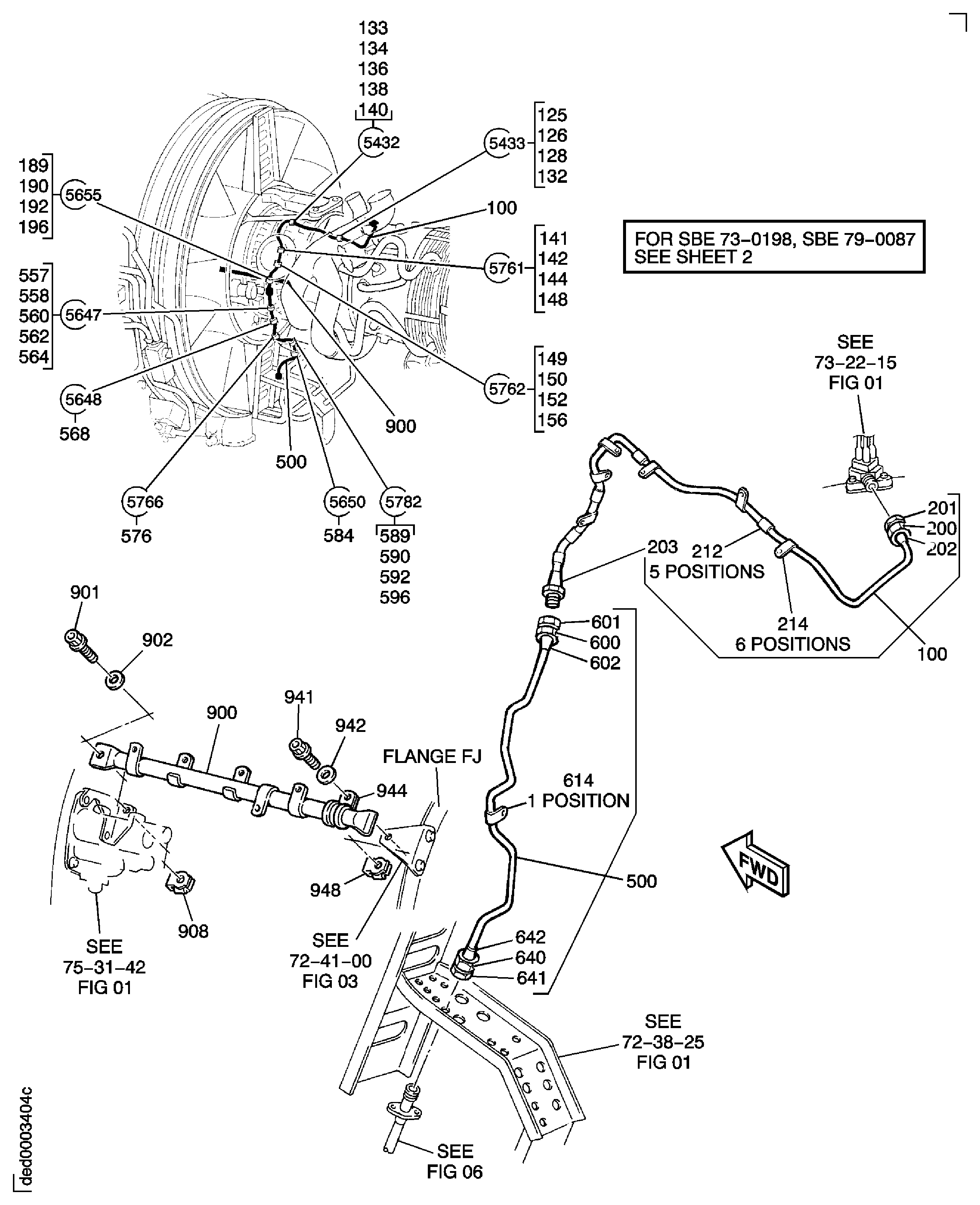

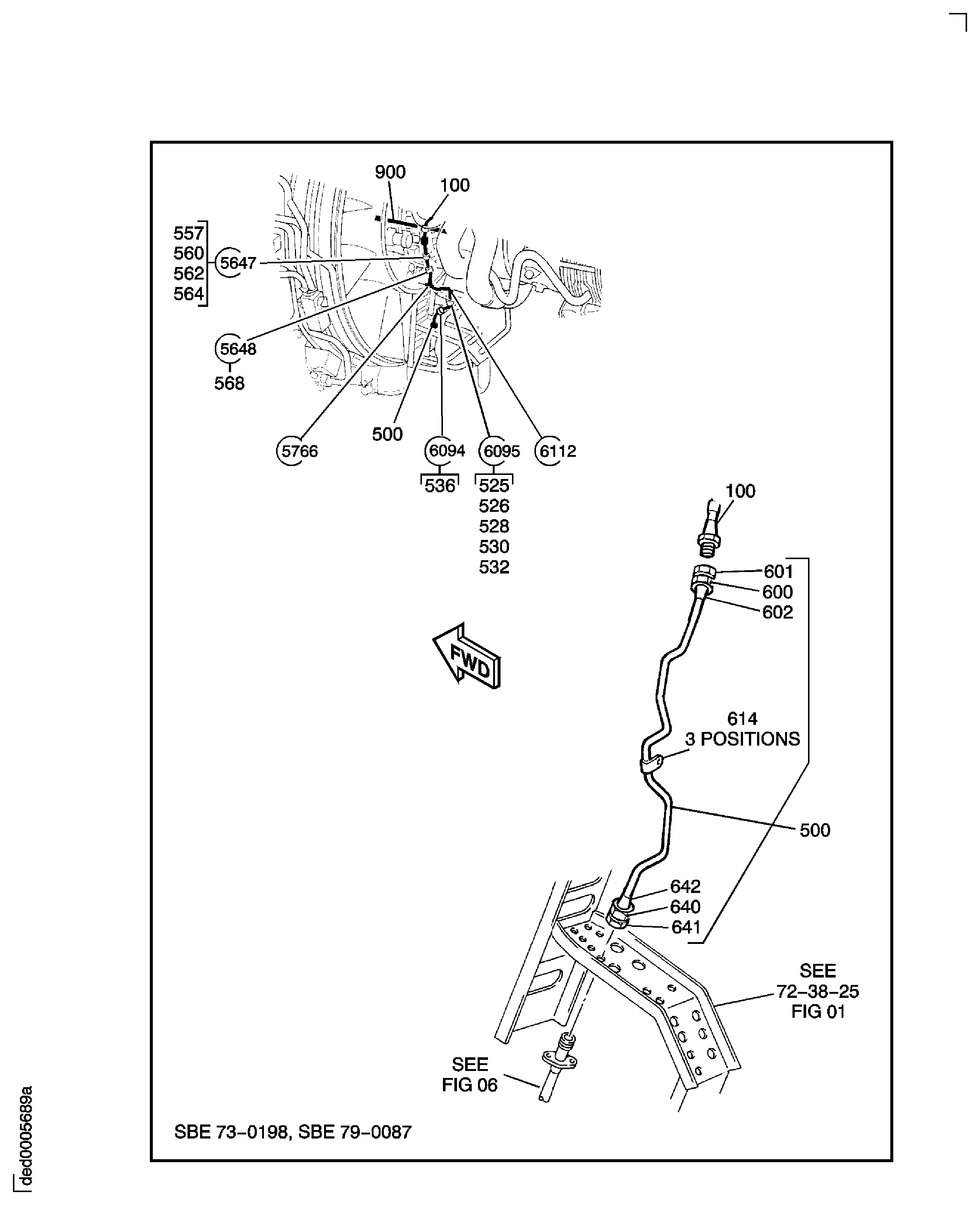

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES
FUEL SYSTEM AIR TUBES
FUEL SYSTEM AIR TUBES
