| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 20 | ||||
| B73225120 | ENGINE FUEL AND CONTROL-P4.9 SENSOR AND MANIFOLD, PRE SBE72-0063 | aa | ||
| SBE0063-01 | ENGINE FUEL AND CONTROL-P4.9 SENSOR AND MANIFOLD, PRE SBE73-0094 | ab | ||
| SBE0094-01 | ENGINE FUEL AND CONTROL-P4.9 SENSOR AND MANIFOLD, PRE SBE70-0797 | ac | ||
| SBE0797-01 | ENGINE FUEL AND CONTROL-P4.9 SENSOR AND MANIFOLD, PRE SBE73-0202 | ad | ||
| SBE0202-01 | ENGINE FUEL AND CONTROL-P4.9 SENSOR AND MANIFOLD | ae | ||
| 020 | 2A3120 | • BRACKET - LOOP CLAMP POST SBE70-0797 PRE SBE73-0202 | ad | 1 |
| 020A | 2A4264 | • BRACKET - LOOP CLAMP POST SBE73-0202 | ae | 1 |
| 050 | 2A2358-01 | • TUBE - PRES CNTR,RGHT,ASSY OF POST SBE72-0063 PRE SBE73-0094 | ab | 1 |
| 050A | 2A3125-01 | • TUBE - ASYO,PRES CNTRL,RIGHT POST SBE73-0094 PRE SBE73-0202 | ac-ad | 1 |
| 050B | 2A4036-01 | • TUBE - ASYO,PRES CNTRL,RIGHT POST SBE73-0202 | ae | 1 |
| 060 | MS9575-04 | • BOLT 96906 POST SBE72-0063 | ab-ae | 2 |
| 070 | 2A2256 | • SEAL - RING, METAL POST SBE72-0063 | ab-ae | 2 |
| 075 | MS122903 | • CLIP - & LOOP TYPE SUPPORT 96906 POST SBE72-0063 | ab-ae | 1 |
| 080 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE72-0063 | ab-ae | 1 |
| 085 | 2A3119 | • BRACKET - LOOP CLAMP POST SBE70-0797 | ad-ae | 1 |
| 090 | 4W1185 | • BOLT - .190 DIA X .625 Optional Part 4W1185 POST SBE72-0063 PRE SBE73-0094 | ab | 1 |
| 090A | 4W1184 | • BOLT - .190 DIA X .562 Optional Part 4W1184 POST SBE73-0094 PRE SBE73-0202 | ac-ad | 1 |
| 090B | 4W1184 | • BOLT - .190 DIA X .562 Optional Part 4W1184 POST SBE73-0202 | ae | 1 |
| 091 | MS122903 | • CLIP 96906 POST SBE73-0094 PRE SBE73-0202 | ac-ad | 1 |
| 091A | MS122903 | • CLIP 96906 POST SBE73-0202 | ae | 1 |
| 092 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0094 PRE SBE73-0202 | ac-ad | 2 |
| 092A | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0202 | ae | 2 |
| 093 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE73-0094 PRE SBE73-0202 | ac-ad | 2 |
| 093A | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE73-0202 | ae | 2 |
| 123 | AS3268-082 | • • SLEEVE - HALF REINFORCING U1653 POST SBE72-0063 PRE SBE73-0094 | ab | 1 |
| 123A | AS3268-082 | • • SLEEVE - HALF REINFORCING U1653 POST SBE73-0094 | ac-ae | 2 |
| 150 | 360193 | • • WIRE - THRUST 77445 POST SBE73-0202 | ae | 1 |
| 180 | 2A2361-01 | • TUBE - PRES CNTR,LEFT ASSY OF POST SBE72-0063 PRE SBE73-0094 | ab | 1 |
| 180A | 2A3124-01 | • TUBE - ASYO,PRES CNTRL,LEFT POST SBE73-0094 PRE SBE73-0202 | ac-ad | 1 |
| 180B | 2A4035-01 | • TUBE - PRES CNTR,LEFT ASSY OF POST SBE73-0202 | ae | 1 |
| 190 | MS9575-04 | • BOLT - MACHINE DOUBLE HEX 96906 POST SBE72-0063 | ab-ae | 2 |
| 200 | 2A2256 | • SEAL - RING, METAL POST SBE72-0063 | ab-ae | 2 |
| 205 | MS122903 | • CLIP - & LOOP TYPE SUPPORT 96906 POST SBE72-0063 | ab-ae | 1 |
| 207 | MS122903 | • CLIP 96906 POST SBE73-0094 PRE SBE73-0202 | ac-ad | 1 |
| 207A | MS122903 | • CLIP 96906 POST SBE73-0202 | ae | 1 |
| 210 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE72-0063 | ab-ae | 1 |
| 211 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0094 PRE SBE73-0202 | ac-ad | 1 |
| 211A | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0202 | ae | 1 |
| 212 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0094 PRE SBE73-0202 | ac-ad | 1 |
| 212A | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0202 | ae | 1 |
| 217 | 2A3119 | • BRACKET - LOOP CLAMP POST SBE70-0797 | ad-ae | 1 |
| 220 | 4W1185 | • BOLT - .190 DIA X .625 Optional Part 4W1185 POST SBE72-0063 PRE SBE73-0094 | ab | 1 |
| 220A | 4W1184 | • BOLT - .190 DIA X .562 Optional Part 4W1184 POST SBE73-0094 PRE SBE73-0202 | ac-ad | 1 |
| 220B | 4W1184 | • BOLT - .190 DIA X .562 Optional Part 4W1184 POST SBE73-0202 | ae | 1 |
| 221 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE73-0094 PRE SBE73-0202 | ac-ad | 1 |
| 221A | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE73-0202 | ae | 1 |
| 222 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE73-0094 PRE SBE73-0202 | ac-ad | 1 |
| 222A | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE73-0202 | ae | 1 |
| 253 | AS3268-082 | • • SLEEVE - HALF REINFORCING U1653 POST SBE72-0063 PRE SBE73-0094 | ab | 2 |
| 253A | AS3268-082 | • • SLEEVE - HALF REINFORCING U1653 POST SBE73-0094 | ac-ae | 4 |
| 290 | 360193 | • • WIRE - THRUST 77445 POST SBE73-0202 | ae | 1 |
| 310 | 2A2362 | • CONNECTR - TUBE PRES CONTROL POST SBE72-0063 | ab-ae | 1 |
| 320 | MS9575-04 | • BOLT 96906 POST SBE72-0063 | ab-ae | 2 |
| 323 | 2A1803-01 | • BRACKET - LOOP CLAMP A/O POST SBE72-0063 PRE SBE73-0202 | ab-ad | 1 |
| 323A | 2A4045-01 | • BRACKET - ASSY POST SBE73-0202 | ae | 1 |
| 325 | 4W0038 | • • NUT - .190 DIA Optional Part 4W0038 POST SBE72-0063 PRE SBE73-0202 | ab-ad | 2 |
| 325A | 594412 | • • NUT - OPTION 77445 POST SBE73-0202 | ae | 2 |
| 326 | AN123468 | • • RIVET - SOLID,100 DEGREE 81352 POST SBE72-0063 PRE SBE73-0202 | ab-ad | 4 |
| 326A | AN123468 | • • RIVET - SOLID,100 DEGREE 81352 POST SBE73-0202 | ae | 4 |
| 330 | 2A2256 | • SEAL - RING, METAL POST SBE72-0063 | ab-ae | 2 |
| 355 | 2A3123 | • BRACKET - LOOP CLAMP POST SBE70-0797 PRE SBE73-0202 | ad | 1 |
| 355A | 2A4080 | • BRACKET POST SBE73-0202 | ae | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

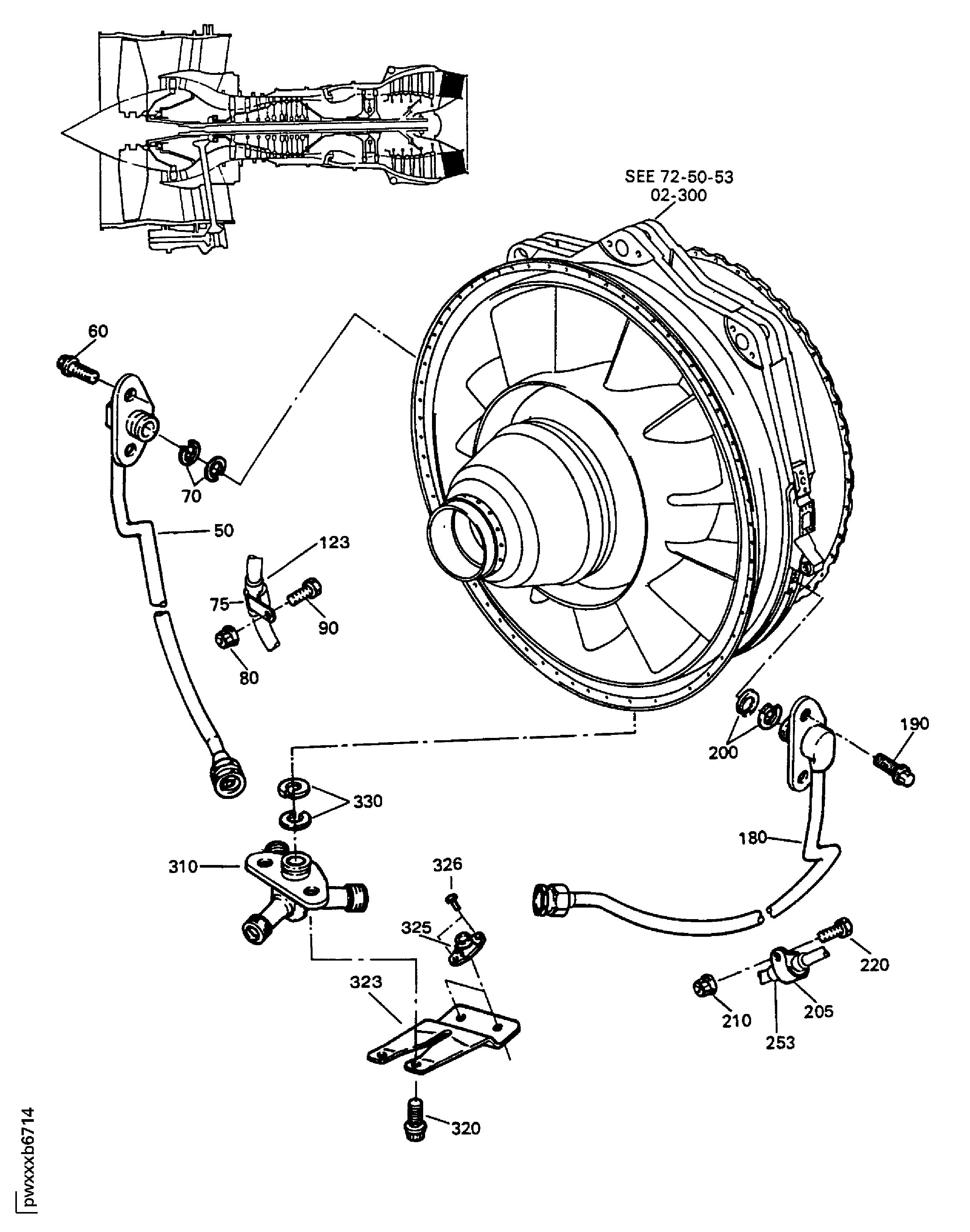

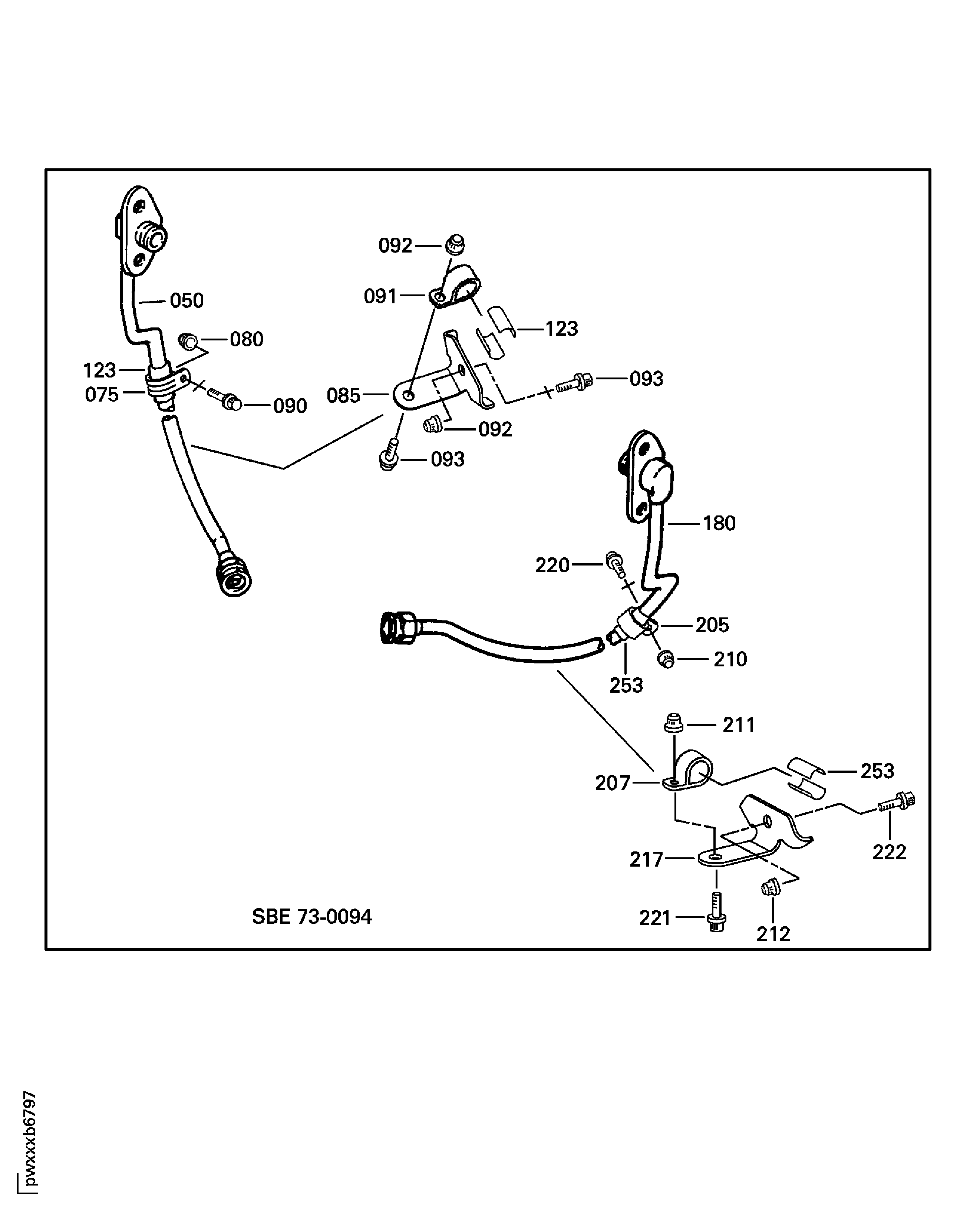

Figure: ENGINE FUEL AND CONTROL-P4.9 SENSOR AND MANIFOLD
MANIFOLD PRESSURE CONTROL
MANIFOLD PRESSURE CONTROL
