DMC:V2500-A1-73-34-15-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B73341501 | FUEL FILTER DIFF PRESSURE SWITCH | aa | ||
| -005 | 740-5004-505 | ARRGT - FUEL SYSTEM 51563 | aa | REF |
| 010 | 21SN04-300 | • SWITCH - FUEL FILT DIFF PRESS 02750 | aa | 1 |
| 010A | 21SN04-300A | • SWITCH - FUEL FILT DIFF PRESS 02750 | aa | 1 |
| 010B | 21SN04-300B | • SWITCH - FUEL FILTER, DIFF PRESSURE 02750 | aa | 1 |
| 020 | 4W0167 | • BOLT - .250 DIA X .812 | aa | 4 |
| 030 | AS43013-107 | • RING U1653 | aa | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

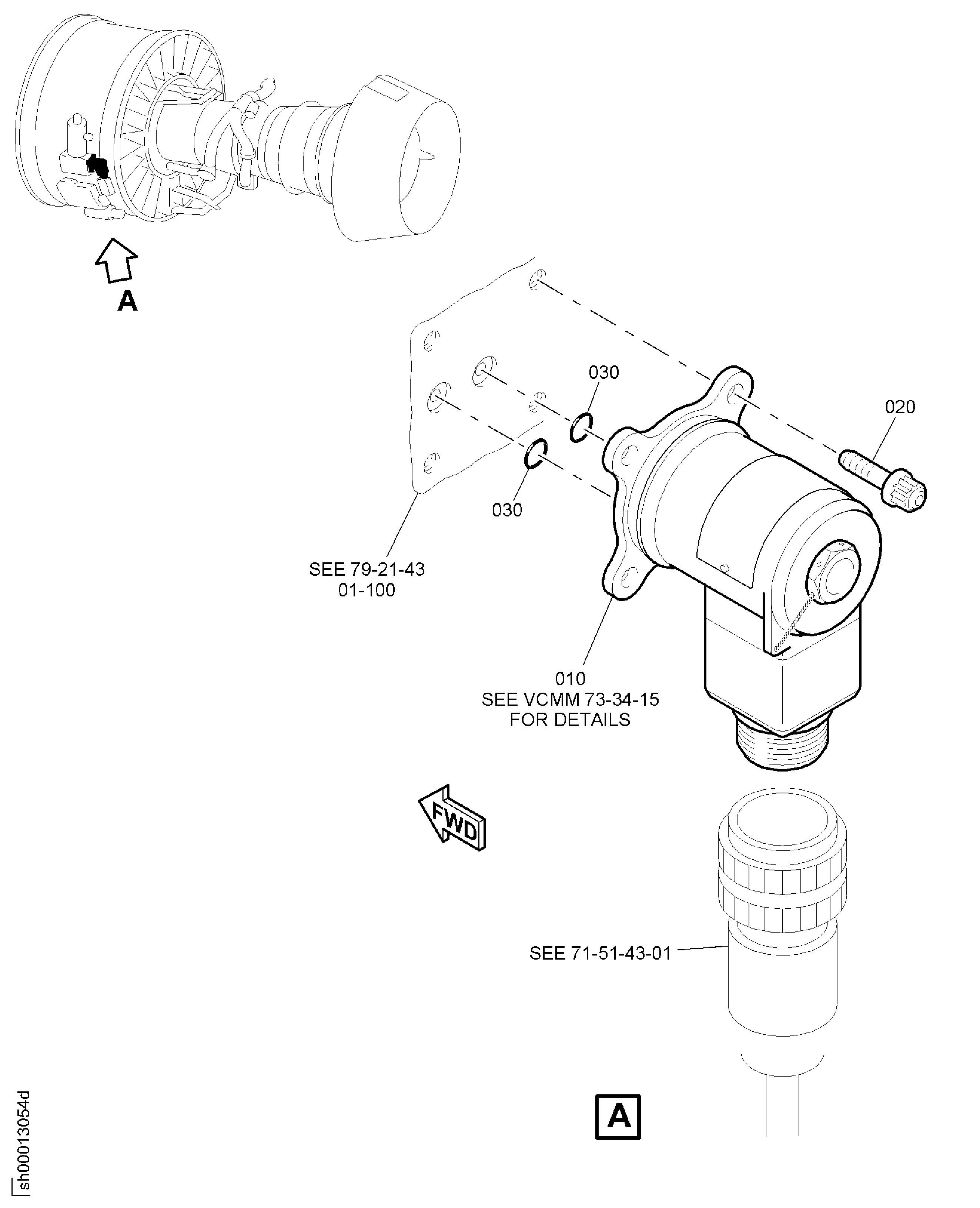

Figure: FUEL FILTER DIFF PRESSURE SWITCH
SWITCH FUEL FILTER
